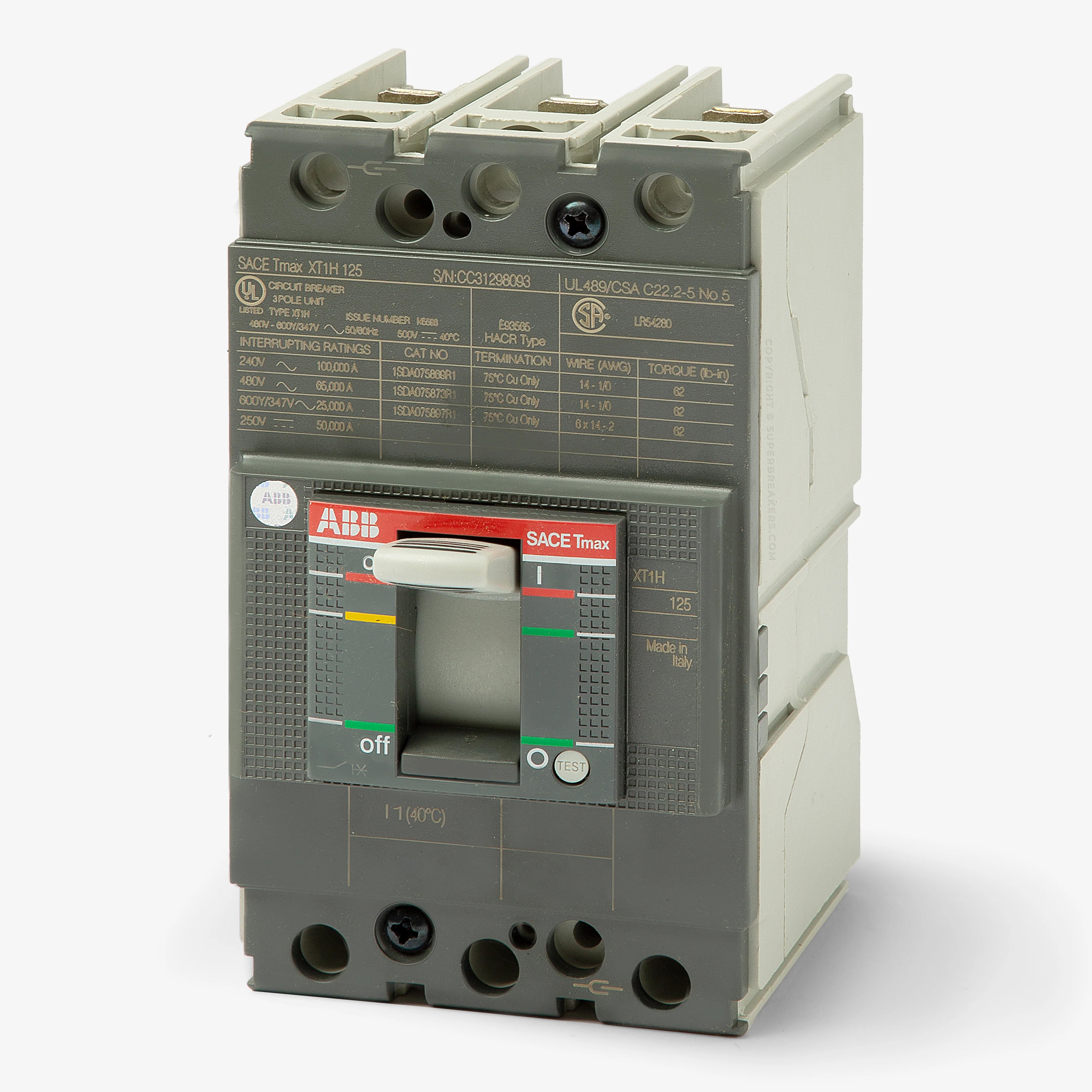

ABB XT1NU3050AFD000XXX 50A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 50kA @ 240V

In stock
SKU: XT1NU3050AFD000XXX GTIN/UPC: 8015644785086
$449.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB XT1NU3050AFD000XXX is a 50A, 3-pole molded case circuit breaker from the SACE Tmax XT family, designed as a direct replacement for the legacy T1N050TL. It is engineered for commercial and industrial applications requiring dependable long-time and instantaneous (LI) protection. Built for unit mount installation, it integrates into ABB ReliaGear SB switchboards and enclosures. The breaker includes load side lugs and mounting hardware for streamlined installation and system integration.

Voltage and Rating

  • Current Rating: 50 A
  • Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC
  • AIC Rating:
    • 50kA @ 240VAC
    • 25kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 36kA @ 250VDC
    • 36kA @ 500VDC

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: XT1
  • Number of Poles: 3-Pole
  • Phase: 3 Phase
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Mounting Style: Unit Mount
  • Terminal Type: Lugs
  • Application: Commercial and industrial power distribution

Technical Specifications

  • Wire Range: 10 AWG – 2/0 AWG
  • Max Wire: 2/0 AWG
  • Min Wire: 10 AWG
  • Temperature Rating: -25°C to 70°C
  • Construction Features: HACR Rated, Reverse Feed, Double Insulated
  • Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
  • Approvals: CE, CSA, cULus, HACR, IEC, UL
  • Accessories Included: Load Side Lugs, Mounting Hardware
  • Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator

Product Data

  • Manufacturer: ABB
  • Model Number: XT1NU3050AFD000XXX
  • Product Series: XT1 (SACE Tmax XT)
  • Product Type: Molded Case Circuit Breaker
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
