ABB

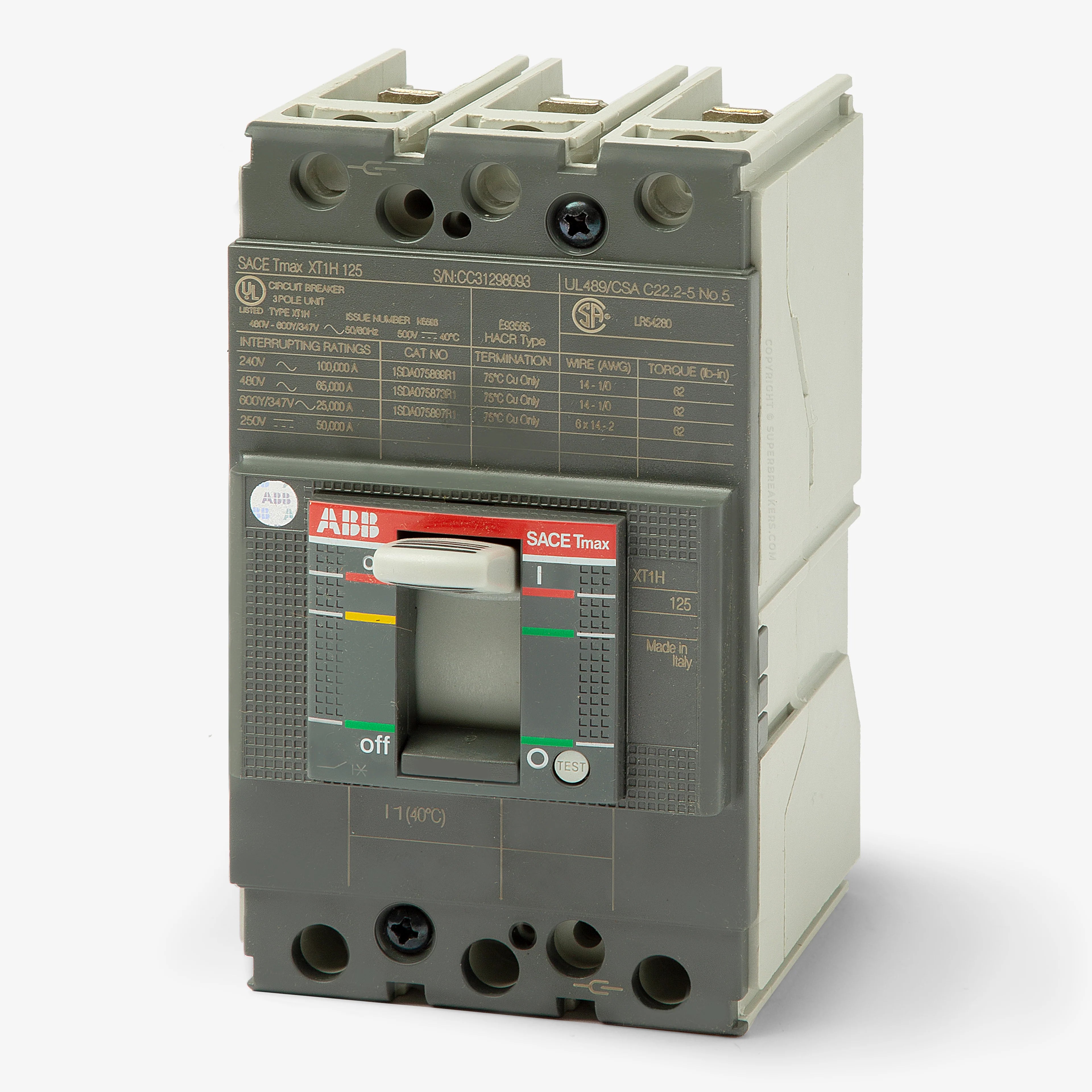

ABB XT1NU3070AFD000XXX 70A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 50kA @ 240V

In stock
SKU: XT1NU3070AFD000XXX GTIN/UPC: 8015644786205
$485.80
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB XT1NU3070AFD000XXX is a 70A, 3-pole molded case circuit breaker from the SACE Tmax XT1 family, engineered for commercial and industrial power distribution. Designed as a direct replacement for legacy T1N070TW breakers, it features a fixed thermal-magnetic (TMF) trip unit that provides dependable long-time and instantaneous (LI) protection. This unit mount breaker integrates into ABB SACE Tmax XT panelboards and switchboards and includes load-side lugs for copper or aluminum wiring.

Voltage and Rating

  • Current Rating: 70 A
  • Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC
  • AIC Rating:
    • 50kA @ 240VAC
    • 25kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 36kA @ 250VDC
    • 36kA @ 500VDC

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: XT1
  • Number of Poles: 3-Pole
  • Phase: 3 Phase
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Mounting Style: Unit Mount
  • Terminal Type: Lugs
  • Application: Commercial and industrial power distribution

Technical Specifications

  • Wire Range: 10 AWG – 2/0 AWG
  • Max Wire: 2/0 AWG
  • Min Wire: 10 AWG
  • Temperature Rating: -25°C to 70°C
  • Construction Features: HACR Rated, Reverse Feed
  • Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
  • Approvals: CE, CSA, cULus, HACR, IEC, UL
  • Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment
  • Accessories Included: Load Side Lugs (Kit FC CuAl 10–2/0 AWG)

Product Data

  • Manufacturer: ABB
  • Model Number: XT1NU3070AFD000XXX
  • Product Series: XT1 (SACE Tmax XT1)
  • Product Type: Molded Case Circuit Breaker
  • For Use With: ABB SACE Tmax XT Panelboards and Switchboards
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
