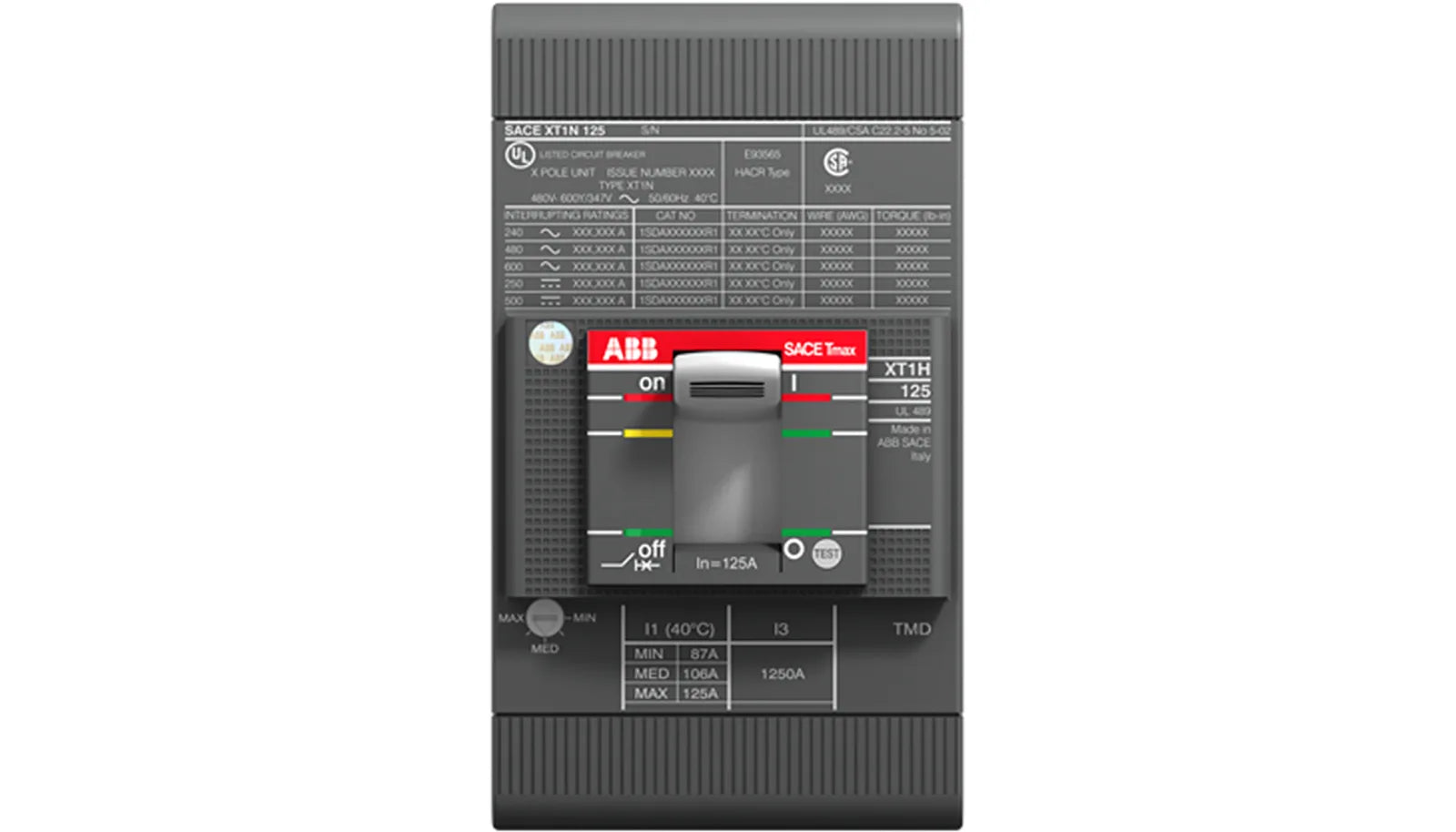

ABB XT1NU3100AFF000XXX 125A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 25kA

In stock
SKU: XT1NU3100AFF000XXX GTIN/UPC: 8015644786236
$428.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB XT1NU3100AFF000XXX is a 3-pole molded case circuit breaker from the Tmax XT series, designed for reliable protection in commercial and industrial electrical systems. It features a thermal-magnetic trip unit and a fixed built-in construction for consistent long-time and instantaneous protection. Engineered for front-side mounting, this breaker offers dependable performance in compact panelboard and switchboard installations.

Voltage and Rating

  • Current Rating: 125 A
  • Voltage Rating: 480 V
  • Voltage Range: 240 to 347 V
  • Breaking Capacity: 25 kA

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: Tmax XT Series
  • Number of Poles: 3-Pole
  • Actuator Type: Toggle
  • Connection Type: Bolt Connection
  • Mounting Orientation: Front Side
  • IP Rating: IP20
  • Application: Electrical distribution systems

Technical Specifications

  • Trip Technology: Thermal/Magnetic
  • Construction Type: Built-in device, fixed built-in technique
  • Alternate Mfr Part Number: 1SDA074646R1
  • Standards Classification: UNSPSC 39120000
  • Compact design suitable for industrial and commercial installations

Product Data

  • Manufacturer: ABB
  • Model Number: XT1NU3100AFF000XXX
  • Part Number: XT1NU3100AFF000XXX
  • Product Series: Tmax XT Series
  • Product Type: Molded Case Circuit Breaker
  • UPC: 8015644786236
  • Unit of Measure: EA
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
