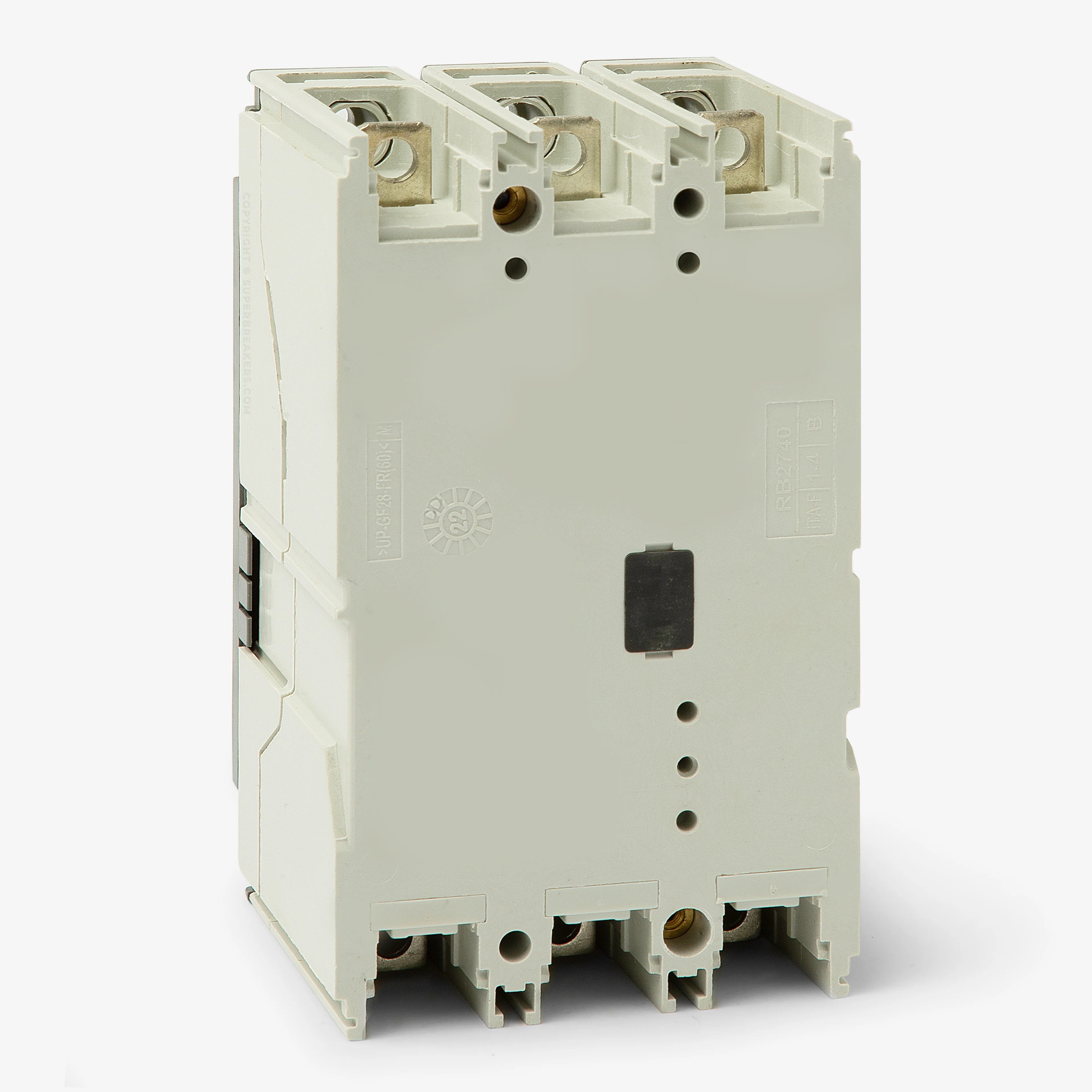

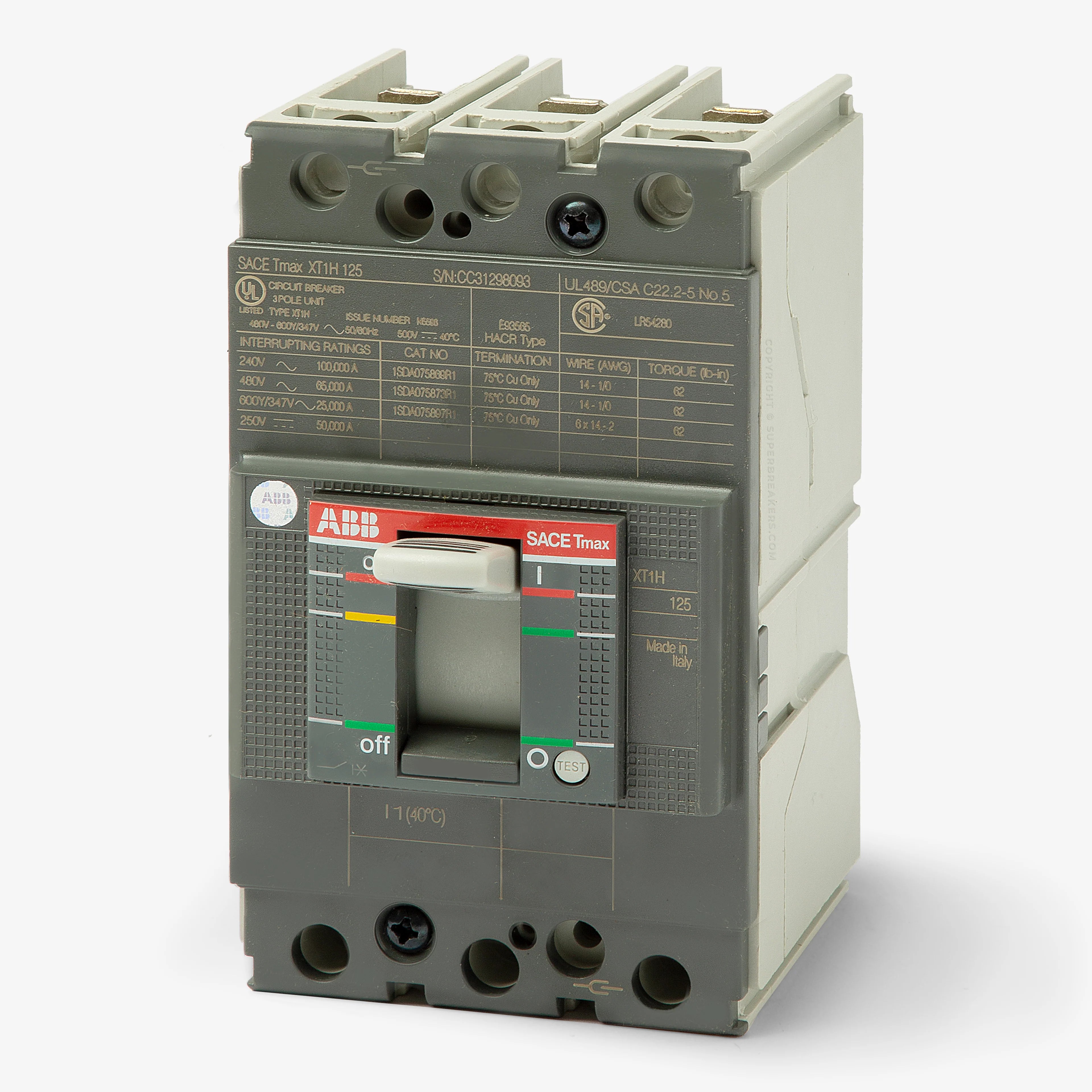

ABB XT1NU3110AFD000XXX 110A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 25kA @ 480V

In stock
SKU: XT1NU3110AFD000XXX GTIN/UPC: 56221750316
$635.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB XT1NU3110AFD000XXX is a 110A, 3-pole molded case circuit breaker from the SACE Tmax XT family, designed for commercial and industrial power distribution applications. It delivers reliable overcurrent protection using a fixed thermal-magnetic (LI) trip unit, ensuring accurate long-time and instantaneous response. This unit-mount breaker integrates into ABB SACE Tmax XT panelboards, switchboards, and enclosures, serving as a direct replacement for legacy Tmax T1 series breakers. It includes both line and load lugs along with mounting hardware for simplified installation.

Voltage and Rating

  • Current Rating: 110 A
  • Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC
  • AIC Rating:
    • 50kA @ 240VAC
    • 25kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 35kA @ 250VDC

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: XT1
  • Number of Poles: 3-Pole
  • Phase: 3 Phase
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Mounting Style: Unit Mount
  • Terminal Type: Lugs
  • Application: Commercial and industrial power distribution

Technical Specifications

  • Wire Range: 10 AWG – 2/0 AWG
  • Max Wire: 2/0 AWG
  • Min Wire: 10 AWG
  • Temperature Rating: -25°C to 70°C
  • Construction Features: HACR Rated, Reverse Feed, Trip-Free Mechanism, Double Insulated
  • Standards: CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489
  • Approvals: CE, CSA, cULus, IEC, RoHS, UL

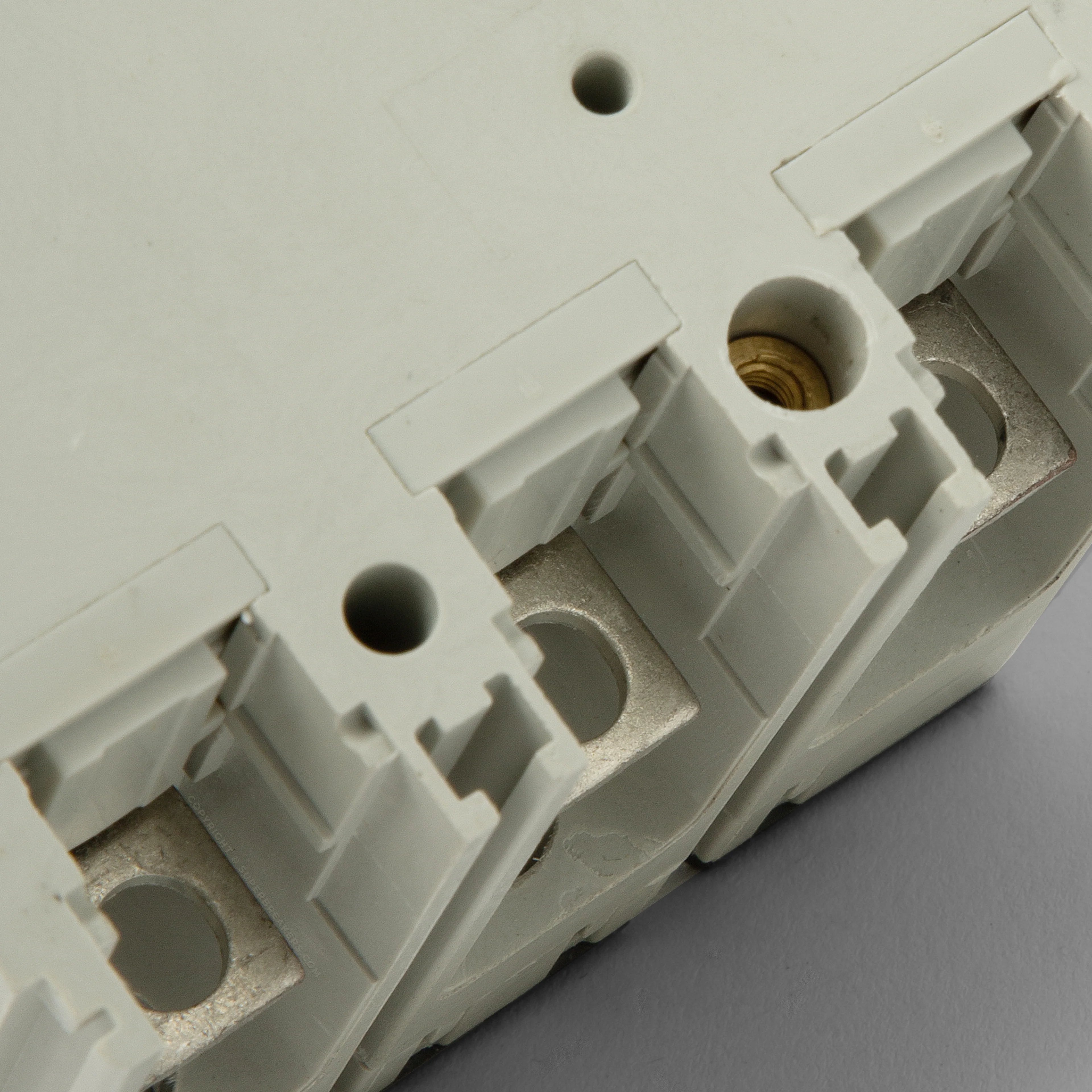

  • Accessories Included: Line and Load Lugs, Mounting Hardware, Phase Barriers
  • Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment

Product Data

  • Manufacturer: ABB
  • Model Number: XT1NU3110AFD000XXX
  • Product Series: XT1 (SACE Tmax XT)
  • Product Type: Molded Case Circuit Breaker
  • For Use With: ABB SACE Tmax XT Panelboards, Switchboards, Enclosures
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
