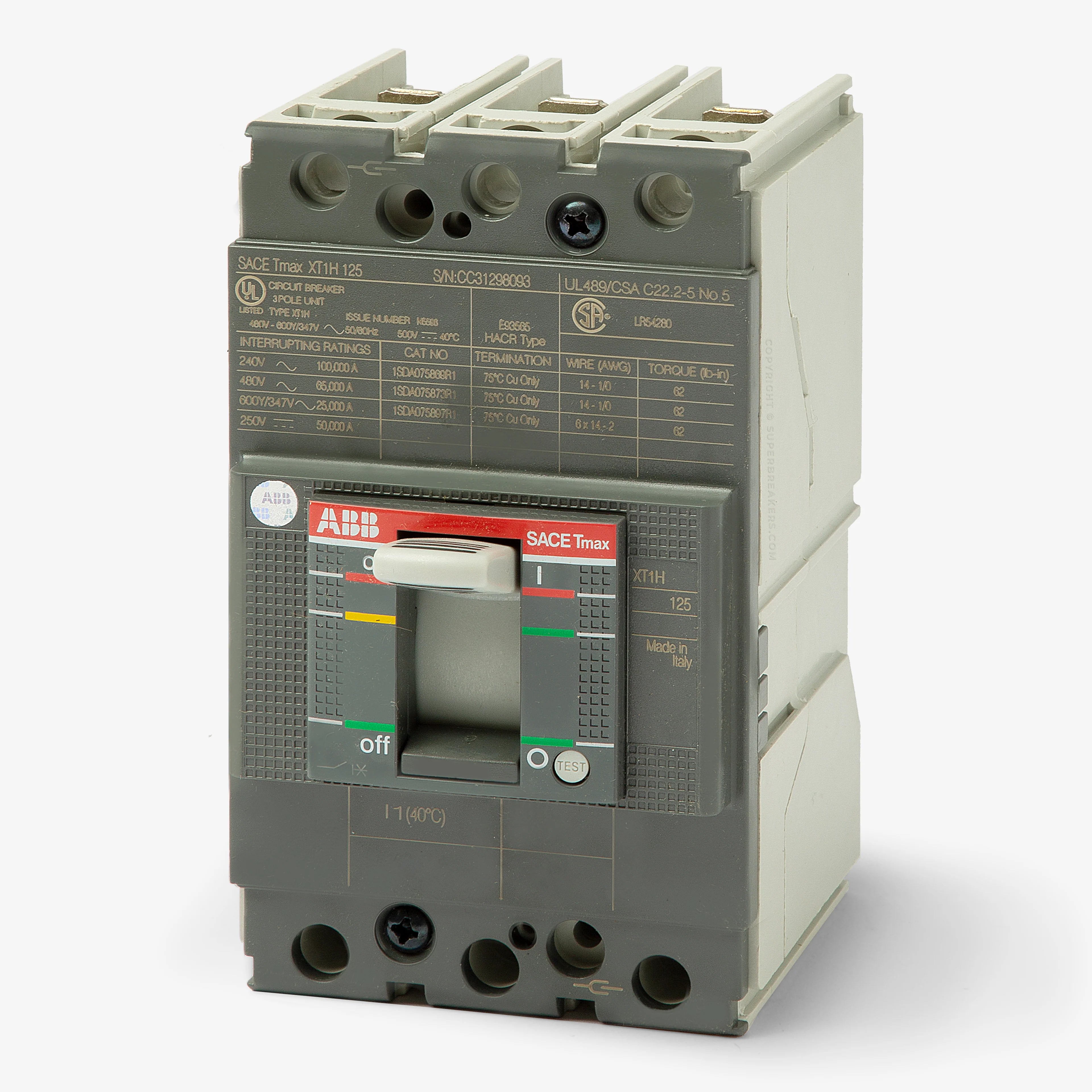

ABB XT1SU3070AFD000XXX 70A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 35kA @ 480V

The ABB XT1SU3070AFD000XXX is a 70A, 3-pole molded case circuit breaker from the SACE Tmax XT1 family, designed for industrial-grade power distribution systems. It installs in ReliaGear SB switchboards and compatible enclosures, serving as a direct replacement for discontinued T1S070TL units. The breaker uses a fixed thermal-magnetic (LI) trip unit to provide dependable long-time and instantaneous protection. With a 35kA interrupting capacity at 480VAC, it ensures reliable fault interruption in demanding applications.

Voltage and Rating

• Current Rating: 70 A
• Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC
• AIC Rating:
  • 65kA @ 240VAC
  • 35kA @ 480VAC
  • 22kA @ 600Y/347VAC
  • 42kA @ 250VDC

Key Specifications

• Device Type: Molded Case Circuit Breaker
• Series: XT1
• Number of Poles: 3-Pole
• Phase: 3 Phase
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• Application: Commercial and industrial distribution systems

Technical Specifications

• Wire Range: 10 AWG – 2/0 AWG (Cu/Al)
• Max Wire: 2/0 AWG
• Min Wire: 10 AWG
• Temperature Rating: -25°C to 70°C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed, Double Insulated
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approvals: CE, CSA, cULus, IEC, UL
• Accessories Included: Load Side Lugs
• Optional Accessories: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Motor Operator

Product Data

• Manufacturer: ABB
• Model Number: XT1SU3070AFD000XXX
• Product Series: XT1 (SACE Tmax XT1)
• Product Type: MCCB (Molded Case Circuit Breaker)
• Installation Type: Unit Mount
• Compatible Systems: ReliaGear SB Switchboards, Enclosures
