ABB XT1SU3100AFD000XXX 100A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 35kA @ 480V

In stock
SKU: XT1SU3100AFD000XXX GTIN/UPC: 05622175046
$585.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

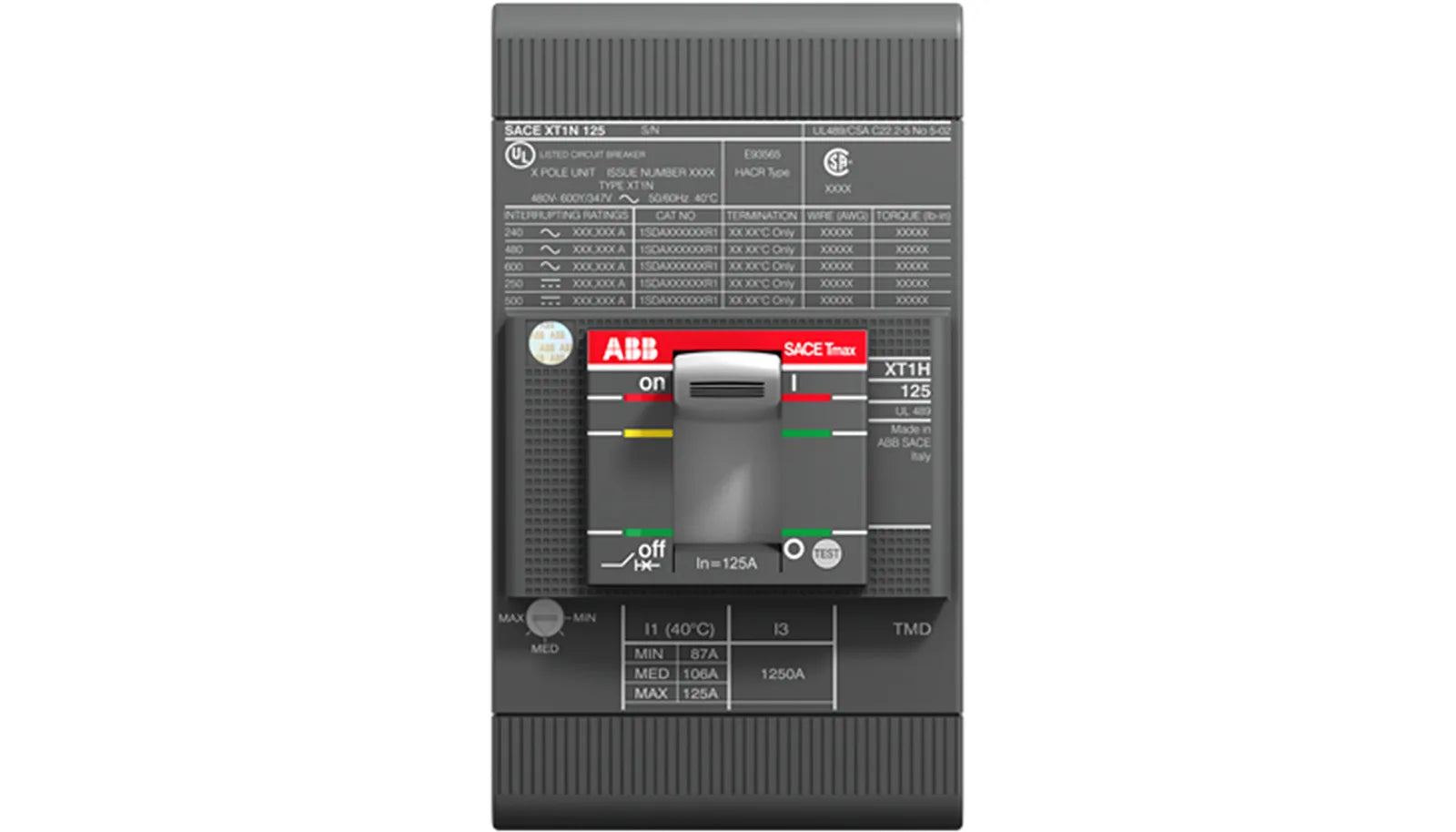

The ABB XT1SU3100AFD000XXX is a 100A, 3-pole molded case circuit breaker from the SACE Tmax XT1 family, designed for commercial and industrial electrical distribution systems. It provides dependable overcurrent protection using a fixed thermal-magnetic trip unit, delivering both long-time and instantaneous (LI) protection.

This unit-mount breaker is engineered for installation in ABB SACE Tmax XT panelboards and compatible switchboards. It is suitable for replacing legacy Tmax T1 series breakers while maintaining consistent system performance and compatibility.

With a 35kA interrupting rating at 480VAC, the XT1SU3100AFD000XXX offers strong fault-clearing capability in compact distribution systems.

Voltage and Rating

  • Current Rating: 100 A
  • Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC
  • AIC Rating:
    • 65kA @ 240VAC
    • 35kA @ 480VAC
    • 22kA @ 600Y/347VAC
    • 42kA @ 250VDC

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: XT1
  • Number of Poles: 3-Pole
  • Phase: 3 Phase
  • Trip Technology: Thermal Magnetic
  • Protection: Fixed Thermal / Fixed Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Mounting Style: Unit Mount
  • Terminal Type: Lugs
  • Application: Commercial and industrial power distribution

Technical Specifications

  • Wire Range: 10 AWG – 2/0 AWG (Cu/Al)
  • Max Wire: 2/0 AWG
  • Min Wire: 10 AWG
  • Temperature Rating: -25°C to 70°C
  • Dimensions (HxWxD): 5.12" x 3.00" x 2.76"
  • Weight: 2.4 lbs
  • Construction Features: Current Limiting, Double Insulated, Reverse Feed, HACR Rated
  • Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489

Product Data

  • Manufacturer: ABB
  • Model Number: XT1SU3100AFD000XXX
  • Product Series: XT1 (SACE Tmax XT1)
  • Installation Type: Unit Mount
  • Compatible Equipment: ABB SACE Tmax XT Panelboards and Switchboards
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
