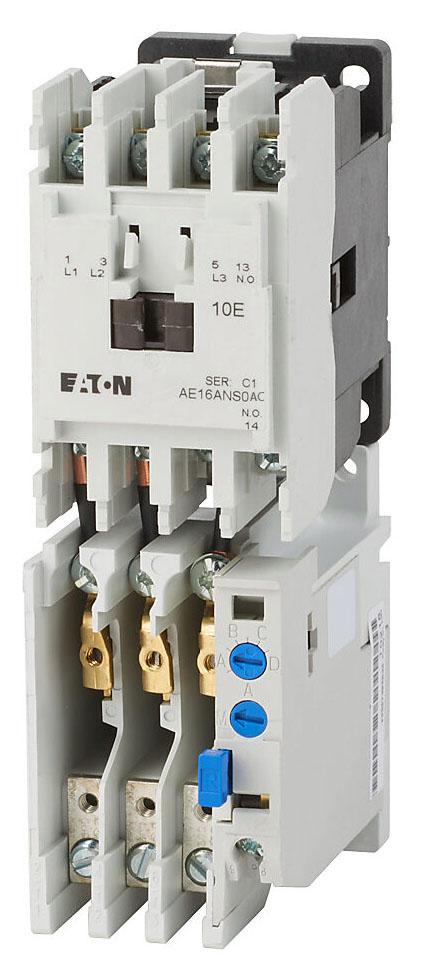

Eaton AE16ANS0AC Electric Motor Starter – 7A – 3-Pole – 600V – 3HP @ 380V 50Hz – Open Type – Freedom Series

The Eaton AE16ANS0AC is a 7A, 3-pole electric motor starter from the Cutler-Hammer Freedom Series, Type AE16. It is designed for compatible motor-control applications and supports 1- or 3-phase electrical systems.

The starter has a 600V maximum voltage rating and an AC coil, with a normally open, side-mounted auxiliary contact. It features an interchangeable heater overload relay, non-reversing operation, and an open-type starter configuration. The unit is classified as IEC Size A.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Electric Motor Starter
• Product Family: Freedom Series
• Type: AE16
• Catalog No.: AE16ANS0AC
• Current Rating: 7A
• Number of Poles: 3-Pole
• Phase: 1- or 3-Phase
• Voltage Rating: 600V
• AC-3 Ampere Rating: 7A
• IEC AC-1 Thermal Current: 20A
• Coil Type: AC Coil
• Auxiliary Contact: Normally Open, Side-Mounted
• Overload Relay: Interchangeable Heater Overload Relay
• Starter Type: Non-Reversing
• Configuration: Open Type Starter
• IEC Size: A
• Horsepower Rating: 3 HP @ 380V, 50Hz
• Maximum UL HP Rating: 0.25 HP @ 115V 1-Phase; 0.5 HP @ 230V 1-Phase; 1.5 HP @ 208V 3-Phase; 1.5 HP @ 240V 3-Phase; 3 HP @ 480V 3-Phase; 5 HP @ 600V 3-Phase
• Maximum kW Rating: 1.1 HP @ 220V 3-Phase; 2.2 HP @ 380V 3-Phase; 2.2 HP @ 415/440V 3-Phase; 4 HP @ 500/550V 3-Phase; 1.5 HP @ 660V 3-Phase

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AE16ANS0AC
• Catalog Number: AE16ANS0AC
• Model: AE16ANS0AC
• Product Family: Cutler-Hammer Freedom Series
• Series: Freedom
• Type: AE16
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Configuration: 3-Pole, 7A
• UPC:782113970882

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Freedom Series motor-control applications requiring a Type AE16, 7A, non-reversing open-type starter. The starter supports 1- or 3-phase applications and includes an interchangeable heater overload relay and normally open side-mounted auxiliary contact.

Always verify the specific motor application, supply voltage, phase configuration, horsepower or kW rating, coil requirements, overload requirements, and control-circuit configuration before installation.

Certifications:

• No specific certification information provided
