AH Lighting

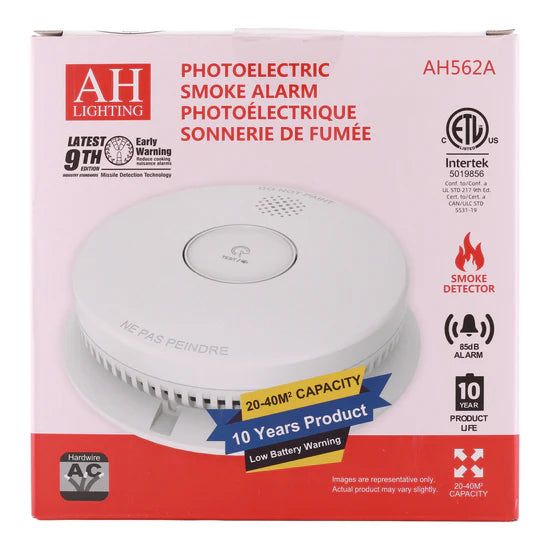

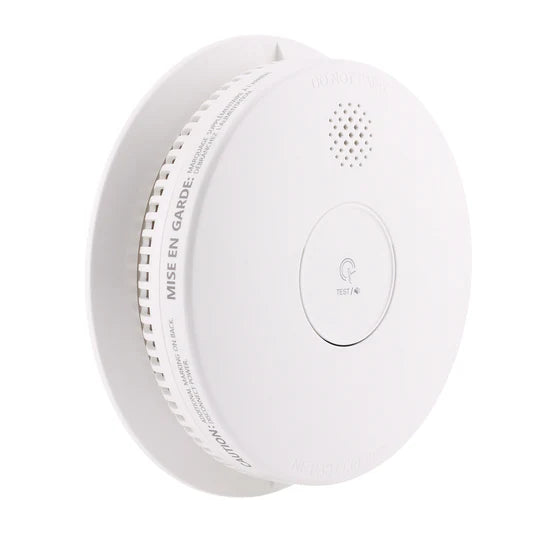

AH Lighting AH562-A 120V Photoelectric Smoke Alarm – Ceiling/Wall Mount – 120V AC

Out of stock
SKU: AH562A GTIN/UPC: 010585800506
$12.50

Select product select item condition:

SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

The AH Lighting AH562-A 120V Photoelectric Smoke Alarm – Ceiling/Wall Mount – 120V AC provides reliable hardwired smoke detection for residential and light commercial applications. Designed for ceiling or wall installation, it features photoelectric multi-criteria optical sensing, a 9V battery backup, and interconnectivity for up to 12 units, ensuring enhanced fire safety and compliance with UL217 standards.

Voltage and rating

  • Voltage Rating: 120V AC, 60Hz, 70mA Max
  • Battery Backup: 9V DC (GP 1604S / Eveready No. 1222 6F22)
  • AC Quiescent Current: < 80mA
  • AC Alarm Current: < 80mA
  • DC Quiescent Current: < 15µA
  • DC Alarm Current: < 35mA

Key Specifications

  • Alarm Type: Photoelectric Smoke Alarm
  • Audible Alarm: > 85dB at 10 ft, 3.0–3.5 kHz pulsing alarm
  • Alarm Silence: Approximately 8 minutes
  • Low Battery Warning Silence: Approximately 10 hours
  • Low Voltage Threshold: 7.1–7.5V DC
  • Interconnection: Wired, up to 12 devices

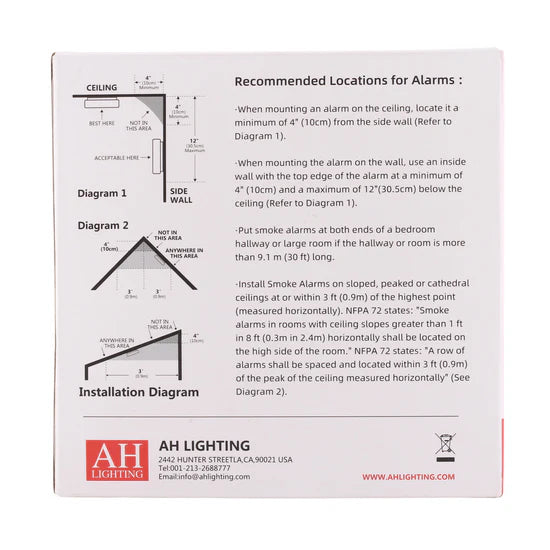

  • Installation Location: Ceiling or wall
  • Detection Range: Max 430 sq ft within a room
  • Product Range: AH Smoke Alarm Series

Technical Specifications

  • Smoke Sensor: Multi-Criteria Optical
  • Temperature Range: 40°F to 100°F
  • Humidity Range: < 85% RH
  • Dimensions:
  • Width: 5.67 in
  • Depth: 1.50 in
  • Weight: 0.529 lbs (including battery)
  • Mounting Type: Ceiling/Wall Mount
  • Certifications: UL 217 Listed, CAN/ULC-S531

Product Data

  • Manufacturer: AH Lighting
  • Brand: AH Lighting
  • Model Number: AH562-A
  • Type Circuit Breakers
  • Vendor AH Lighting
  • Brand AH Lighting
