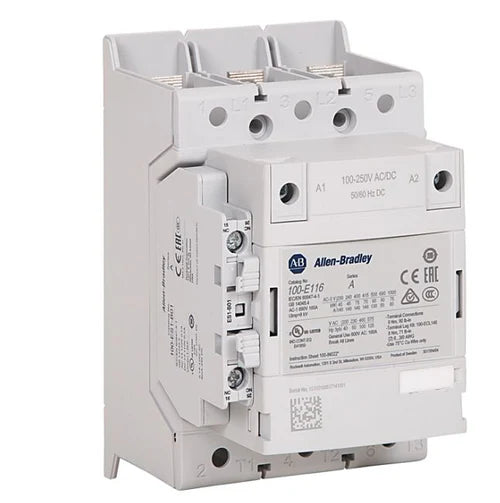

Allen-Bradley 100-E116ED11 – 116A IEC 3-Pole Contactor, 100-250V AC/DC Electronic Coil, 1NO-1NC Aux

Description

100-E116ED11 The Allen-Bradley 100-E116ED11 is a high-performance IEC 100-E series (MCS-E) contactor rated for 116 amps (AC-3) and 160 amps (AC-1). This 3-pole contactor features a universal 100–250V AC/DC electronic coil, which significantly simplifies inventory by covering multiple voltage ranges with a single unit.

Engineered for modern industrial control, it includes an integrated 24V DC PLC interface, allowing for direct control from a programmable logic controller without the need for interposing relays. The 100-E116ED11 comes standard with a 1NO-1NC auxiliary contact configuration and features bus bar connections for secure, high-current wiring. Its compact design helps reduce panel space while providing built-in surge suppression for coil protection.

Power & Motor Ratings

• AC-3 (Motor Loads): 116 A @ 415V

• AC-1 (Non-Inductive): 160 A @ 690V (40°C)

• Horsepower (60Hz): * 75 Hp @ 460V AC

  • 100 Hp @ 575V AC

• Kilowatt (50Hz): 55 kW @ 400V / 415V

Key Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Part Number: 100-E116ED11

• Amperage: 116 A (AC-3)

• Coil Voltage: 100–250V AC (50/60Hz) / 100–250V DC

• Poles: 3

• Auxiliary Contacts: 1 NO, 1 NC

• Coil Type: Electronic with PLC Interface (24V DC Input)

• Connection Type: Bus Bar / Bolt-on Terminals

• Certifications: UL, CSA, CE, CCC, RoHS

Technical Specifications

• Part Number: 100-E116ED11

• Category: Motor Control

• Item Subcategory: IEC Contactor

• Family: Bulletin 100-E

• Frame Size: Large Frame (E116)

• Utilization Category: AC-1, AC-3, AC-4

• Control Actuation: AC/DC Universal

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Enclosure Rating: IP00 / IP2X (Finger-safe with covers)

• Mounting Type: Panel Mount (Screw)

Product Data

• UPC: 889508534916

• GTIN: 00889508534916

• Weight: ~3.85 lb

• Dimensions: 5.91 in (H) x 3.54 in (W) x 4.96 in (D)
