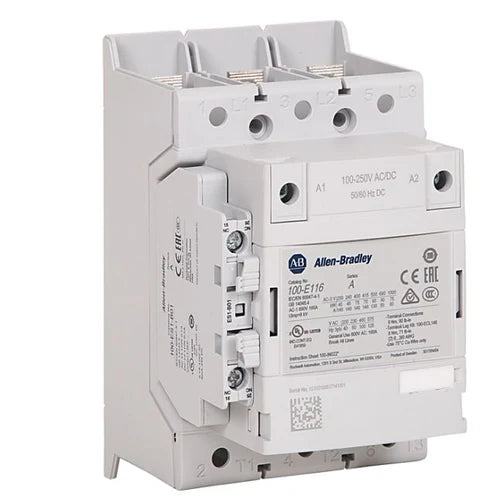

Allen-Bradley 100-E116KD11L – 116A IEC 3-Pole Contactor, 100-250V AC/DC Electronic Coil, Built-in Lugs

Description

100-E116KD11L The Allen-Bradley 100-E116KD11L is a 3-pole IEC contactor from the 100-E series, rated for 116 amps (AC-3) and 160 amps (AC-1). This specific model features factory-installed terminal lugs (cable clamps), providing a ready-to-wire solution for high-power industrial applications without the need for additional connector kits. It is equipped with a universal 100–250V AC/DC electronic coil, which offers wide voltage compatibility and integrated surge suppression.

Designed for modern control architectures, the 100-E116KD11L includes an integrated 24V DC PLC interface, allowing for direct control from a programmable logic controller. It comes standard with a 1NO-1NC auxiliary contact configuration and is engineered for high energy efficiency and low power consumption. This contactor is ideal for heavy-duty motor starting and power distribution systems requiring reliable, compact performance.

Power & Motor Ratings

• AC-3 (Motor Loads): 116 A @ 400V / 415V

• AC-1 (Non-Inductive): 160 A @ 690V (40°C)

• Horsepower (60Hz): * 75 Hp @ 460V AC

  • 100 Hp @ 575V AC

• Kilowatt (50Hz): 55 kW @ 400V

Key Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Part Number: 100-E116KD11L

• Amperage: 116 A (AC-3) / 160 A (AC-1)

• Coil Voltage: 100–250V AC (50/60Hz) / 100–250V DC

• Poles: 3

• Auxiliary Contacts: 1 NO, 1 NC

• Coil Type: Electronic with Integrated PLC Interface

• Connection Type: Built-in Terminal Lugs (Cable Clamp)

• Certifications: UL, CSA, CE, CCC, C-TICK, RoHS

Technical Specifications

• Part Number: 100-E116KD11L

• Category: Motor Control

• Item Subcategory: IEC Contactor

• Family: Bulletin 100-E (MCS-E)

• Frame Size: E116

• Utilization Category: AC-1, AC-3, AC-4

• Control Actuation: AC/DC Universal

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Enclosure Rating: IP00 (with lugs)

• Mounting Type: Panel Mount

Product Data

• UPC: 889508534961

• GTIN: 00889508534961

• Weight: ~4.50 lb

• Dimensions: 5.91 in (H) x 4.72 in (W) x 5.04 in (D)
