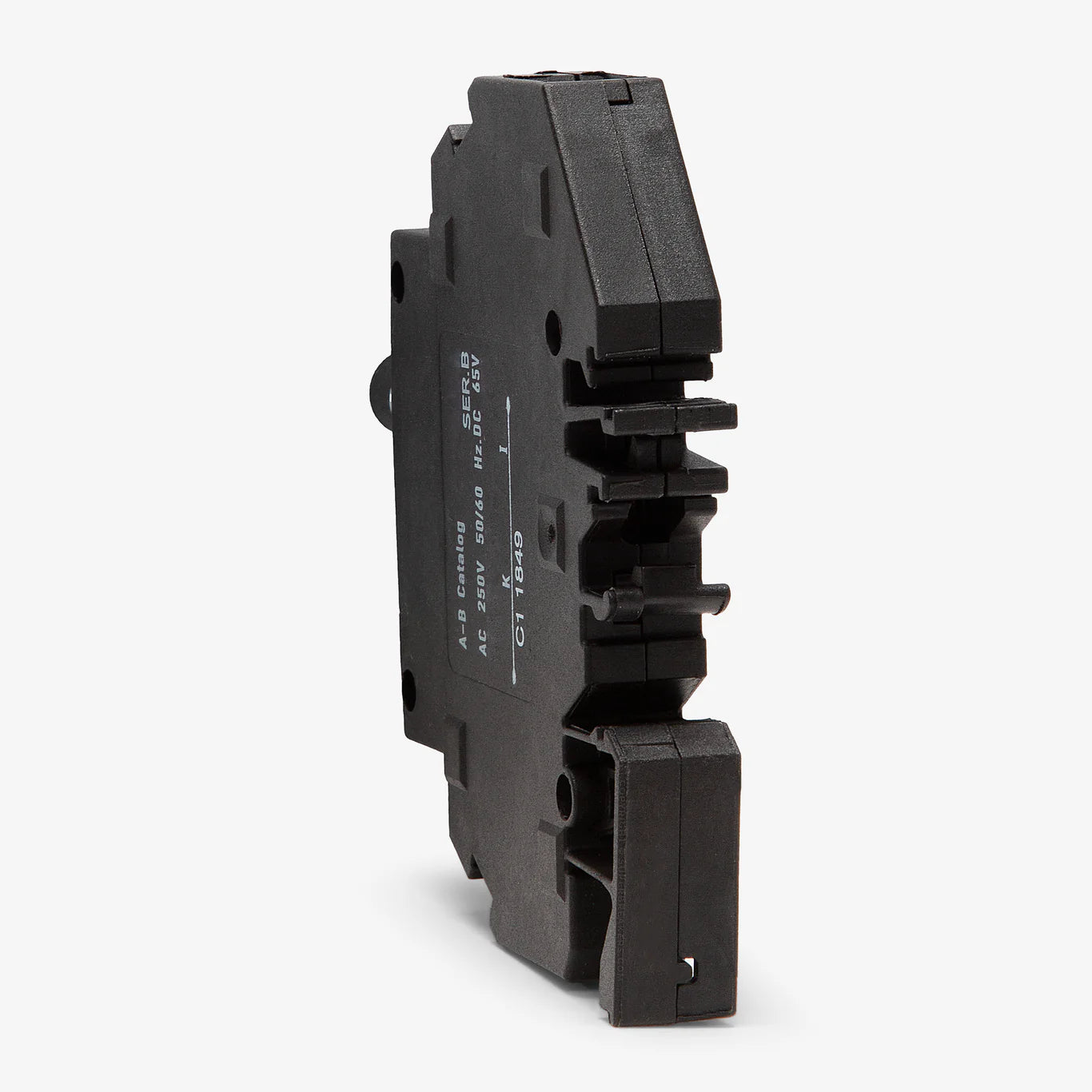

Allen-Bradley 1492-GH002 0.2A 1P Supplementary Protector – Thermal Magnetic – DIN Rail Mount – 250VAC / 65VDC

The Allen-Bradley 1492-GH002 is a 1-pole supplementary protector designed for precise overcurrent protection in compact industrial control applications. Engineered for DIN rail mounting, it is ideal for high-density control panels where space optimization is critical. With a 0.2A rating and support for 250VAC or 65VDC, this device uses a thermal-magnetic trip mechanism to ensure reliable protection of sensitive control circuits. Its push-to-set and trip-free design enhances safety and operational consistency in demanding environments.

Voltage and Rating

• Current Rating: 0.2A
• Voltage Rating: 250VAC / 65VDC
• AIC Rating: 0.02kA @ 250VAC, 0.02kA @ 65VDC

Key Specifications

• Device Type: Supplementary Protector
• Number of Poles: 1-Pole
• Phase: 1 Phase
• Series: 1492
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Curve: G
• Trip Adjustability: Fixed
• Mounting Type: DIN Rail Mount
• Application: Industrial Control Panels / DIN Rail Panels

Technical Specifications

• Terminal Type: Box Lugs
• Wire Gauge: 22–10 AWG
• Max Wire Size: 10 AWG
• Min Wire Size: 22 AWG
• Temperature Rating: -40°C to 65°C
• Construction Features: High Density, Push-to-Set, Trip-Free Mechanism
• Available Options: Padlock Attachment
• Standards: CSA C22.2 No. 235, EN 60934, UL 1077
• Approvals: CE, CSA, RoHS, UR, VDE

Product Data

• Brand: Allen-Bradley
• Model Number: 1492-GH002
• Series: 1492
• Amperage: 0.2A
• Voltage: 250VAC / 65VDC
• Mounting Style: DIN Rail
• For Use With: DIN Rail Panels, Industrial Control Panels
