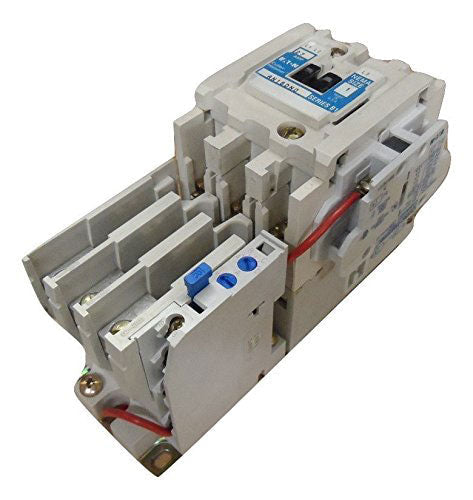

Eaton AN16DG0BB 27 Amp Freedom Series NEMA Electric Motor Starter – 3 Pole – 600V AC – NEMA Size 1

The Eaton Cutler-Hammer AN16DG0BB is a Freedom Series Type AN16 electric motor starter designed for single-phase and three-phase motor control applications. It features a 27A current rating, non-reversing full-voltage operation, and a bimetallic overload protection system. The starter is supplied with an AC control coil rated at 220V, 50Hz or 240V, 60Hz and is housed in a NEMA Type 1 enclosure.

Specifications

• Brand: Eaton / Cutler-Hammer
• Product Series: Freedom
• Type: AN16
• MPN: AN16DG0BB
• Product Type: Electric Motor Starter
• Current Rating: 27A
• Service-Limit Current Rating: 32A
• Poles: 3
• Phase: 1-phase or 3-phase
• Voltage Rating: 600V AC
• Motor Horsepower Ratings:
  • 2 HP at 115V, 1-phase
  • 3 HP at 230V, 1-phase
  • 7.5 HP at 208V, 3-phase
  • 7.5 HP at 240V, 3-phase
  • 10 HP at 380V, 50Hz, 3-phase
  • 10 HP at 480V, 3-phase
  • 10 HP at 600V, 3-phase
• Coil Voltage: 220V AC at 50Hz / 240V AC at 60Hz
• Coil Type: AC
• Starter Configuration: Non-reversing, full-voltage
• Overload Protection: Bimetallic overload relay
• Enclosure Type: NEMA Type 1
• NEMA Size: 1

Part Numbers & Identification

• Manufacturer Part Number: AN16DG0BB
• Product Family: Eaton Cutler-Hammer Freedom Series
• Product Category: NEMA Electric Motor Starter
• UPC:782113971711

Compatibility

Designed for compatible Eaton Cutler-Hammer Freedom Series motor control systems requiring a three-pole, non-reversing, full-voltage starter with a 27A rating, NEMA Size 1 configuration, and NEMA Type 1 enclosure.
