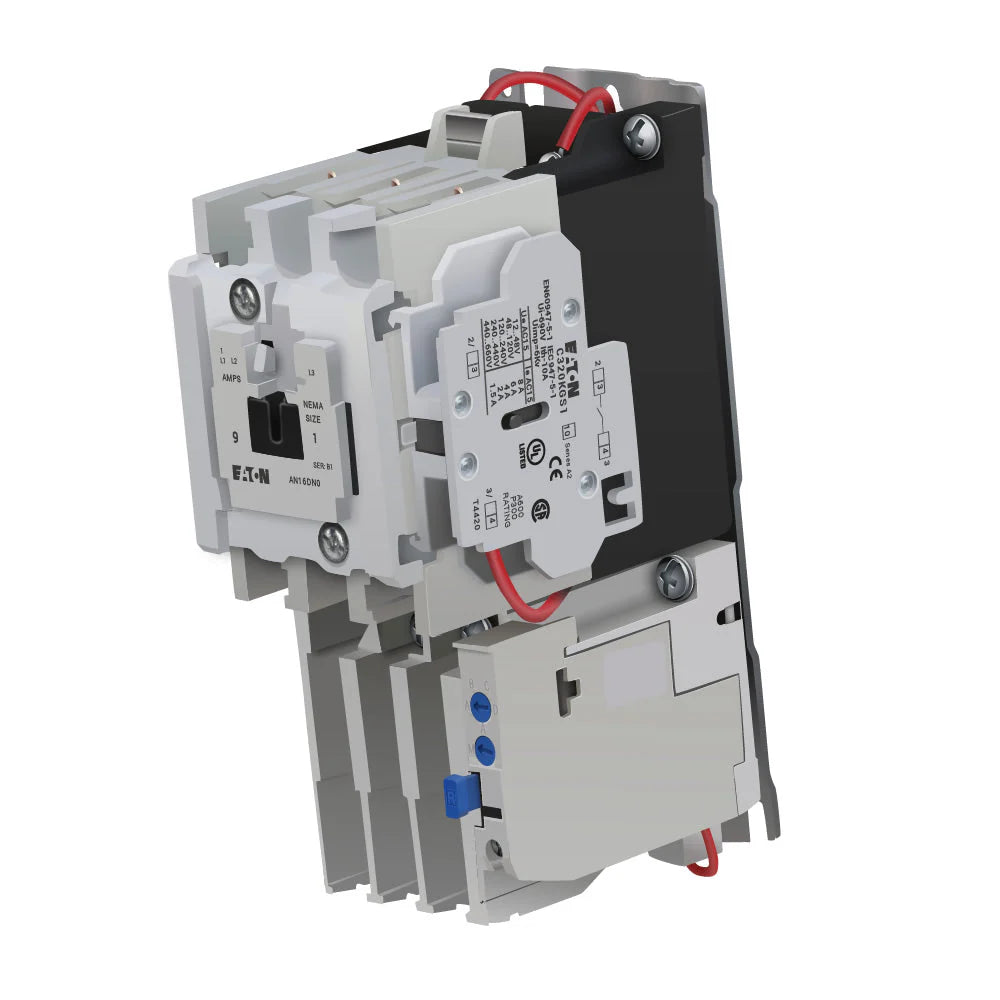

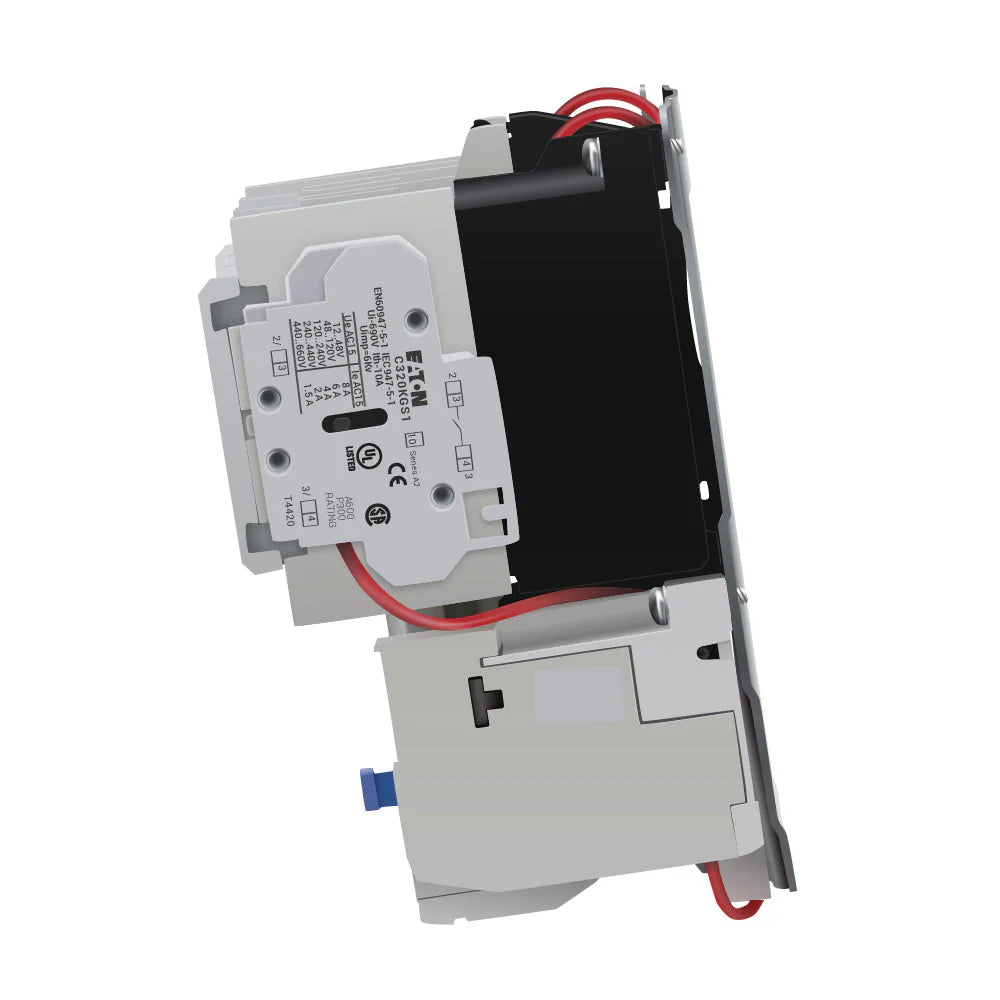

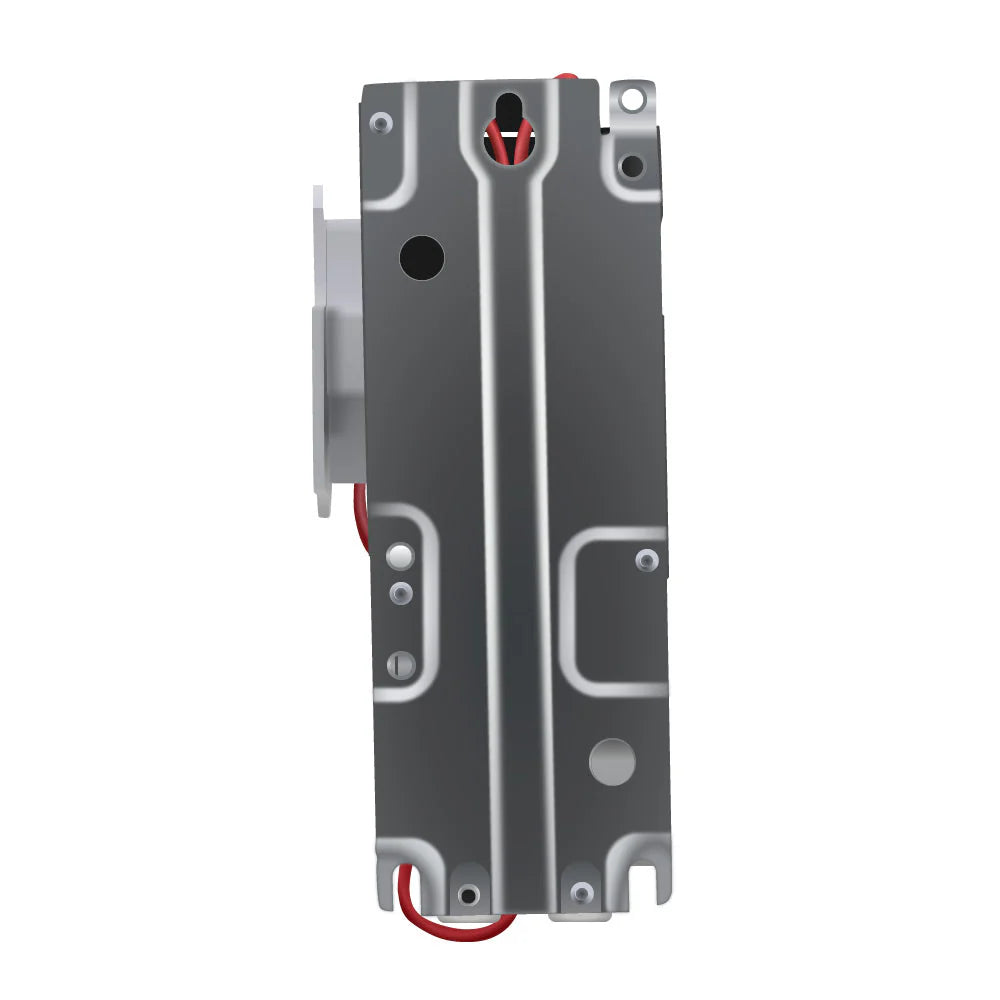

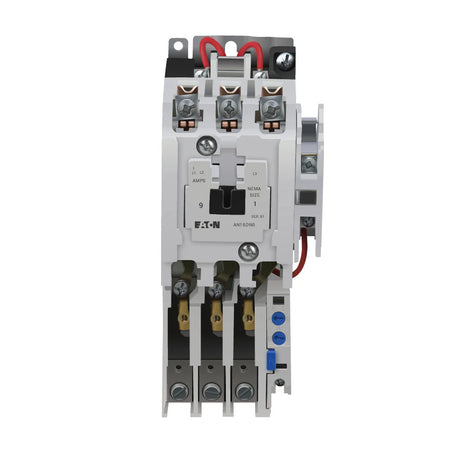

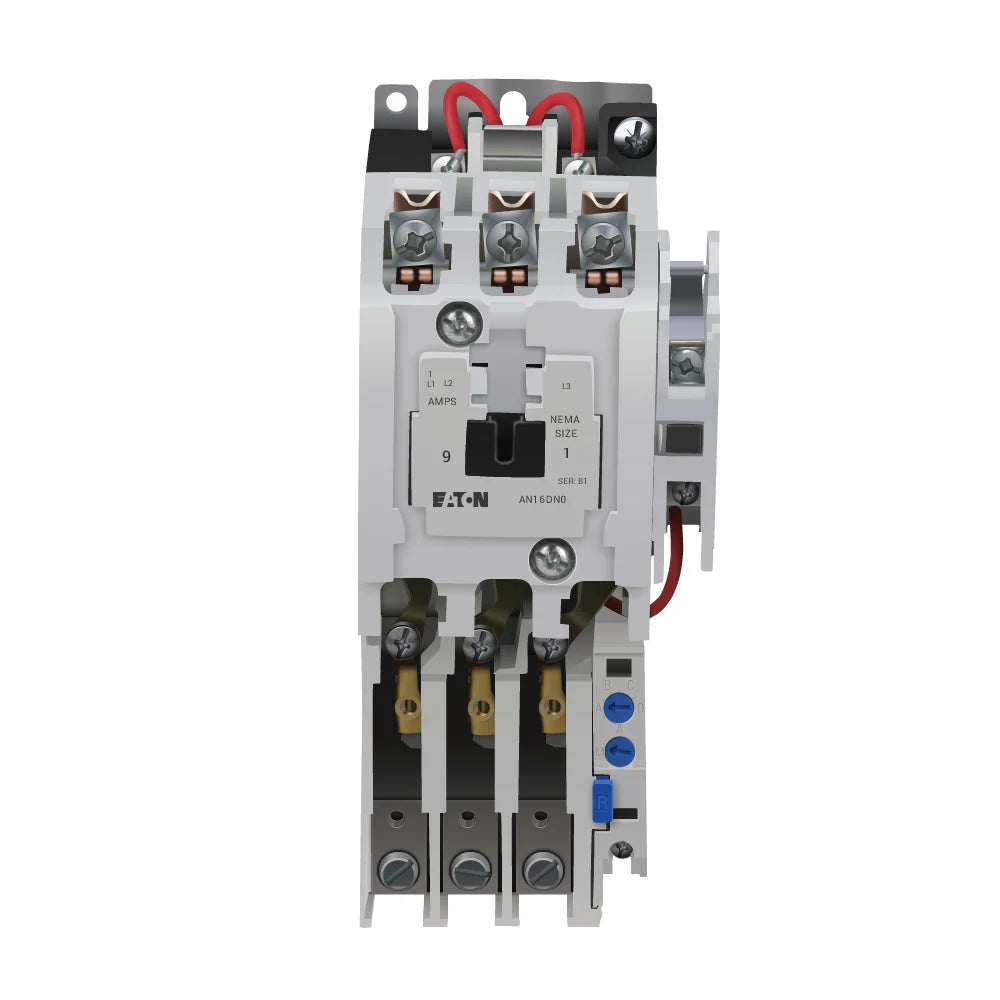

Eaton AN16DN0BB Electric Motor Starter – 27A – 3-Pole / Non-Reversing – 240/220V Coil – NEMA Size 1 – NEMA – Freedom Series

The Eaton AN16DN0BB is a 27A, three-pole non-reversing electric motor starter from the Eaton Freedom NEMA Series. It is designed for compatible motor-control applications and features a reset overload relay starter configuration.

The AN16DN0BB supports motor applications up to 2 HP at 115V, 3 HP at 230V, 7-1/2 HP at 208/240V, and 10 HP at 480/600V. It features a 240V AC at 60 Hz or 220V AC at 50 Hz coil voltage and is identified as a NEMA Size 1 starter.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Family: Freedom NEMA
• Series: Freedom
• Product Configuration: Non-Reversing Reset Overload Relay Starter
• Current Rating: 27A
• Number of Poles: 3-Pole
• Phase: Not specified
• Starter Type: Non-Reversing
• Coil Voltage: 240V AC @ 60 Hz / 220V AC @ 50 Hz
• NEMA Size: Size 1
• Maximum Horsepower: 2 HP @ 115V; 3 HP @ 230V; 7-1/2 HP @ 208/240V; 10 HP @ 480/600V
• Overload Configuration: Reset Overload Relay Starter
• Application: Motor Control and Motor Starting
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AN16DN0BB
• Catalog Number: AN16DN0BB
• Model: AN16DN0BB
• Product Family: Eaton Freedom NEMA Motor Starters
• Series: Freedom
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Configuration: 3-Pole, 27A, Non-Reversing
• NEMA Size: Size 1
• UPC:782113971711

Compatibility:

Designed for use with compatible Eaton Freedom NEMA motor-control applications requiring a 3-pole, 27A non-reversing starter with a reset overload relay configuration.

The starter supports the specified motor horsepower ratings at 115V, 208V, 230V, 240V, 480V, and 600V and uses a 240V/60 Hz or 220V/50 Hz coil. Always verify the specific motor application, supply voltage, coil voltage and frequency, horsepower rating, overload requirements, starter configuration, and installation specifications before installation.

Certifications:

• Freedom NEMA Series
• NEMA Size 1
• 27A Rated
• 3-Pole
• Non-Reversing
• Reset Overload Relay Starter
• 240V AC Coil @ 60 Hz
• 220V AC Coil @ 50 Hz
• 2 HP @ 115V
• 3 HP @ 230V
• 7-1/2 HP @ 208/240V
• 10 HP @ 480/600V
