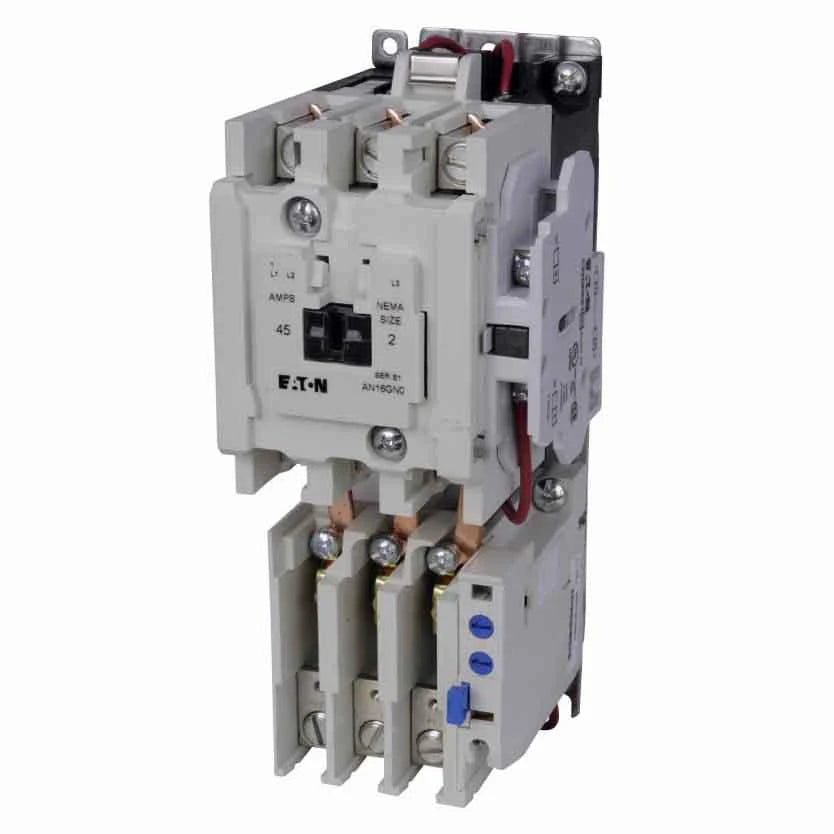

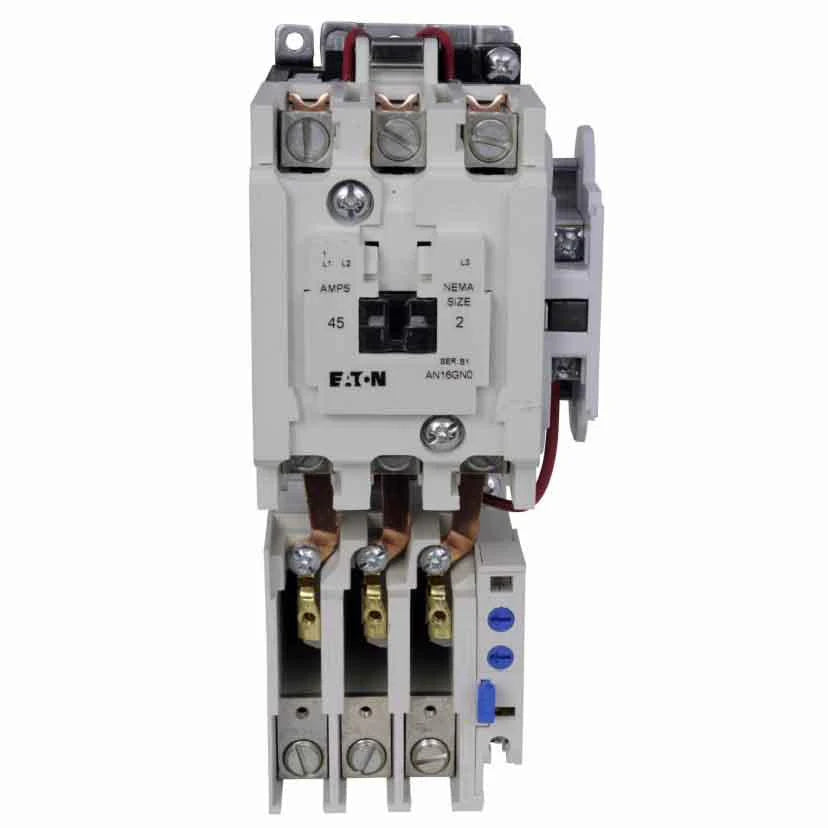

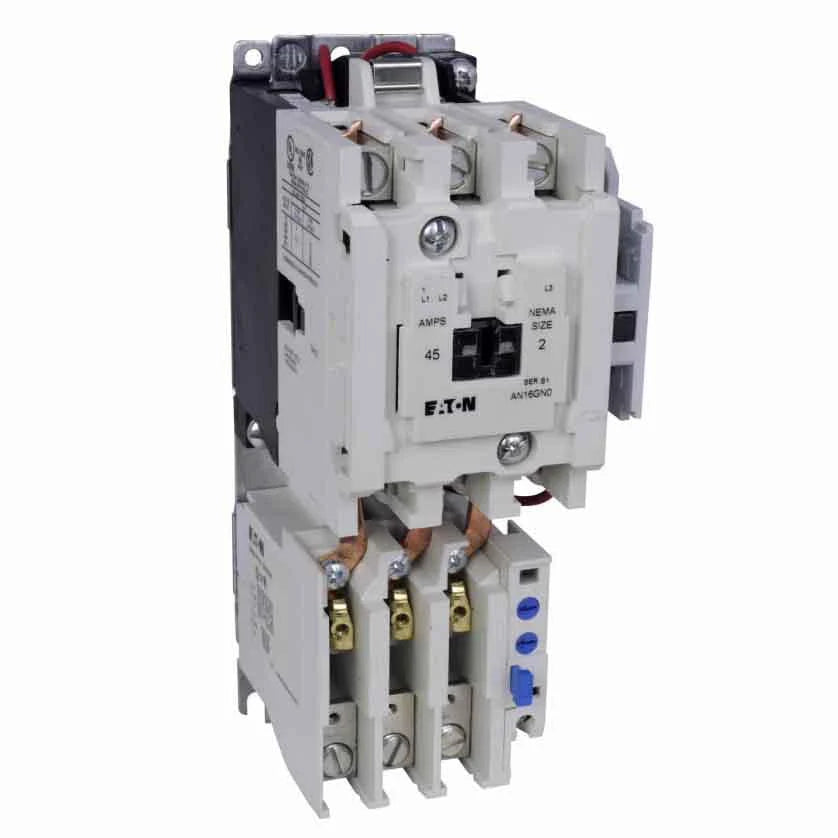

Eaton AN16GN0CB Electric Motor Starter – 45A – Non-Reversing / Size 2 – 600V – 25 HP – Freedom NEMA Series

The Eaton AN16GN0CB is a 45A non-reversing electric motor starter from the Eaton Freedom NEMA Series. It features a reset overload relay starter configuration and is designed for compatible motor-control applications.

The starter is rated for motor applications up to 25 HP at 480/600V, with additional horsepower ratings of 3 HP at 115V, 7-1/2 HP at 230V, 10 HP at 208V, and 15 HP at 240V. The control coil is rated for 480V at 60 Hz or 440V at 50 Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Family: Freedom NEMA
• Series: Freedom NEMA
• Catalog No.: AN16GN0CB
• Current Rating: 45A
• Starter Configuration: Non-Reversing
• Overload Protection: Reset Overload Relay
• NEMA Size: Size 2
• Coil Voltage: 480V AC @ 60 Hz / 440V AC @ 50 Hz
• Horsepower Rating: 3 HP @ 115V; 7-1/2 HP @ 230V; 10 HP @ 208V; 15 HP @ 240V; 25 HP @ 480/600V
• Maximum Horsepower: 25 HP
• Application: Electric Motor Control and Starting

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AN16GN0CB
• Catalog Number: AN16GN0CB
• Model: AN16GN0CB
• Product Family: Eaton Freedom NEMA Motor Starters
• Series: Freedom NEMA
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Configuration: Non-Reversing
• NEMA Size: Size 2
• Current Rating: 45A
• UPC:782113971865

Compatibility:

Designed for compatible Eaton Freedom NEMA motor-control applications requiring a 45A, Size 2 non-reversing starter with reset overload protection. The starter supports the specified motor horsepower ratings and control-coil voltages.

Certifications:

• Freedom NEMA Series
• 45A Rated
• Non-Reversing Configuration
• Reset Overload Relay
• NEMA Size 2
• 25 HP Maximum @ 480/600V
