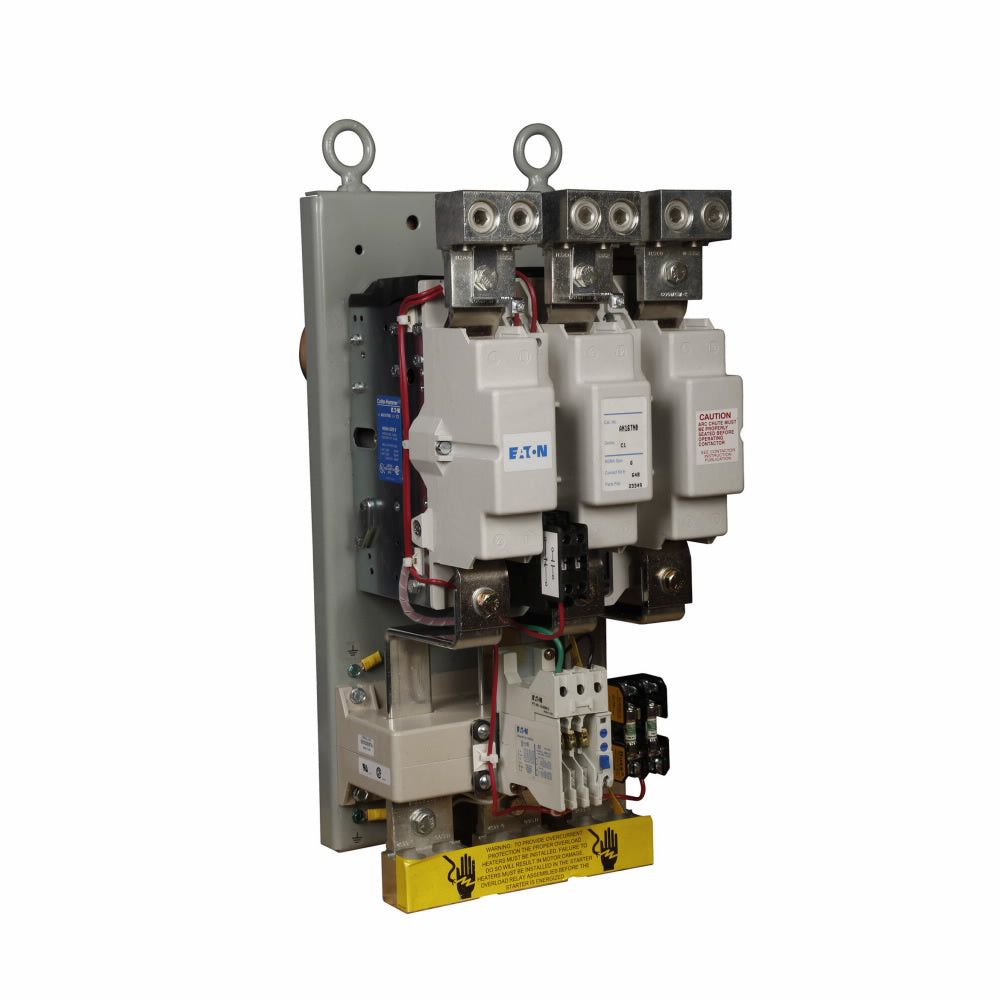

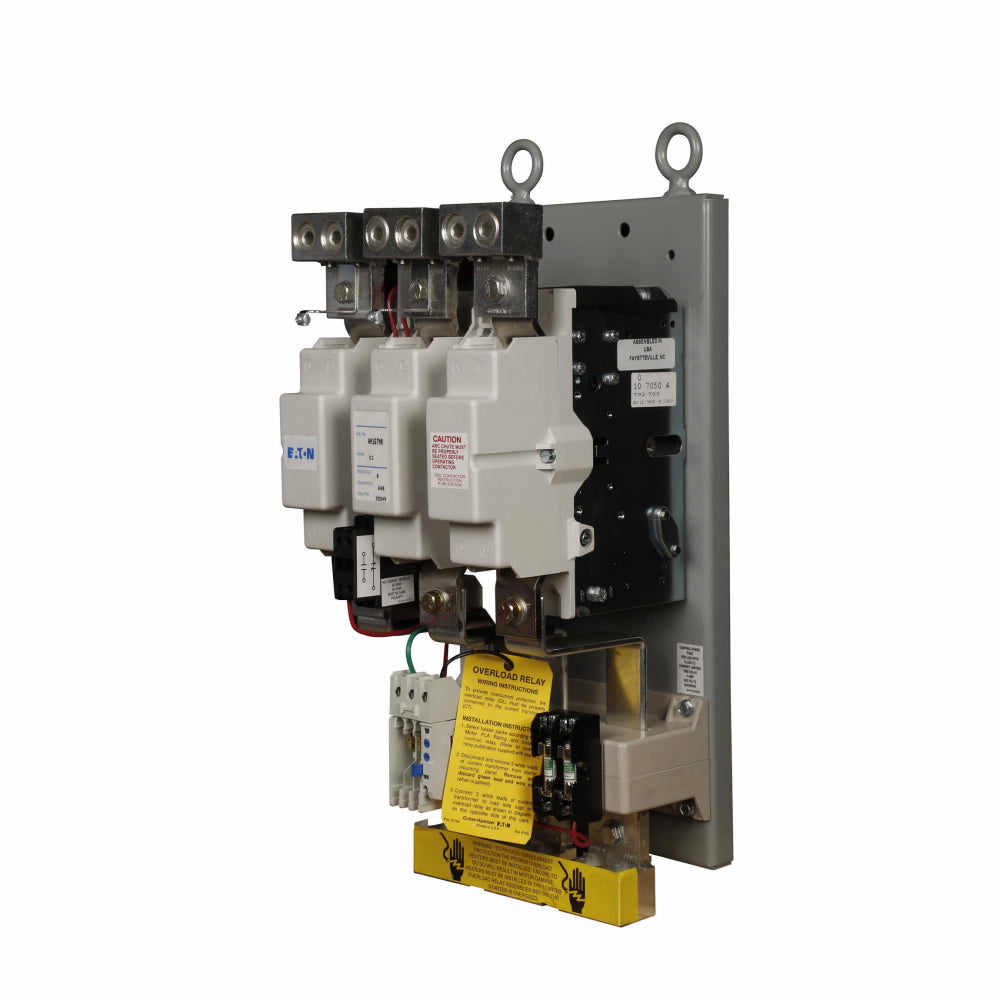

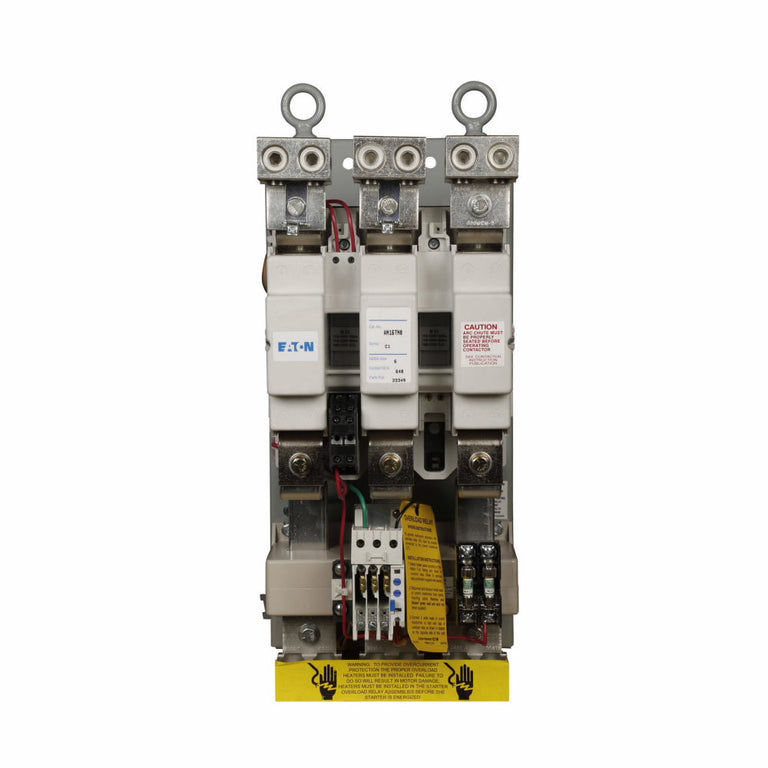

Eaton Cutler-Hammer Freedom AN16TN0CC 540A Electric Motor Starter – 3 Pole – 600V AC – Non-Reversing – NEMA Size

The Eaton Cutler-Hammer AN16TN0CC is a Freedom Series, full-voltage, non-reversing electric motor starter designed for three-phase motor control applications. It features an AC coil, bimetallic overload protection, and an open-type construction. The starter supports motor ratings up to 400 HP at 480V and 600V.

Specifications

• Brand: Eaton / Cutler-Hammer
• Product Series: Freedom
• Starter Type: AN16
• Amperage Rating: 540A
• Service-Limit Current Rating: 621A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 600V AC
• Starter Configuration: Full-voltage, non-reversing
• Coil Type: AC coil
• Coil Voltage/Frequency: 440V AC, 50Hz or 480V AC, 60Hz
• Overload Protection: Bimetallic
• Enclosure/Construction: Open type
• Motor Rating: 150 HP @ 208V
• Motor Rating: 200 HP @ 240V
• Motor Rating: 300 HP @ 380V, 50Hz
• Motor Rating: 400 HP @ 480V
• Motor Rating: 400 HP @ 600V

Part Numbers & Identification

• Manufacturer Part Number (MPN): AN16TN0CC
• Brand: Eaton / Cutler-Hammer
• Series: Freedom
• Type: AN16
• UPC:782114216941

Compatibility

Designed for three-phase motor control applications requiring a full-voltage, non-reversing starter with an AC coil and bimetallic overload protection. Suitable motor applications depend on the supply voltage and corresponding horsepower rating.
