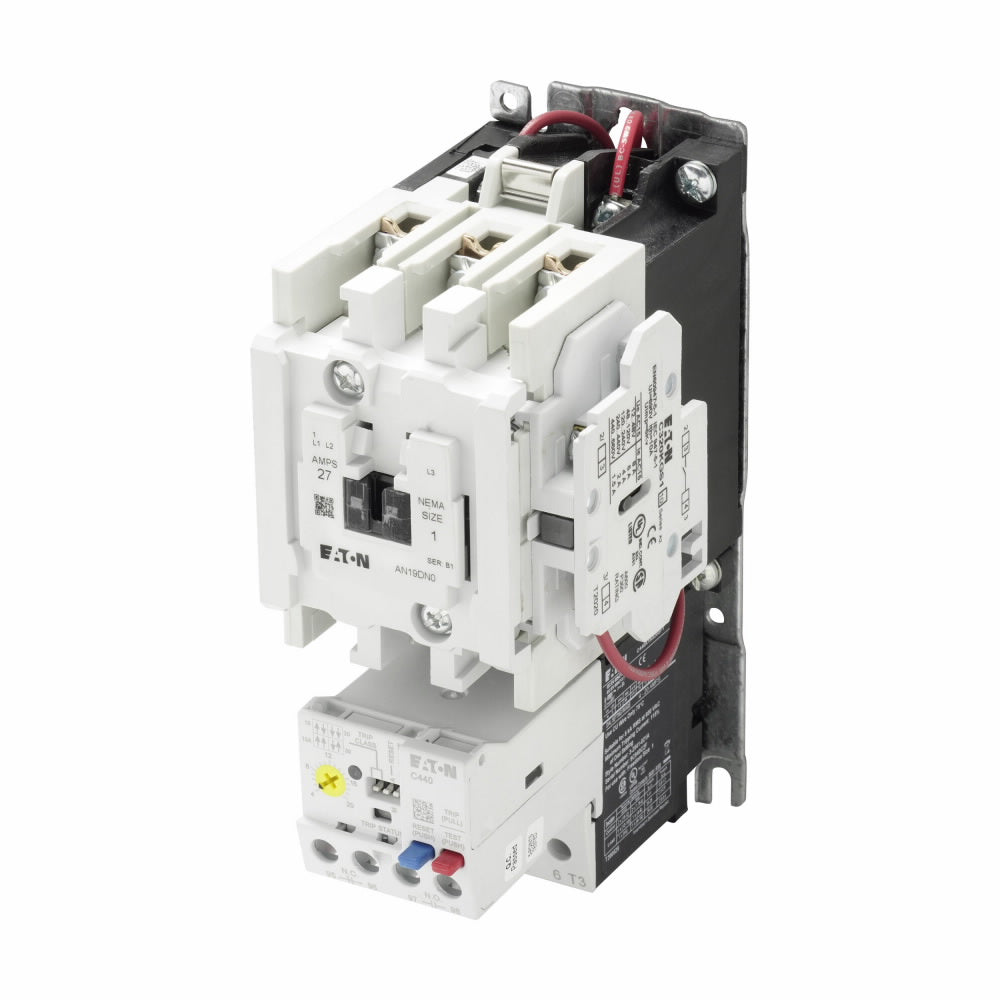

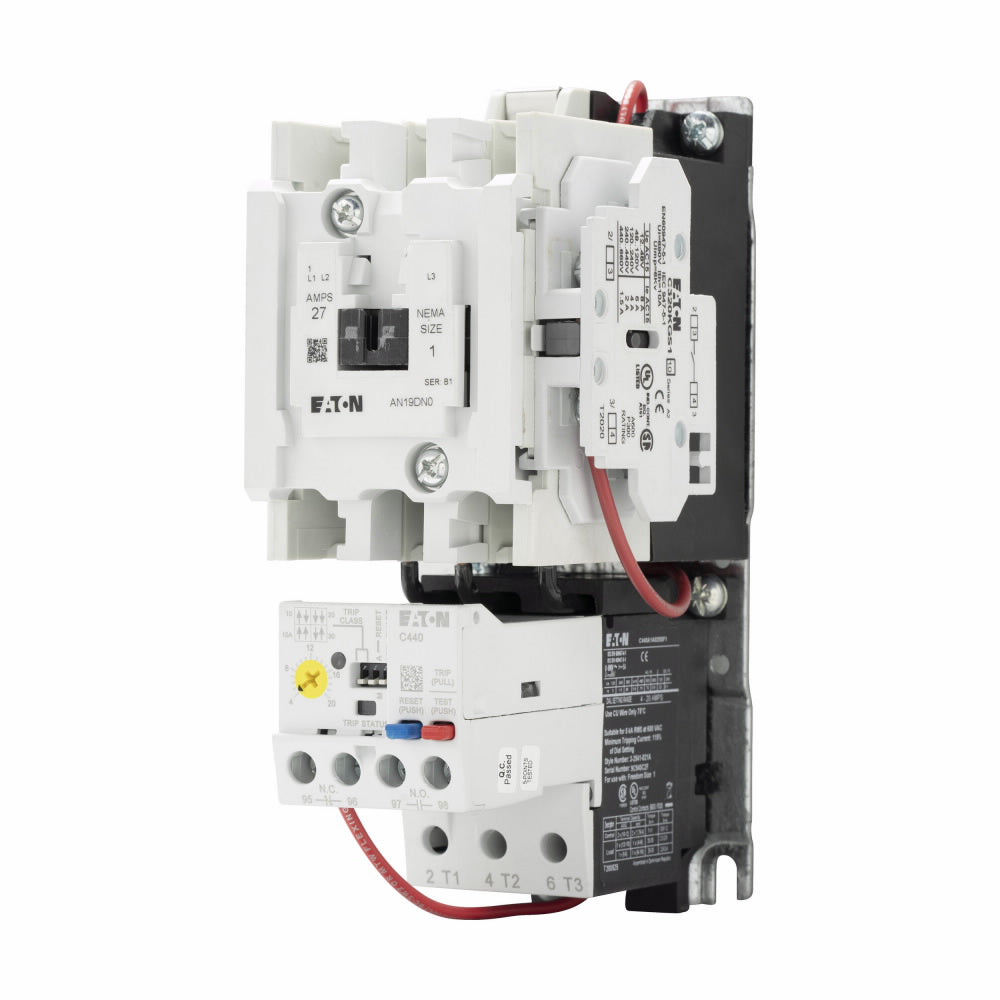

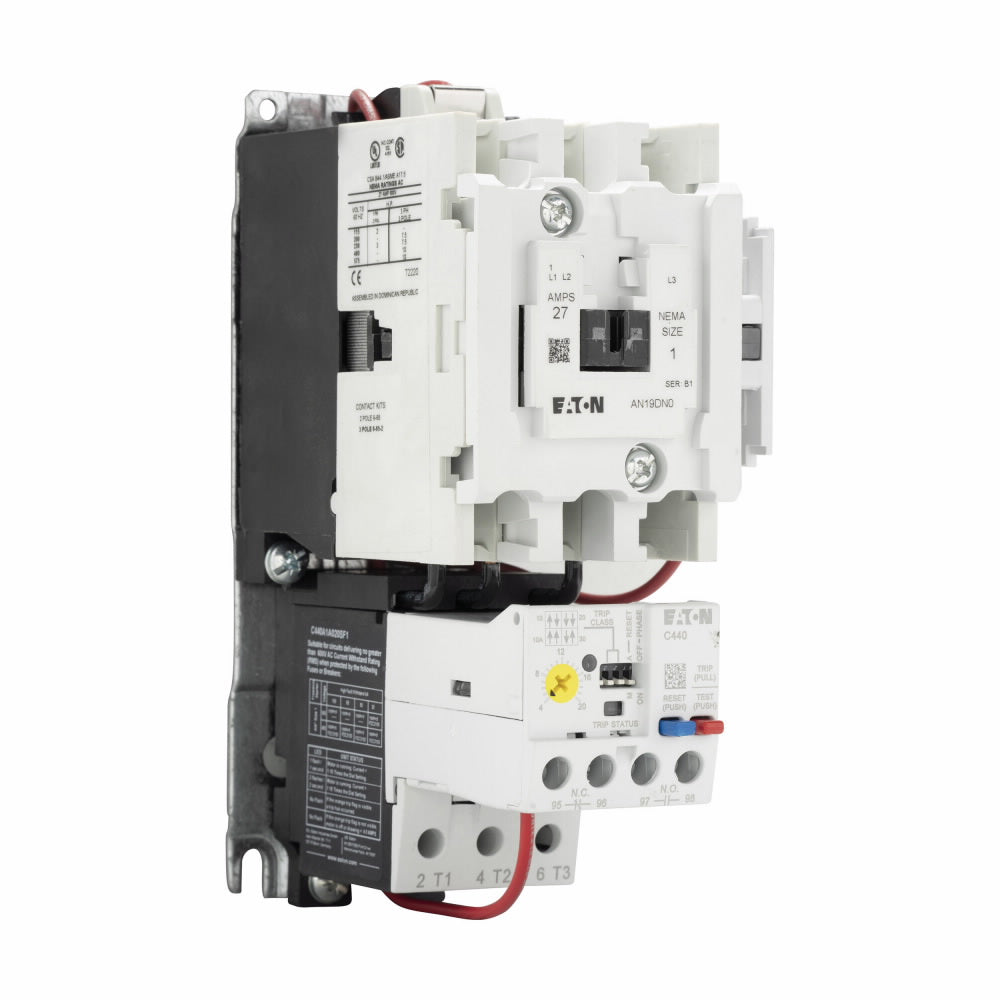

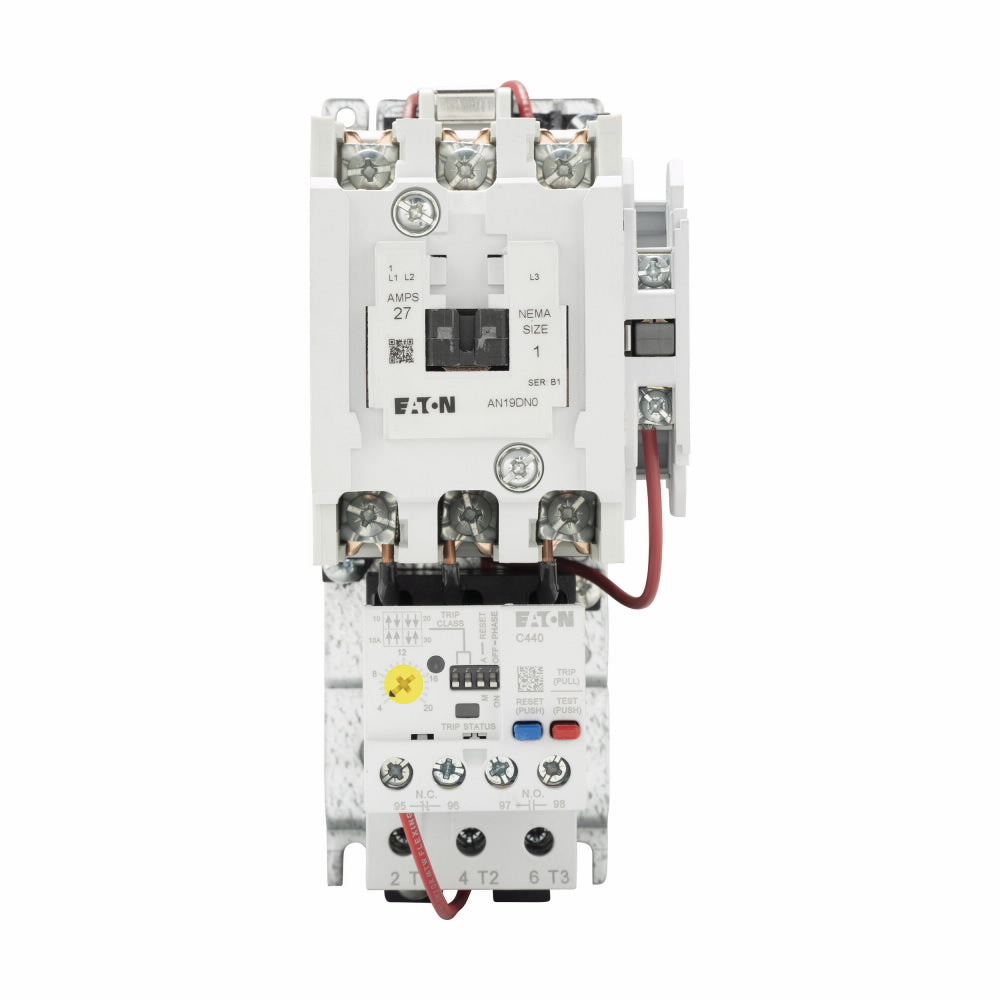

Eaton AN19DN0A5E020 Electric Motor Starter – 27A – NEMA Non-Reversing – 120V/110V Coil – 4–20A FLA – Horizontal Mount – Freedom Series

The Eaton AN19DN0A5E020 is a NEMA non-reversing electric motor starter from the Eaton Freedom Series. It features a 27A current rating, a 4–20A FLA range, and a C440 electronic overload relay (EOLR) with a standard feature set. The starter includes SEL reset and selectable Class 10A, 10, 20, and 30 overload settings, with a 120V/60Hz or 110V/50Hz coil and horizontal mounting configuration.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Catalog No.: AN19DN0A5E020
• Product Family: Freedom Series
• Starter Type: NEMA Non-Reversing
• Current Rating: 27A
• FLA Range: 4–20A
• Overload Relay: C440 EOLR
• Overload Feature Set: Standard
• Reset Type: SEL Reset
• Overload Class: Class 10A, 10, 20, 30
• Coil Voltage: 120V at 60Hz / 110V at 50Hz
• Mounting Type: Horizontal Mount
• Series: Freedom

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AN19DN0A5E020
• Catalog Number: AN19DN0A5E020
• Model: AN19DN0A5E020
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Family: Freedom Series
• Starter Configuration: NEMA Non-Reversing
• Current Rating: 27A
• upc:786685417660

Compatibility:

Designed for compatible Eaton Freedom Series NEMA motor control applications requiring a non-reversing starter with a 27A rating and 4–20A full-load amperage range. The integrated C440 EOLR provides selectable Class 10A, 10, 20, and 30 overload protection settings with SEL reset.

Always verify the motor full-load current, control-circuit voltage and frequency, starter configuration, mounting arrangement, overload requirements, and application compatibility before installation.

Certifications:

• NEMA Non-Reversing Starter
• 27A Rated
• 4–20A FLA Range
• C440 EOLR
• Class 10A / 10 / 20 / 30
• 120V/60Hz or 110V/50Hz Coil
• Horizontal Mount
• Eaton Freedom Series
