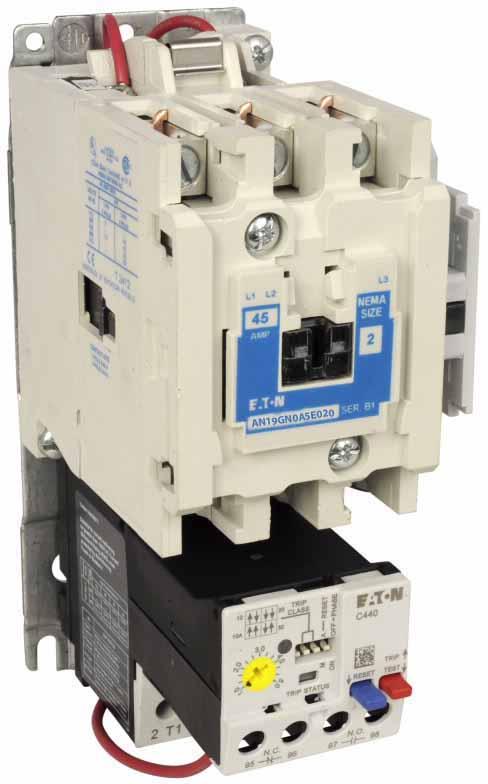

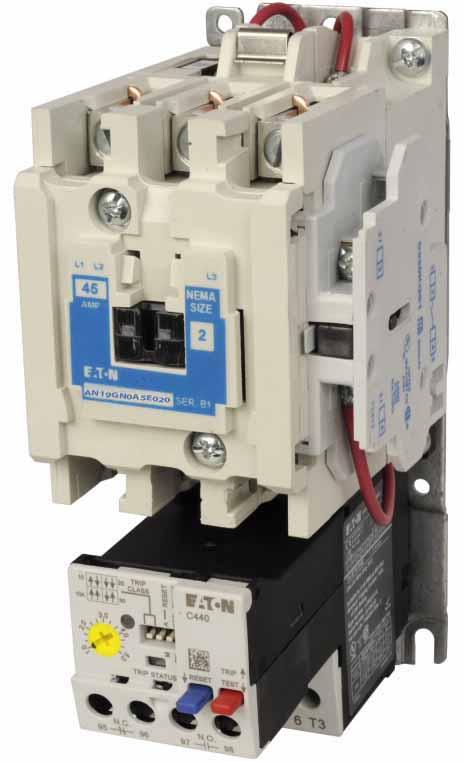

Eaton AN19GN0A5E020 Electric Motor Starter – 45A – Non-Reversing – 120V/110V Coil – Horizontal Mount – NEMA Size 2 – Freedom Series

The Eaton AN19GN0A5E020 is an Eaton Freedom NEMA motor control starter designed for compatible electric motor control and starting applications. It is a NEMA non-reversing Freedom Series starter equipped with the C440 Electronic Overload Relay (EOLR) standard feature set.

The starter features SEL reset, selectable overload relay Class 10A, 10, 20, and 30, and a 120V/60Hz or 110V/50Hz coil voltage. It has a horizontal mounting configuration, a 45A current rating, and a 4–20A motor FLA range in a NEMA Size 2 configuration.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Family: Freedom NEMA
• Series: Freedom
• Catalog No.: AN19GN0A5E020
• Starter Type: NEMA Non-Reversing
• Motor Control: Non-Reversing
• Current Rating: 45A
• NEMA Size: Size 2
• Coil Voltage: 120V at 60Hz / 110V at 50Hz
• Overload Relay: C440 Electronic Overload Relay (EOLR)
• EOLR Feature Set: Standard
• Reset Type: SEL Reset
• Overload Class: 10A, 10, 20, 30
• Motor FLA Range: 4–20A
• Mounting Type: Horizontal Mount
• Application: Electric Motor Control and Starting
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AN19GN0A5E020
• Catalog Number: AN19GN0A5E020
• Model: AN19GN0A5E020
• Product Family: Eaton Freedom NEMA Motor Control
• Series: Freedom
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Starter Configuration: NEMA Non-Reversing
• NEMA Configuration: Size 2
• Current Rating: 45A
• Motor FLA Range: 4–20A
• Overload Relay: C440 EOLR
• UPC:786685415383

Compatibility:

Designed for use with compatible Eaton Freedom NEMA motor control applications requiring a NEMA non-reversing starter with a C440 Electronic Overload Relay. The AN19GN0A5E020 provides a 45A starter rating and supports a 4–20A motor FLA range.

The starter uses a horizontal mounting configuration and supports 120V/60Hz or 110V/50Hz coil voltage. Its overload relay supports selectable Class 10A, 10, 20, and 30 settings with SEL reset. Always verify the specific motor full-load current, control-circuit voltage and frequency, overload class requirements, mounting arrangement, starter configuration, and installation specifications before installation.

Certifications:

• Eaton Freedom NEMA Series
• NEMA Non-Reversing Starter
• 45A Rated
• NEMA Size 2
• 120V/60Hz or 110V/50Hz Coil
• Horizontal Mount
• C440 Electronic Overload Relay
• Standard EOLR Feature Set
• SEL Reset
• Class 10A / 10 / 20 / 30 Overload
• 4–20A Motor FLA Range
