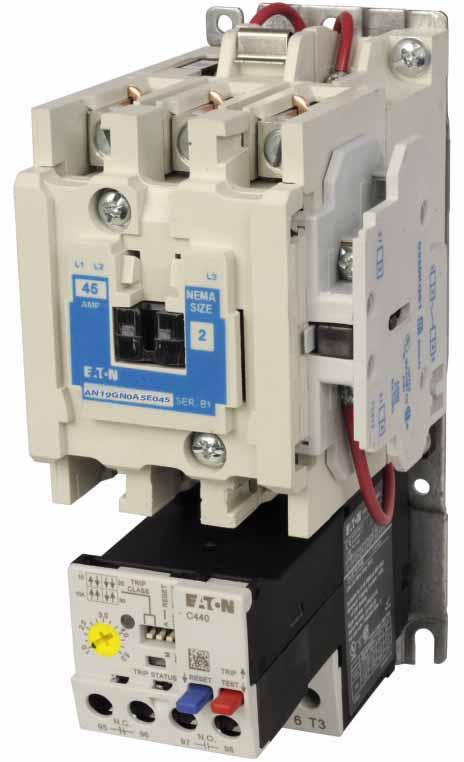

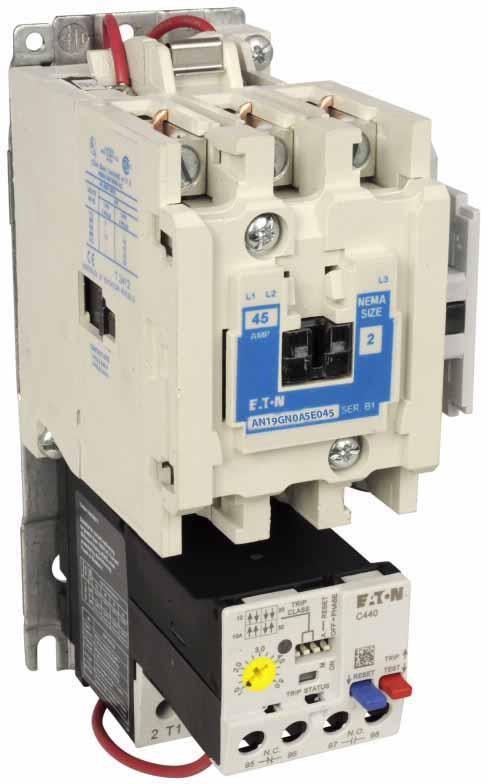

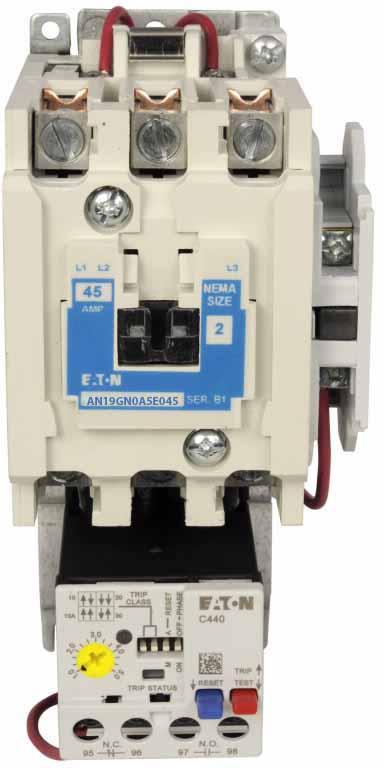

Eaton AN19GN0A5E045 Electric Motor Starter – 45A – NEMA Non-Reversing – 120/110V Coil – 9–45A FLA – Horizontal Mount – Freedom Series

The Eaton AN19GN0A5E045 is a 45A NEMA non-reversing electric motor starter from the Eaton Freedom Series. It features the C440 EOLR standard feature set with SEL reset and selectable Class 10A, 10, 20, and 30 overload protection.

The starter has a 9–45A FLA range, Size 2 configuration, and horizontal mounting. Its control coil is rated 120V at 60Hz or 110V at 50Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Name: Freedom NEMA Motor Control Starter
• Series: Freedom
• Catalog No.: AN19GN0A5E045
• Starter Type: NEMA Non-Reversing
• Current Rating: 45A
• Motor FLA Range: 9–45A
• NEMA Size: Size 2
• Coil Voltage: 120V AC @ 60Hz / 110V AC @ 50Hz
• Mounting Type: Horizontal Mount
• Overload Relay: C440 EOLR
• Feature Set: C440 EOLR Standard Feature Set
• Reset Type: SEL Reset
• Overload Class: Class 10A, 10, 20, 30
• Application: Electric Motor Control and Starting
• Brand: Eaton
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AN19GN0A5E045
• Catalog Number: AN19GN0A5E045
• Product Family: Eaton Freedom Motor Starters
• Series: Freedom
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: NEMA Electric Motor Starter
• Model: AN19GN0A5E045
• Starter Configuration: NEMA Non-Reversing
• Current Rating: 45A
• upc:786685415420

Compatibility:

Designed for use with compatible Eaton Freedom Series NEMA motor-control applications. The AN19GN0A5E045 is a 45A, Size 2, non-reversing motor starter with a 9–45A motor FLA range, C440 EOLR standard feature set, SEL reset, and horizontal mounting.

Always verify the specific motor application, motor full-load current, control-coil voltage and frequency, overload class, mounting arrangement, and approved starter configuration before installation.

Certifications:

• Specific Certifications: Not Specified
