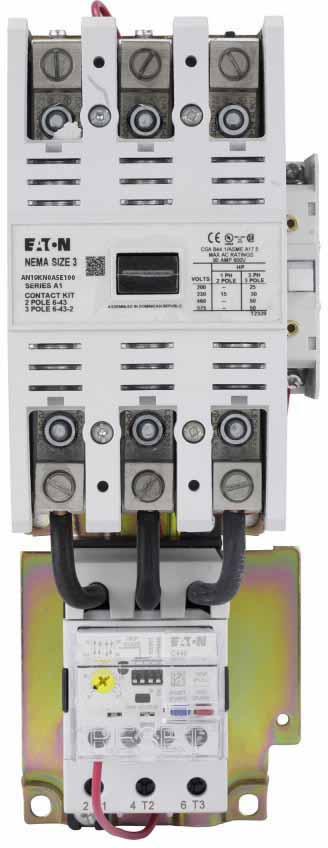

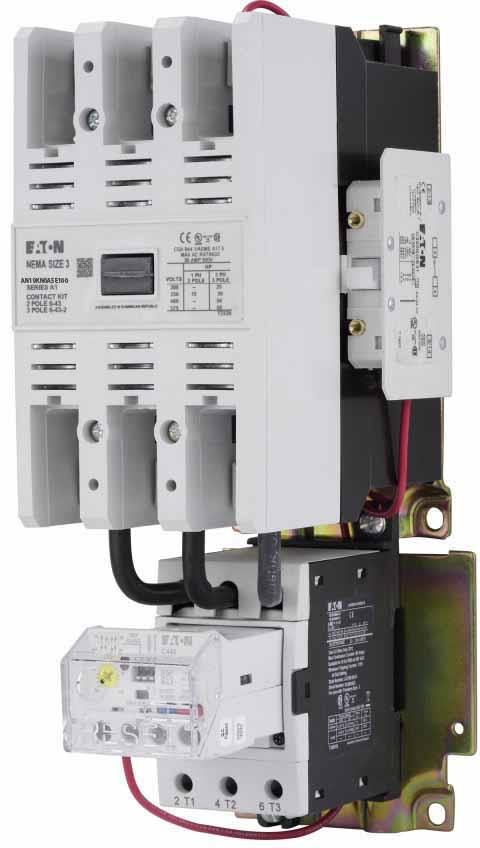

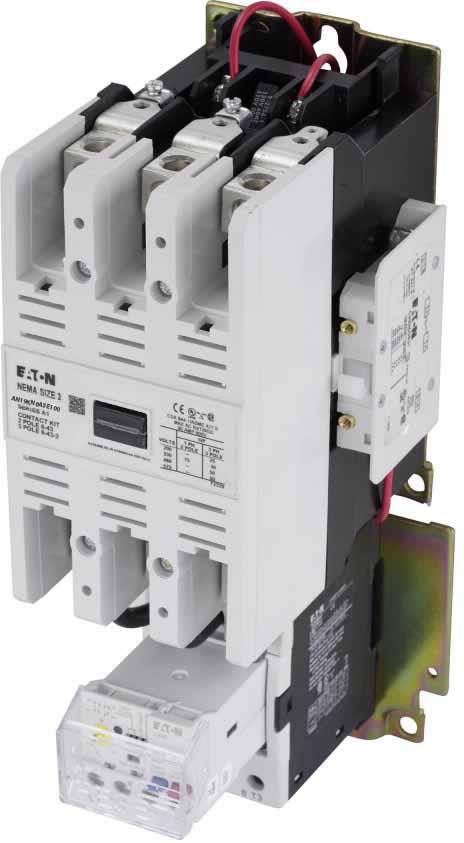

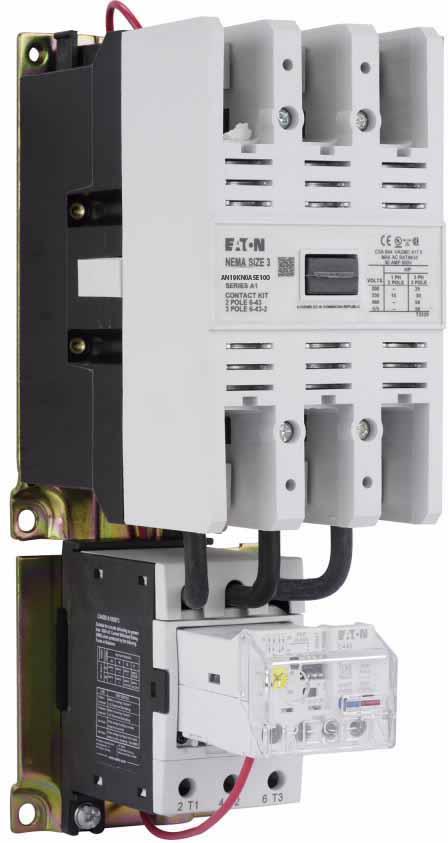

Eaton AN19KN0A5E100 Electric Motor Starter – 90A – Non-Reversing – 120V/110V Coil – NEMA Freedom Series

The Eaton AN19KN0A5E100 is a NEMA non-reversing electric motor starter from the Eaton Freedom Series. It features a C440 electronic overload relay (EOLR) with the standard feature set, including SEL reset and selectable Class 10A, 10, 20, and 30 overload settings.

The starter has a 90A rating, supports a 20–100A motor FLA range, and uses a 120V/60Hz or 110V/50Hz coil. It is designed for horizontal mounting and is identified as NEMA Size 3.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Family: Freedom
• Series: Freedom Series
• Catalog No.: AN19KN0A5E100
• Starter Type: NEMA Non-Reversing
• Current Rating: 90A
• Motor FLA Range: 20–100A
• NEMA Size: Size 3
• Overload Relay: C440 Electronic Overload Relay (EOLR)
• Overload Feature Set: Standard
• Overload Reset: SEL Reset
• Overload Classes: Class 10A, 10, 20, 30
• Coil Voltage: 120V AC @ 60Hz / 110V AC @ 50Hz
• Mounting Type: Horizontal Mount
• Reversing: Non-Reversing
• Application: Motor Starting and Control
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): AN19KN0A5E100
• Catalog Number: AN19KN0A5E100
• Model: AN19KN0A5E100
• Product Family: Eaton Freedom Motor Starters
• Series: Freedom
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: NEMA Electric Motor Starter
• Starter Configuration: Non-Reversing
• NEMA Size: Size 3
• UPC:786685415529

Compatibility:

Designed for use in compatible Eaton Freedom Series NEMA motor-control applications. The AN19KN0A5E100 is a Size 3 non-reversing starter with a 90A rating and a 20–100A motor FLA range. It incorporates a C440 electronic overload relay with SEL reset and selectable Class 10A, 10, 20, and 30 settings.

Always verify the specific motor application, motor full-load current, control-circuit voltage and frequency, starter configuration, overload requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• Eaton Freedom Series
• NEMA Non-Reversing Starter
• 90A Rated
• NEMA Size 3
• C440 Electronic Overload Relay
• 20–100A Motor FLA Range
• 120V/60Hz or 110V/50Hz Coil
• Horizontal Mount
• SEL Reset
• Class 10A, 10, 20, 30 Overload Classes
