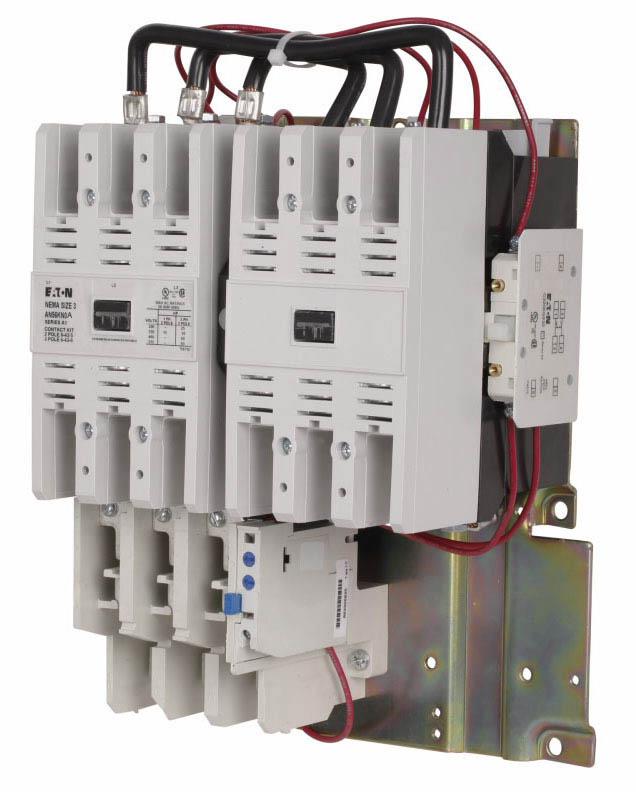

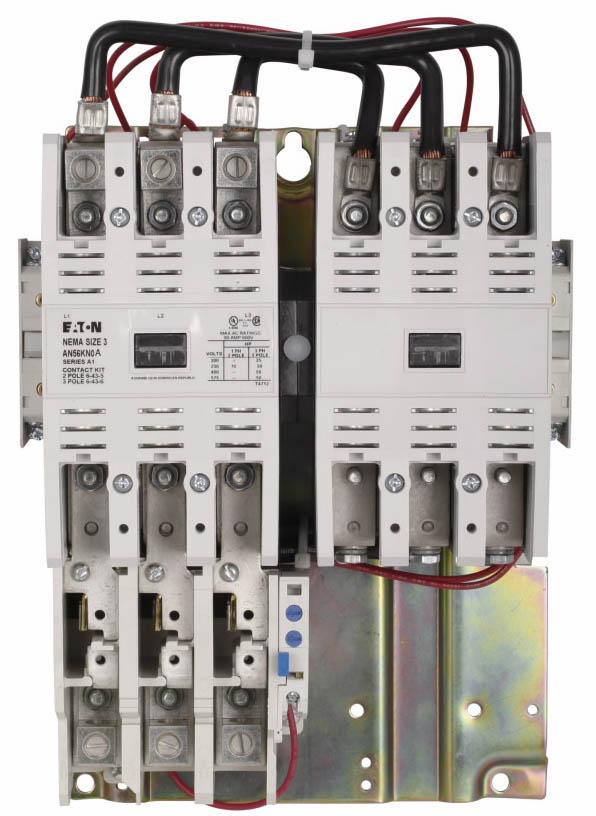

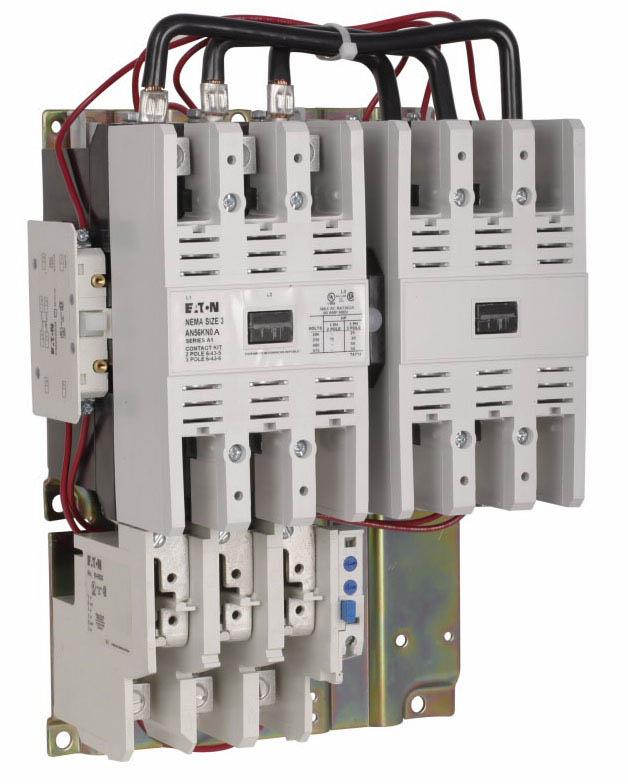

Eaton AN56KN0A 90 Amp Reversing NEMA Motor Starter – 3 Pole – NEMA Size 3 – 120 V AC Coil – Freedom Series

The Eaton AN56KN0A is a 90 Amp, 3-pole reversing NEMA motor starter from the Eaton Freedom Series. It features a reset overload relay starter configuration and a coil rated for 120 V AC at 60 Hz or 110 V AC at 50 Hz. The starter supports maximum motor horsepower ratings of 25 HP at 208 V, 30 HP at 240 V, and 50 HP at 480/600 V. It is designed for industrial motor control applications and features a NEMA Size 3 construction.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: NEMA Motor Starter
• Series: Freedom
• Catalog Number / MPN: AN56KN0A
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• NEMA Size: Size 3
• Starter Configuration: Reversing
• Relay Type: Reset Overload Relay
• Coil Voltage: 120 V AC at 60 Hz / 110 V AC at 50 Hz
• Maximum Motor Rating: 50 HP
• Motor Rating at 208 V: 25 HP
• Motor Rating at 240 V: 30 HP
• Motor Rating at 480 V: 50 HP
• Motor Rating at 600 V: 50 HP

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: AN56KN0A
• Series: Freedom
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Reversing NEMA Motor Starter
• NEMA Size: Size 3
• Coil Voltage: 120 V AC at 60 Hz / 110 V AC at 50 Hz
• Starter Configuration: Reset Overload Relay
• UPC:782113603902

Compatibility

The Eaton AN56KN0A is intended for compatible Eaton Freedom Series NEMA motor control and reversing starter applications.
