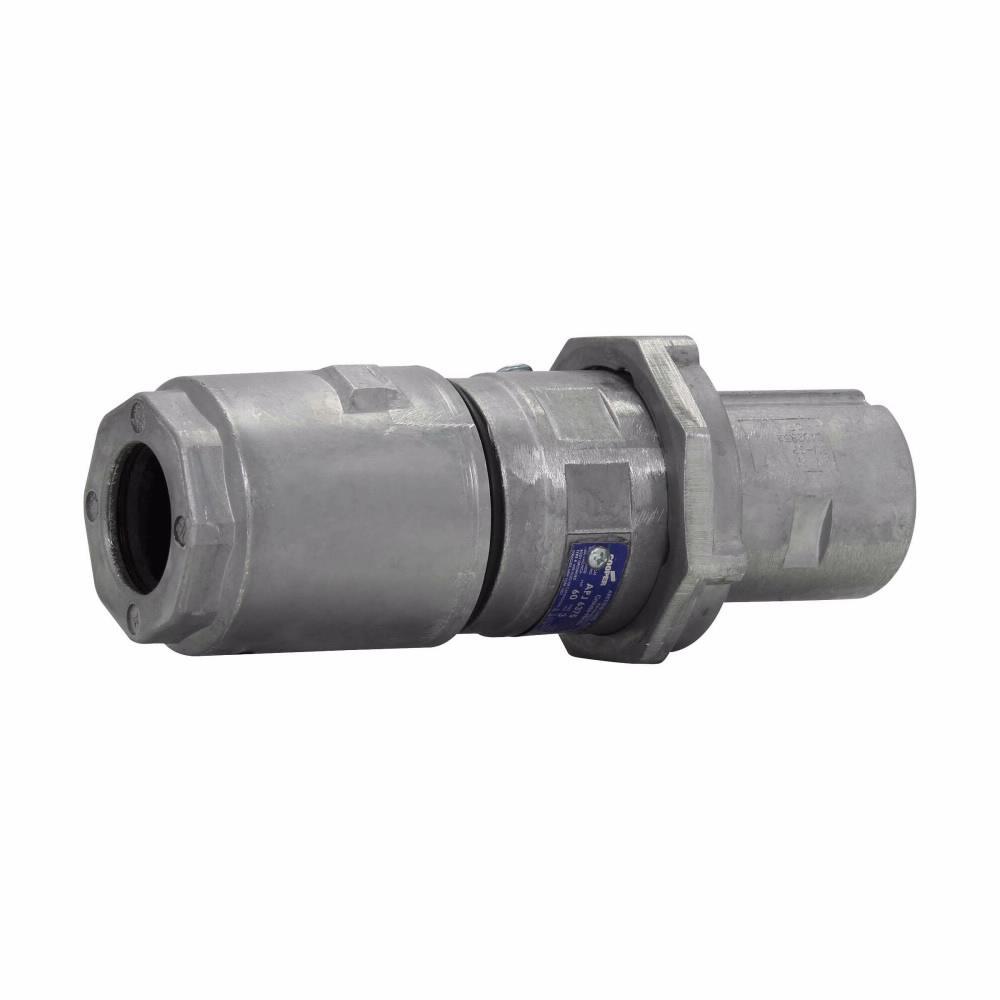

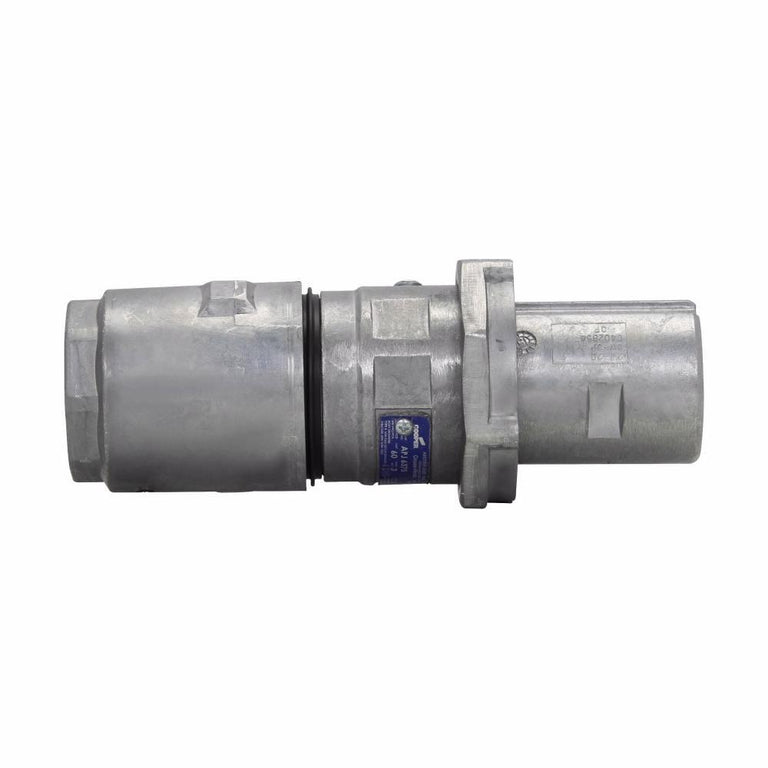

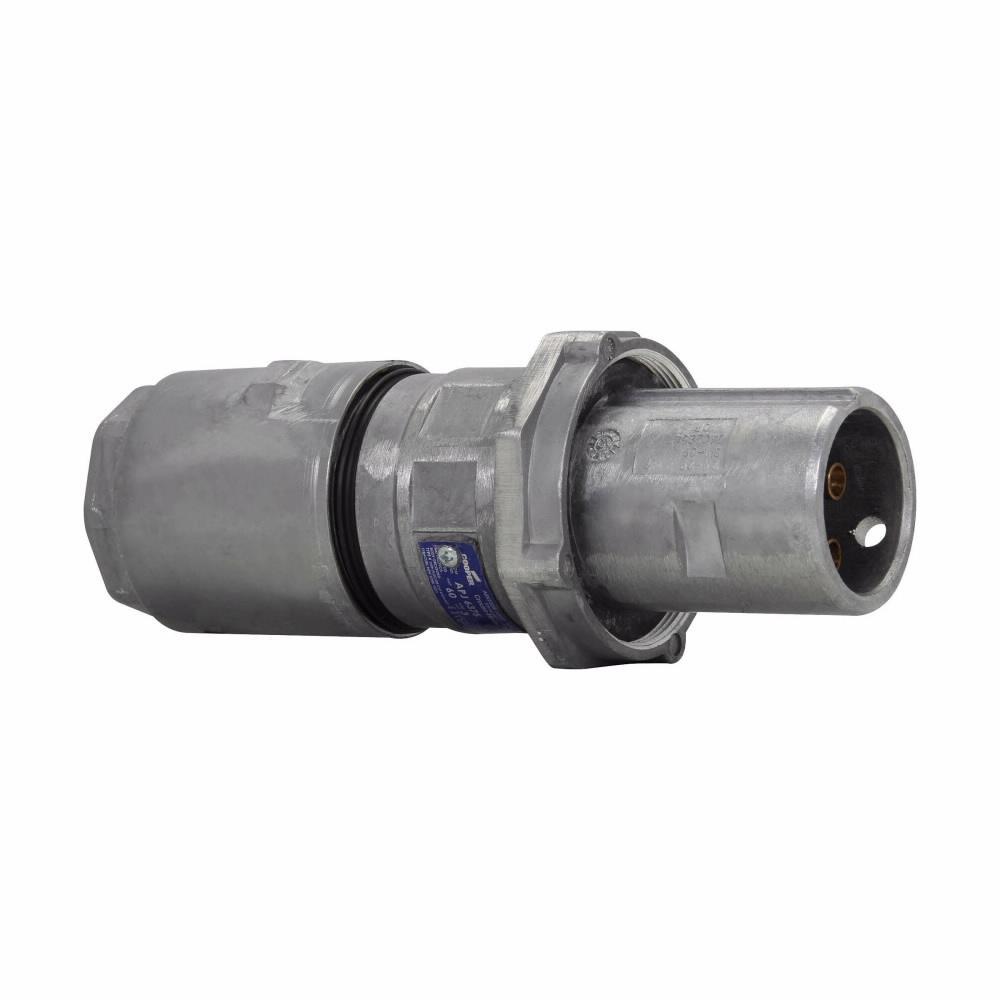

Crouse-Hinds APJ6375 Plug – Arktite Series – Same-Rating Polarized Connection – Interchangeable Interior

The Crouse-Hinds APJ6375 is an Arktite industrial plug designed for demanding electrical applications and adverse environments. The Arktite plug and receptacle system is designed to prevent mismating by accepting only plugs and receptacles with the same amperage rating, style, and number of poles, providing positive polarization.

Plugs through 100A may be disconnected under load, while 150–400A units are intended for service-disconnect use only. The system incorporates extra-wide electrical spacing and specially selected insulating materials for high dielectric strength, mechanical and impact resistance, low moisture absorption, and high arc-tracking resistance.

Specifications:

• Manufacturer: Crouse-Hinds
• Product Type: Industrial Plug
• Catalog No.: APJ6375
• Product Family: Arktite
• Series: Arktite
• Application: Industrial Electrical Connection
• Mismating Protection: Receptacles accept only plugs of the same amperage rating, style, and number of poles
• Polarization: Positive Polarization
• Electrical Spacing: Extra-Wide Electrical Spacing
• Insulator Construction: High Dielectric Strength and High Arc-Tracking Resistance
• Environmental Design: Designed for Rough Usage and Adverse Environments
• Interior Design: Reversible Interiors Available for Applicable Arktite Configurations
• Interior Interchangeability: 30A, 60A, and 100A interiors are interchangeable using a screwdriver, except 30A and 60A 5-pole configurations
• Load-Break Capability: Plugs through 100A may be disconnected under load
• 150–400A Application: Service Disconnect Use Only
• Application Flexibility: Compatible back-box options support a variety of installations

Part Numbers & Identification:

• Manufacturer Part Number (MPN): APJ6375
• Catalog Number: APJ6375
• Product Family: Crouse-Hinds Arktite
• Series: Arktite
• Brand: Crouse-Hinds
• Product Type: Industrial Plug
• Model: APJ6375
• upc:782274049205

Compatibility:

Designed for use with compatible Crouse-Hinds Arktite plug and receptacle systems. Arktite receptacles are designed to accept only plugs with the corresponding amperage rating, style, and number of poles, helping prevent mismatched connections and providing positive polarization.

Applicable Arktite interiors can be interchanged using a screwdriver. The system also supports different back-box configurations for installation flexibility. When feeding a normally de-energized receptacle from an energized plug, the reversible interior design allows this to be accomplished without exposing energized contacts.

Always verify the specific amperage rating, voltage, number of poles, plug/receptacle style, enclosure or back-box configuration, and installation requirements before installation.

Certifications:

• Arktite Industrial Plug System
• Positive Polarization
• Mismating Protection
• Extra-Wide Electrical Spacing
• High Dielectric Strength Insulation
• High Arc-Tracking Resistance
• Designed for Adverse Environments
• Load-Break Capability for Applicable Units Through 100A
• Genuine Crouse-Hinds Product
