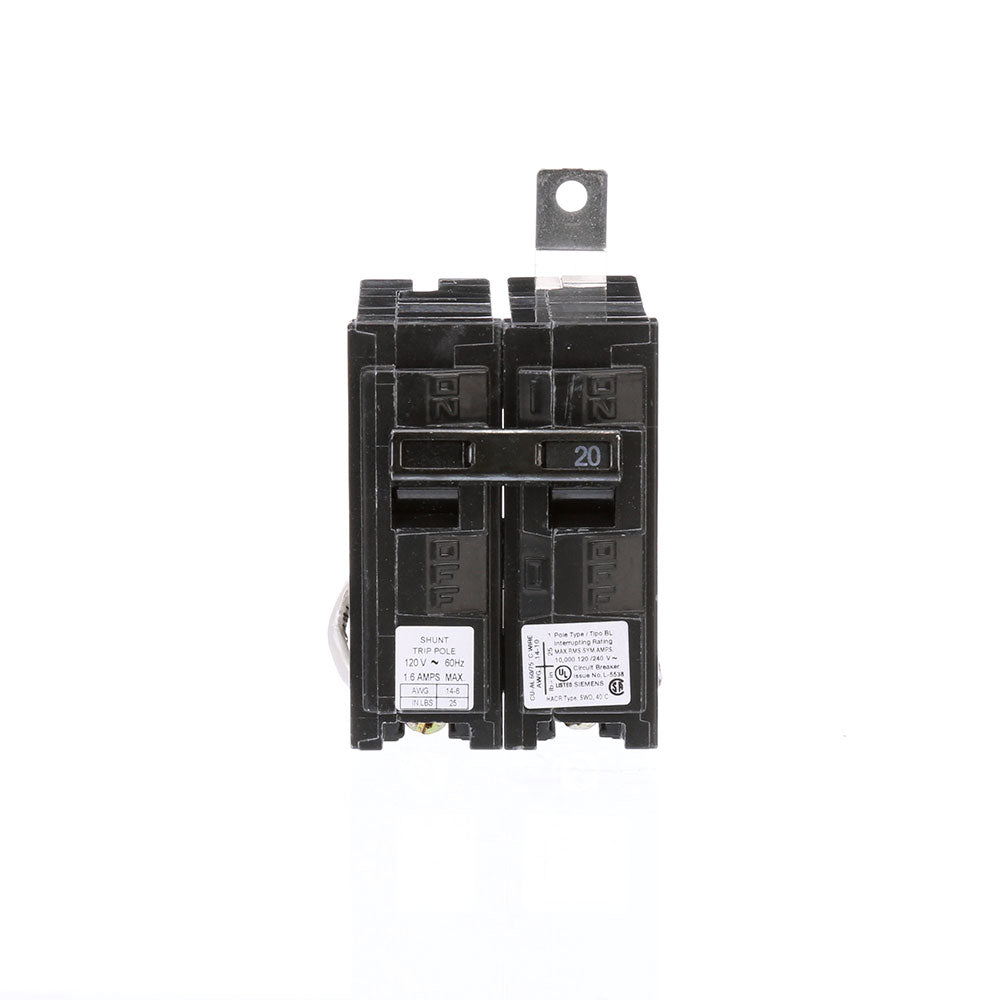

Siemens B12000S01 Shunt Trip Circuit Breaker – 20A – 1-Pole – 120/240VAC – 10kA – Bolt-On – Molded Case Series

The Siemens B12000S01 is a one-pole, 20-amp molded case circuit breaker designed for compatible Siemens electrical distribution equipment. It features bolt-on connection, thermal-magnetic protection, and a standard 10 kA interrupting rating at 120/240VAC. The breaker includes a terminal load lug and is designed for reliable branch circuit protection.

Specifications:

• Manufacturer : Siemens
• Product Type : Molded Case Circuit Breaker
• Catalog No. : B12000S01
• Amperage Rating : 20A
• Voltage Rating : 120V
• Interrupting Rating : 10 kA at 120/240VAC (UL)
• Number of Poles : 1-Pole
• Connection : Bolt-On
• Trip Technology : Thermal-Magnetic
• Breaker Type : Molded Case Circuit Breaker
• Terminal Type : Load Lug
• Product Lifecycle (PLM) : PM300: Active Product
• Product Group : 5201
• Net Weight : 0.507 lb
• RoHS Compliance : Not Available
• Application : Branch circuit overload and short-circuit protection
• Authenticity : Authentic Siemens Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : B12000S01
• Catalog Number : B12000S01
• Product Family : Siemens Molded Case Circuit Breakers
• Brand : Siemens
• Manufacturer : Siemens
• Product Type : 20A Shunt Trip Circuit Breaker
• upc: 783643268234

Compatibility:

Designed for use with compatible Siemens electrical distribution equipment and applicable molded case circuit breaker mounting configurations. The B12000S01 features a one-pole, 20A bolt-on configuration with thermal-magnetic protection. Always verify the specific panelboard or load center model and approved breaker type before installation.

Certifications:

• UL Rated
• 10 kA Interrupting Rating at 120/240VAC
• PM300: Active Product
• Genuine Siemens Product
