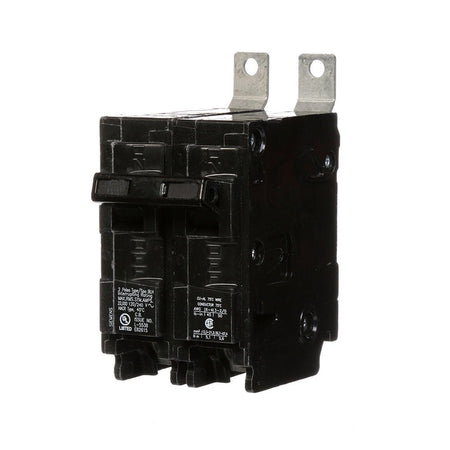

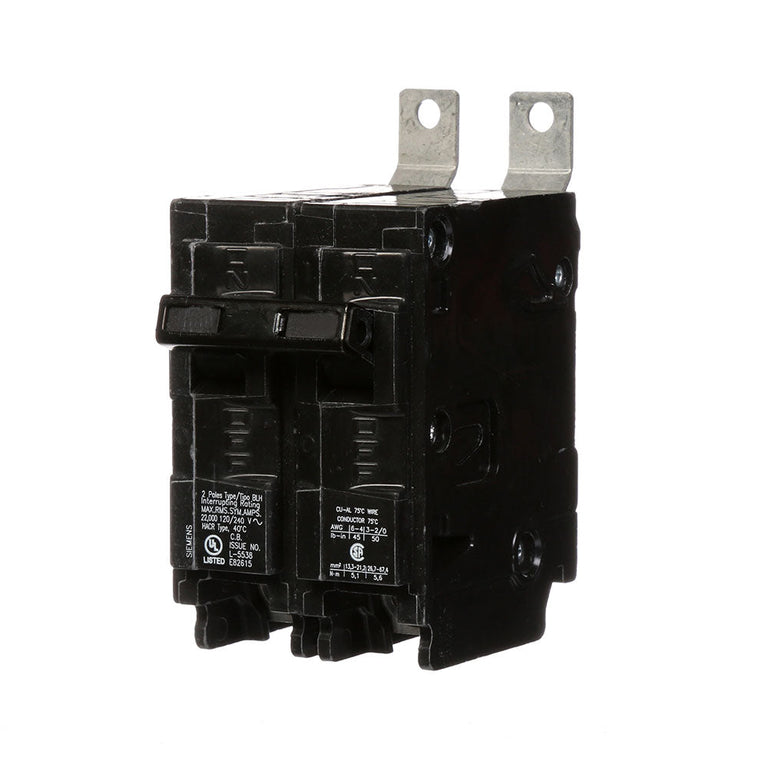

B280H - Siemens Bolt-on 120/240VACV 80A 2 pole circuit breaker 22kA@240V
Couldn't load pickup availability
Ask an expert
Description
B280H
The Siemens B280H is a Molded Case Circuit Breaker. This type BLH circuit breaker is a member of The BL Series family. The B280H is a 2 pole, 120/240VAC Volt, 80 amp rated circuit breaker, with an AIC rating of 22kA@240V. The B280H is manufactured by Siemens. The B280H uses a Bolt-on connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: B280H
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLH
- Voltage : 120/240VAC
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BLH
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643000940
- GTIN : 00783643000940
- Country of Origin : Mexico
- Dimensions : 2 in x 4 in x 4 in
- Weight : 0.66
- Panel Type : Siemens P1 Panelboards
- Standards : CSA, HACR, UL
- Certification : CSA, HACR, UL
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt-On - 70 Amp - 2 Pole - 240 Volt
