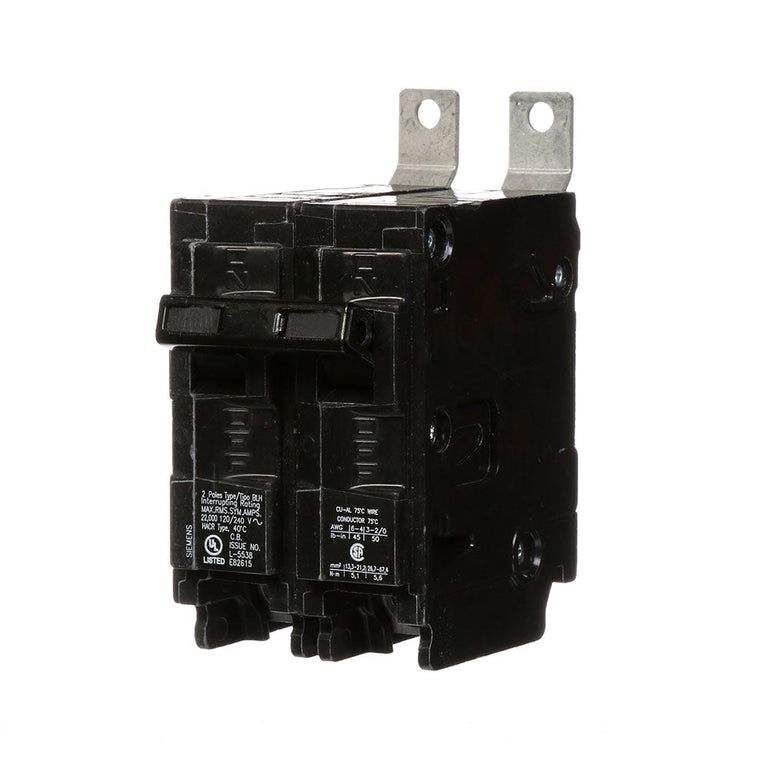

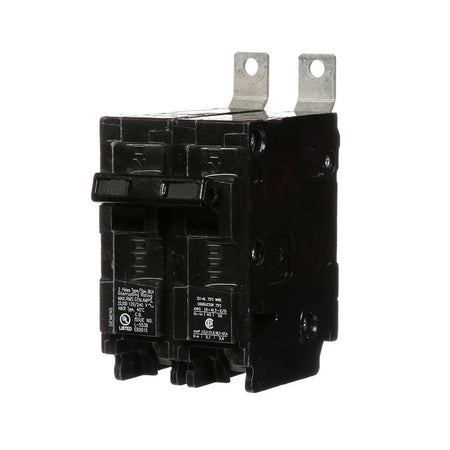

B290HH - Siemens Bolt-on 240V 90A 2 pole circuit breaker 65kA@240V
Couldn't load pickup availability
Ask an expert
Description
B290HH
The Siemens B290HH is a Molded Case Circuit Breaker. This type HBL circuit breaker is a member of The BL Series family. The B290HH is a 2 pole, 240 Volt, 90 amp rated circuit breaker, with an AIC rating of 65kA@240V. The B290HH is manufactured by Siemens. The B290HH uses a Bolt-on connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: B290HH
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : HBL
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/HBL
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643270077
- GTIN : 00783643270077
- Country of Origin : Mexico
- Dimensions : 2.756 x 3.937 x 1.969
- Weight : 0.71
- Panel Type : P1 Panelboards
- Standards : CSA, HACR, UL
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt-On - 90 Amp - 2 Pole - 240 Volt
