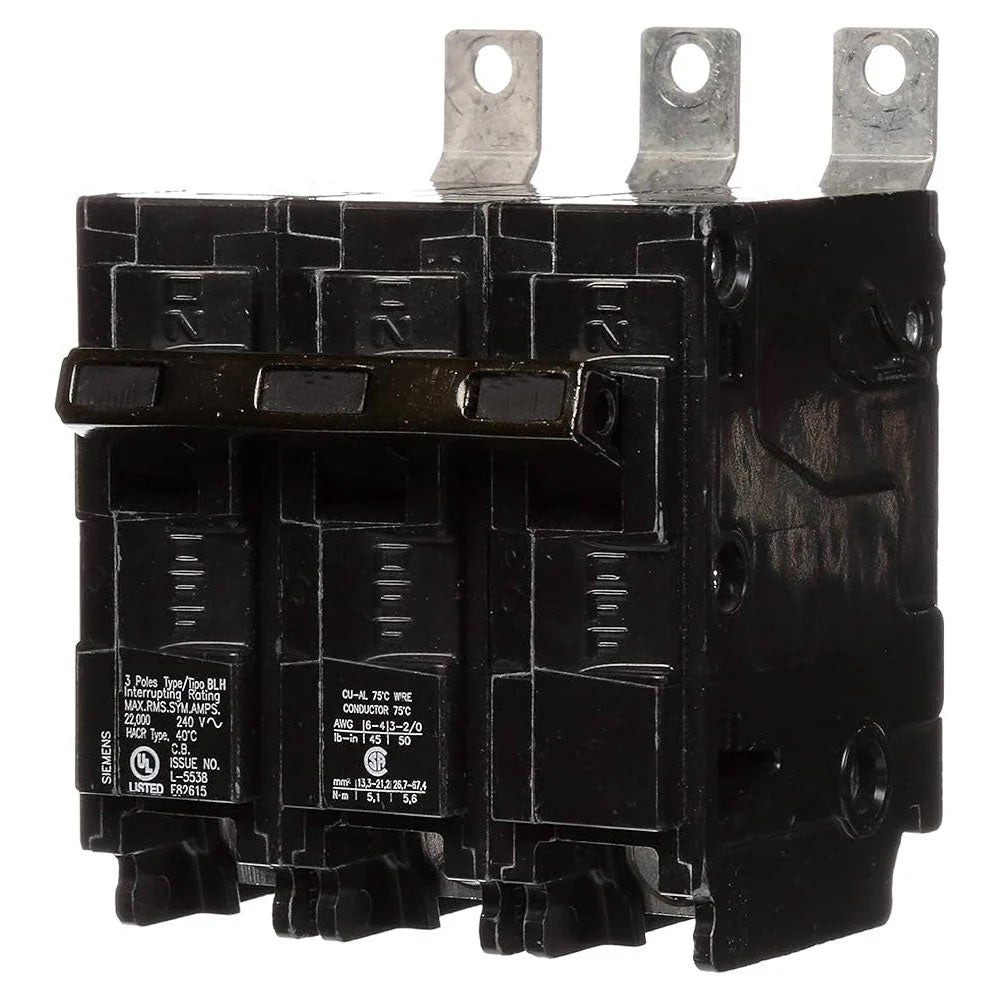

Siemens B3100HH 100 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 22 kA – Bolt-On – BL Series

The Siemens B3100HH is a 100 Amp, 3-pole molded case circuit breaker designed for power distribution applications. It has a maximum voltage rating of 240 V at 60 Hz and features thermal-magnetic protection. The breaker is designed for bolt-on mounting and includes line-side and load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: BL
• Catalog Number / MPN: B3100HH
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V Maximum
• Frequency: 60 Hz
• Interrupting Rating: 22 kA
• Trip Type: Thermal-Magnetic
• Connection / Mounting: Bolt-On
• Terminals: Line & Load-Side Lug Terminals
• Application: Power Distribution

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: B3100HH
• Series: BL
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Connection: Bolt-On
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783643264298

Compatibility

The Siemens B3100HH is designed for compatible Siemens BL Series power distribution applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
