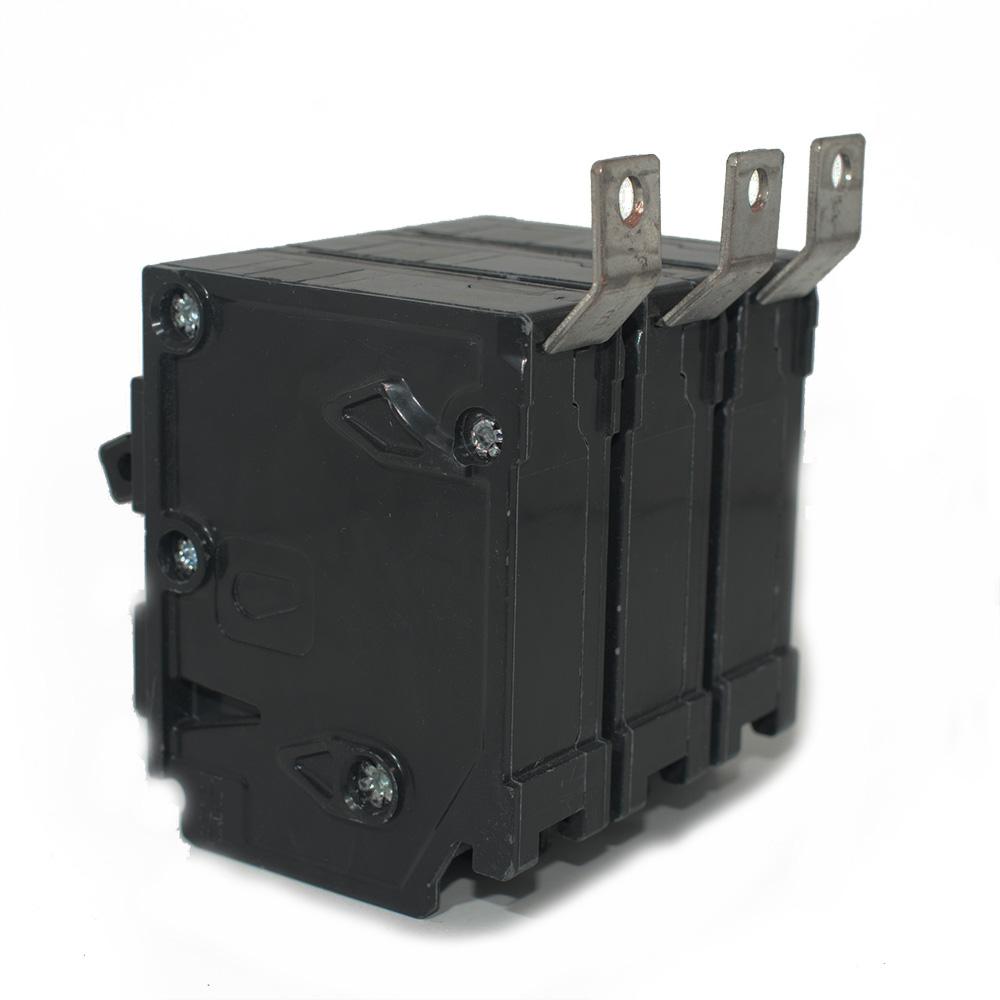

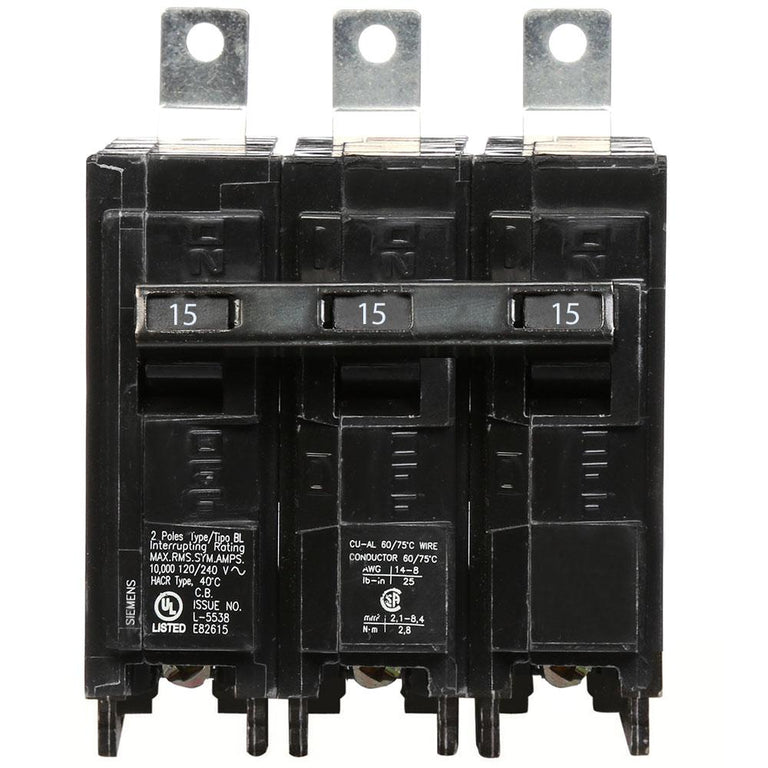

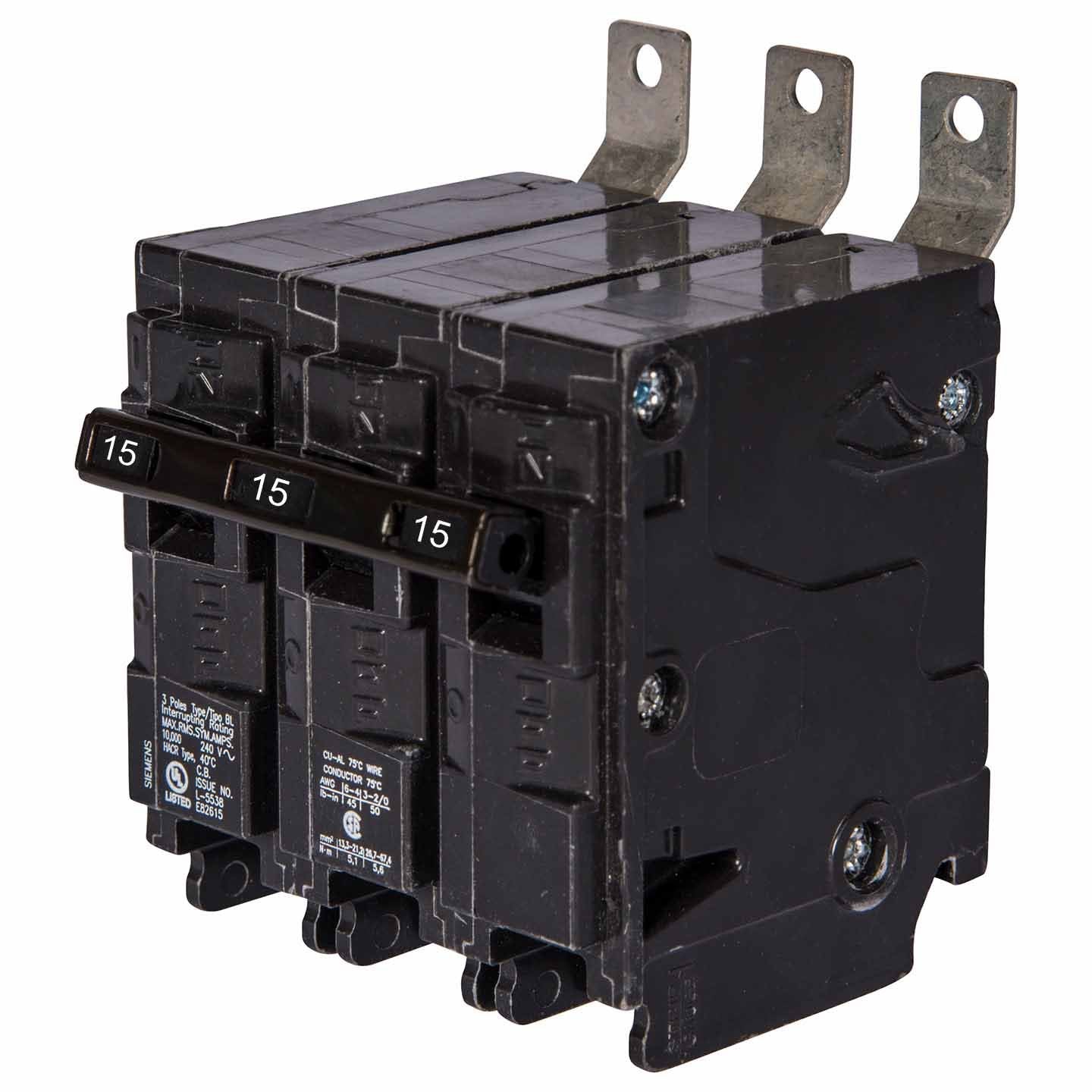

Siemens B315 Circuit Breaker – 15A – 3-Pole – 240V – 10kA – Bolt-On – B / BL Series

The Siemens B315 is a 15A, 3-pole bolt-on molded case circuit breaker from the B / BL Series. It is a panelboard-mounted breaker with a non-interchangeable trip and is designed for compatible Siemens electrical distribution equipment.

The breaker is rated for 240V and provides a 10,000A interrupting rating for three-phase circuit protection.

Specifications:

• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Family: B / BL Series
• Catalog No.: B315
• Current Rating: 15A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10,000A
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Connection Type: Bolt-On
• Mounting Application: Panelboard Mounted
• Dimensions (H × W × L): 3.5" × 3" × 3"
• Application: Electrical circuit protection
• Authenticity: Authentic Siemens Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): B315
• Catalog Number: B315
• Product Family: B / BL Series
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Model: B315
• Breaker Configuration: 3-Pole, 15A
• upc:783643263680

Compatibility:

Designed for use with compatible Siemens B / BL Series panelboards and electrical distribution equipment that accepts panelboard-mounted, non-interchangeable-trip bolt-on molded case circuit breakers. The B315 provides 15A, 3-pole circuit protection at 240V with a 10,000A interrupting rating.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, interrupting rating, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Approved
• B / BL Series
• 15A Rating
• 3-Pole / 3-Phase
• 240V Rated
• 10,000A Interrupting Rating
• Non-Interchangeable Trip
• Bolt-On Mounting
• Genuine Siemens Product
