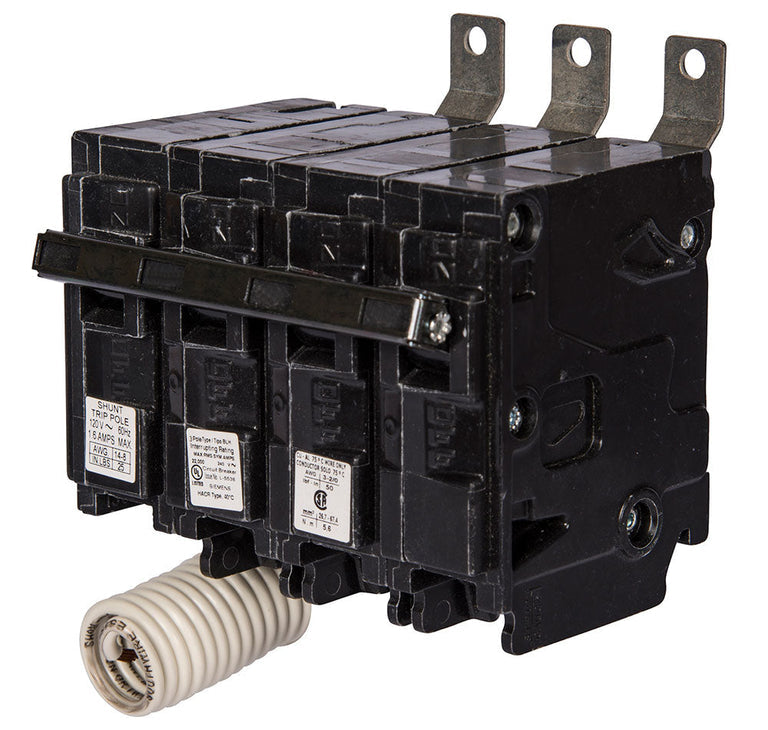

Siemens B36000S01 Shunt Trip Circuit Breaker – 60A – 3-Pole / 3-Phase – 240V – 10kA – Bolt-On – B Series

The Siemens B36000S01 is a 60A, 3-pole, 3-phase thermal-magnetic circuit breaker from the Siemens / ITE B Series. It is designed to provide overcurrent protection in compatible electrical distribution applications.

The B36000S01 is rated for 240V and provides a 10kA interrupting rating. It features bolt-on mounting, lug terminal connections, and a compact enclosure measuring 3" W × 3" D × 3-3/4" H.

Specifications:

• Manufacturer: Siemens / ITE
• Product Type: Circuit Breaker
• Product Family: B Series
• Series: B
• Catalog No.: B36000S01
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Terminal Type: Lug Terminal
• Dimensions (W × D × H): 3" × 3" × 3-3/4"
• Application: Overcurrent Protection
• Brand: Siemens / ITE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): B36000S01
• Catalog Number: B36000S01
• Model: B36000S01
• Product Family: Siemens / ITE B Circuit Breakers
• Series: B
• Brand: Siemens
• Manufacturer: Siemens / ITE
• Product Type: Thermal-Magnetic Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• Trip Configuration: Shunt Trip
• UPC:783643268586

Compatibility:

Designed for use with compatible Siemens / ITE B Series electrical distribution equipment that accepts B Series bolt-on circuit breakers. The B36000S01 provides 60A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker uses bolt-on mounting and lug terminal connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, shunt-trip requirements, terminal arrangement, dimensions, and installation specifications before installation.

Certifications:

• Siemens / ITE B Series
• 60A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA Interrupting Rating
• Thermal-Magnetic Protection
• Bolt-On Mounting
• Lug Terminal
• Shunt Trip Circuit Breaker
• Overcurrent Protection
• 3" W × 3" D × 3-3/4" H
