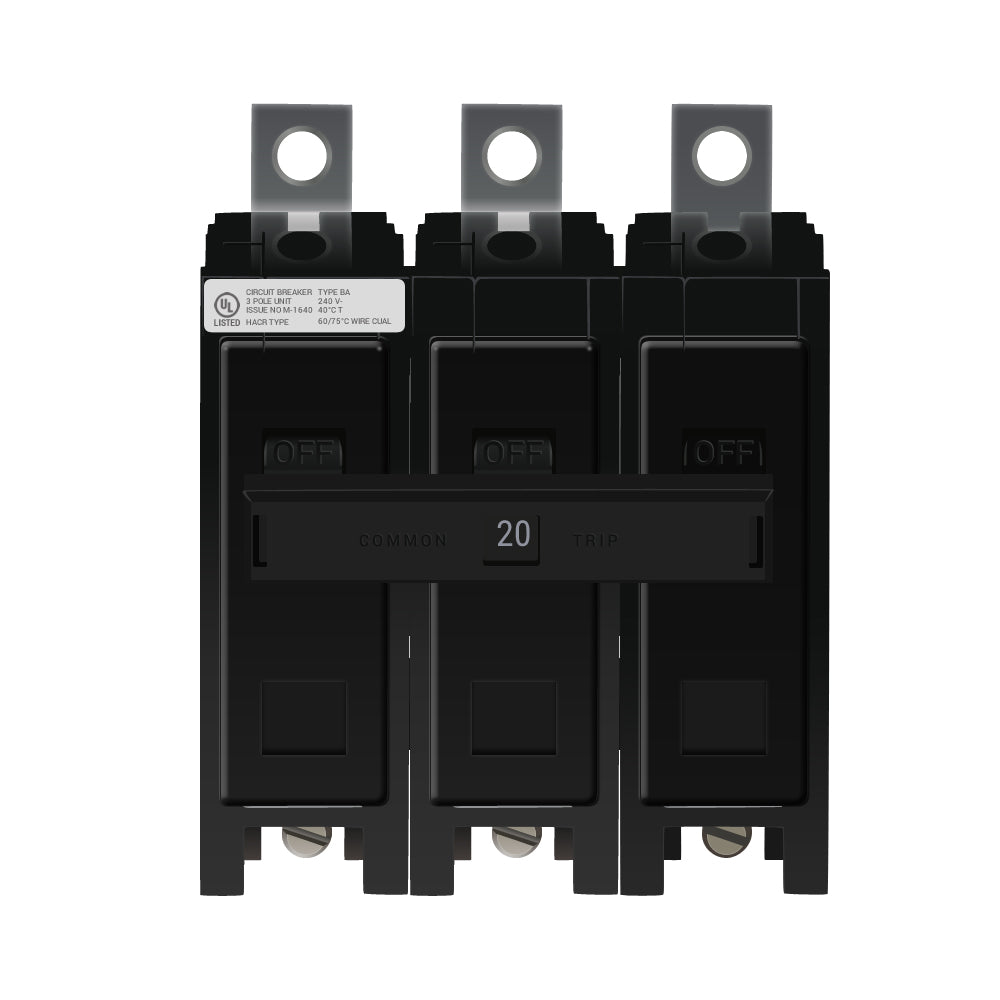

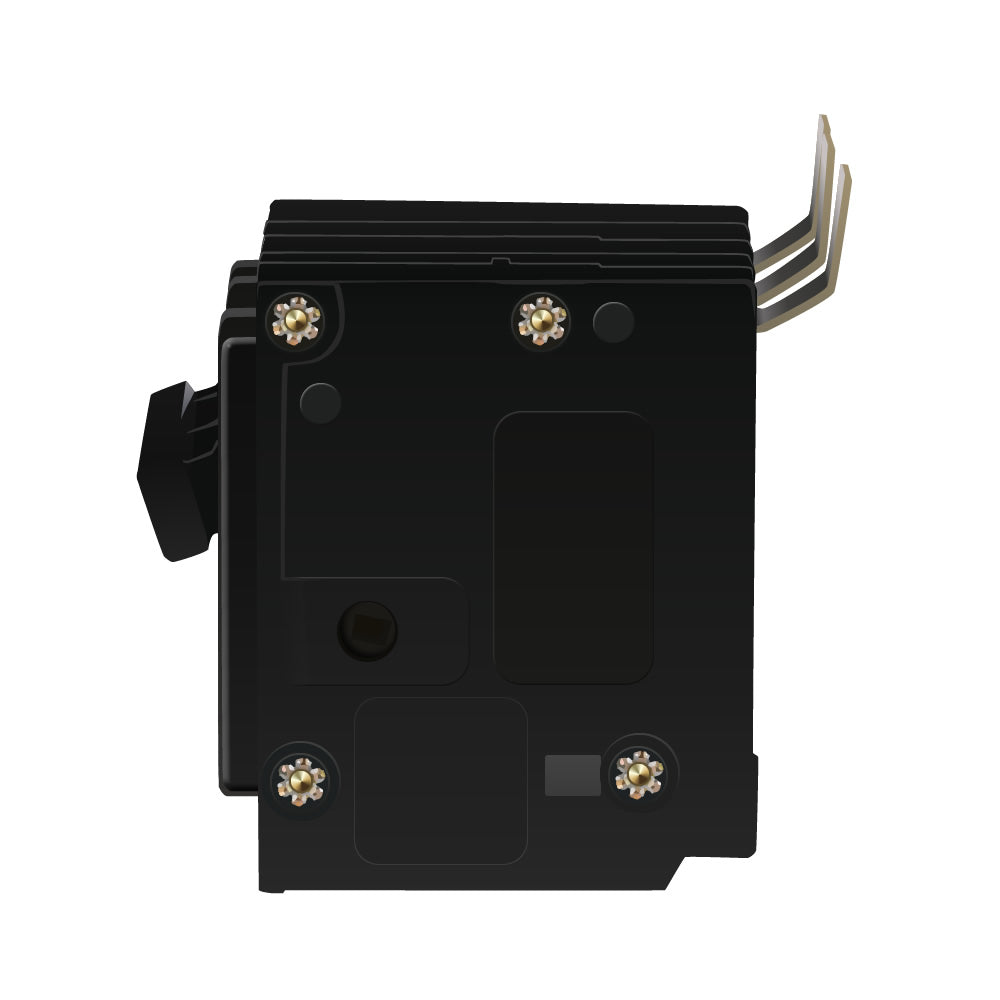

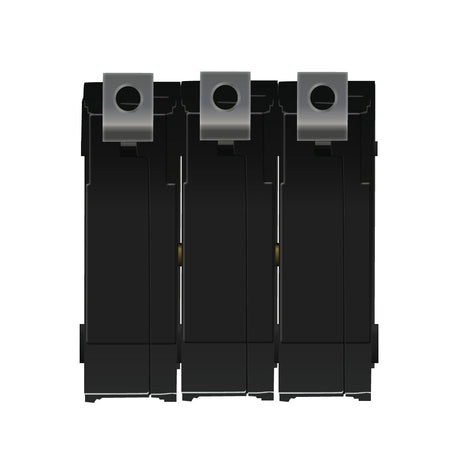

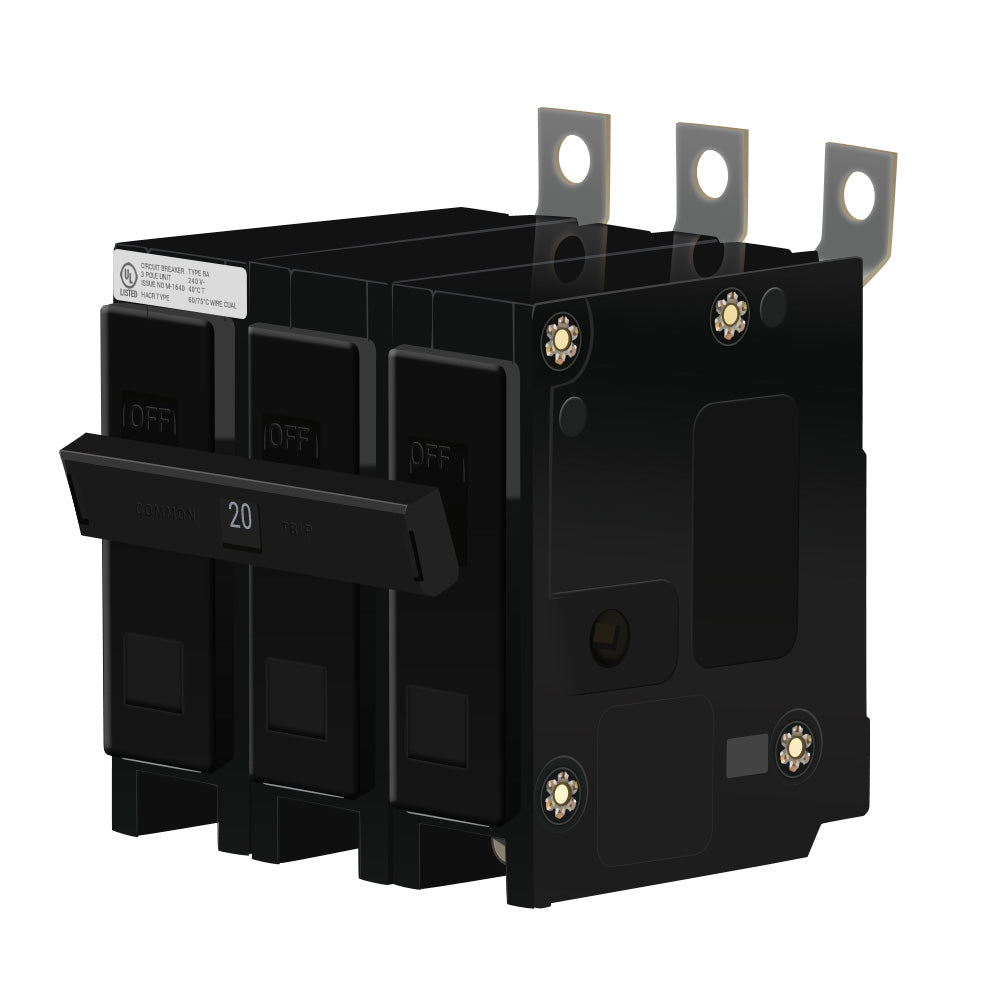

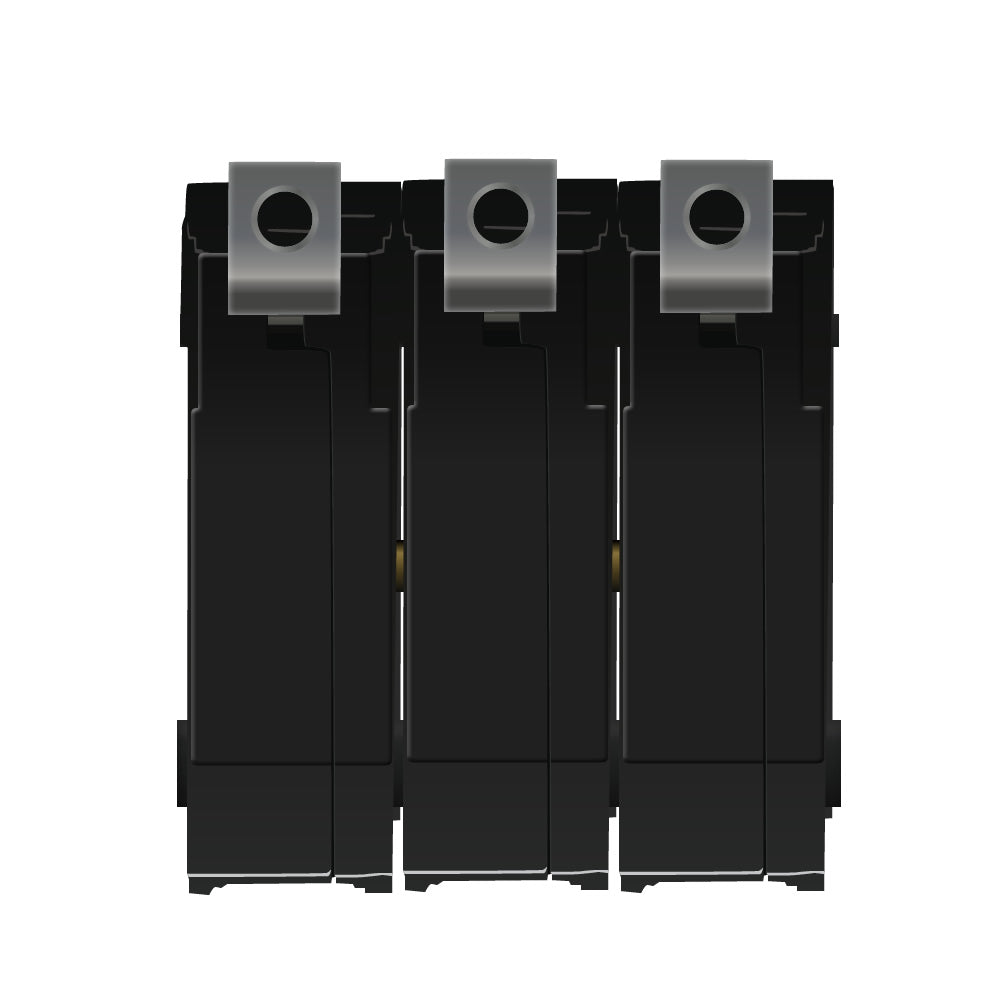

Eaton BAB3020H Circuit Breaker – 20A – 3-Pole – 120/240V – Bolt-On – BAB Quicklag Series

The Eaton / Cutler-Hammer BAB3020H is a 20A, 3-pole thermal-magnetic bolt-on circuit breaker from the BAB Quicklag Series. It is designed for compatible panelboards and provides protection against electrical overloads and short circuits. The breaker is rated for 120/240V, uses a bolt-on connection, and is identified as a replacement for compatible Westinghouse QNBL-type breakers.

Specifications:

• Manufacturer : Eaton / Cutler-Hammer
• Product Type : Miniature Industrial Circuit Breaker
• Catalog No. : BAB3020H
• Model Number : BAB3020H
• Product Family : BAB Bolt-On Miniature Quicklag Breaker
• Series : BAB Quicklag
• Breaker Type : Thermal-Magnetic Circuit Breaker
• Amperage Rating : 20A
• Voltage Rating : 120/240V
• Number of Poles : 3-Pole
• Connection : Bolt-On
• Trip Technology : Thermal-Magnetic
• Interrupting Capacity : 10,000 / 22,000A
• Interrupt Rating : 10 kAIC
• Application : Panelboard Circuit Protection
• Dimensions (H × W × L) : 4.8" × 3.2" × 3.8"
• Brand : Eaton / Cutler-Hammer
• Authenticity : Genuine Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : BAB3020H
• Catalog Number : BAB3020H
• Model Number : BAB3020H
• Product Family : Eaton BAB Quicklag Circuit Breakers
• Series : BAB
• Brand : Eaton / Cutler-Hammer
• Manufacturer : Eaton
• Product Type : Bolt-On Circuit Breaker
• Breaker Configuration : 3-Pole, 20A
• upc: 786679303207

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer panelboards and approved applications using BAB-type bolt-on circuit breakers. The BAB3020H is also specified for use with compatible Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline panelboards.

The breaker is identified as a replacement for compatible Westinghouse QNBL-type breakers and is suitable for 120/240V electrical distribution applications. Always verify the panelboard manufacturer's approved breaker listings, voltage, pole configuration, interrupting rating, and installation requirements before installation.

Certifications:

• BAB Quicklag Series
• 20A Rating
• 3-Pole
• 120/240V Rated
• Thermal-Magnetic Protection
• Bolt-On Connection
• 10 kAIC Interrupt Rating
• 10,000 / 22,000A Interrupting Capacity
• Replacement for Compatible Westinghouse QNBL-Type Breakers
• Compatible with Listed Eaton/Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline Panelboards
• CSA Approved
• UL Listed
• Genuine Eaton / Cutler-Hammer Product
