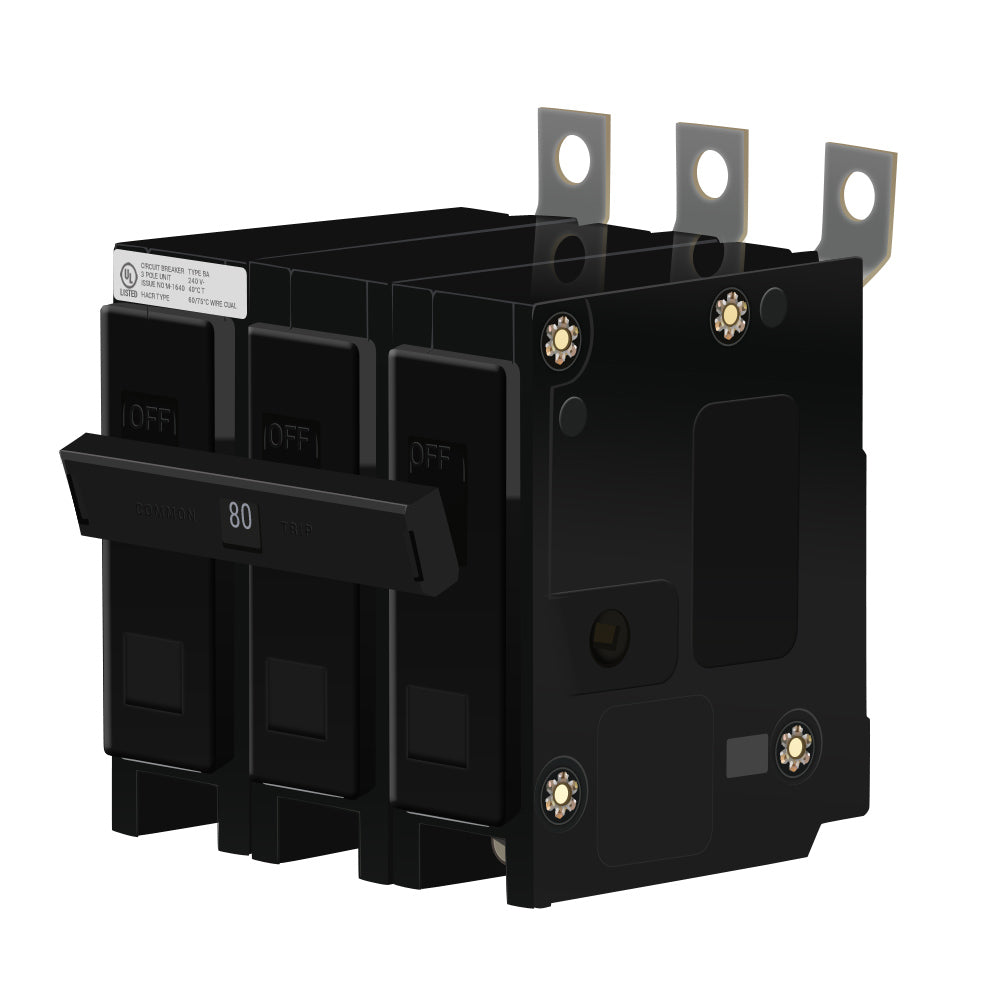

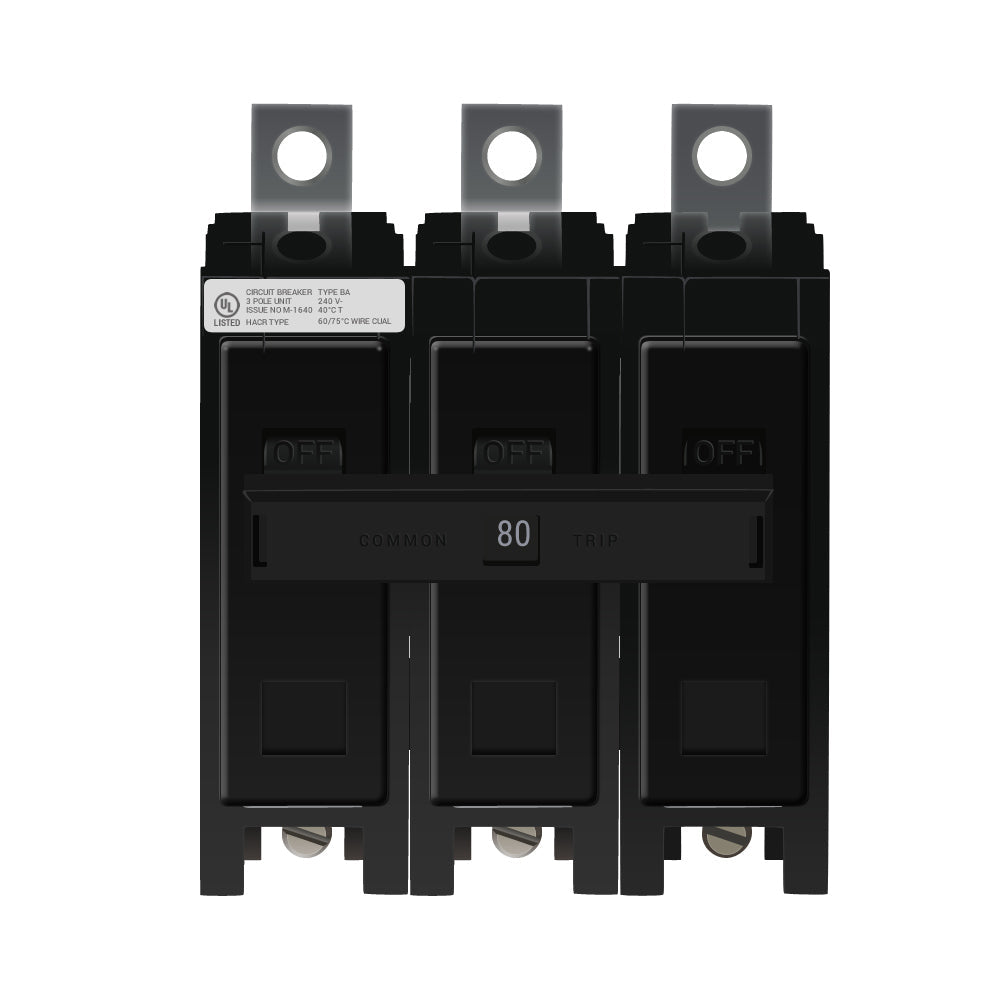

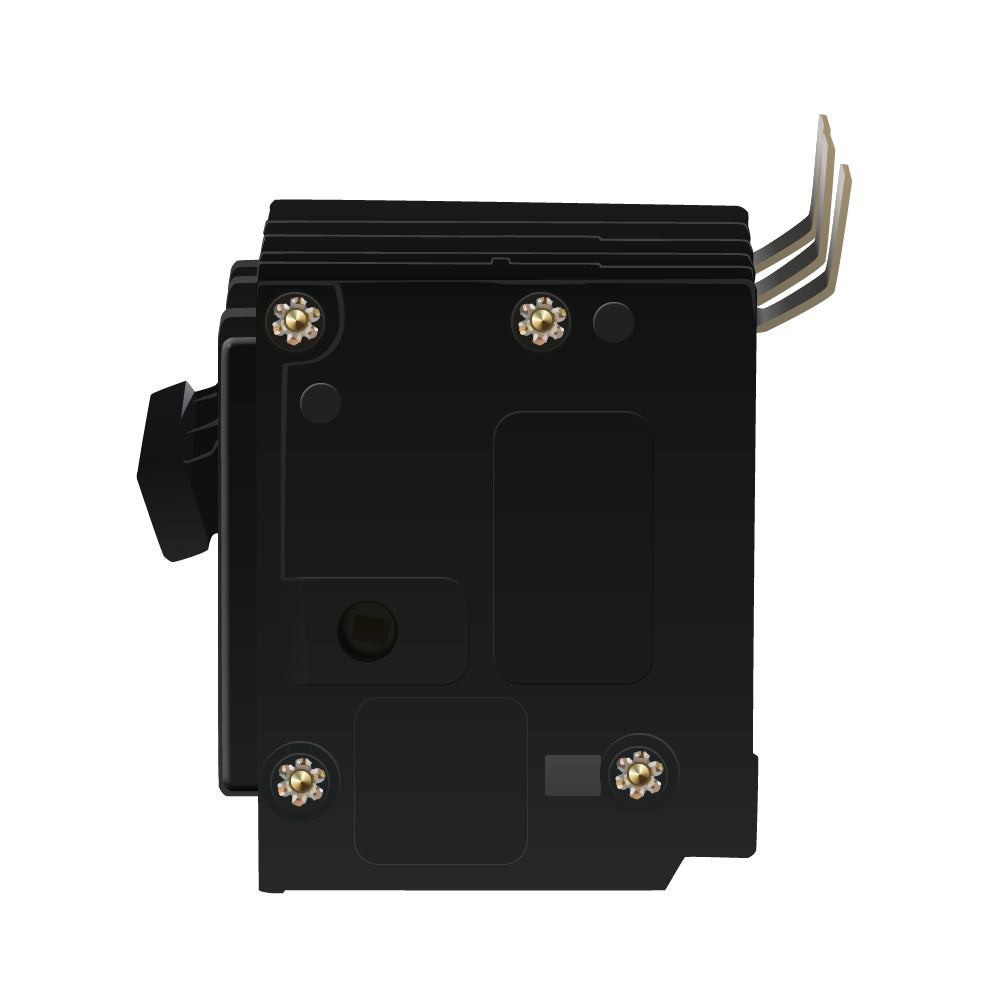

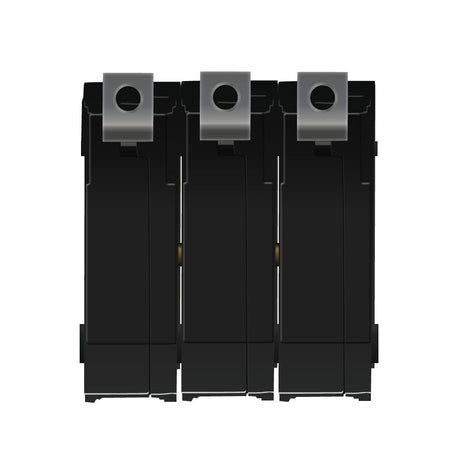

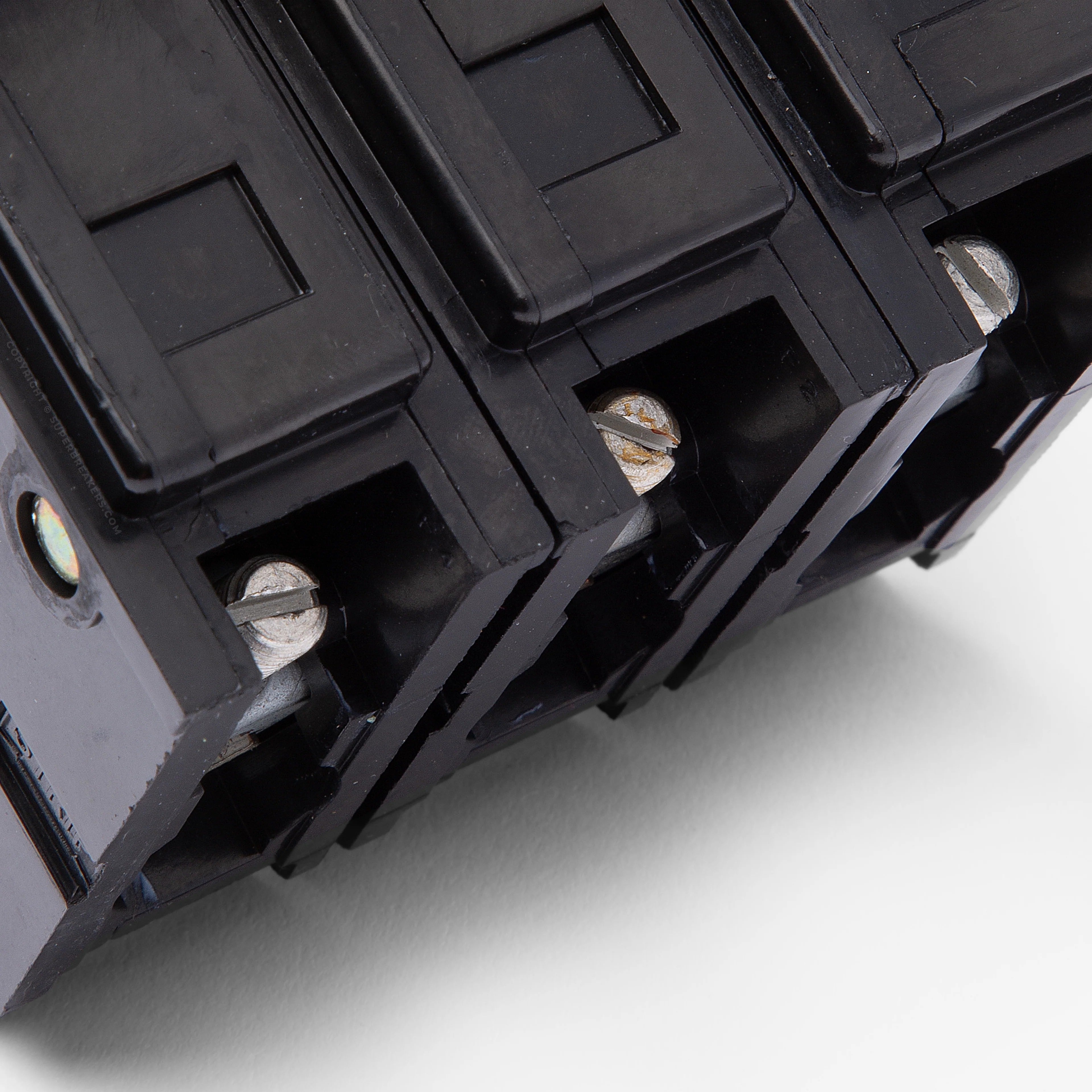

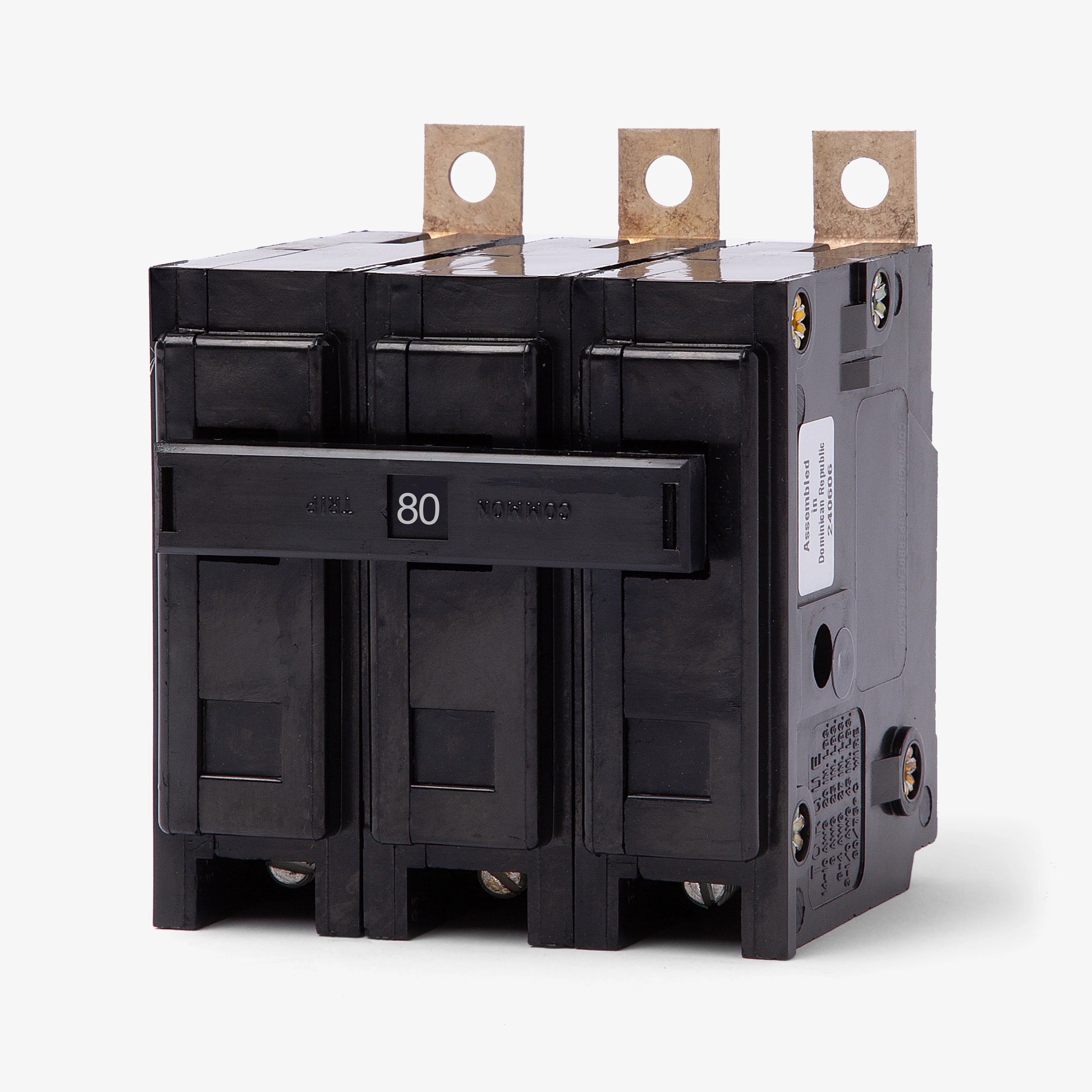

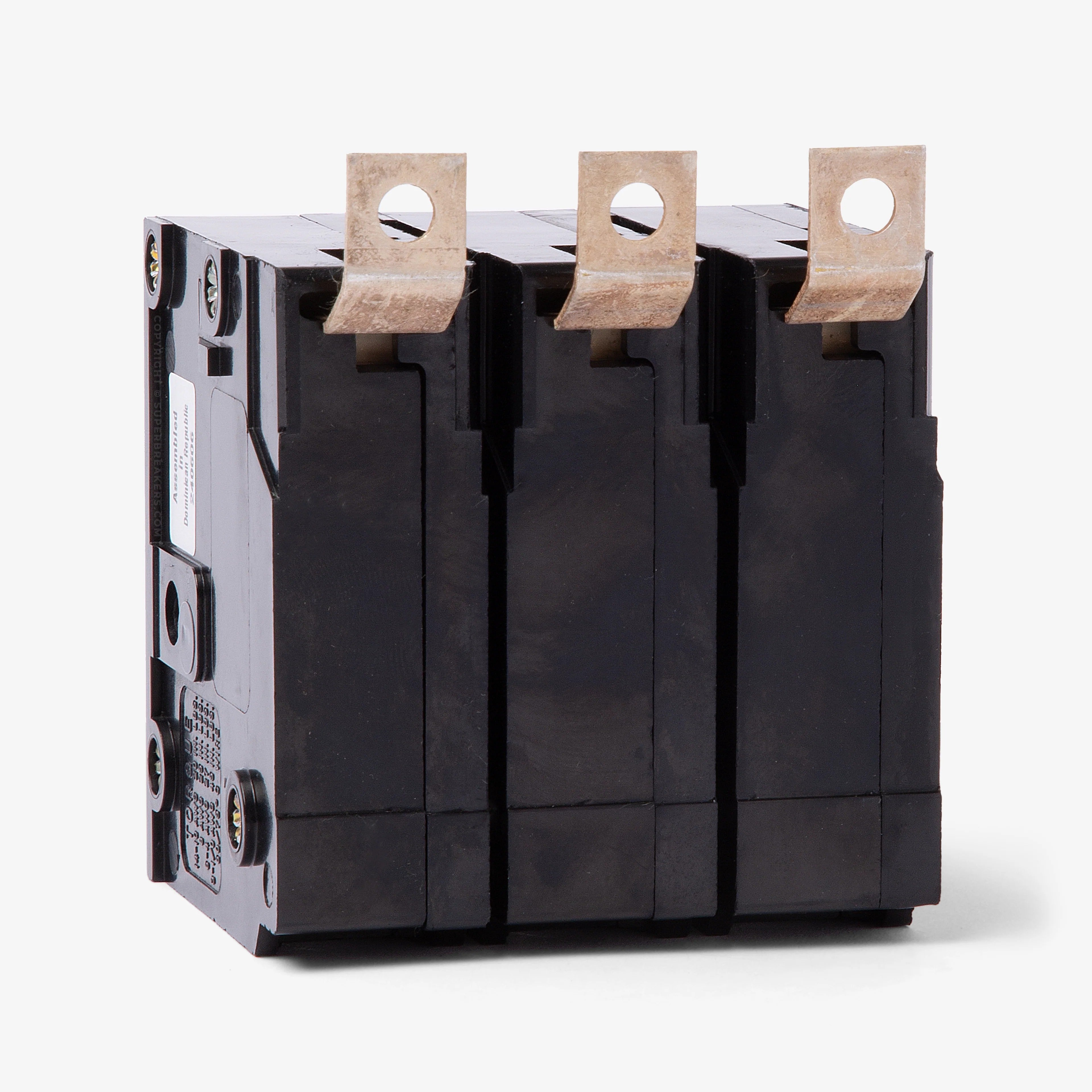

Eaton BAB3080H Circuit Breaker – 80A – 3-Pole – 120/240V – 10 kAIC – Bolt-On – BAB Series

The Eaton / Cutler-Hammer BAB3080H is an 80A, 3-pole thermal-magnetic bolt-on circuit breaker from the BAB Quicklag Series, designed for compatible panelboards and electrical distribution applications.

The breaker is rated for 120/240V and provides reliable protection against overloads and short circuits. Its bolt-on connection provides secure mounting in compatible panelboards. The BAB3080H is also identified as a replacement for compatible Westinghouse QNBL-type breakers.

Specifications

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Miniature Industrial Circuit Breaker
• Catalog No.: BAB3080H
• Model Number: BAB3080H
• Product Family: BAB Bolt-On Miniature Quicklag Breaker
• Series: BAB Quicklag
• Breaker Type: Thermal-Magnetic Circuit Breaker
• Current Rating: 80A
• Voltage Rating: 120/240V
• Number of Poles: 3-Pole
• Phase: 3-Phase

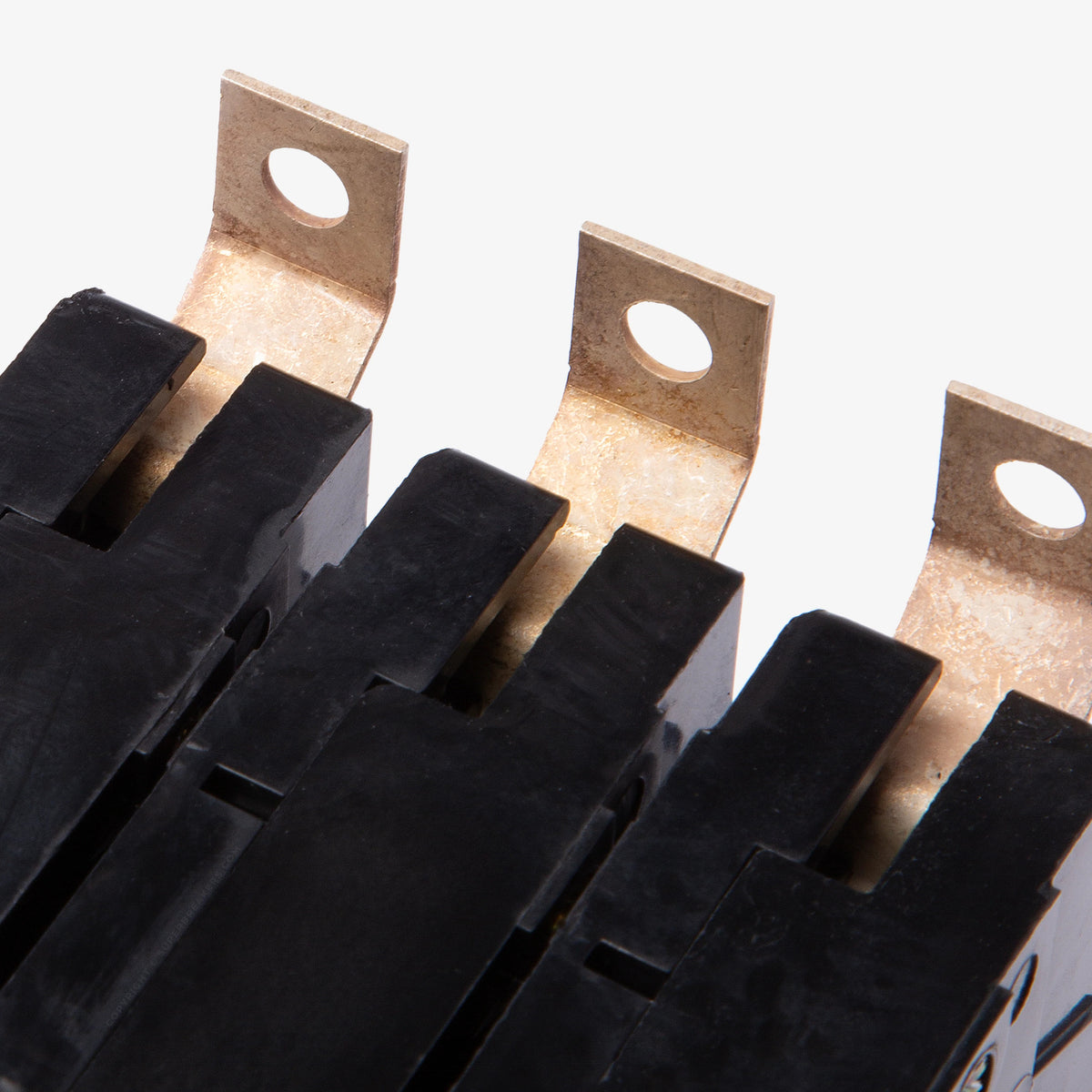

• Mounting Type: Bolt-On
• Connection: Bolt-On
• Interrupting Capacity: 10,000 / 22,000A
• Interrupt Rating: 10 kAIC
• Application: Panelboard Circuit Protection
• Dimensions (H × W × L): 4.8" × 3.2" × 3.8"
• Brand: Eaton / Cutler-Hammer
• Authenticity: Genuine Eaton Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): BAB3080H
• Catalog Number: BAB3080H
• Model Number: BAB3080H
• Product Family: Eaton BAB Quicklag Circuit Breakers
• Series: BAB
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Bolt-On Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• upc:786679303801

Compatibility

Designed for use with compatible Eaton / Cutler-Hammer BAB Series panelboards and other approved electrical distribution equipment. The BAB3080H is also identified as a replacement for compatible Westinghouse QNBL-type breakers.

It is suitable for compatible 120/240V, 3-phase applications and uses a bolt-on mounting connection. It is identified for use in compatible Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline panelboards.

Always verify the specific panelboard manufacturer's approved breaker types, voltage, pole configuration, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications

• BAB Quicklag Series
• 80A Rating
• 3-Pole / 3-Phase
• 120/240V Rated
• Thermal-Magnetic Protection
• Bolt-On Connection
• 10 kAIC Interrupt Rating
• 10,000 / 22,000A Interrupting Capacity
• Replacement for Compatible Westinghouse QNBL-Type Breakers
• CSA Approved
• UL Listed
• Genuine Eaton / Cutler-Hammer Product
