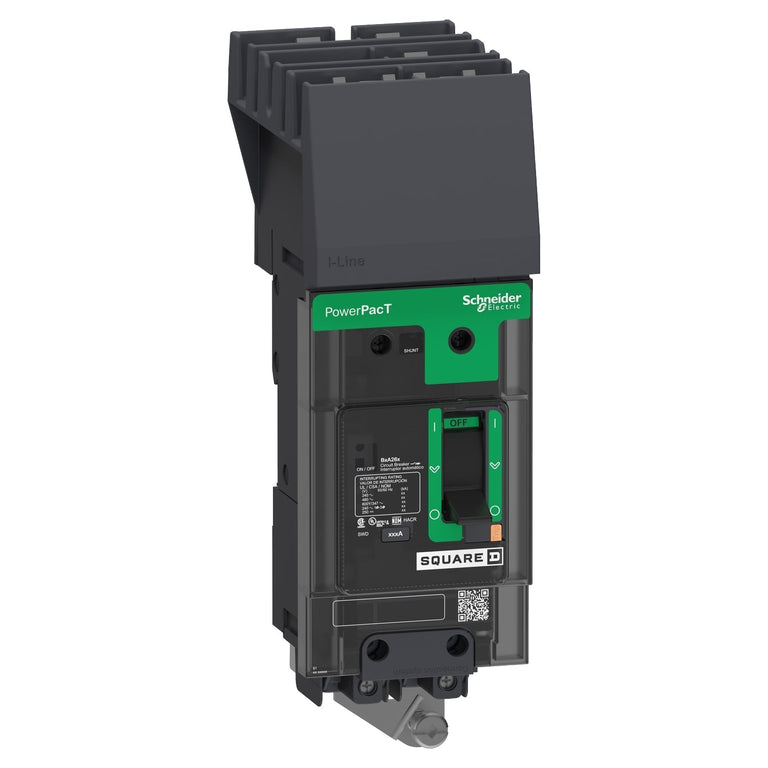

BDA260401 - Square D I-Line Style Plug-In 600V 40A 2 pole circuit breaker 18kA@480V
Couldn't load pickup availability
Ask an expert
Description
BDA260401
The Square D BDA260401 is a Molded Case Circuit Breaker. This type BDA circuit breaker is a member of The Powerpact family. The BDA260401 is a 2 pole, 600 Volt, 40 amp rated circuit breaker, with an AIC rating of 18kA@480V. The BDA260401 is manufactured by Square D. The BDA260401 uses a I-Line Style Plug-In connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: BDA260401
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDA
- Voltage : 600
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BD
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : AB
Product Data
- UPC : 785901025887
- GTIN : 03606481152138
- Country of Origin : Mexico
- Dimensions : 2.12 in x 5.39 in
- Weight : 1.32
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
- Certification : CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
- Wire Size : AWG 14...AWG 2/0 aluminum/copper
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating I-Line Plug-In - 40 Amp - 2 Pole - 600v
