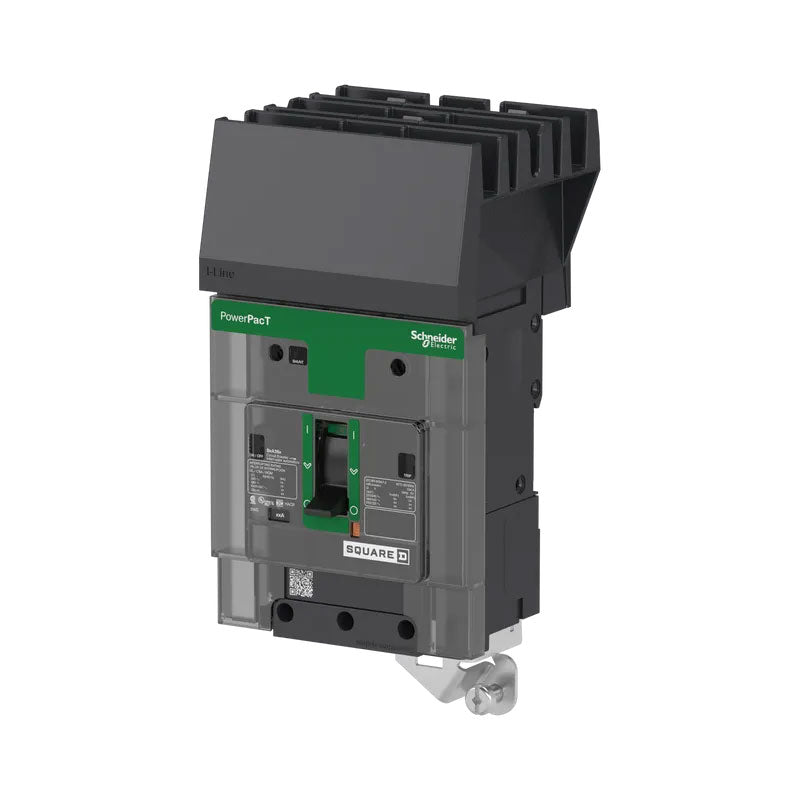

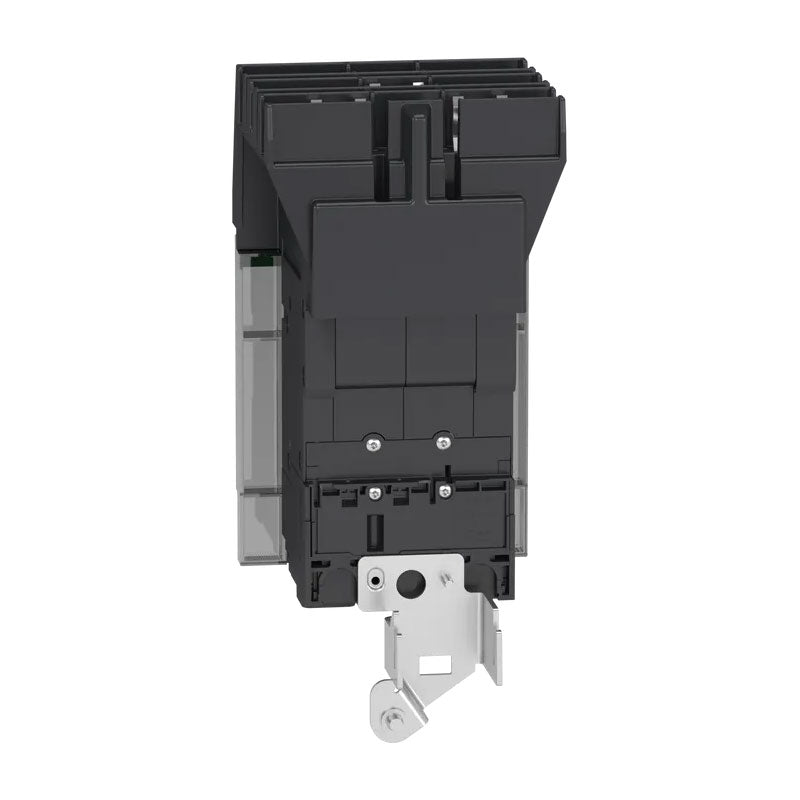

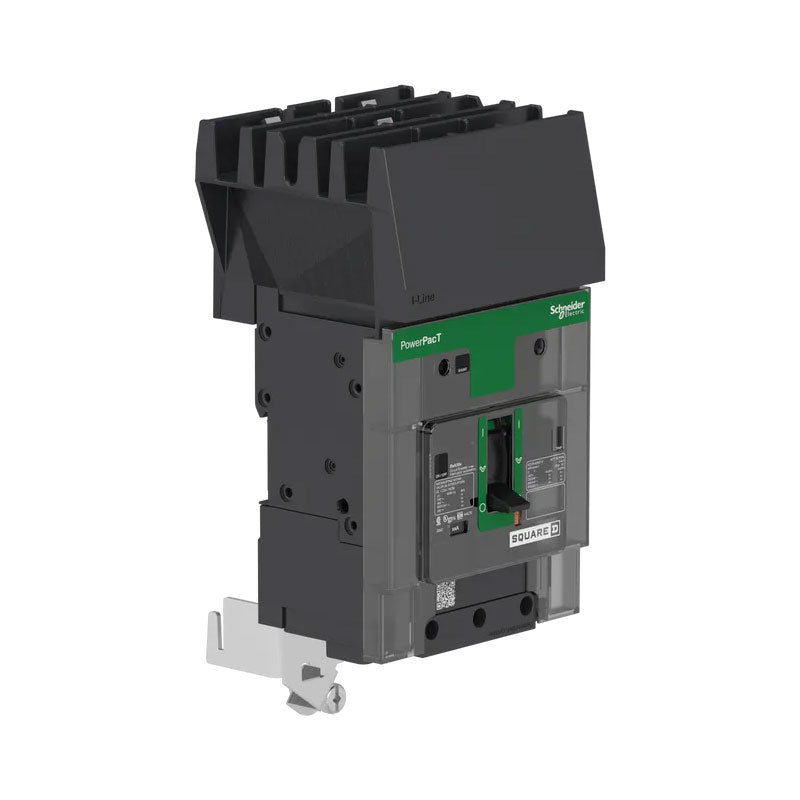

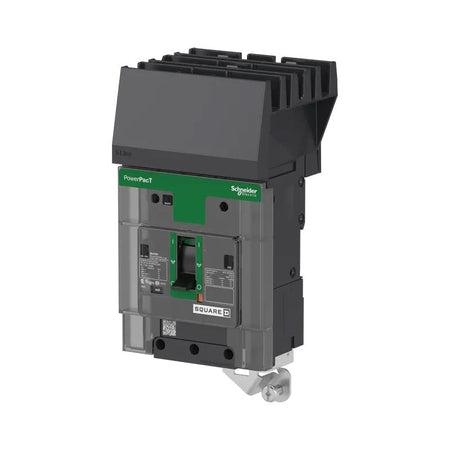

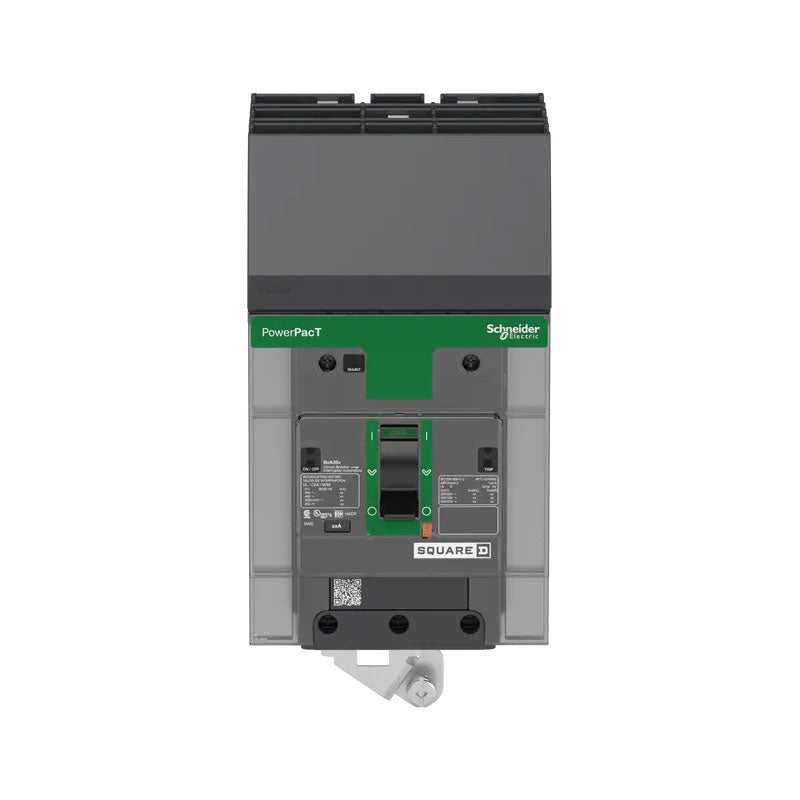

Square D BDA36020 Molded Case Circuit Breaker – 20A – 3-Pole – 600Y/347V AC – 18kA @ 480V – I-Line Plug-In – PowerPact BDA Series

The Square D BDA36020 is a 20A, 3-pole, 3-phase molded case circuit breaker from the PowerPact BDA Series. It is rated for 600Y/347V AC and provides an 18kA interrupting rating at 480V.

The breaker features an I-Line style plug-in connection with ABC phase connection, a non-interchangeable thermal-magnetic trip, and long-time and instantaneous (LI) trip functions. It is supplied as a complete breaker with load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BDA36020
• Product Family: PowerPact
• Series: BDA
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 18kA @ 480V
• Mounting / Connection Type: I-Line Style Plug-In
• Phase Connection: ABC
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Protection Type: Thermal-Magnetic
• Terminal Type: Load-Side Mechanical Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D
• Authenticity: Genuine Square D / Schneider Electric Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BDA36020
• Catalog Number: BDA36020
• Product Family: PowerPact
• Series: BDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BDA36020
• Configuration: 3-Pole, 20A
• Trip Configuration: Non-Interchangeable, LI
• Connection: I-Line Style Plug-In
• Phase Connection: ABC
• upc:606481152513

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact BDA Series I-Line electrical distribution equipment that accepts the specified molded case circuit breaker configuration. The BDA36020 provides 20A, 3-pole protection for compatible 600Y/347V AC, 3-phase applications.

The breaker uses an I-Line style plug-in connection with ABC phase connection and includes load-side mechanical lug terminals. It features a non-interchangeable thermal-magnetic trip with long-time and instantaneous functions.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, terminal arrangement, and installation requirements before installation.

Certifications:

• 20A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 18kA Interrupting Rating @ 480V
• I-Line Style Plug-In
• ABC Phase Connection
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• LI Long-Time and Instantaneous Trip Functions
• Load-Side Mechanical Lug Terminals
• Complete Breaker
• PowerPact BDA Series
• Genuine Square D / Schneider Electric Product
