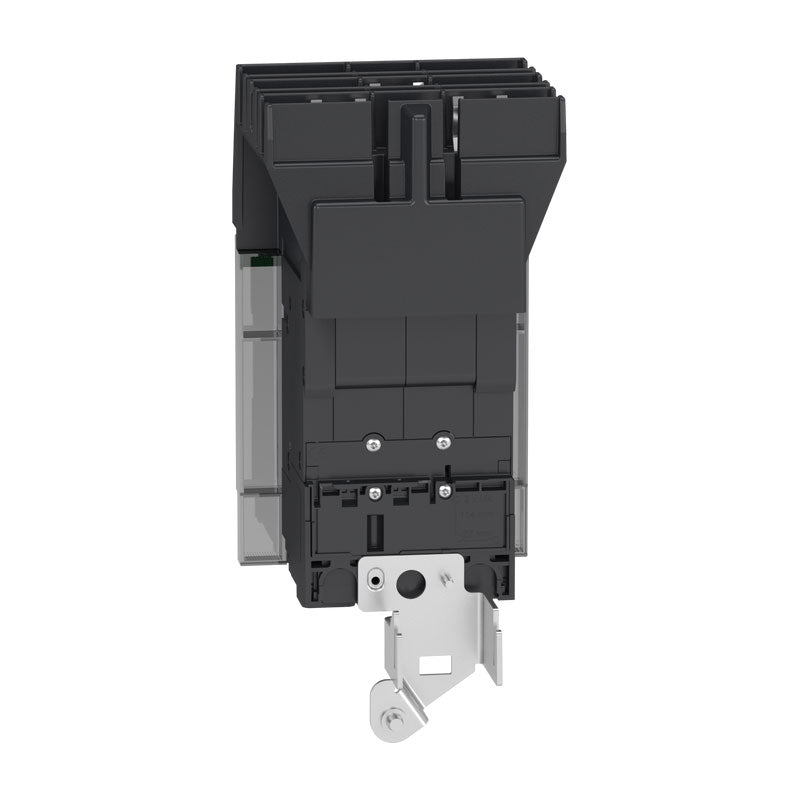

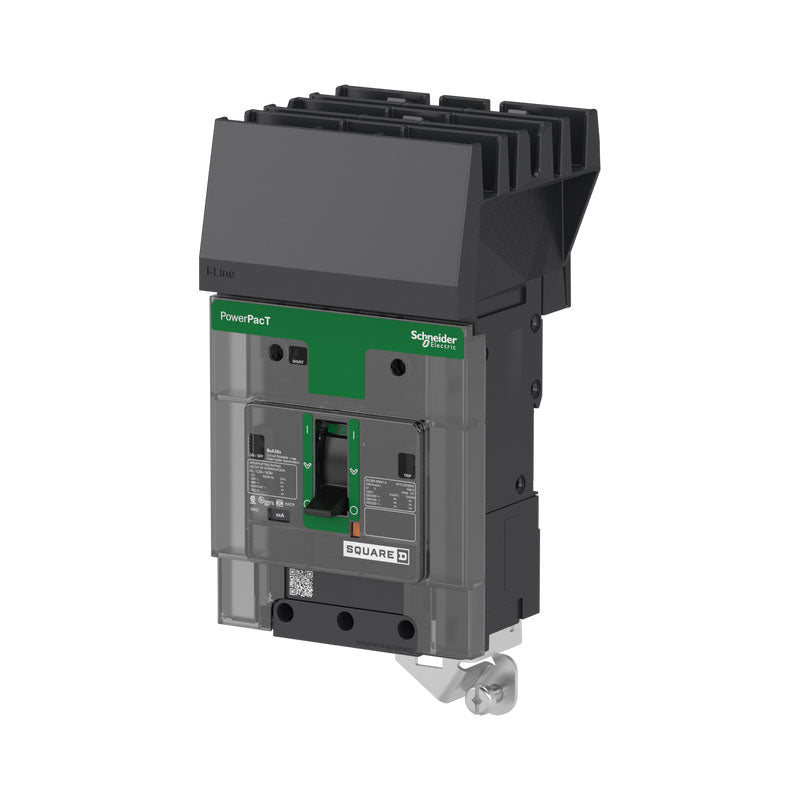

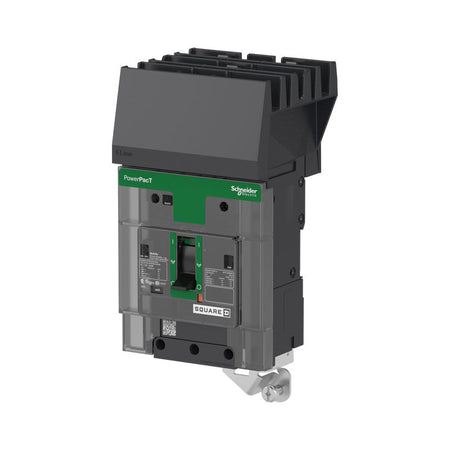

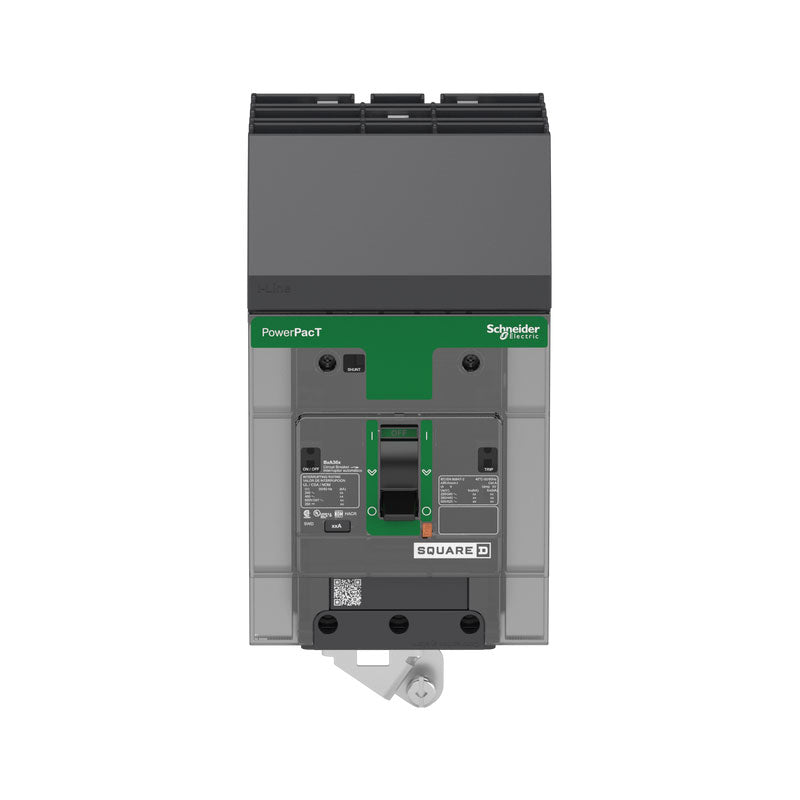

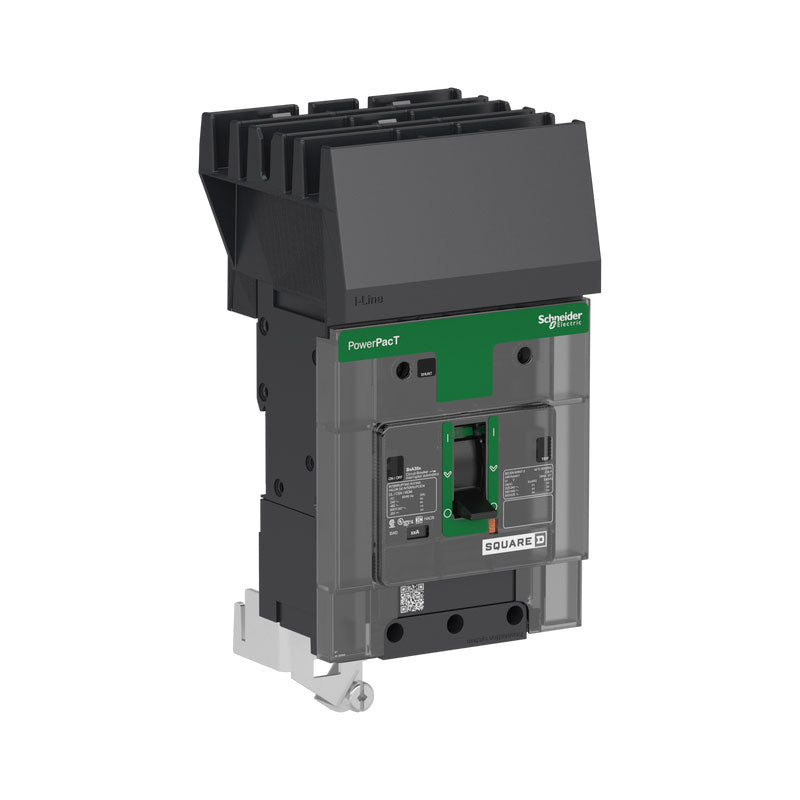

Square D BDA36025 Molded Case Circuit Breaker – 25A – 3-Pole / 3-Phase – 600Y/347V AC – 18kA @ 480V – I-Line Style Plug-In – PowerPact BDA Series

The Square D BDA36025 is a 25A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type BDA Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The BDA36025 is rated for 600Y/347V AC and provides an 18kA interrupting rating at 480V. It features an I-Line style plug-in connection with an ABC phase connection and includes load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BDA
• Type: BDA
• Catalog No.: BDA36025
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 18kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Mechanical Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BDA36025
• Catalog Number: BDA36025
• Model: BDA36025
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: BDA
• Type: BDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 25A
• UPC:3606481152541

Compatibility:

Designed for use with compatible Square D PowerPact BDA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The BDA36025 provides 25A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC applications.

The breaker uses an ABC phase connection and includes load-side mechanical lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
