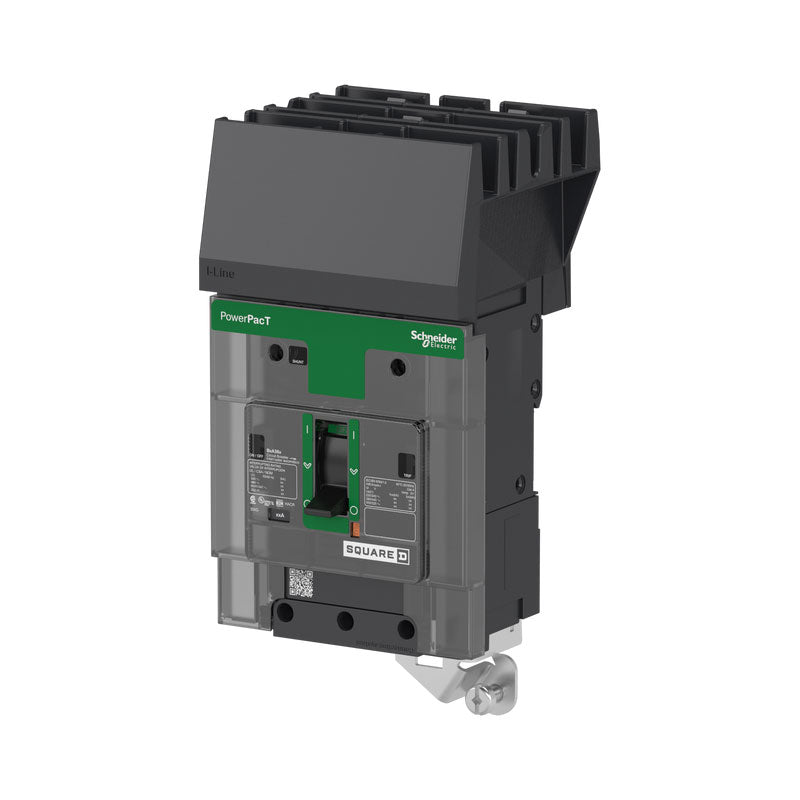

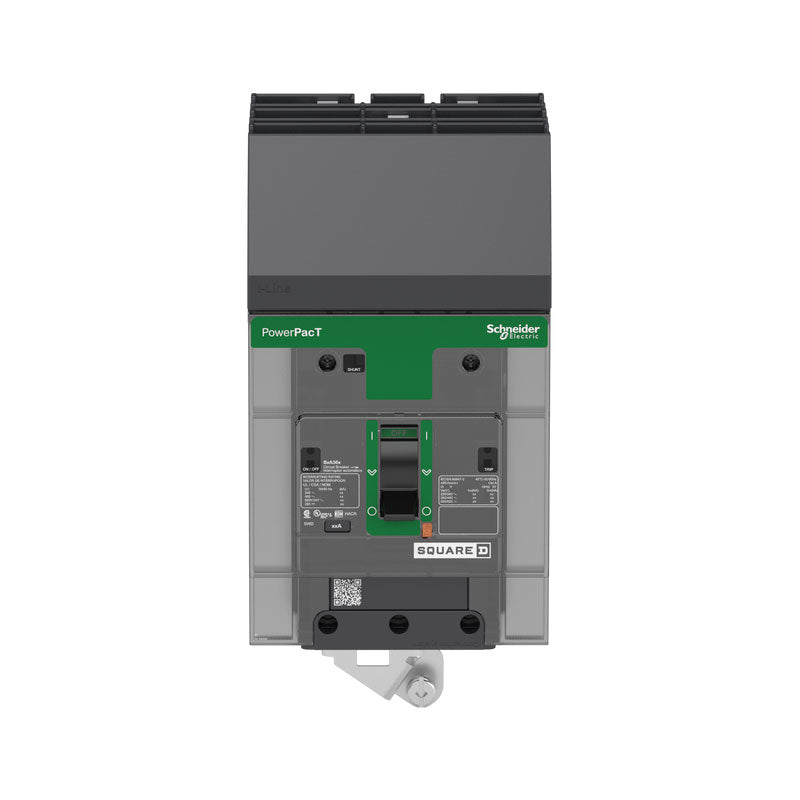

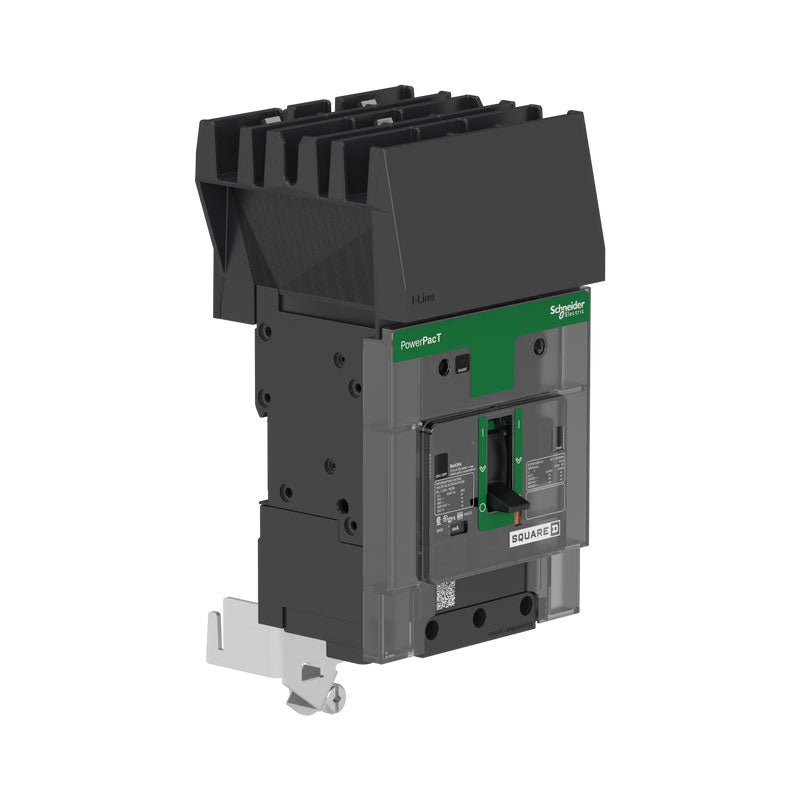

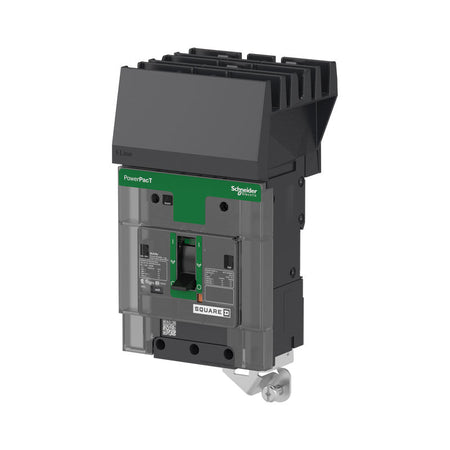

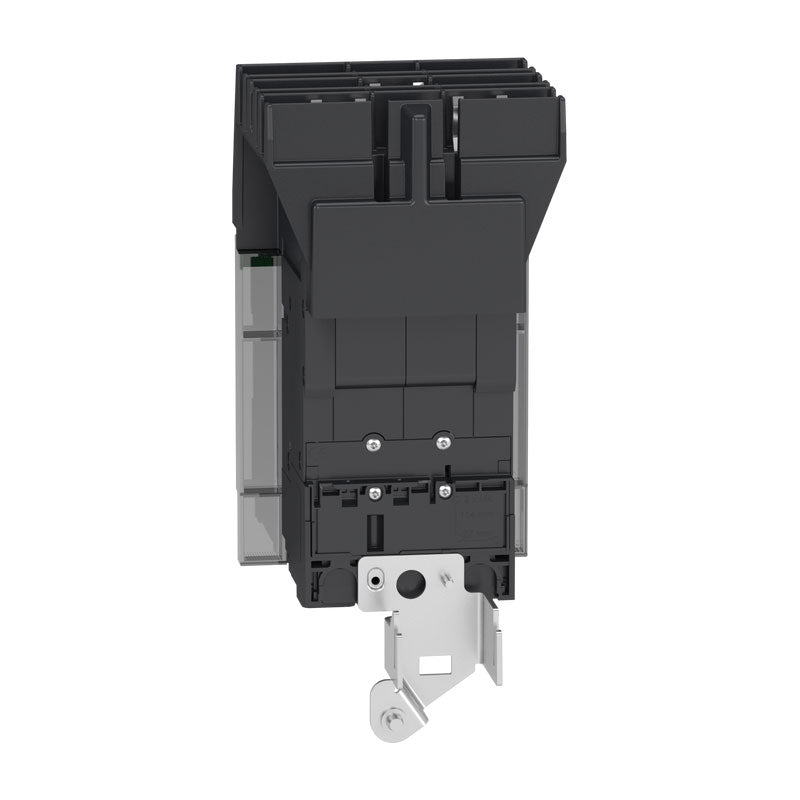

Square D BDA36030 Molded Case Circuit Breaker – 30A – 3-Pole – 600Y/347VAC – 18kA @ 480V – I-Line Plug-In – PowerPact BDA Series

The Square D BDA36030 is a 30A, 3-pole molded case circuit breaker from the Square D PowerPact BDA Series. It is rated for 600Y/347VAC and provides an 18kA interrupting rating at 480V.

The BDA36030 features an I-Line style plug-in connection with ABC phase connection, a non-interchangeable trip, and thermal-magnetic protection. It includes Long-Time and Instantaneous (LI) trip functions and load-side mechanical lug terminals for compatible electrical distribution applications.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BDA
• Type: BDA
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347VAC
• Interrupting Rating: 18kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Phase Connection: ABC
• Terminal Configuration: Load-Side Mechanical Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BDA36030
• Catalog Number: BDA36030
• Product Family: Square D PowerPact
• Series: BDA
• Type: BDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BDA36030
• Breaker Configuration: 3-Pole, 30A

Compatibility:

Designed for use with compatible Square D PowerPact BDA Series electrical distribution equipment supporting I-Line style plug-in circuit breakers. The BDA36030 is suitable for 3-phase, 600Y/347VAC applications requiring a 30A thermal-magnetic molded case circuit breaker with an 18kA interrupting rating at 480V.

Always verify the specific panelboard or switchboard model, approved breaker type, I-Line compatibility, phase connection, system voltage, pole configuration, interrupting rating, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact BDA Series
• 30A Rating
• 3-Pole / 3-Phase
• 600Y/347VAC Rated
• 18kA @ 480V
• Thermal-Magnetic Protection
• I-Line Style Plug-In
• ABC Phase Connection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip
• Load-Side Mechanical Lug Terminals
