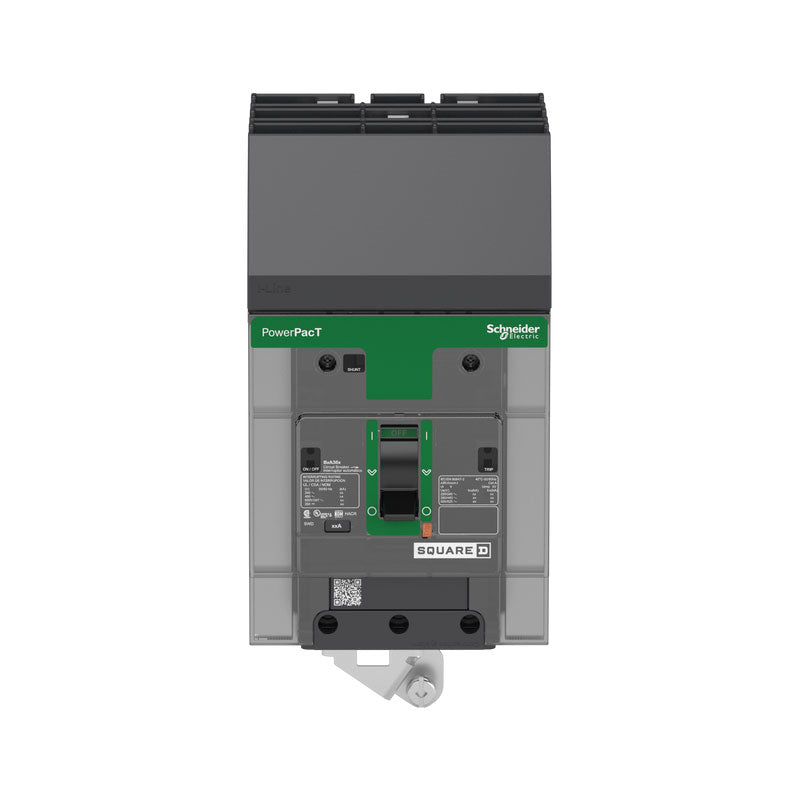

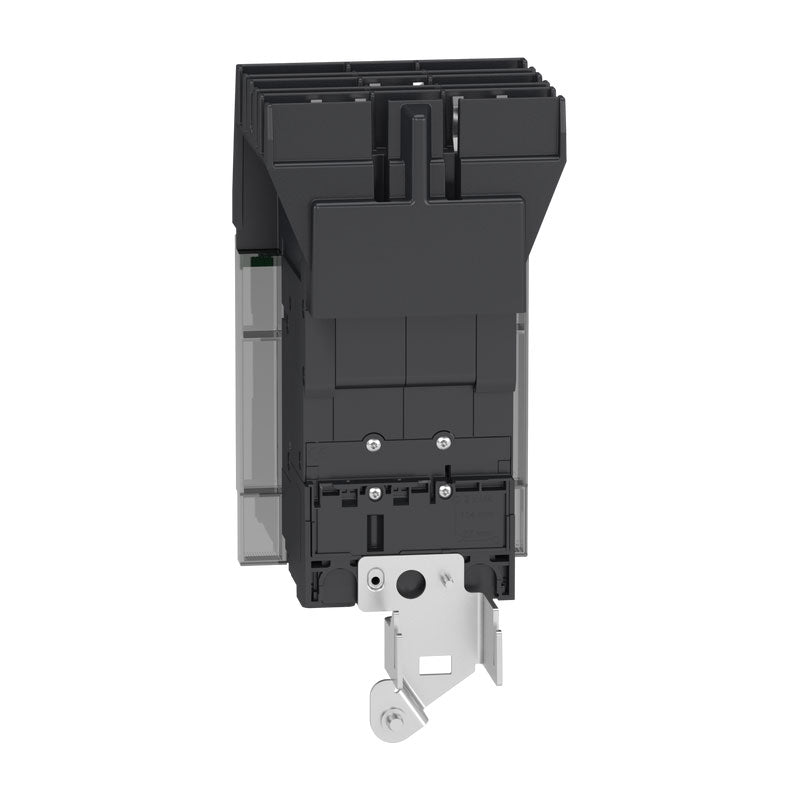

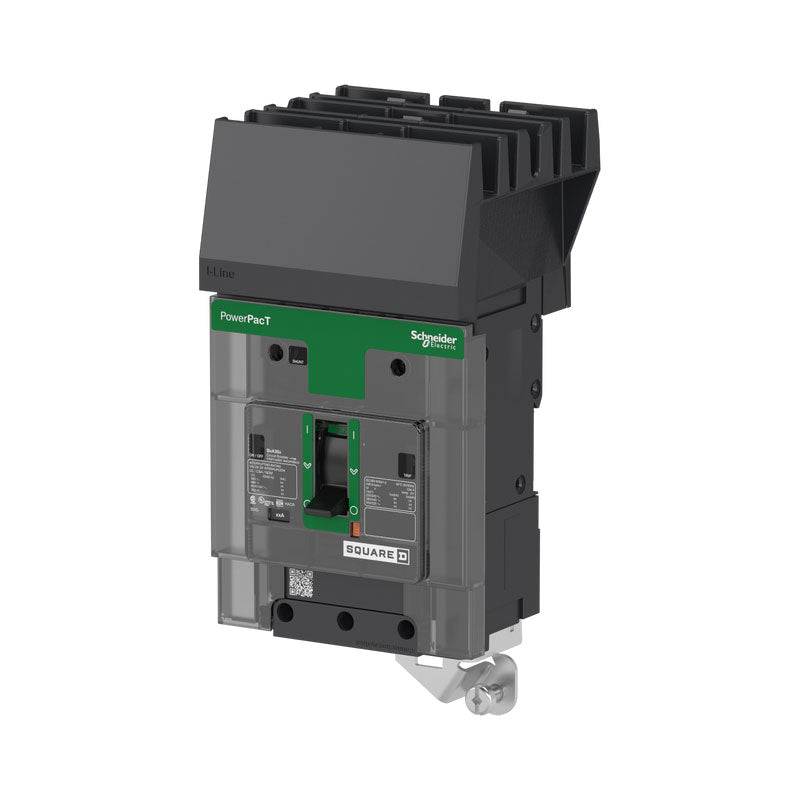

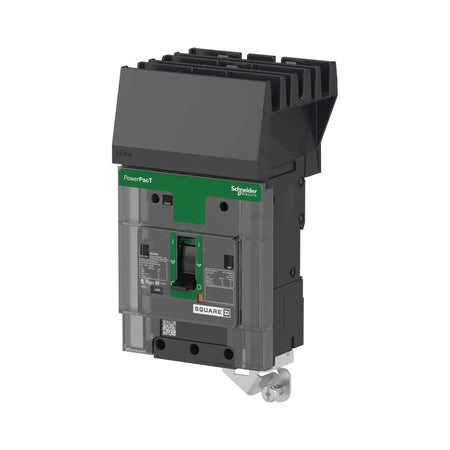

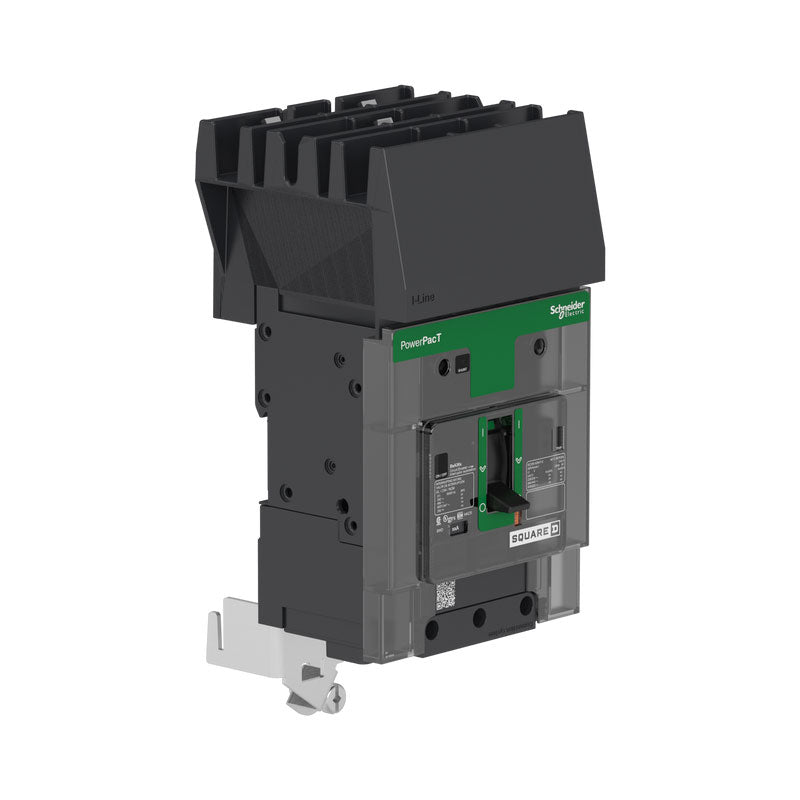

Square D BDA36050 Molded Case Circuit Breaker – 50A – 3-Pole – 600Y/347V AC – 18kA @ 480V – I-Line Plug-In – PowerPact B Series

The Square D BDA36050 is a 50A, 3-pole molded case circuit breaker from the PowerPact B Series, designed for compatible commercial and industrial electrical distribution applications. It features a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600Y/347V AC and provides an 18kA interrupting rating at 480V. It uses an I-Line style plug-in connection with ABC phase connection, a non-interchangeable trip, and load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BDA36050
• Series: PowerPact B
• Frame/Type: BDA
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 18kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: I-Line Style Plug-In
• Phase Connection: ABC
• Line-Side Connection: I-Line Plug-In
• Load-Side Connection: Mechanical Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D
• Authenticity: Authentic Schneider Electric / Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BDA36050
• Catalog Number: BDA36050
• Product Family: PowerPact B Molded Case Circuit Breakers
• Series: PowerPact B
• Type: BDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BDA36050
• Breaker Configuration: 3-Pole, 50A
• upc:606481152629

Compatibility:

Designed for use with compatible Square D PowerPact B I-Line panelboards and electrical distribution equipment that accepts BDA Series circuit breakers. The BDA36050 is a 50A, 3-pole, 600Y/347V AC thermal-magnetic breaker with Long-Time and Instantaneous trip functions.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, I-Line connection, load-side terminals, conductor requirements, and installation requirements before installation.

Certifications:

• PowerPact B Series
• 50A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 18kA @ 480V Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Mechanical Lug Terminals
• Genuine Schneider Electric / Square D Product
