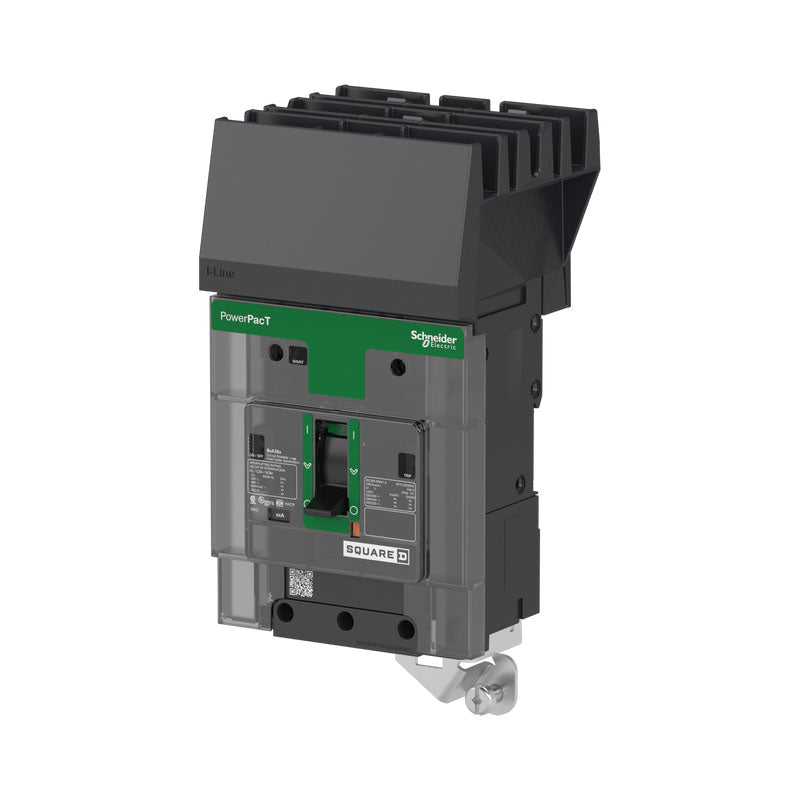

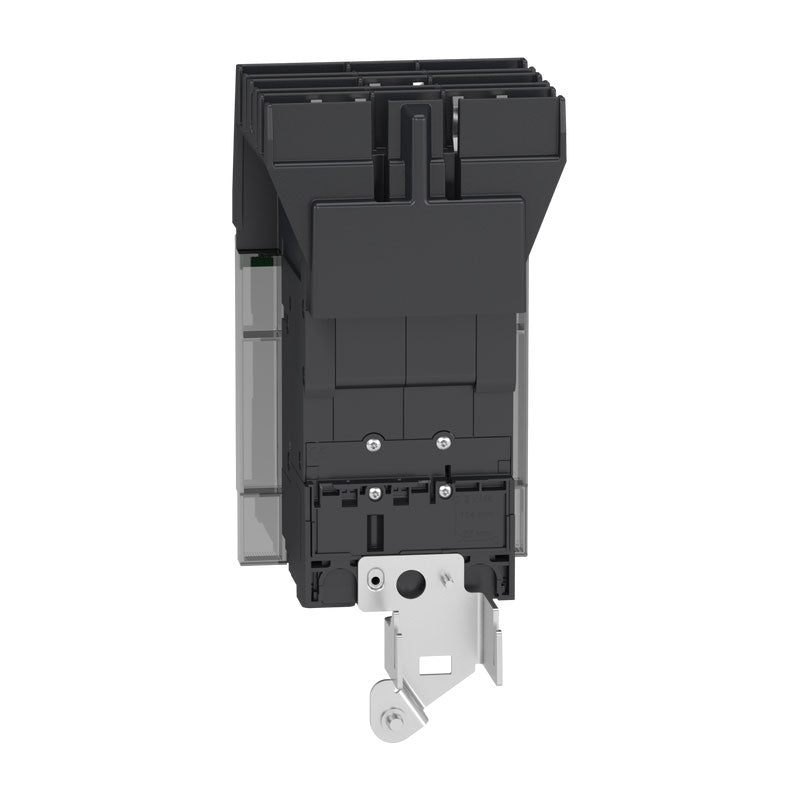

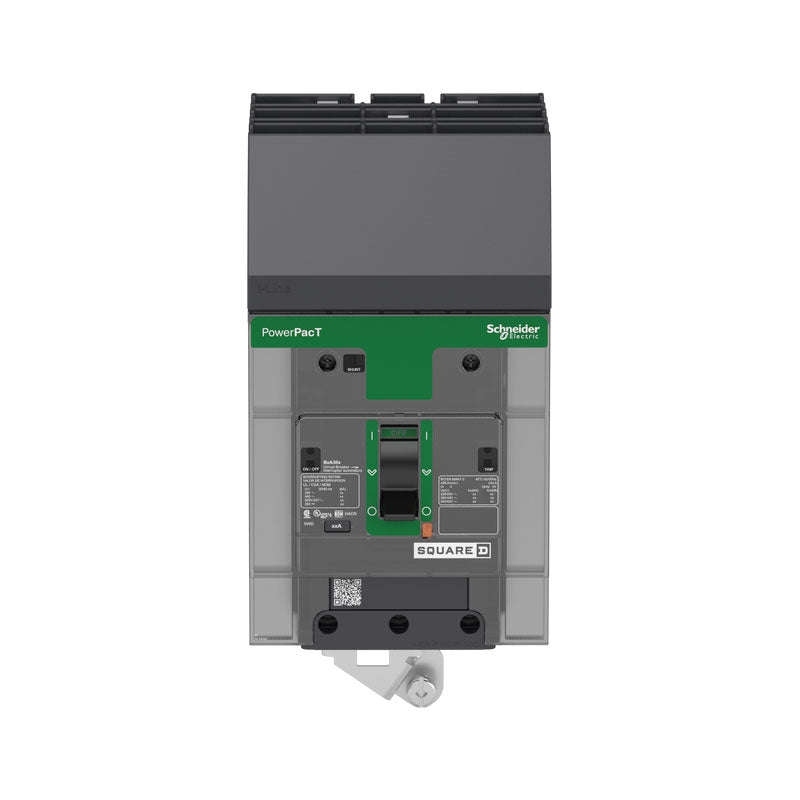

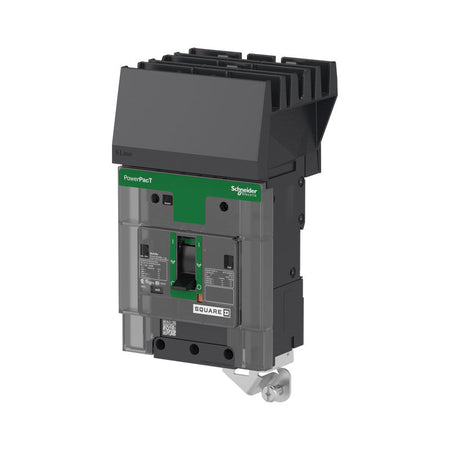

Square D BDA36080 Molded Case Circuit Breaker – 80A – 3-Pole – 600Y/347V AC – 25kAIC @ 240V – I-Line Plug-In – PowerPacT B Series

The Square D BDA36080 is an 80A, 3-pole molded case circuit breaker from the PowerPacT B Series, designed for commercial and industrial electrical distribution applications. It features an I-Line plug-in connection, fixed thermal-magnetic protection, and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600Y/347V AC and provides voltage-specific interrupting ratings of 25kAIC @ 240V AC, 18kAIC @ 480V AC, and 14kAIC @ 600Y/347V AC. It uses an ABC phase connection and is designed for compatible I-Line panelboard systems.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BDA36080
• Series: PowerPacT B
• Frame: PowerPacT B
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Frequency: 50/60 Hz
• Protection Type: Fixed Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: I-Line Plug-In
• Phase Connection: ABC
• Control: Toggle
• Continuous Current Rating: 80%
• Interrupting Rating: 25kAIC @ 240V AC; 18kAIC @ 480V AC; 14kAIC @ 600Y/347V AC
• Wire Range: 14 AWG–2/0 AWG Aluminum/Copper
• Application: Commercial and Industrial Electrical Distribution / I-Line Panelboards
• Brand: Square D
• Authenticity: Authentic Schneider Electric / Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BDA36080
• Catalog Number: BDA36080
• Product Family: PowerPacT B Molded Case Circuit Breakers
• Series: PowerPacT B
• Frame: PowerPacT B
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BDA36080
• Breaker Configuration: 3-Pole, 80A
• UPC: 785901015819
• GTIN: 03606481152688
• Country of Origin: Mexico

Compatibility:

Designed for use with compatible Square D PowerPacT B I-Line panelboards and electrical distribution equipment that accepts BDA Series circuit breakers. The BDA36080 provides 80A thermal-magnetic overcurrent protection with Long-Time and Instantaneous trip functions.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, I-Line connection, conductor size, and installation requirements before installation.

Certifications:

• UL 489
• CSA Applicable Certification
• IEC Applicable Certification
• 25kAIC @ 240V AC
• 18kAIC @ 480V AC
• 14kAIC @ 600Y/347V AC
• 80A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• Fixed Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• I-Line Plug-In Connection
• Genuine Schneider Electric / Square D Product
