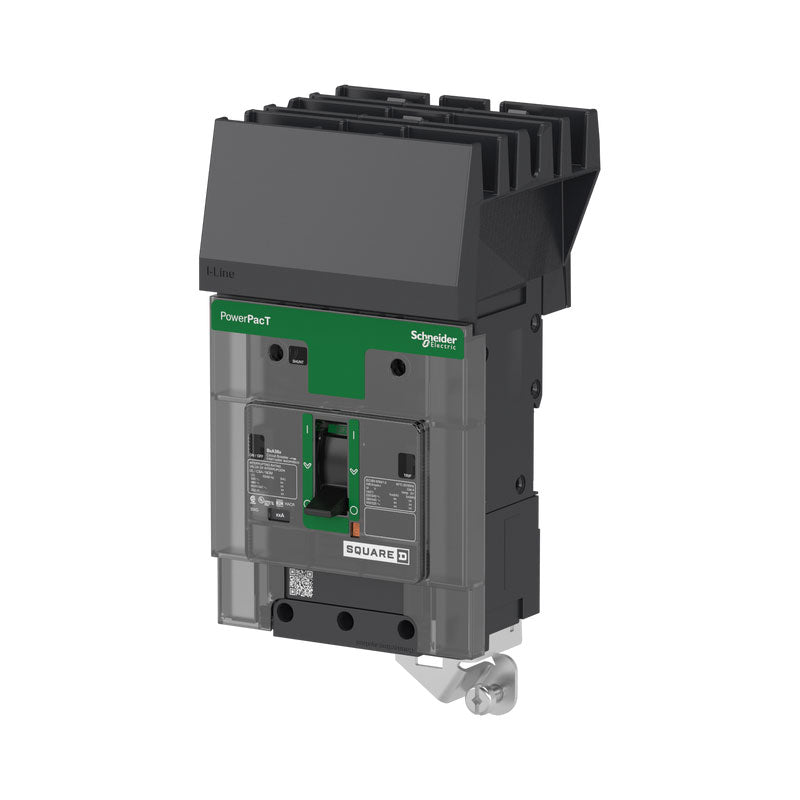

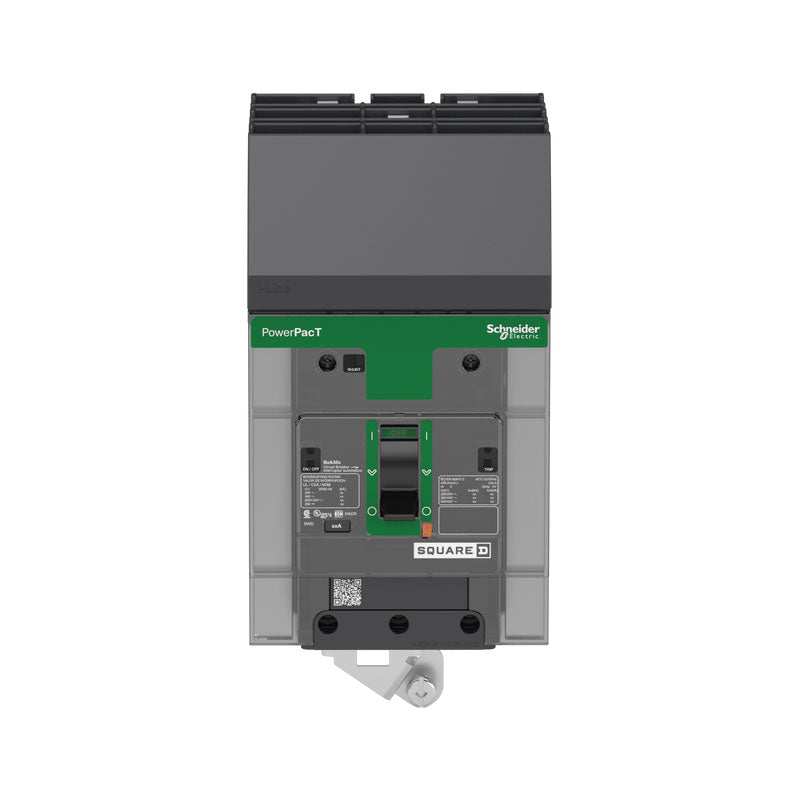

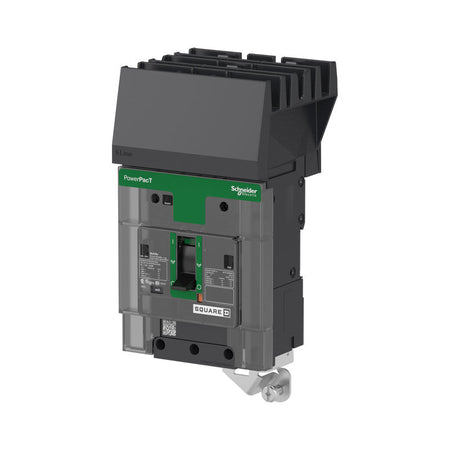

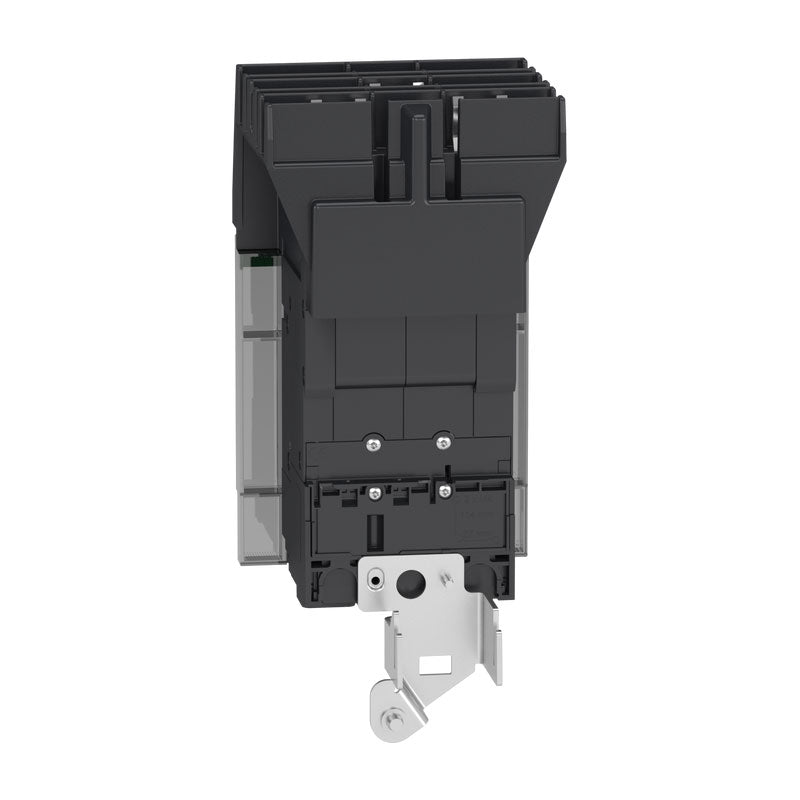

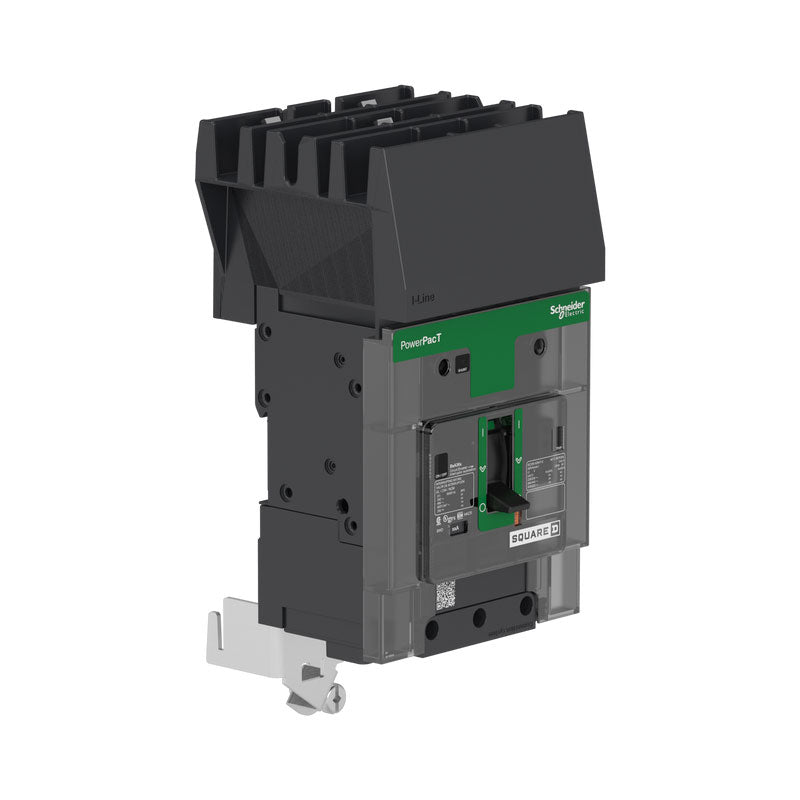

Square D BDA36125 Molded Case Circuit Breaker – 125A – 3-Pole – 600Y/347VAC – 18kA @ 480V – I-Line Plug-In – PowerPact BDA Series

The breaker features an I-Line style plug-in connection with ABC phase connection and a non-interchangeable trip. It is designed for compatible electrical distribution applications requiring a 125A molded case circuit breaker.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BDA
• Type: BDA
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347VAC
• Interrupting Rating: 18kA @ 480V
• Mounting / Connection: I-Line Style Plug-In
• Phase Connection: ABC
• Trip Unit: Non-Interchangeable
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BDA36125
• Catalog Number: BDA36125
• Product Family: Square D PowerPact
• Series: BDA
• Type: BDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BDA36125
• Breaker Configuration: 3-Pole, 125A
• upc:606481152766

Compatibility:

Designed for use with compatible Square D PowerPact BDA Series electrical distribution equipment supporting I-Line style plug-in circuit breakers. The BDA36125 is suitable for 3-phase, 600Y/347VAC applications requiring a 125A molded case circuit breaker with an 18kA interrupting rating at 480V.

Always verify the specific panelboard or switchboard model, approved breaker type, I-Line compatibility, phase connection, system voltage, pole configuration, interrupting rating, and installation requirements before installation.

Certifications:

• PowerPact BDA Series
• 125A Rating
• 3-Pole / 3-Phase
• 600Y/347VAC Rated
• 18kA @ 480V
• I-Line Style Plug-In
• ABC Phase Connection
• Non-Interchangeable Trip
