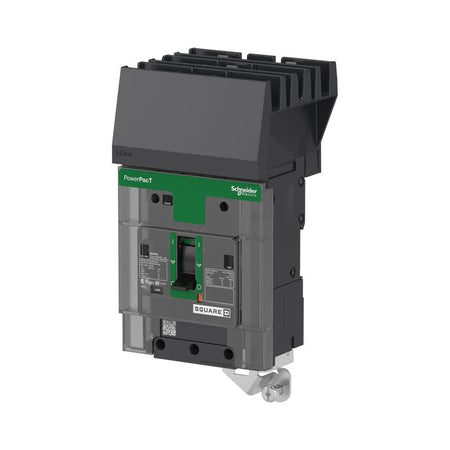

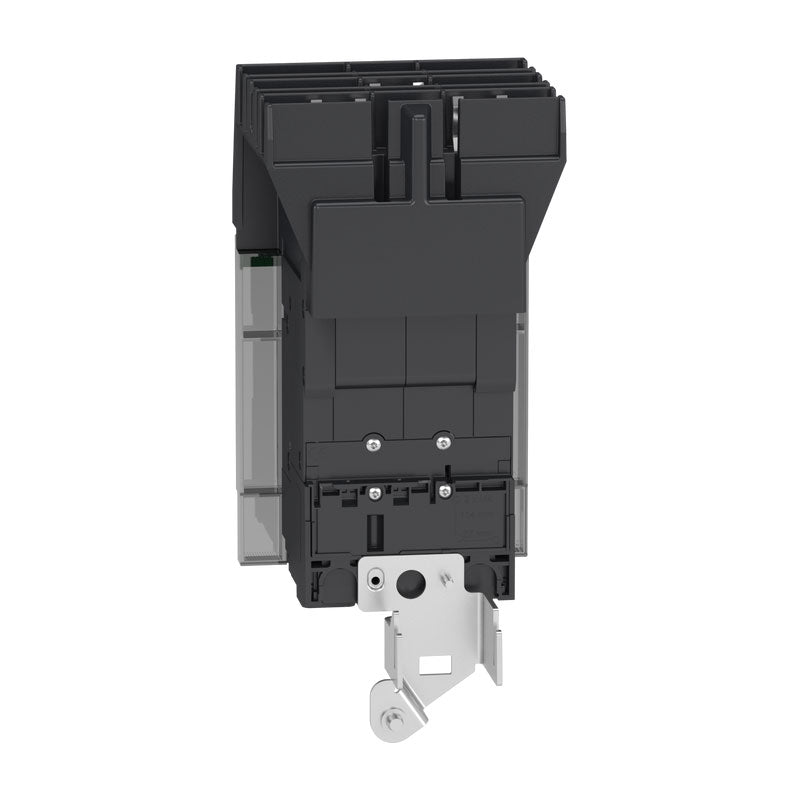

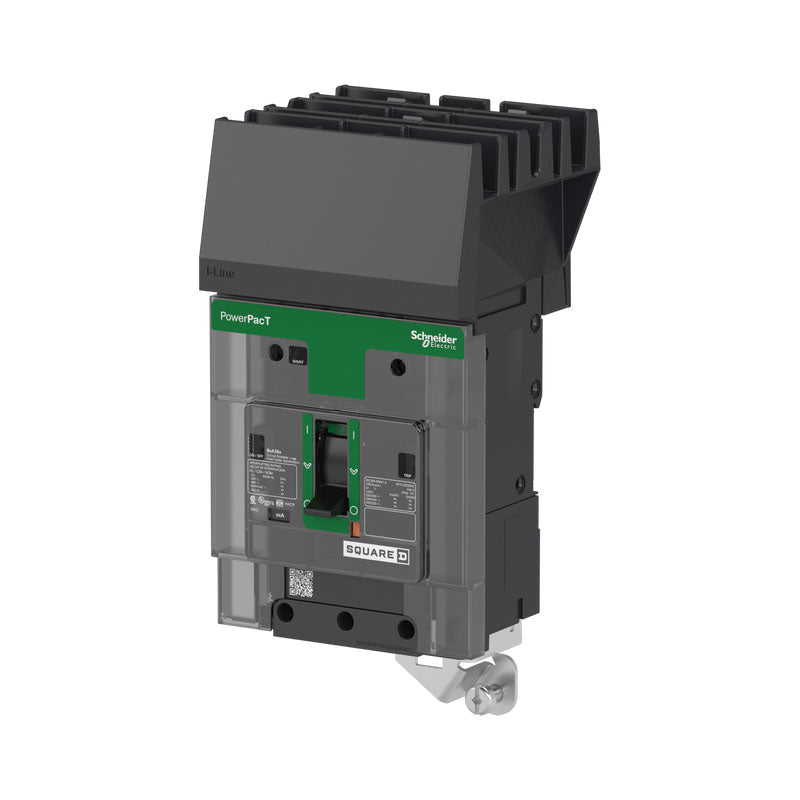

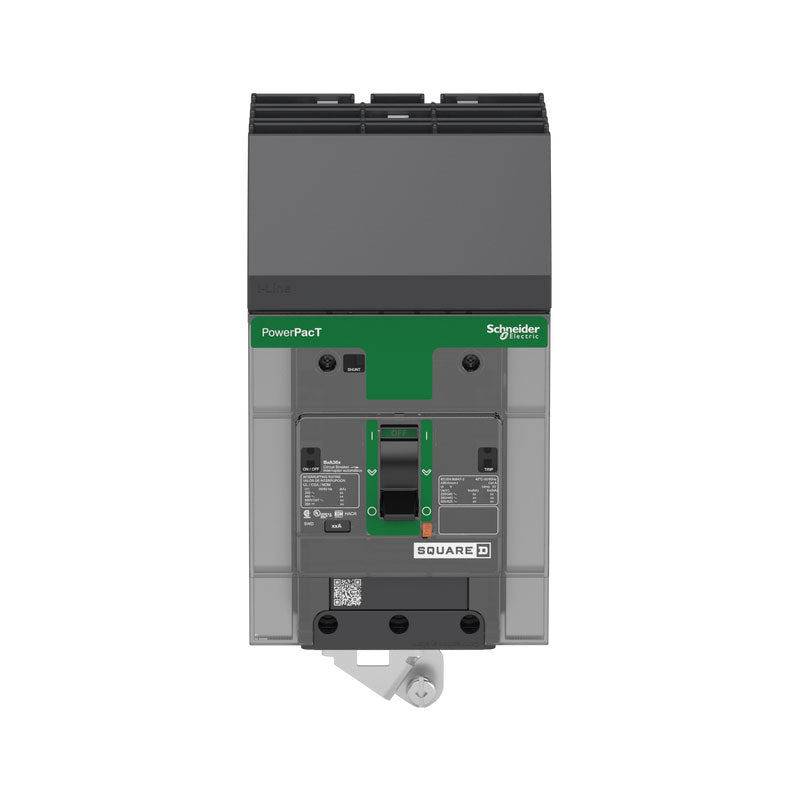

Square D BGA36020 Molded Case Circuit Breaker – 20A – 3-Pole – 600Y/347V AC – 35kA @ 480V – I-Line Plug-In – PowerPact BGA Series

The Square D BGA36020 is a 20A, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric / Square D PowerPact BGA Series. It is rated for 600Y/347V AC and provides a 35kA interrupting rating at 480V.

The BGA36020 features an I-Line style plug-in connection with ABC phase connection, a non-interchangeable trip, and thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions. It includes load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BGA
• Type: BGA
• Catalog No.: BGA36020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 35kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Configuration: Load-Side Mechanical Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BGA36020
• Catalog Number: BGA36020
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: BGA
• Type: BGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BGA36020
• Breaker Configuration: 3-Pole, 20A

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact BGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The BGA36020 is a 3-pole, 20A, 600Y/347V AC thermal-magnetic breaker with a 35kA interrupting rating at 480V, non-interchangeable LI trip functions, ABC phase connection, and load-side mechanical lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, phase connection, terminal arrangement, and mounting requirements before installation.

Certifications:

• PowerPact BGA Series
• 20A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 35kA @ 480V Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Mechanical Lug Terminals
