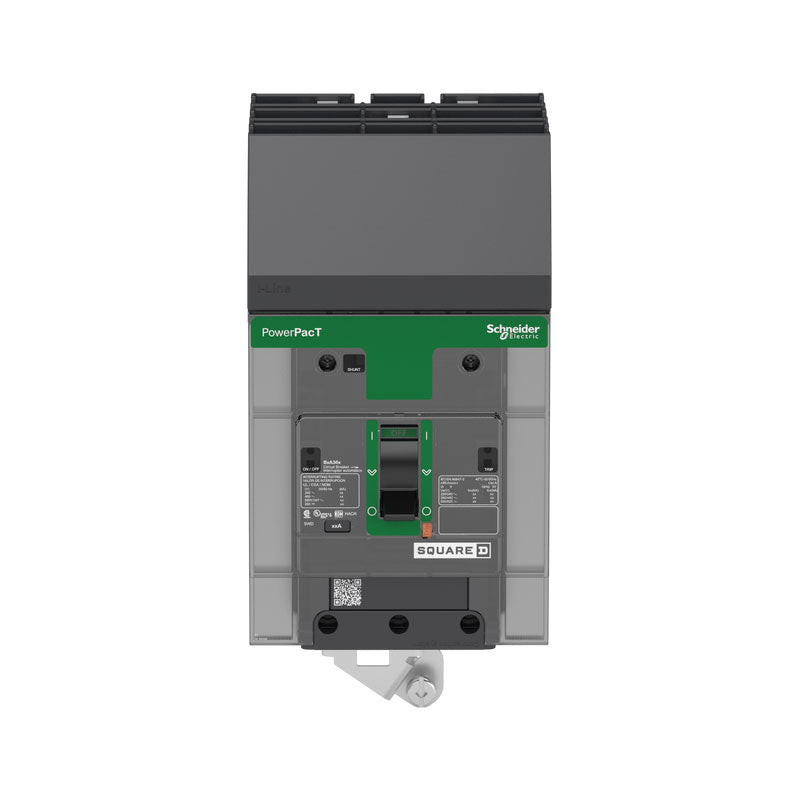

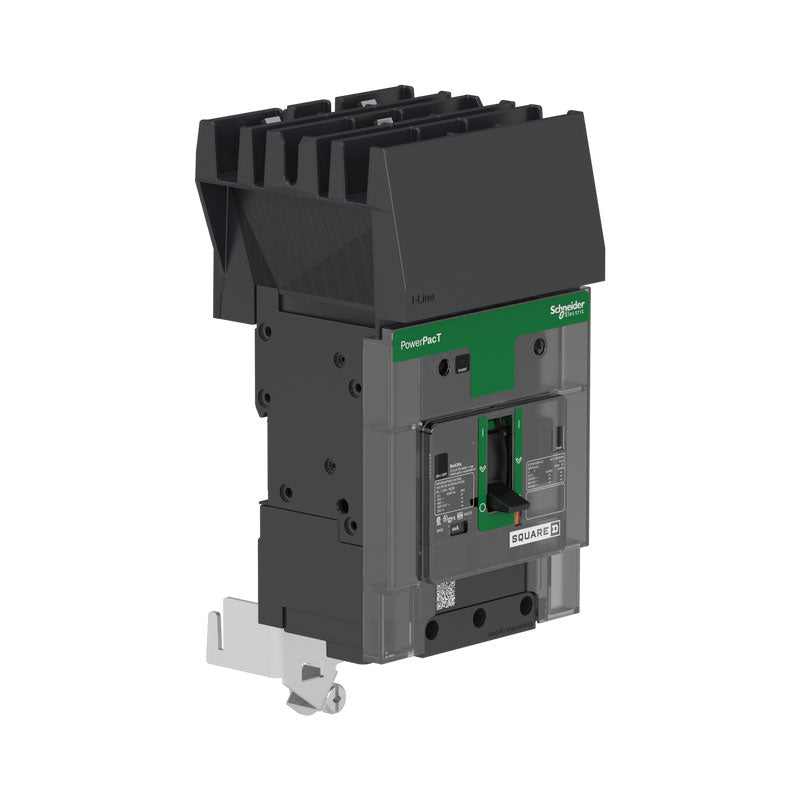

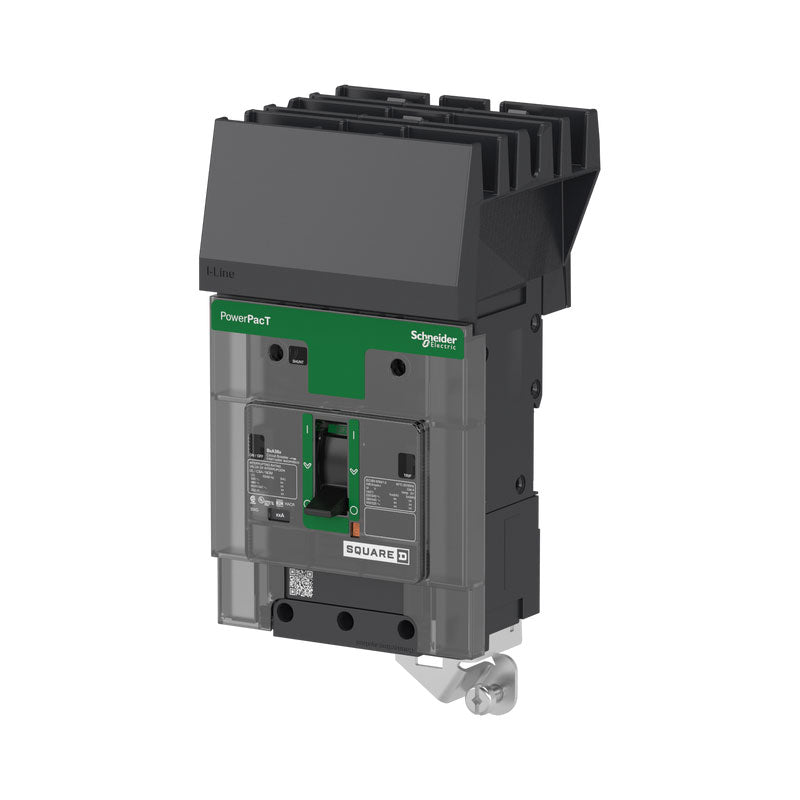

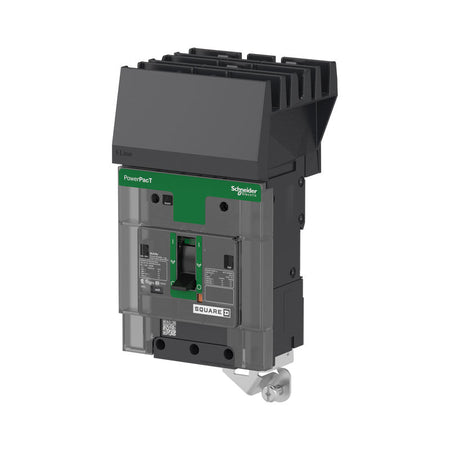

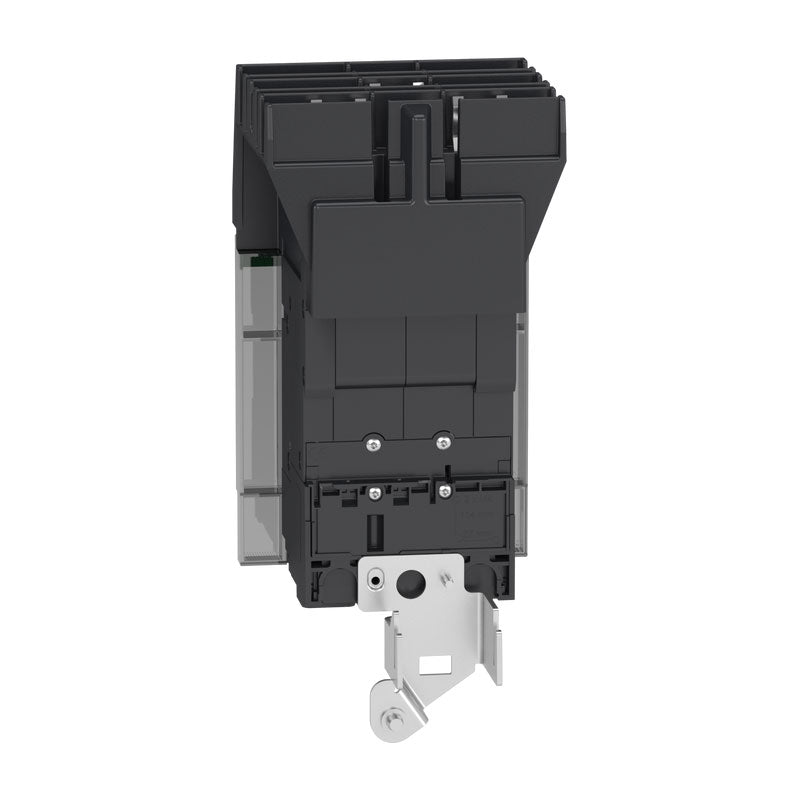

Square D BGA36040 Molded Case Circuit Breaker – 40A – 3-Pole / 3-Phase – 600Y/347V AC – 35kA @ 480V – I-Line Plug-In – PowerPact BGA Series

The Square D BGA36040 is a 40A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact BGA Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The BGA36040 is rated for 600Y/347V AC and provides a 35kA interrupting rating at 480V. It uses an I-Line style plug-in connection with ABC phase connection and includes load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BGA
• Type: BGA
• Catalog No.: BGA36040
• Current Rating: 40A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 35kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Mechanical Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BGA36040
• Catalog Number: BGA36040
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: BGA
• Type: BGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BGA36040
• Breaker Configuration: 3-Pole, 40A

Compatibility:

Designed for use with compatible Square D PowerPact BGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The BGA36040 provides 40A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC applications and includes LI Long-Time and Instantaneous trip functions.

The breaker uses an ABC phase connection and includes load-side mechanical lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact BGA Series
• 40A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 35kA @ 480V Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Mechanical Lug Terminals
