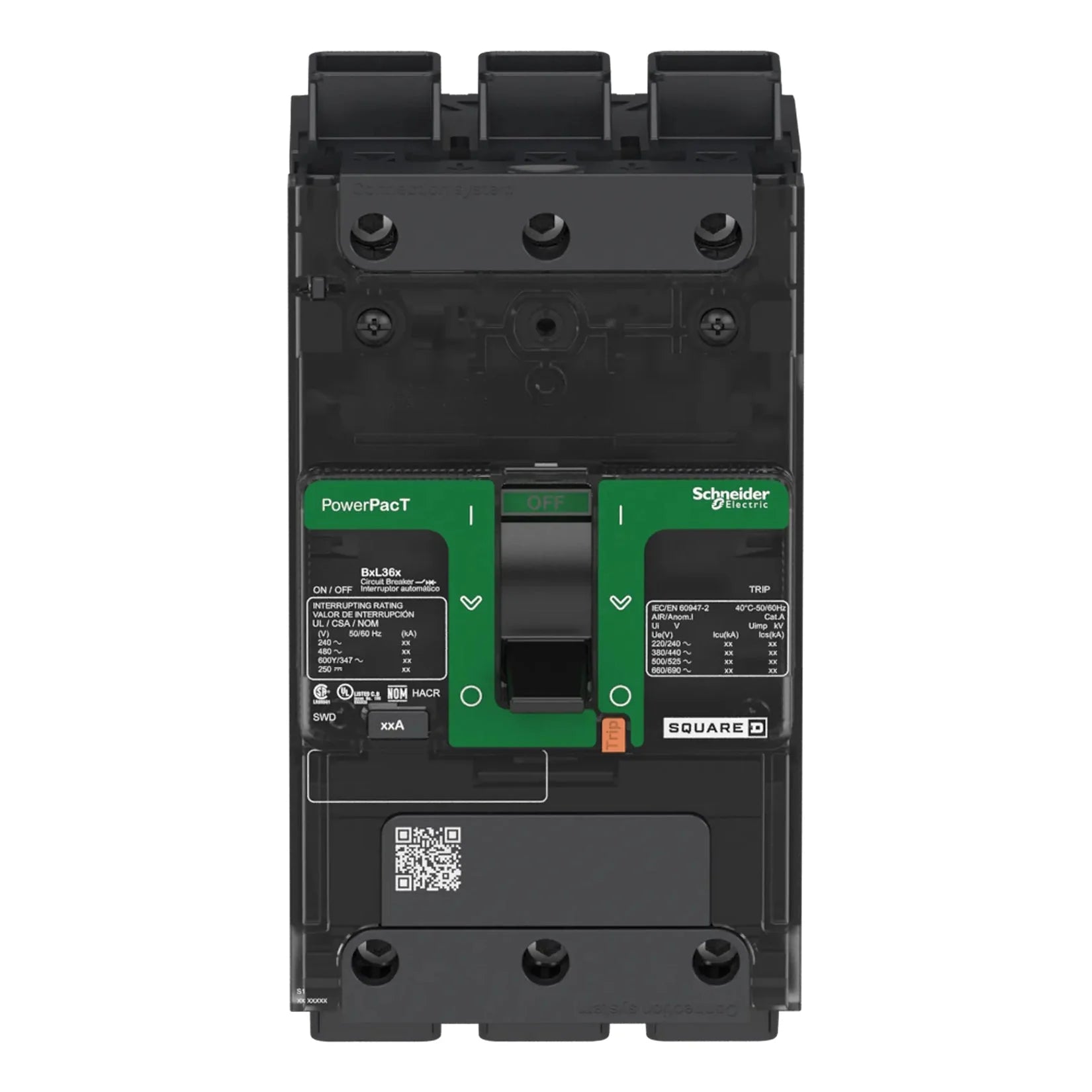

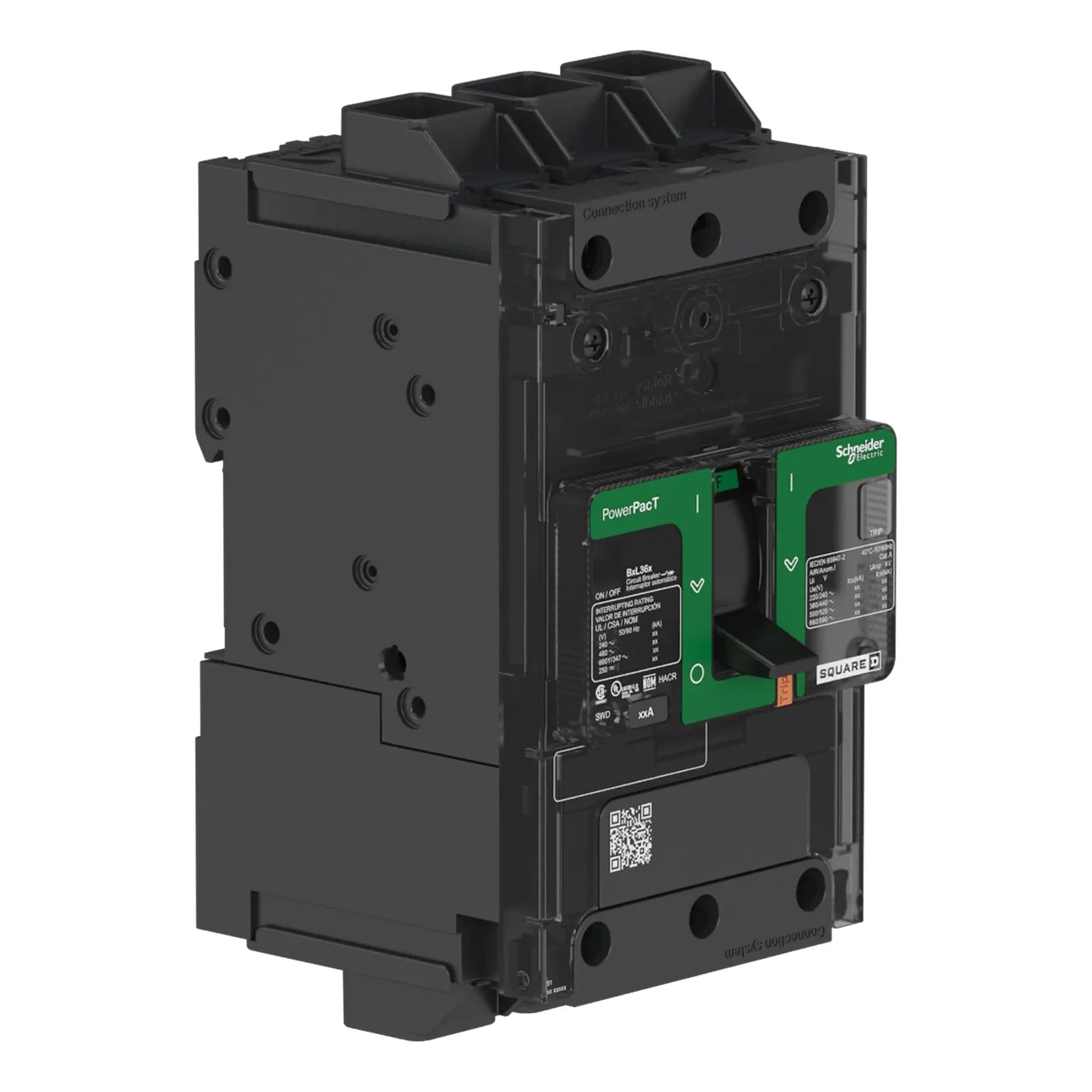

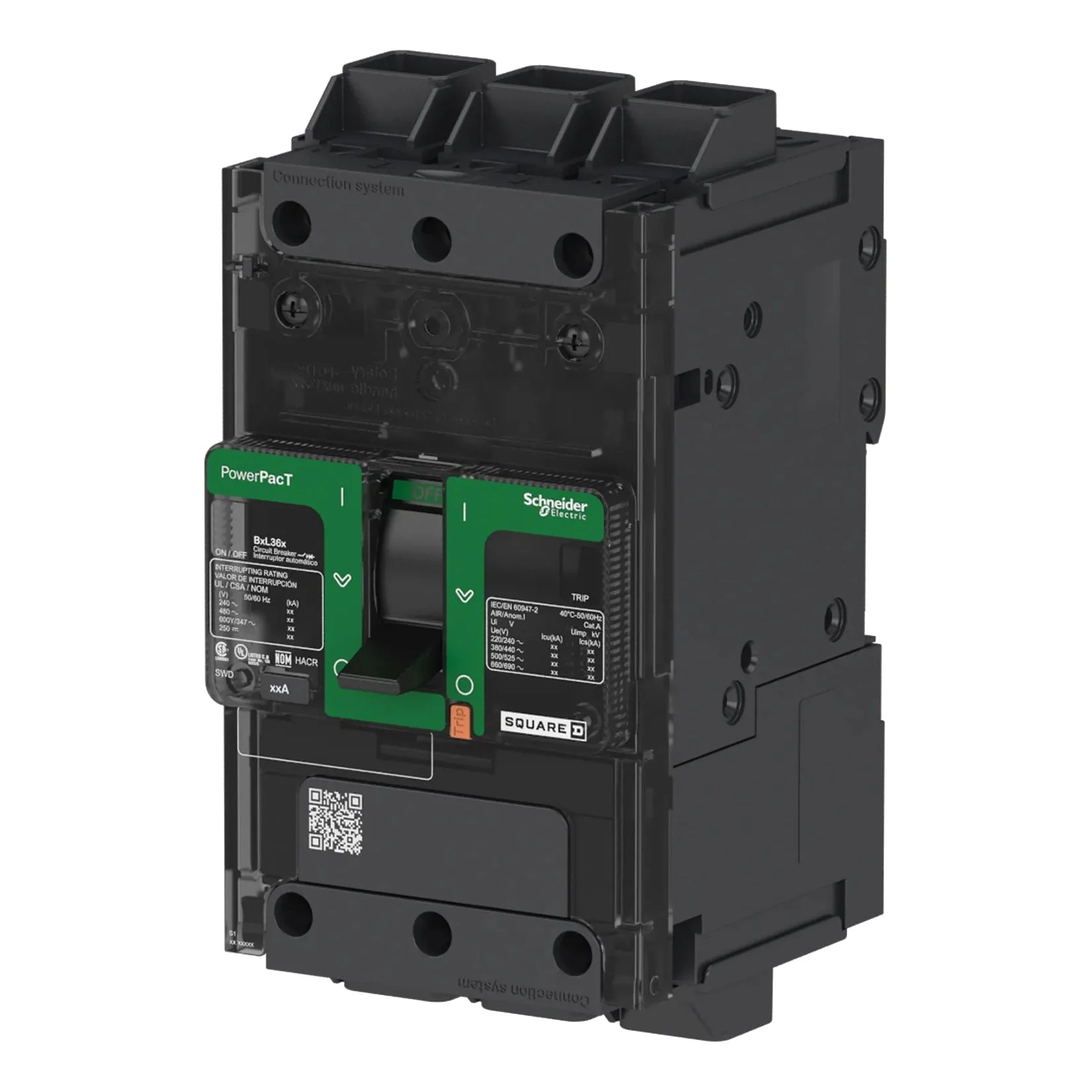

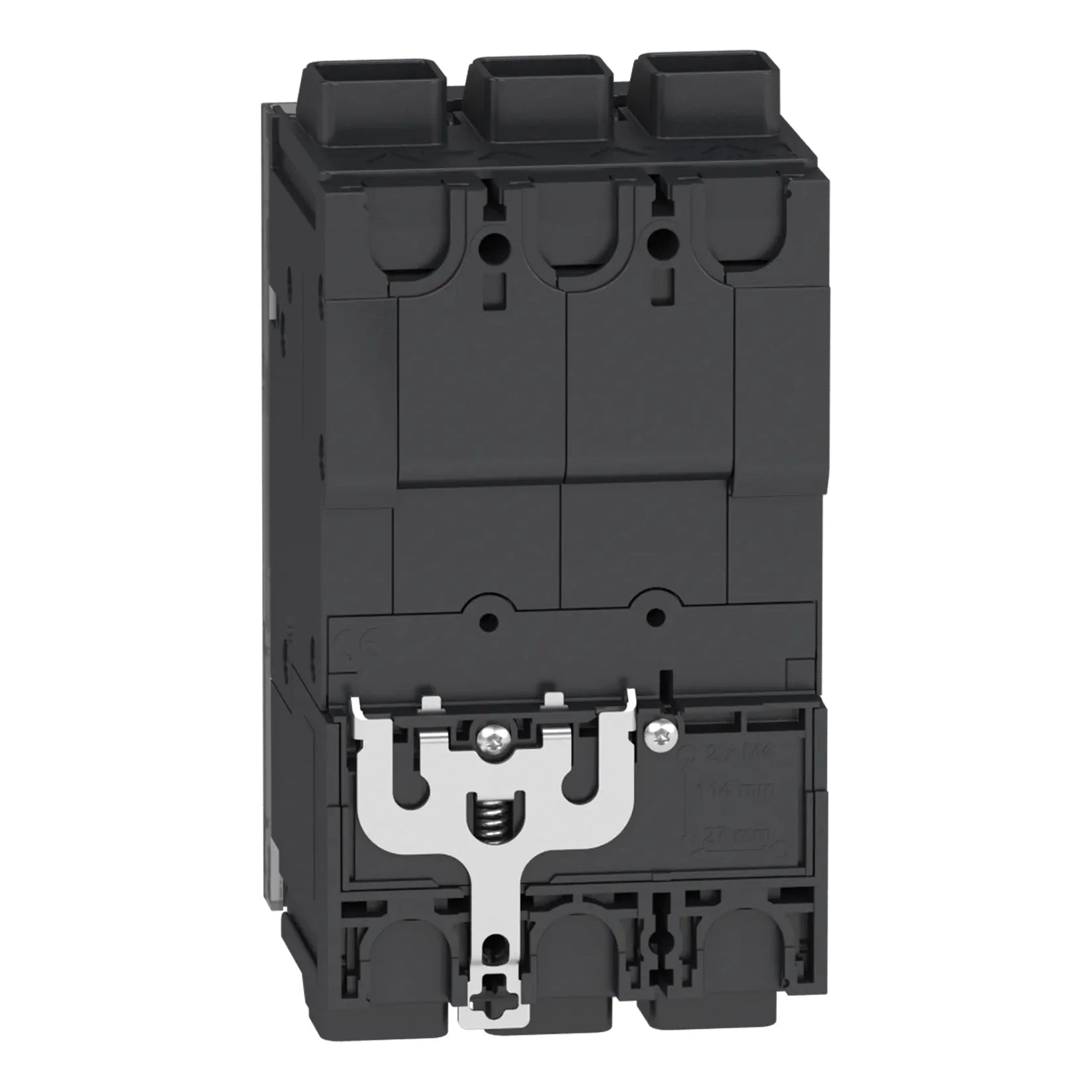

Square D BGL36100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600Y/347V AC – 35kA @ 480V – Feed-Thru – PowerPact BGL Series

The Square D BGL36100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type BGL Series. It features a non-interchangeable trip with Long-Time and Instantaneous (LI) trip functions for compatible electrical distribution applications.

The BGL36100 is rated for 600Y/347V AC and provides a 35kA interrupting rating at 480V. It features a feed-thru configuration with EverLink connectors and includes line- and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BGL
• Type: BGL
• Catalog No.: BGL36100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 35kA @ 480V
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Thru
• Connection Type: EverLink Connectors
• Terminal Type: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BGL36100
• Catalog Number: BGL36100
• Model: BGL36100
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: BGL
• Type: BGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Non-Interchangeable LI
• UPC:3606481154132

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact BGL Series electrical distribution equipment that accepts BGL Series molded case circuit breakers. The BGL36100 provides 100A, 3-pole protection for compatible 600Y/347V AC electrical distribution applications.

The breaker features a feed-thru configuration with EverLink connectors, a non-interchangeable trip, and Long-Time and Instantaneous (LI) trip functions. It includes line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact BGL Series
• 100A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 35kA @ 480V Interrupting Rating
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• EverLink Connectors
• Line- and Load-Side Lug Terminals
