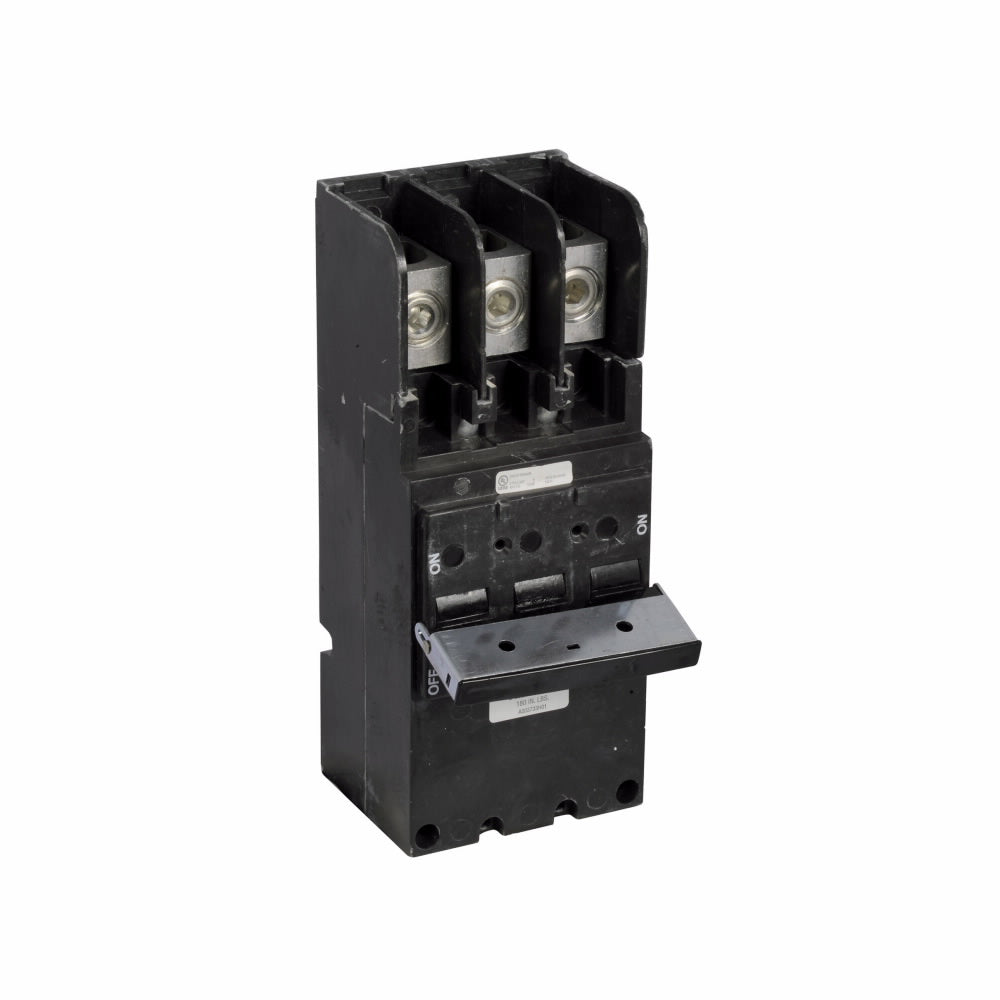

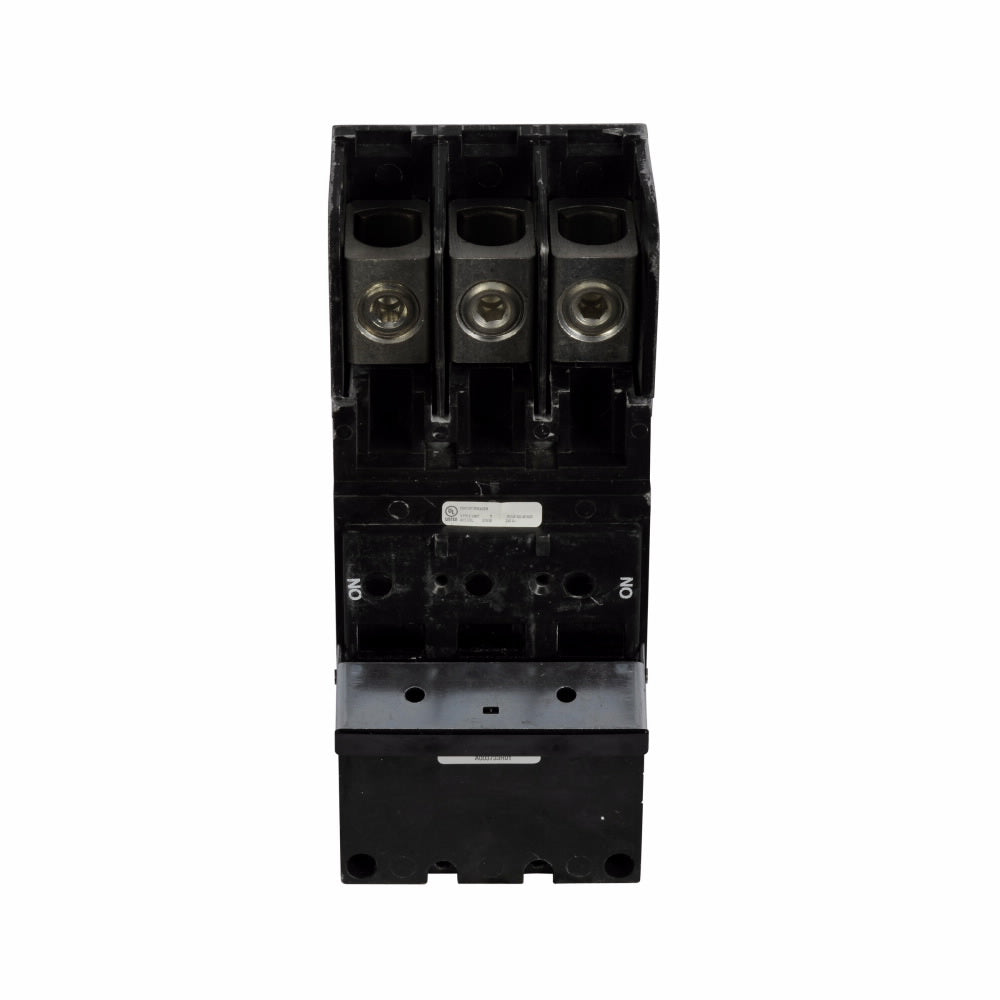

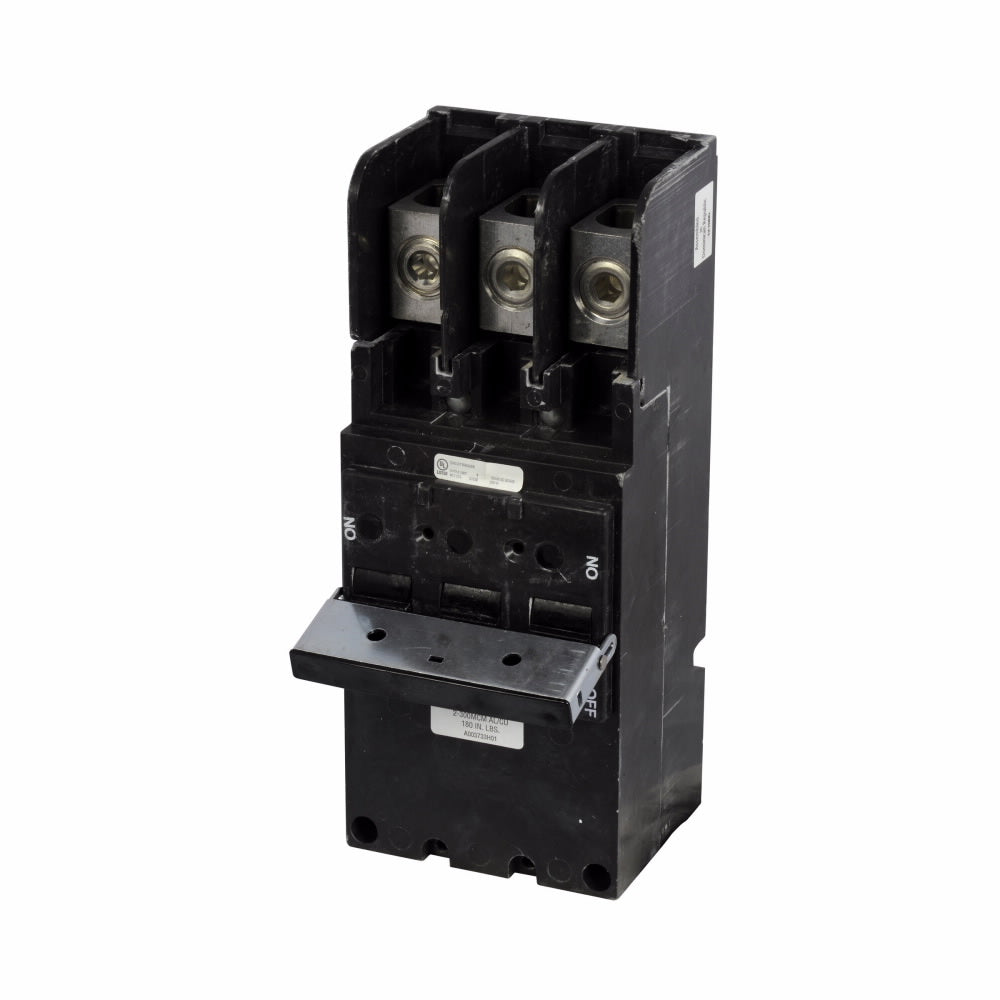

Eaton BJ3150 Molded Case Circuit Breaker – 150A – 3-Pole – 240V AC – 10kA AIC – Plug-On – BJ Series

The Eaton BJ3150 is a 150A, 3-pole plug-on molded case circuit breaker from Eaton / Cutler-Hammer. It is designed for compatible electrical distribution applications and features a 240V AC voltage rating with a 10kA AIC interrupting rating.

The breaker uses a plug-on connection and accommodates 2–300 kcmil aluminum or copper conductors on the load side. It is UL 489 Listed and CSA Certified.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BJ3150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Voltage Rating: 240V AC
• Interrupting Rating: 10kA AIC
• Connection Type: Plug-On
• Wire Size: 2–300 kcmil Aluminum/Copper
• Conductor Connection: Load Side
• Application: Main Circuit Breaker / Electrical Distribution
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJ3150
• Catalog Number: BJ3150
• Model: BJ3150
• Product Family: Eaton / Cutler-Hammer Circuit Breakers
• Series: BJ
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Plug-On Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• upc:786676368353

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer electrical distribution equipment that accepts BJ Series plug-on molded case circuit breakers. The BJ3150 provides 150A, 3-pole protection for compatible 240V AC applications and uses a plug-on connection.

Always verify the specific panelboard or load center model, approved breaker type, system voltage, pole configuration, interrupting rating, conductor size, and installation requirements before installation.

Certifications:

• UL 489 Listed
• CSA Certified
