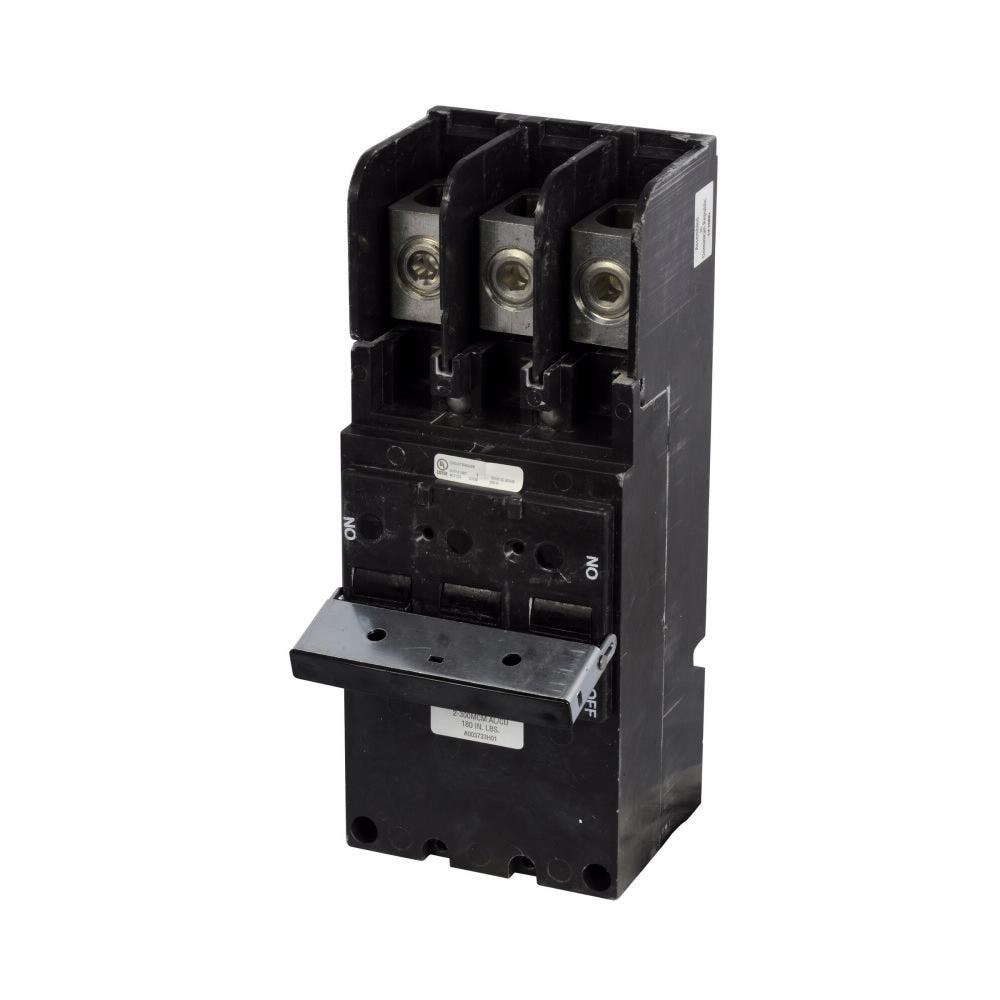

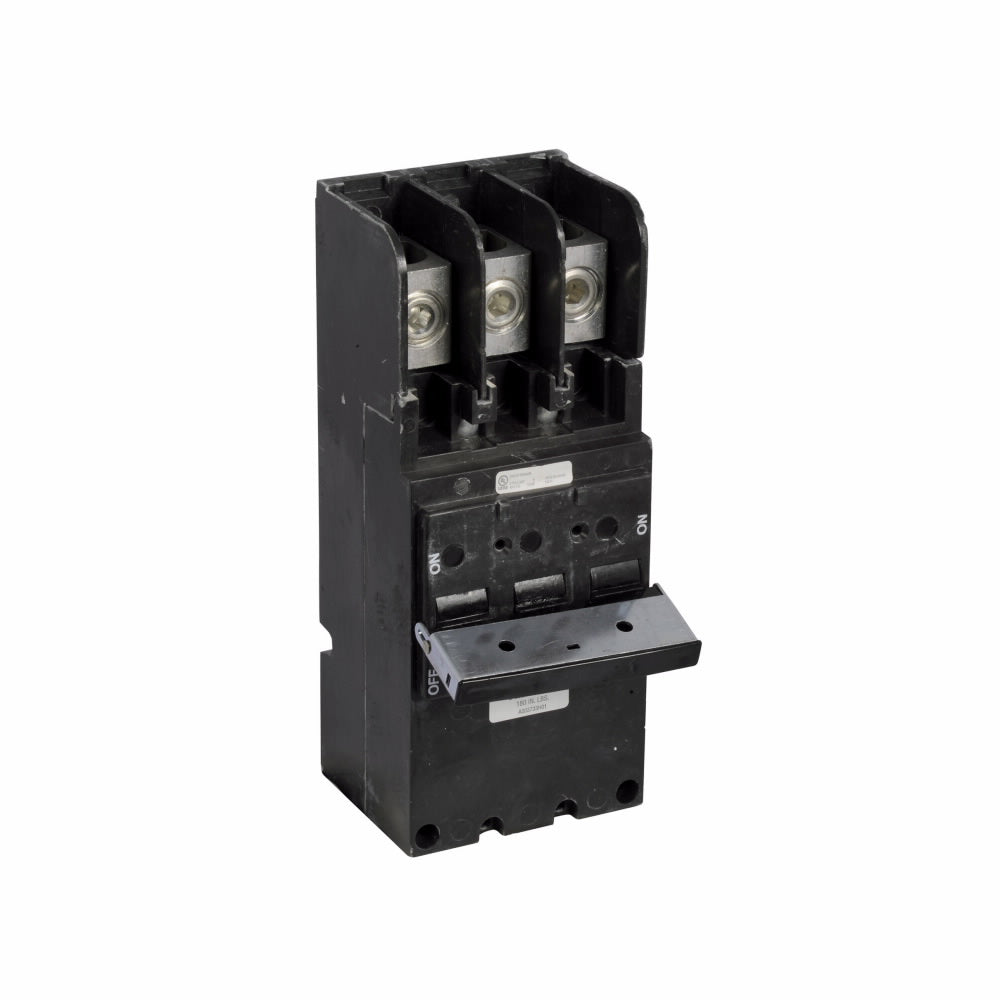

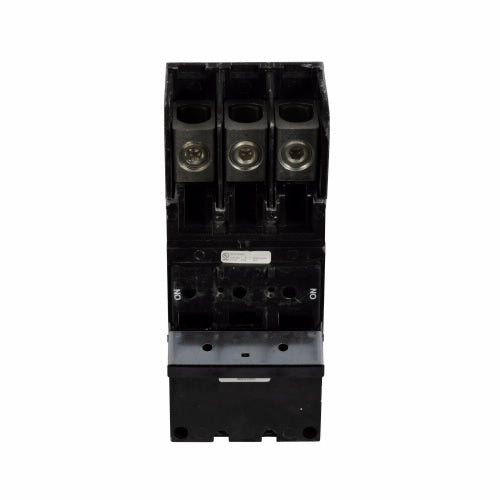

Eaton BJ3200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V AC – 10kA – Plug-In – BJ Series

The Eaton BJ3200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer BJ Series. It features a common-trip configuration and is designed for compatible electrical distribution applications.

The breaker is rated for 240V AC and provides a 10kA interrupting rating. It uses a plug-on connection and accommodates 2–300 kcmil aluminum or copper conductors on the load side. The BJ3200 is UL 489 Listed and CSA Certified.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: BJ Series
• Series: BJ
• Catalog No.: BJ3200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Interrupting Rating: 10kA
• Trip Configuration: Common Trip
• Connection Type: Plug-On
• Load-Side Conductor Size: 2–300 kcmil Aluminum/Copper
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJ3200
• Catalog Number: BJ3200
• Model: BJ3200
• Product Family: Eaton BJ Circuit Breakers
• Series: BJ
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Common Trip
• UPC: 786676368452

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer electrical distribution equipment that accepts BJ Series plug-on molded case circuit breakers. The BJ3200 provides 200A, 3-pole protection for compatible 240V AC applications.

The breaker uses a plug-on connection and accommodates 2–300 kcmil aluminum or copper conductors on the load side. Always verify the specific panelboard or load center model, approved breaker type, system voltage, available fault current, pole configuration, conductor size, connection arrangement, and installation requirements before installation.

Certifications:

• UL 489 Listed
• CSA Certified
• BJ Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V AC Rated
• 10kA Interrupting Rating
• Common Trip
• Plug-On Connection
• 2–300 kcmil Aluminum/Copper Load-Side Conductors
