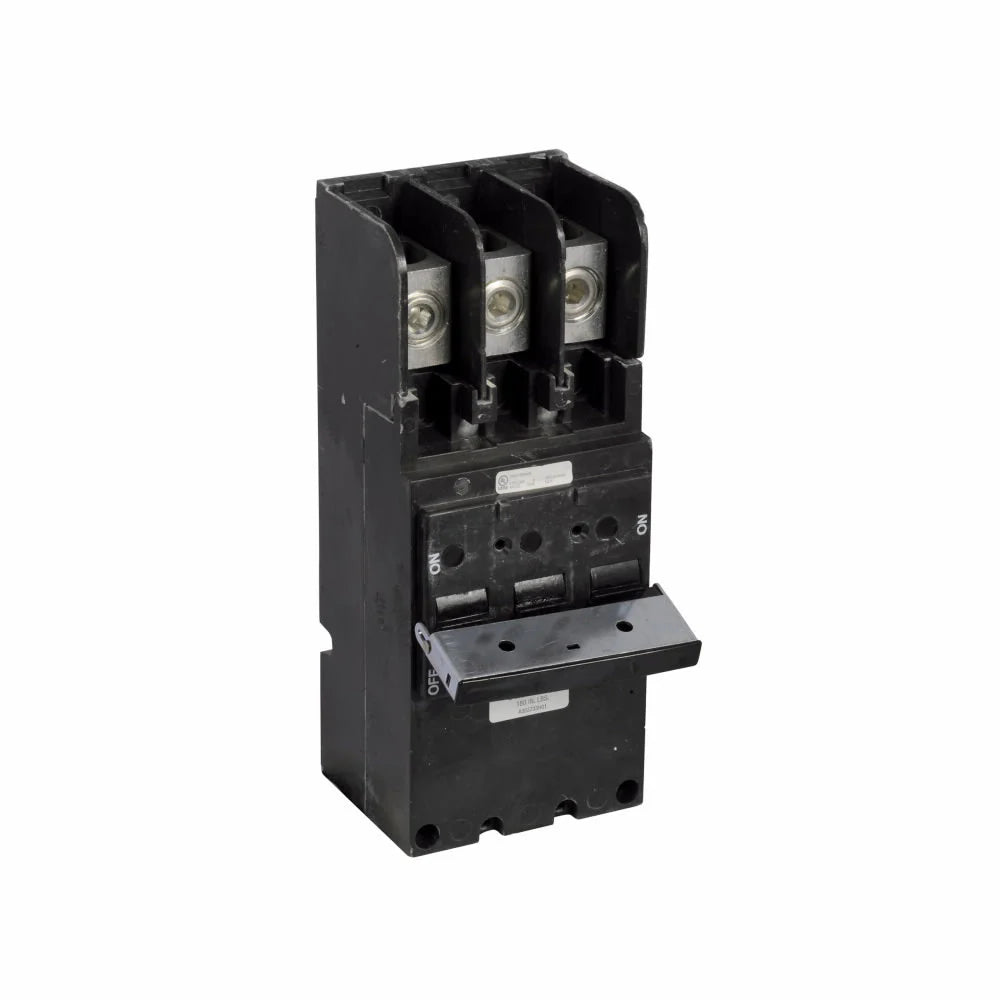

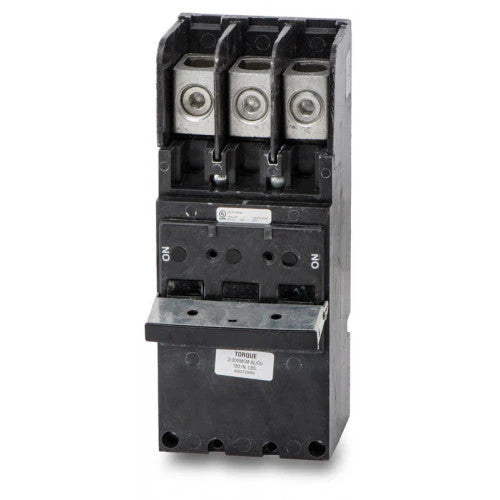

Eaton BJ3225 Main Circuit Breaker – 225A – 3-Pole / Common Trip – 240V AC – 10kA – Plug-On – BJ Series

The Eaton BJ3225 is a 225A, 3-pole common-trip molded case circuit breaker from Eaton / Cutler-Hammer. It features a 240V AC voltage rating, a 10kA interrupting rating, and a plug-on connection for compatible electrical distribution equipment.

The breaker accommodates 2–300 kcmil aluminum or copper conductors on the load side and is UL 489 Listed and CSA Certified.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Main Circuit Breaker
• Catalog No.: BJ3225
• Series: BJ
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: Not specified
• Voltage Rating: 240V AC
• Interrupting Rating: 10kA
• Trip Type: Common Trip
• Connection Type: Plug-On
• Load-Side Conductor Size: 2–300 kcmil Aluminum/Copper
• Application: Main Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJ3225
• Catalog Number: BJ3225
• Model: BJ3225
• Product Family: Eaton BJ Circuit Breakers
• Series: BJ
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Plug-On Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Trip Configuration: Common Trip
• UPC:786676368506

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer electrical distribution equipment that accepts BJ Series plug-on circuit breakers. The BJ3225 provides 225A, 3-pole protection for compatible 240V AC applications.

The breaker uses a plug-on connection and accommodates 2–300 kcmil aluminum or copper conductors on the load side. Always verify the specific panelboard or load center model, approved breaker type, system voltage, pole configuration, interrupting rating, conductor requirements, and installation instructions before installation.

Certifications:

• UL 489 Listed
• CSA Certified
• 225A Rated
• 3-Pole / Common Trip
• 240V AC Rated
• 10kA Interrupting Rating
• Plug-On Connection
• 2–300 kcmil Aluminum/Copper Load-Side Conductors
