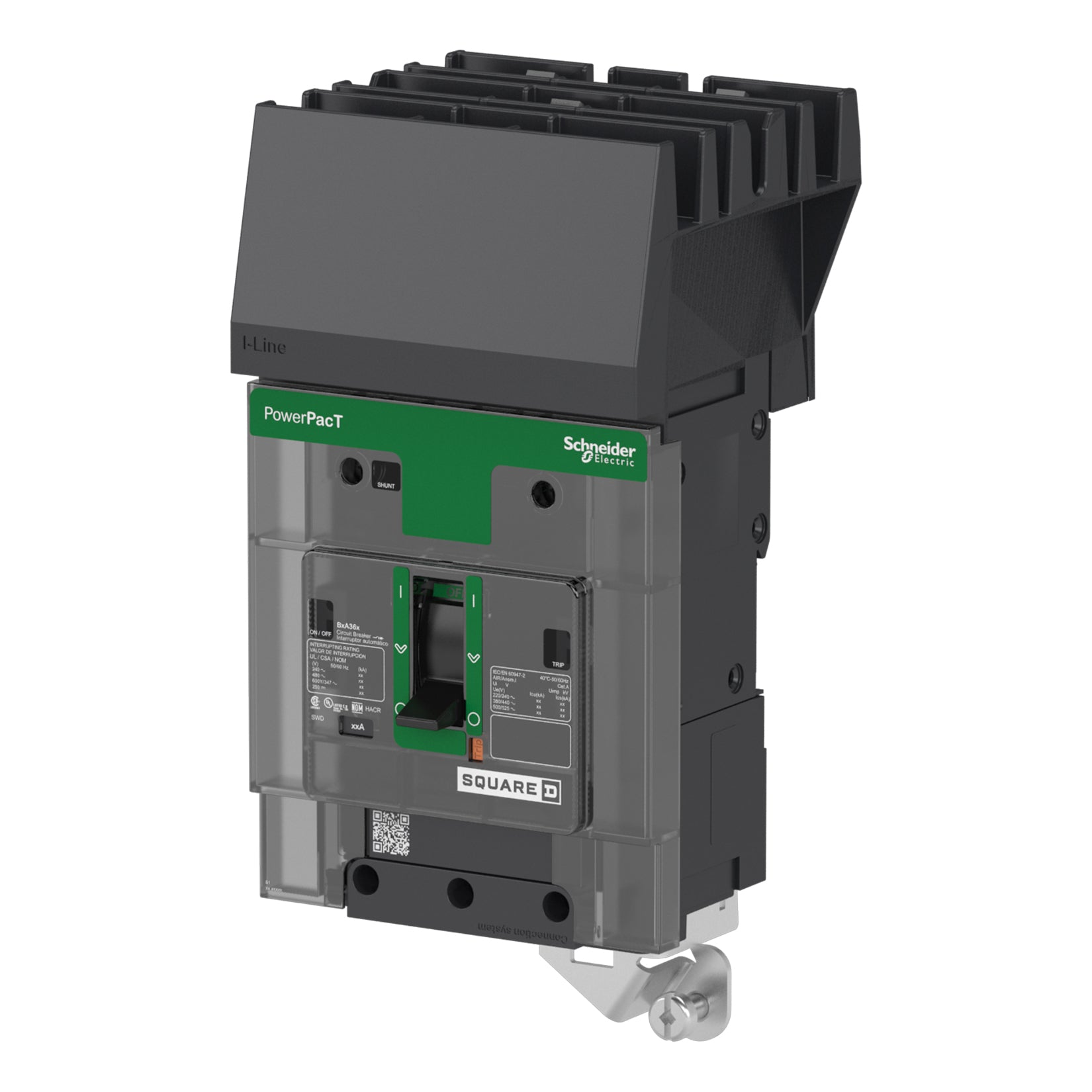

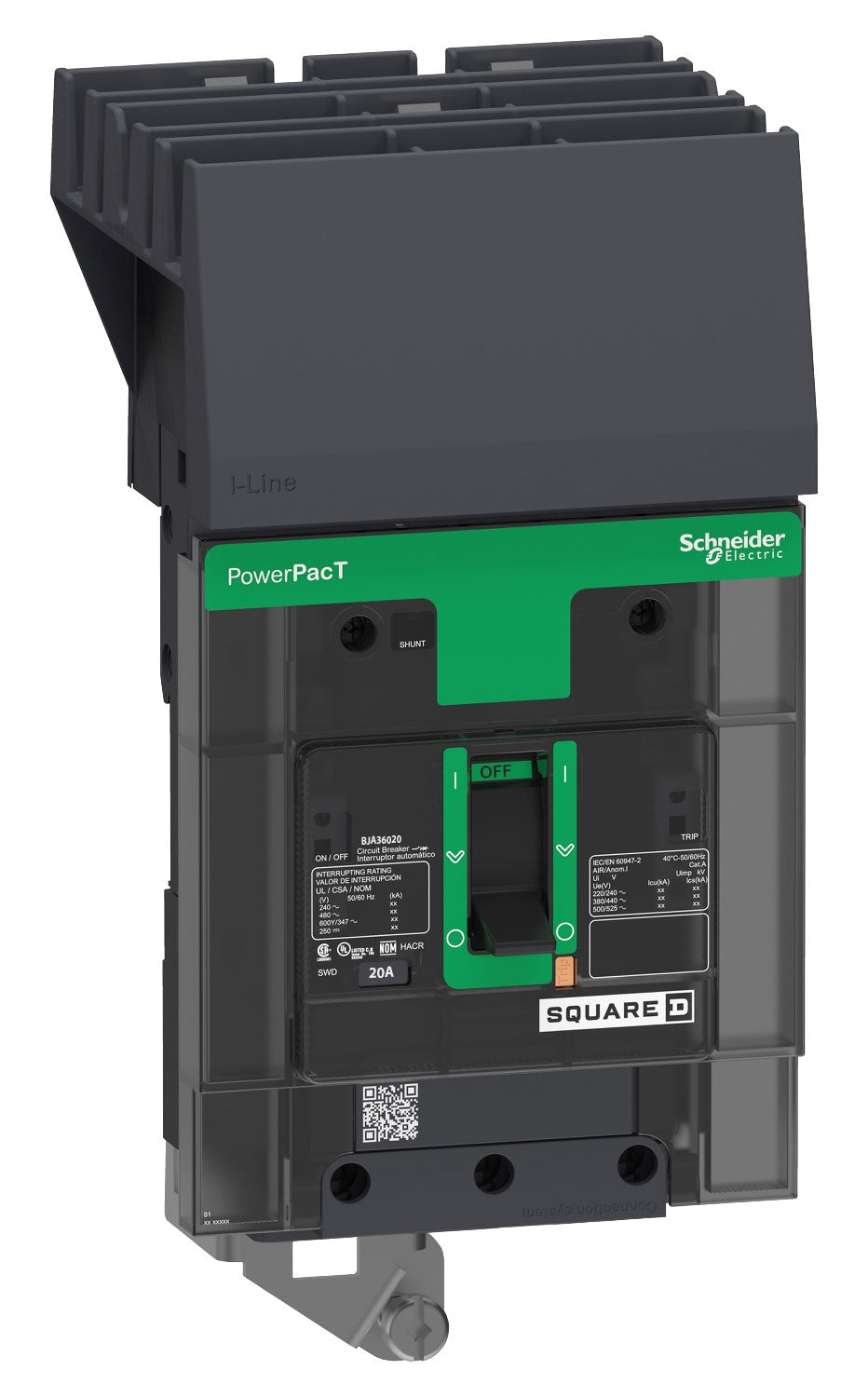

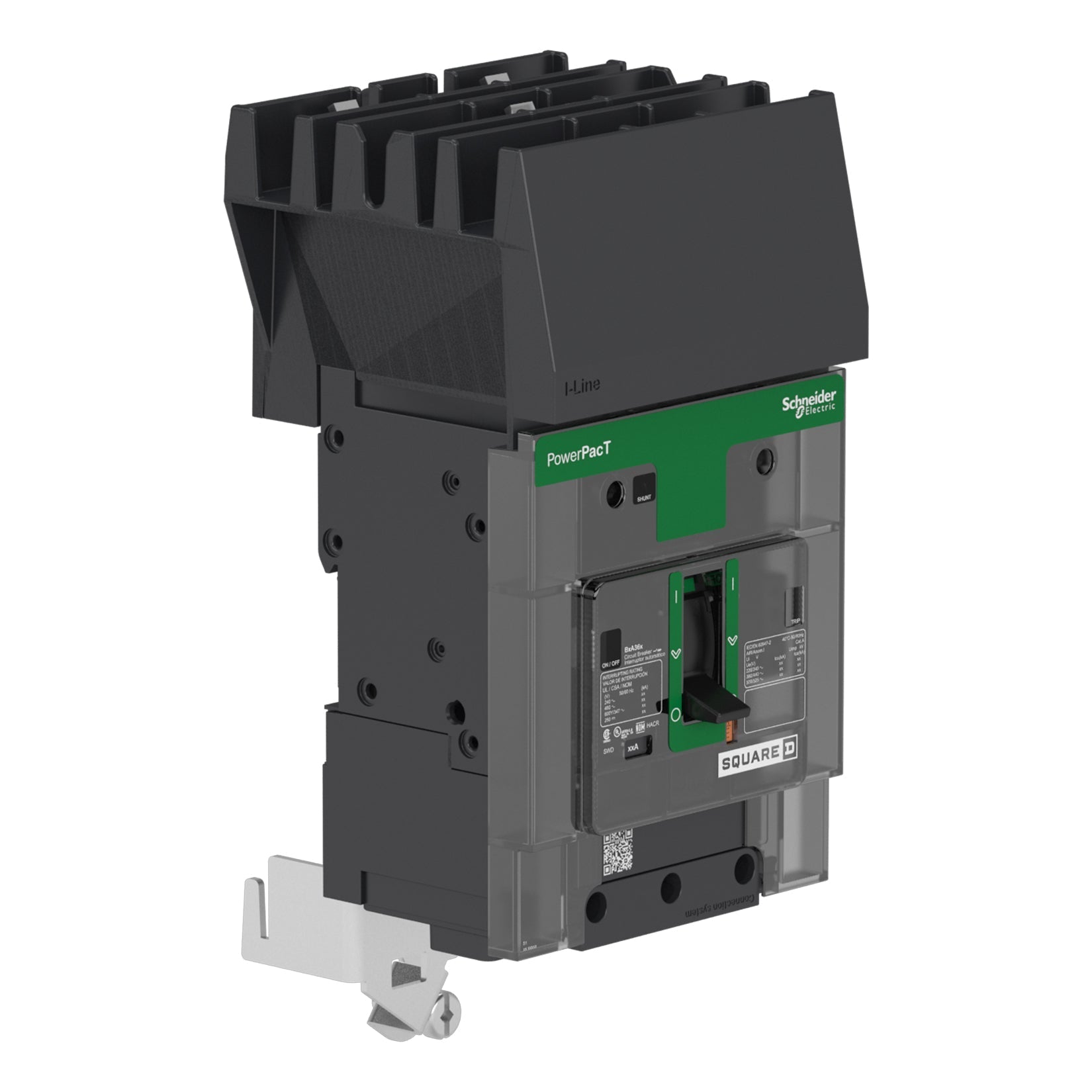

Square D BJA36020 Molded Case Circuit Breaker – 20A – 3-Pole – 600Y/347VAC – 65kA @ 480V – I-Line Plug-In – PowerPact BJA Series

BJA36020 - Square D Molded Case Circuit Breakers

Square D,Schneider E

The Square D BJA36020 is a 20A, 3-pole molded case circuit breaker from the PowerPact BJA Series. It is designed for compatible three-phase electrical distribution applications and is rated for 600Y/347VAC with a 65kA interrupting rating at 480V.

The breaker features thermal-magnetic protection, a non-interchangeable trip unit, and Long-Time and Instantaneous (LI) trip functions. It uses an I-Line style plug-in configuration with an ABC phase connection and includes load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact BJA
• Type: BJA
• Catalog No.: BJA36020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600Y/347VAC
• Interrupting Rating: 65kA @ 480V
• Trip Technology: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)

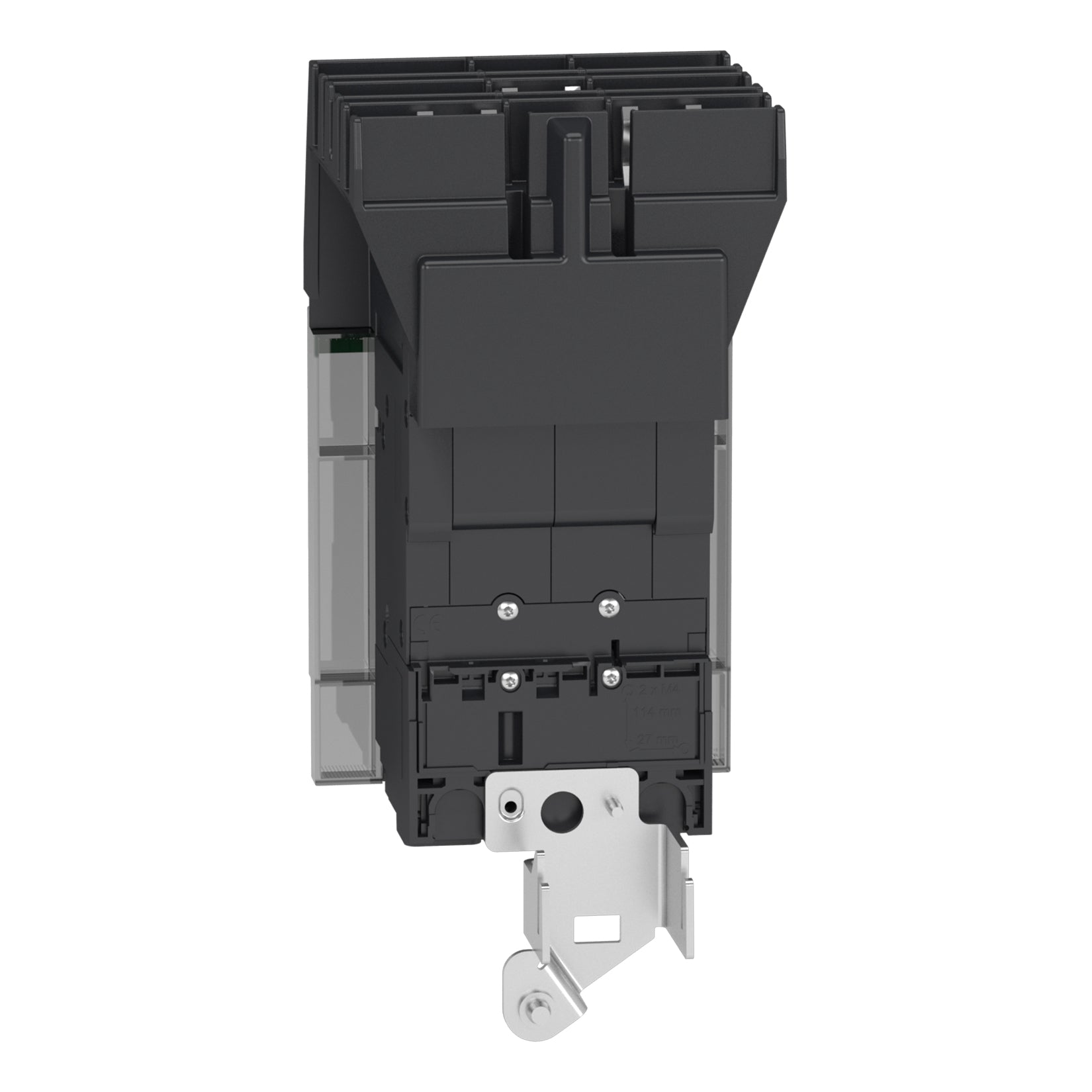

• Mounting / Connection: I-Line Style Plug-In
• Terminal Configuration: Load-Side Mechanical Lug Terminals
• Application: Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJA36020
• Catalog Number: BJA36020
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Family: PowerPact
• Series: BJA
• Breaker Type: Molded Case Circuit Breaker
• Product Type: MCCB
• Model: BJA36020
• Configuration: 20A, 3-Pole
• upc:3606481154248

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact BJA Series and I-Line electrical distribution equipment that accepts the specified breaker configuration. The BJA36020 is a 20A, 3-pole, 600Y/347VAC molded case circuit breaker with an I-Line style plug-in connection and ABC phase connection.

The breaker includes load-side mechanical lug terminals and a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous functions. Always verify the specific panelboard or equipment model, approved breaker type, I-Line compatibility, system voltage, pole configuration, interrupting rating, phase connection, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact BJA Series
• 20A Rated
• 3-Pole / 3-Phase
• 600Y/347VAC Rated
• 65kA @ 480V
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
