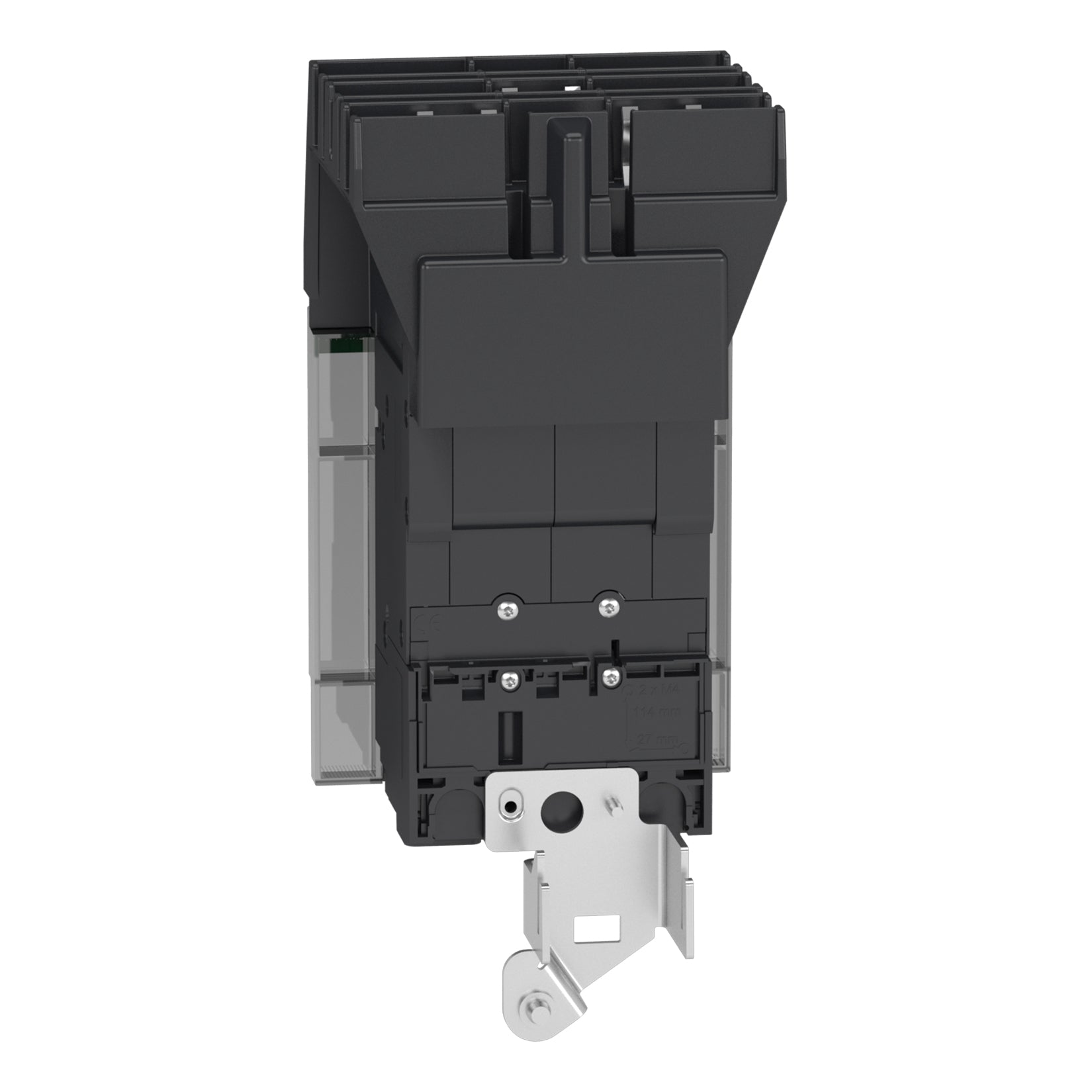

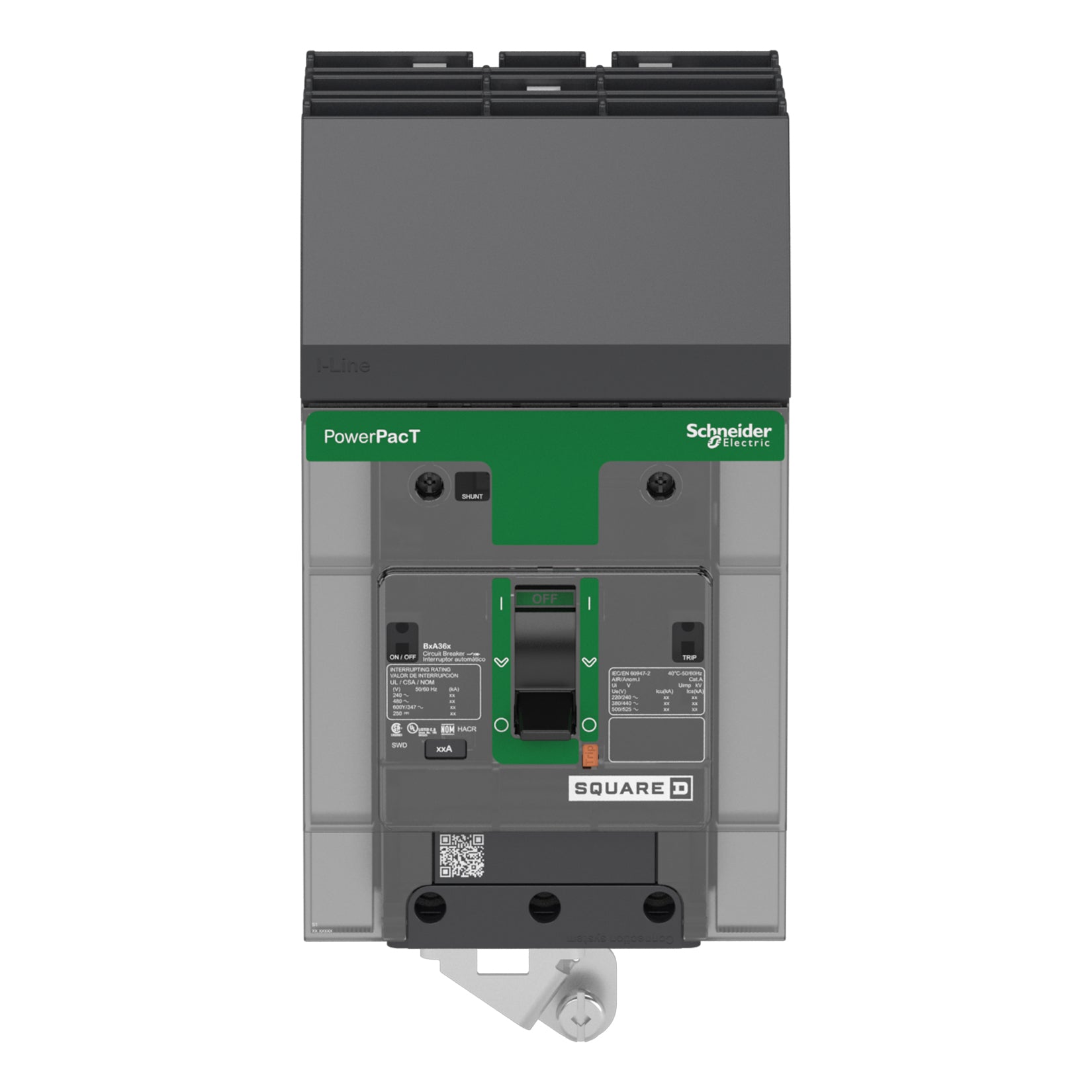

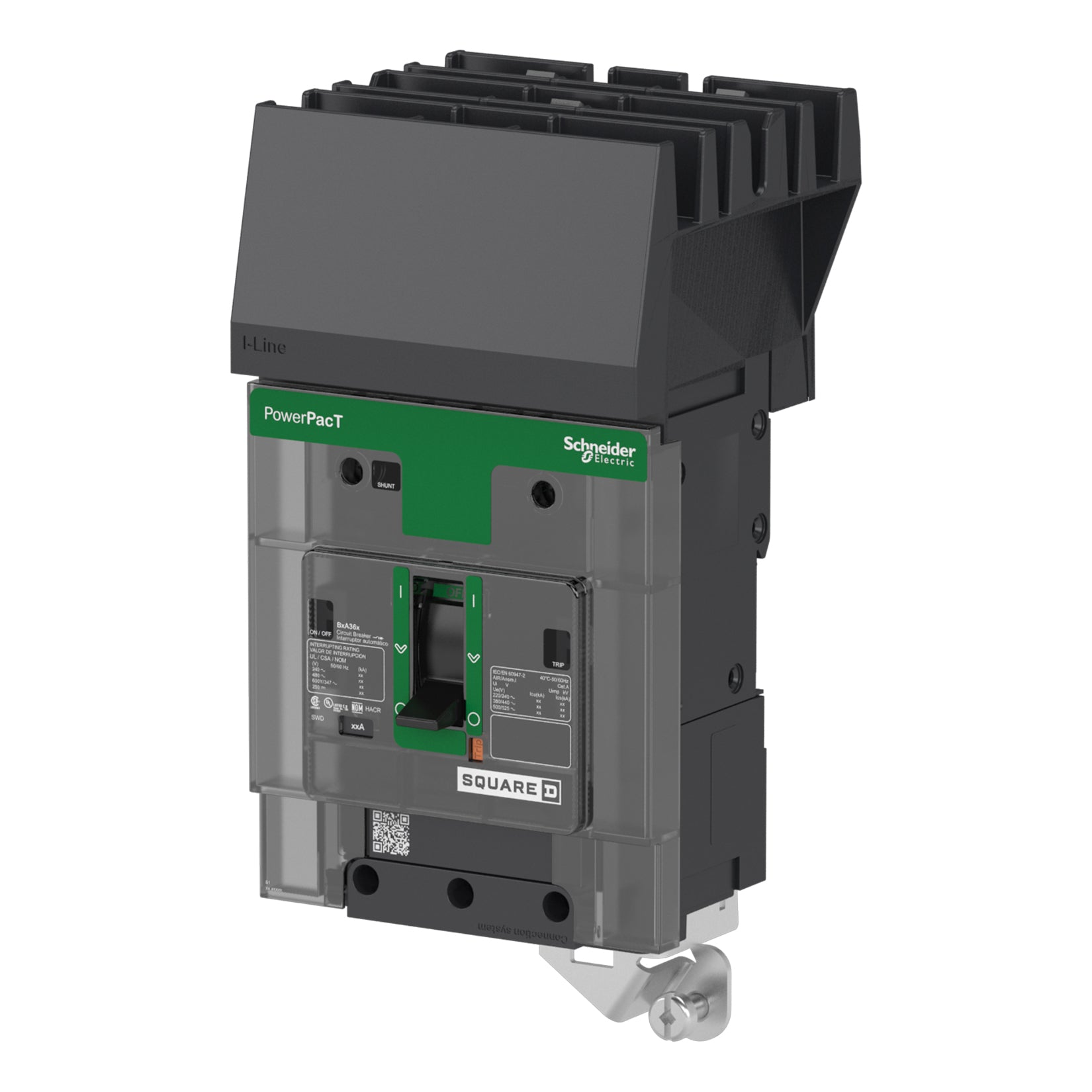

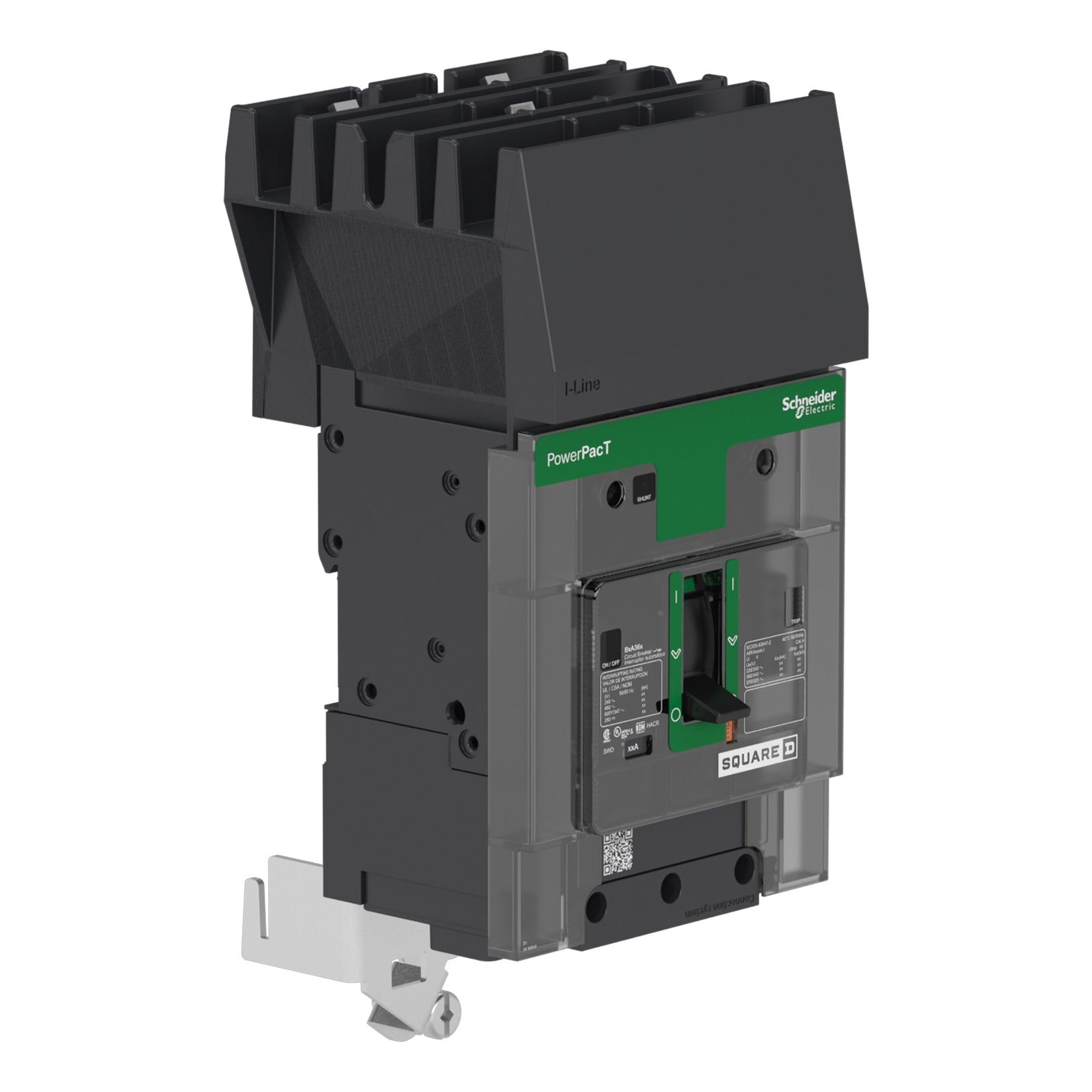

Square D BJA36030 Molded Case Circuit Breaker – 30A – 3-Pole – 600Y/347VAC – 65kA @ 480V – I-Line Plug-In – PowerPact BJA Series

The Square D BJA36030 is a 30A, 3-pole molded case circuit breaker from the Square D PowerPact BJA Series. It is designed for compatible three-phase electrical distribution applications and features I-Line style plug-in mounting with ABC phase connection.

The breaker uses thermal-magnetic protection with a non-interchangeable trip and LI (Long-Time and Instantaneous) trip functions. It includes load-side mechanical lug terminals and is rated for 600Y/347VAC, with a 65kA interrupting rating at 480V.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BJA36030
• Product Family: PowerPact
• Series: PowerPact BJA
• Frame Type: BJA
• Current Rating: 30A
• Number of Poles: 3-Pole
• Voltage Rating: 600Y/347VAC
• Phase: 3-Phase
• Phase Connection: ABC
• Trip Technology: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 65kA @ 480V
• Terminal Type: Load-Side Mechanical Lug Terminals
• Brand: Square D
• Manufacturer: Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJA36030
• Catalog Number: BJA36030
• Model: BJA36030
• Product Family: Square D PowerPact
• Series: PowerPact BJA
• Frame: BJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 30A
• upc:3606481154309

Compatibility:

Designed for use with compatible Square D PowerPact BJA Series / I-Line electrical distribution equipment that accepts the specified I-Line style plug-in molded case circuit breaker configuration. The BJA36030 provides 30A, 3-pole thermal-magnetic protection for compatible 600Y/347VAC, 3-phase applications.

The breaker uses an ABC phase connection and includes load-side mechanical lug terminals. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, pole configuration, phase connection, interrupting rating, terminal arrangement, and I-Line mounting compatibility before installation.

Certifications:

• 30A Rated
• 3-Pole / 3-Phase
• 600Y/347VAC Rated
• 65kA Interrupting Rating @ 480V
• Thermal-Magnetic Protection
• LI – Long-Time and Instantaneous
• Non-Interchangeable Trip
• I-Line Style Plug-In Mounting
• ABC Phase Connection
• Load-Side Mechanical Lug Terminals
• PowerPact BJA Series
