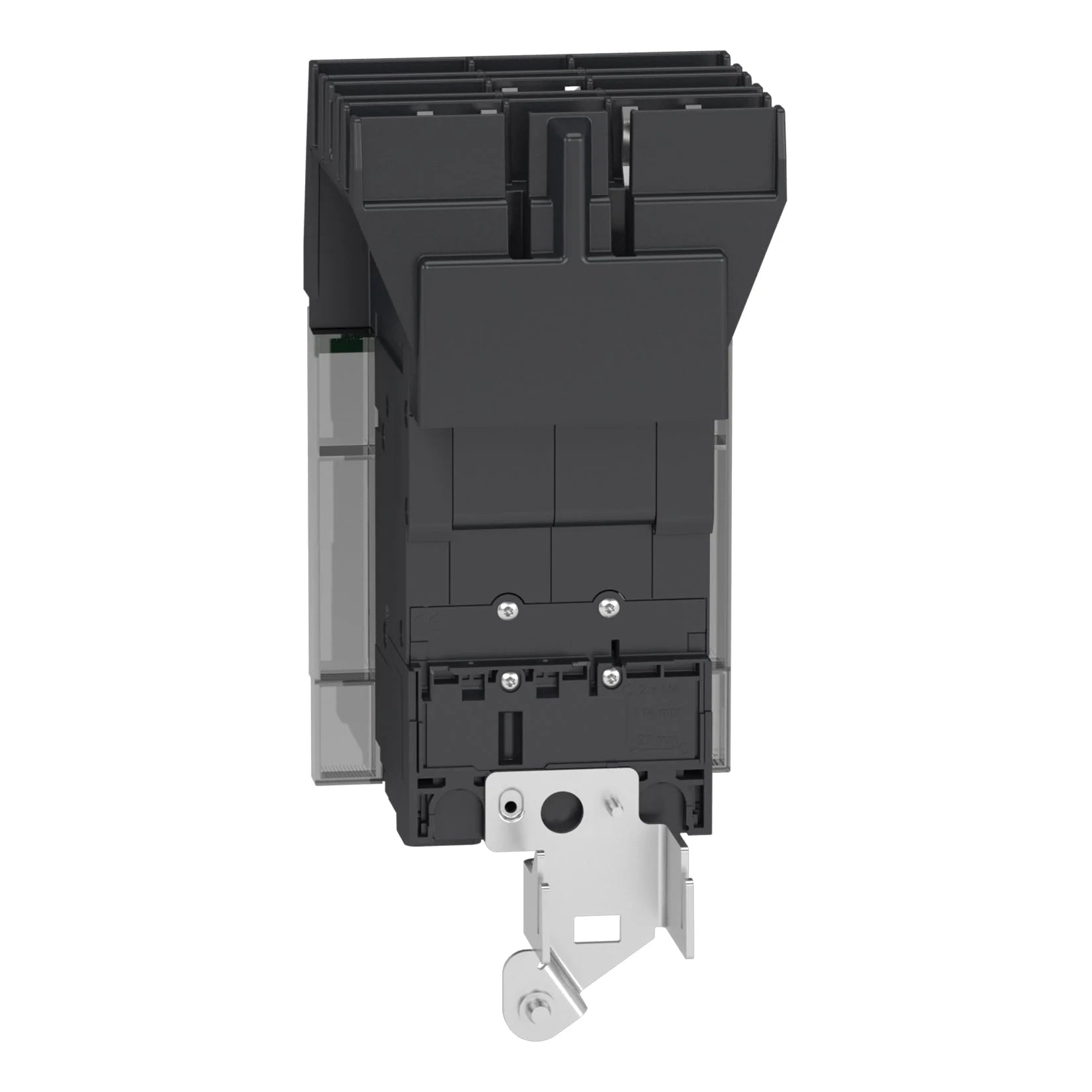

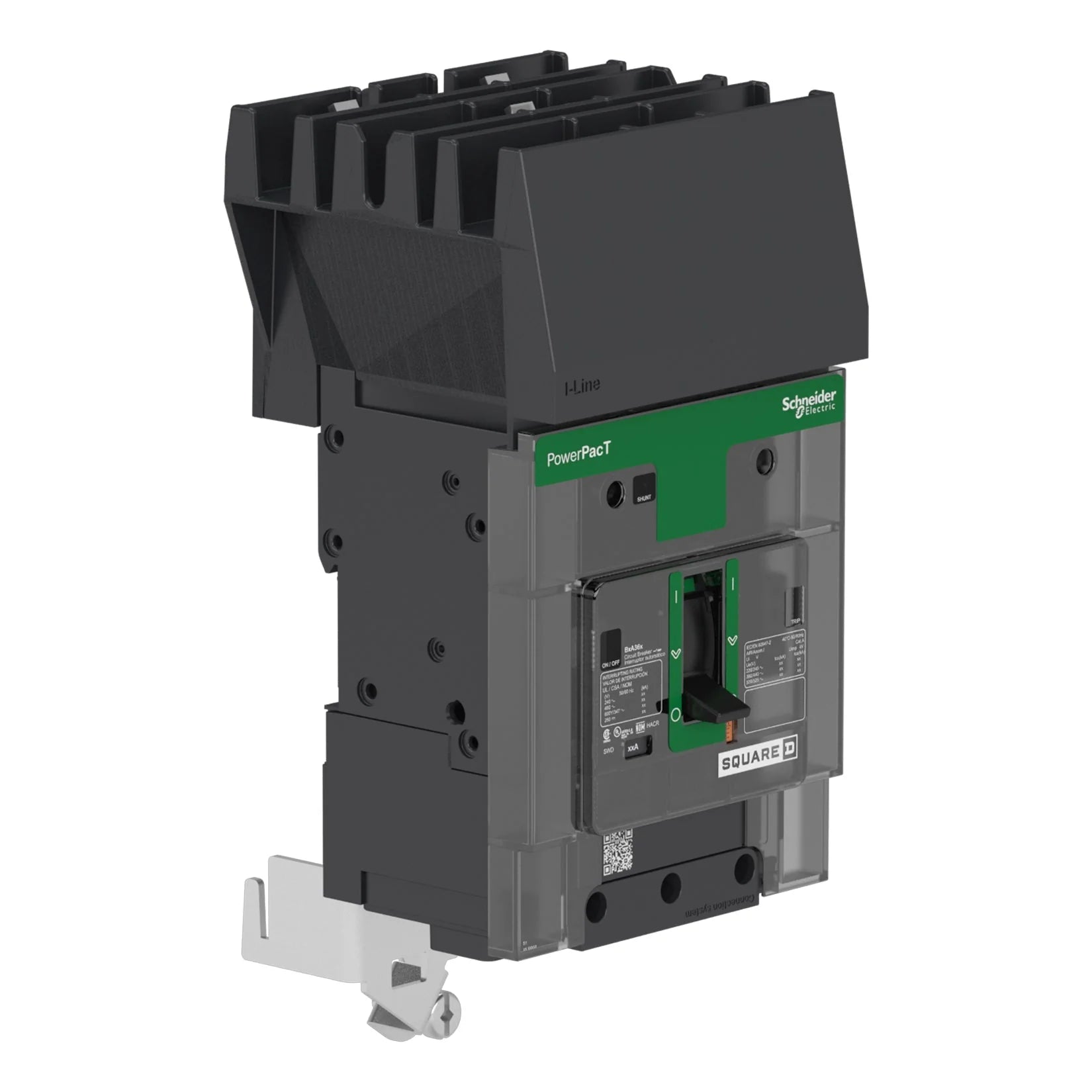

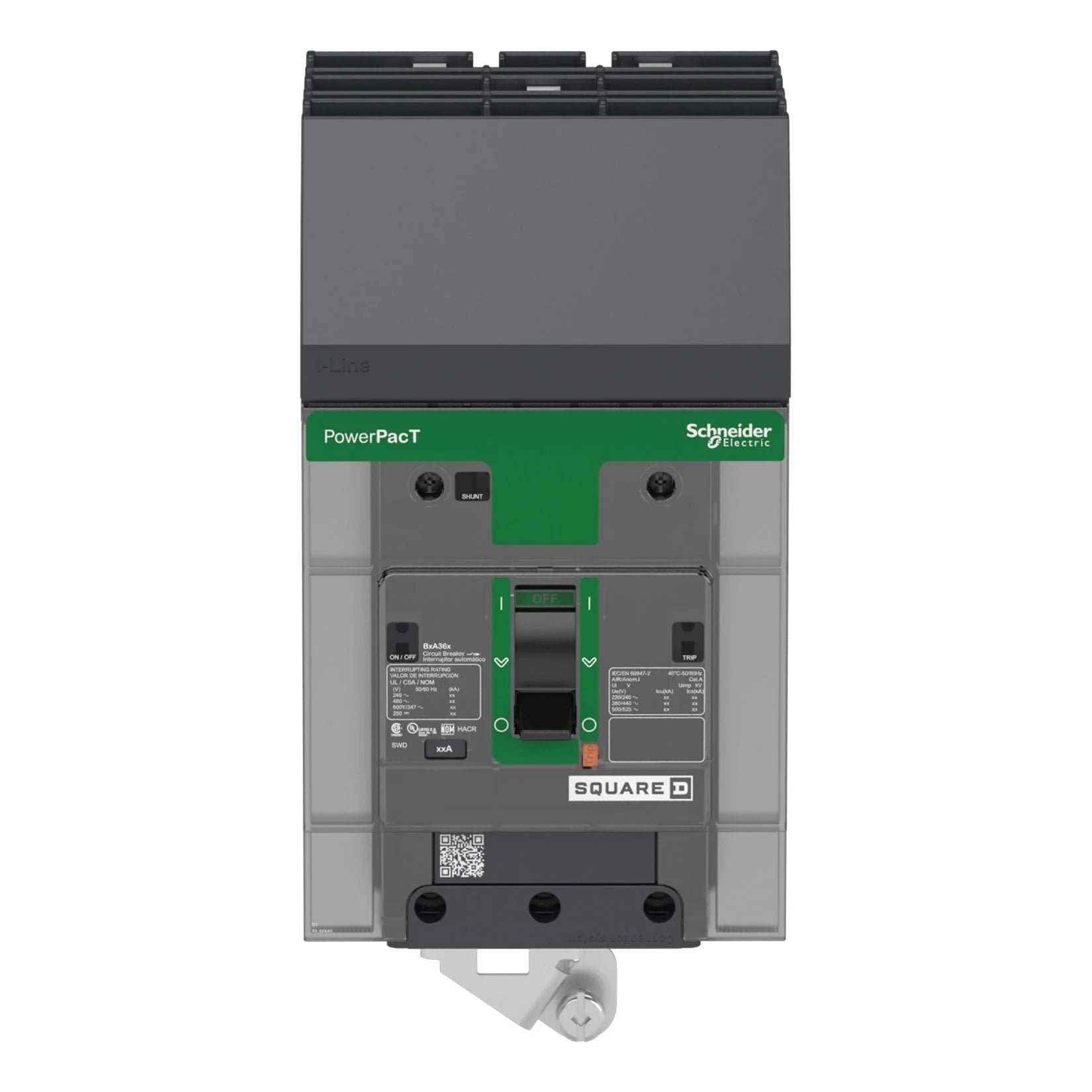

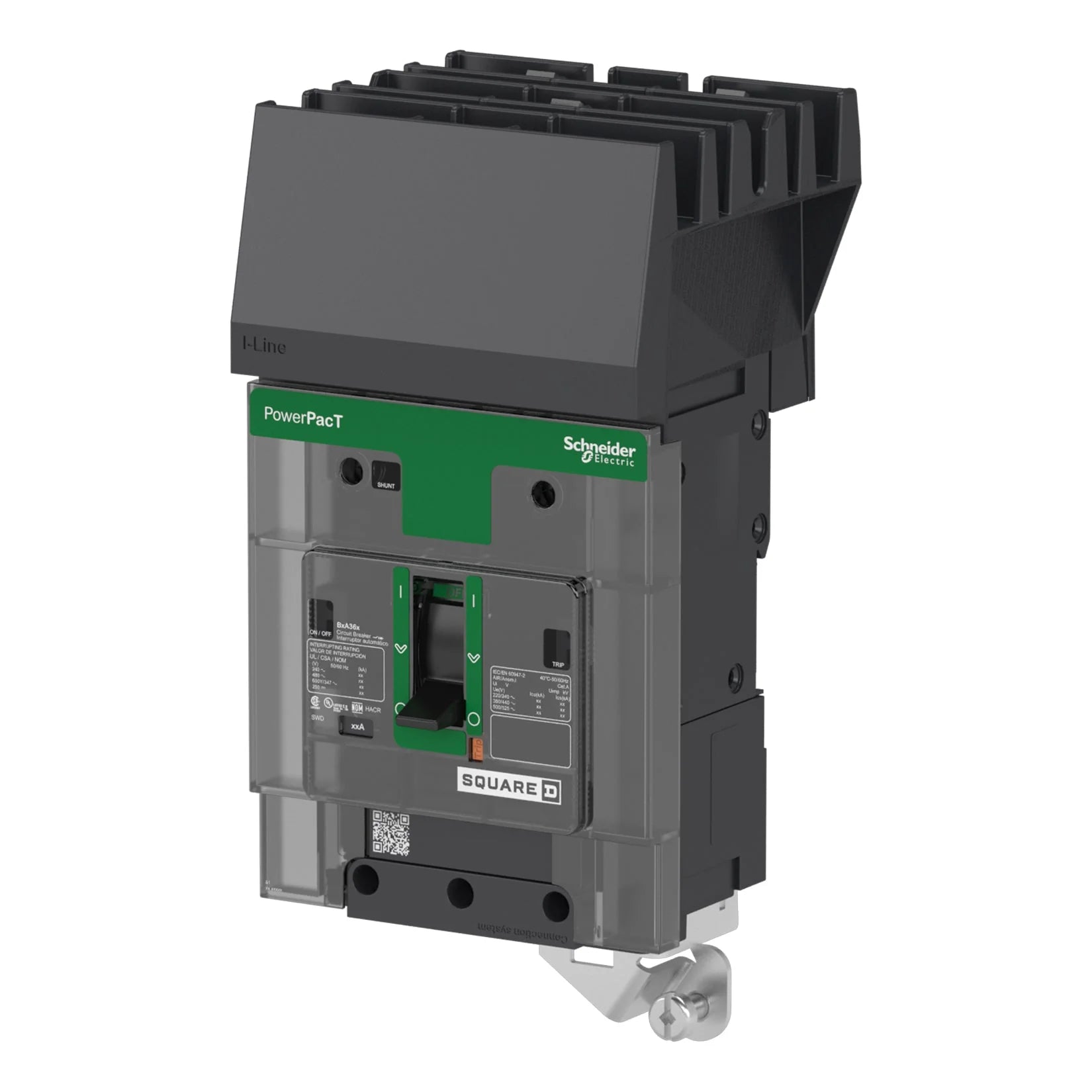

Square D BJA36035 Molded Case Circuit Breaker – 35A – 3-Pole / 3-Phase – 600Y/347V AC – 65kA @ 480V – I-Line Style Plug-In – PowerPact BJA Series

The Square D BJA36035 is a 35A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type BJA Series. It features thermal-magnetic protection with a non-interchangeable Long-Time and Instantaneous (LI) trip.

The breaker is rated for 600Y/347V AC and provides a 65kA interrupting rating at 480V. It uses an I-Line style plug-in connection with an ABC phase connection and includes load-side mechanical lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BJA
• Type: BJA
• Catalog No.: BJA36035
• Current Rating: 35A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 65kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Mechanical Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJA36035
• Catalog Number: BJA36035
• Model: BJA36035
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: BJA
• Type: BJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 35A
• UPC:785901014683

Compatibility:

Designed for use with compatible Square D PowerPact BJA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The BJA36035 provides 35A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC electrical distribution applications.

The breaker uses an ABC phase connection and includes load-side mechanical lug terminals.
