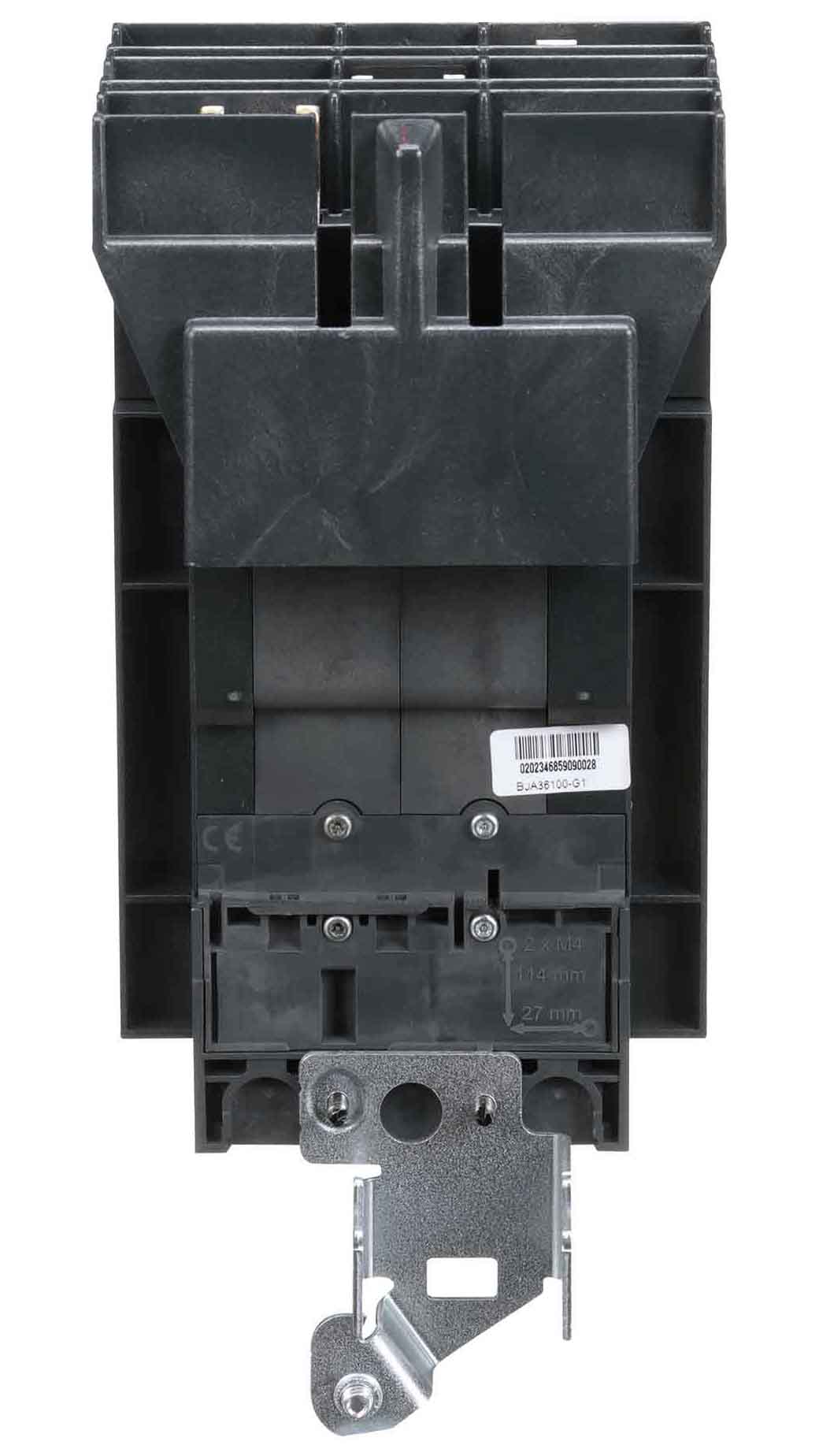

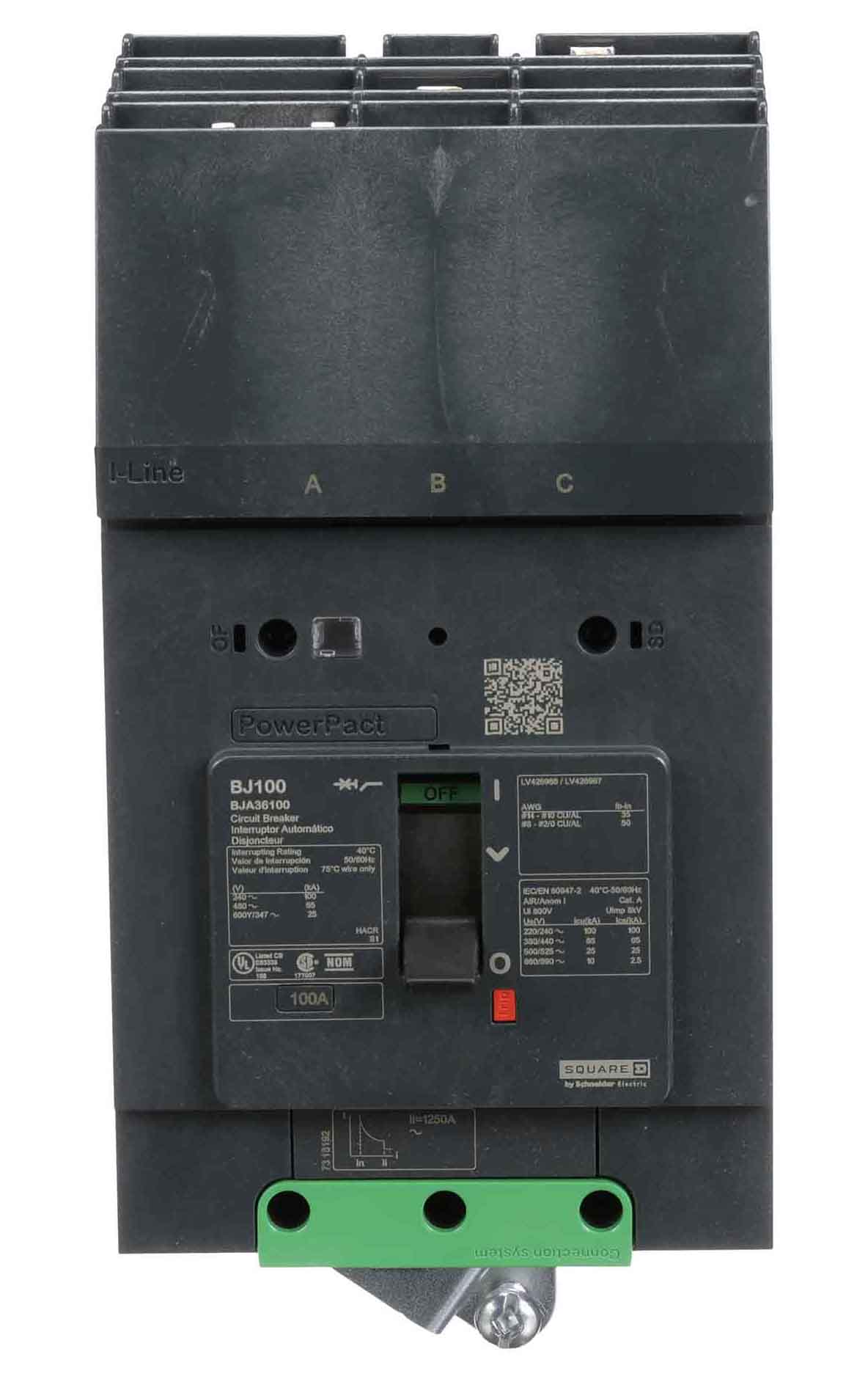

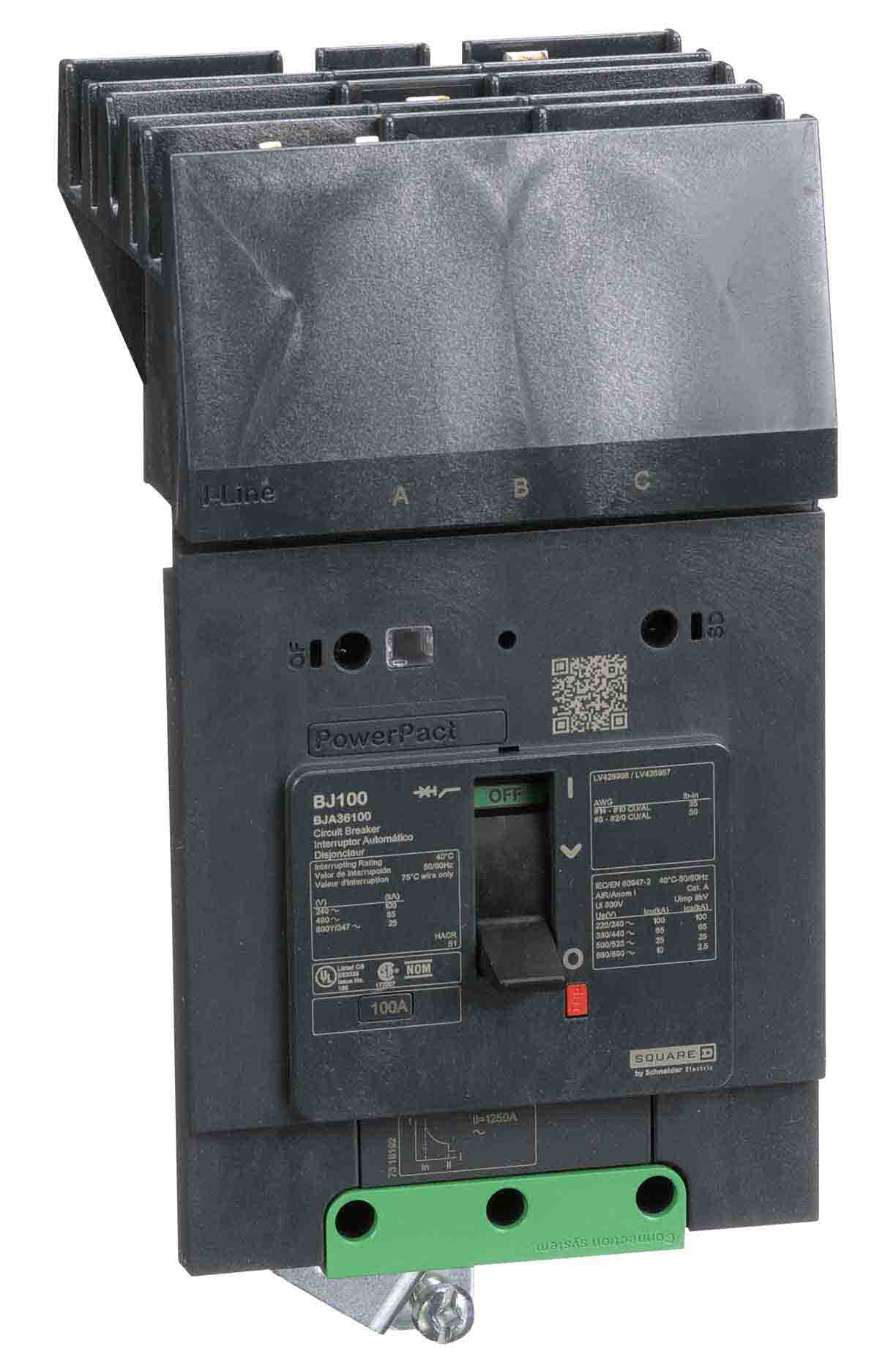

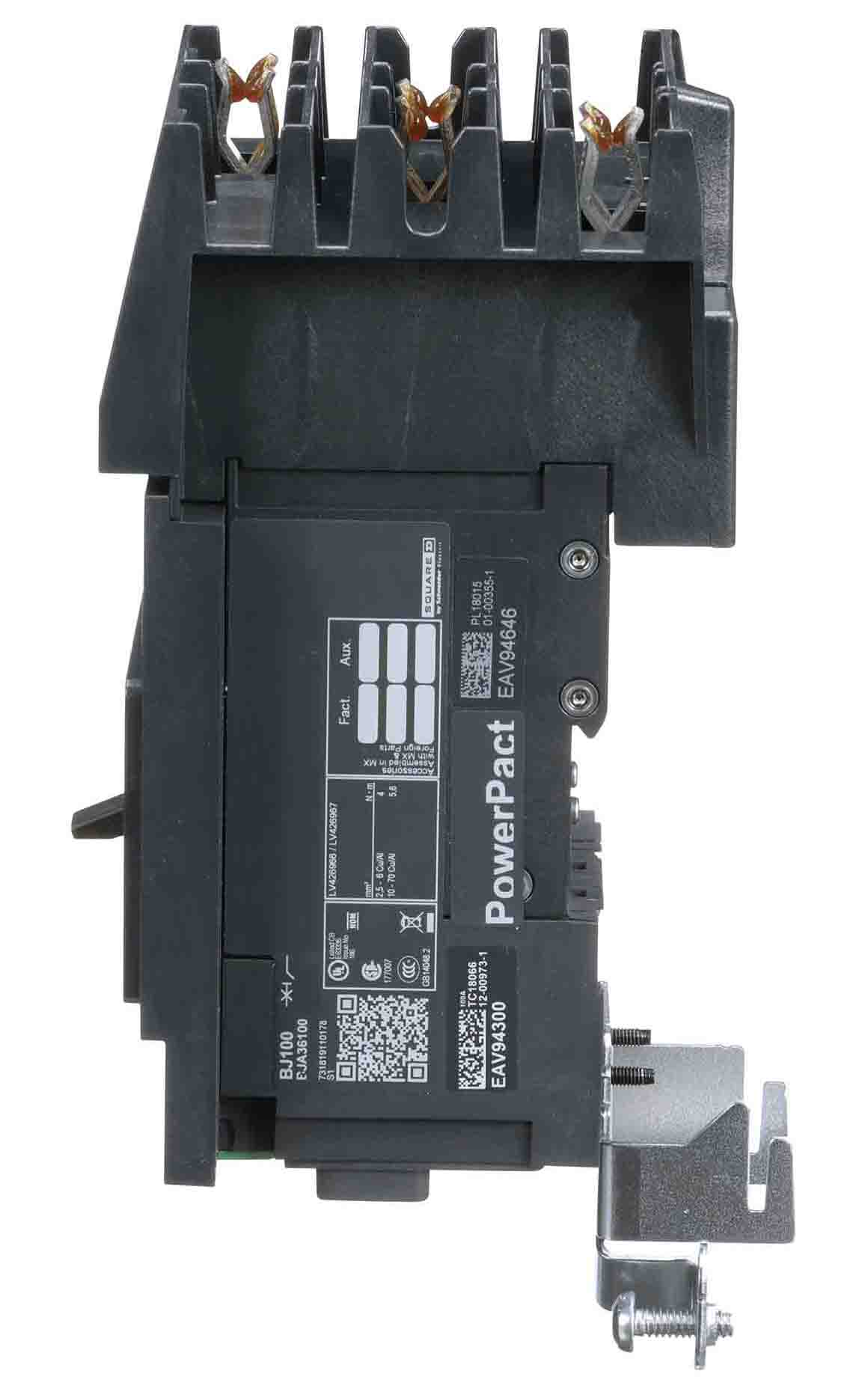

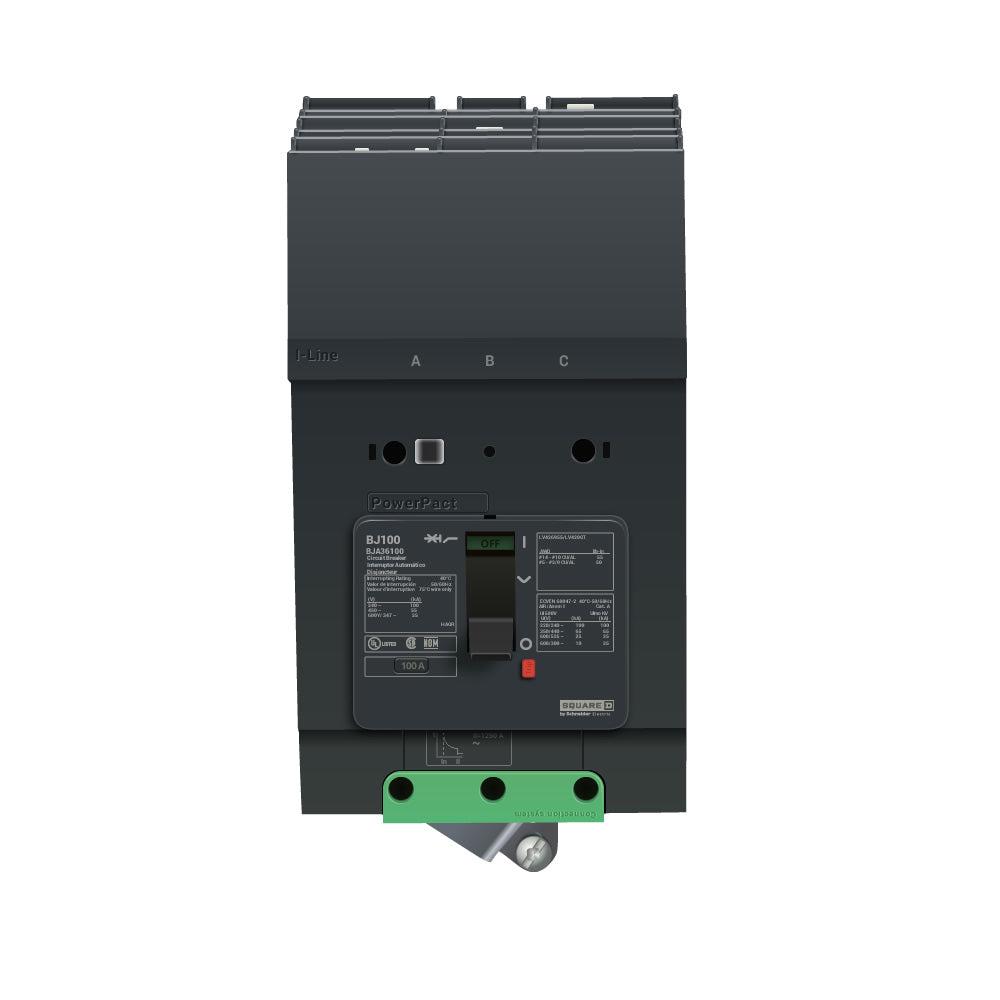

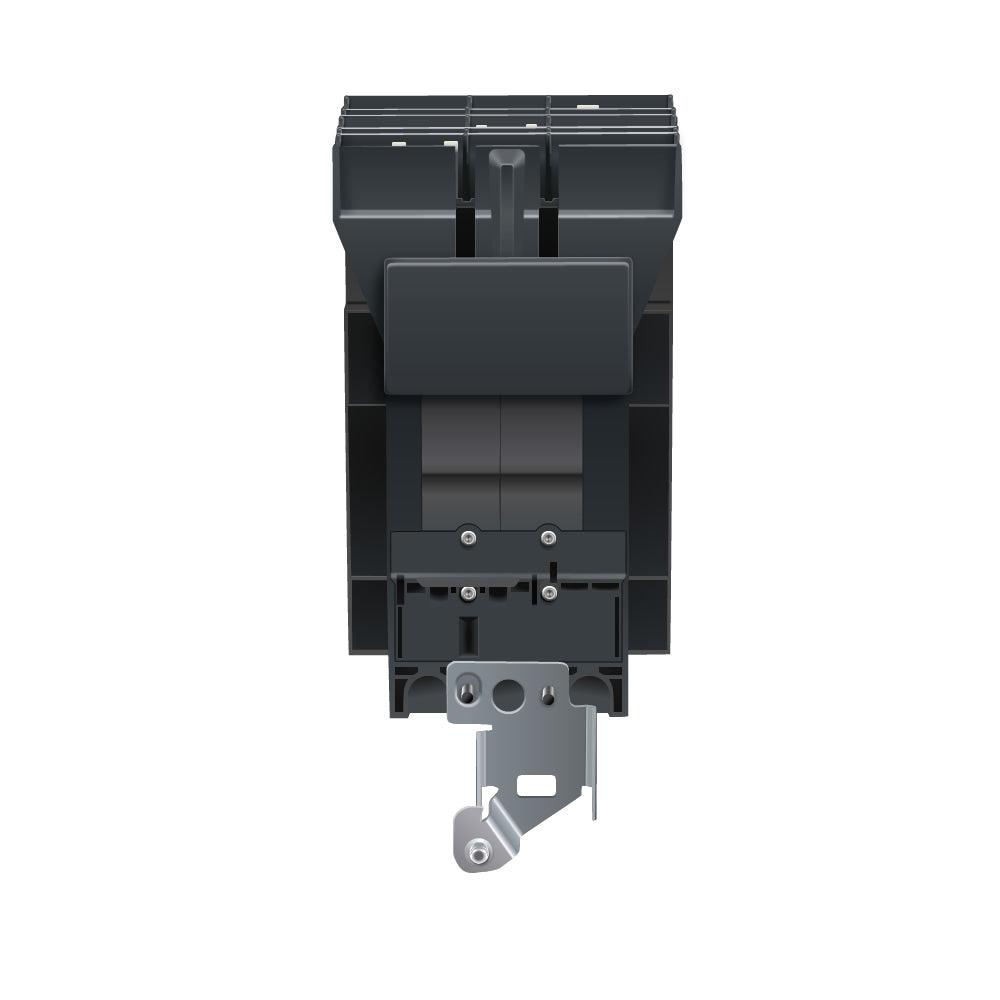

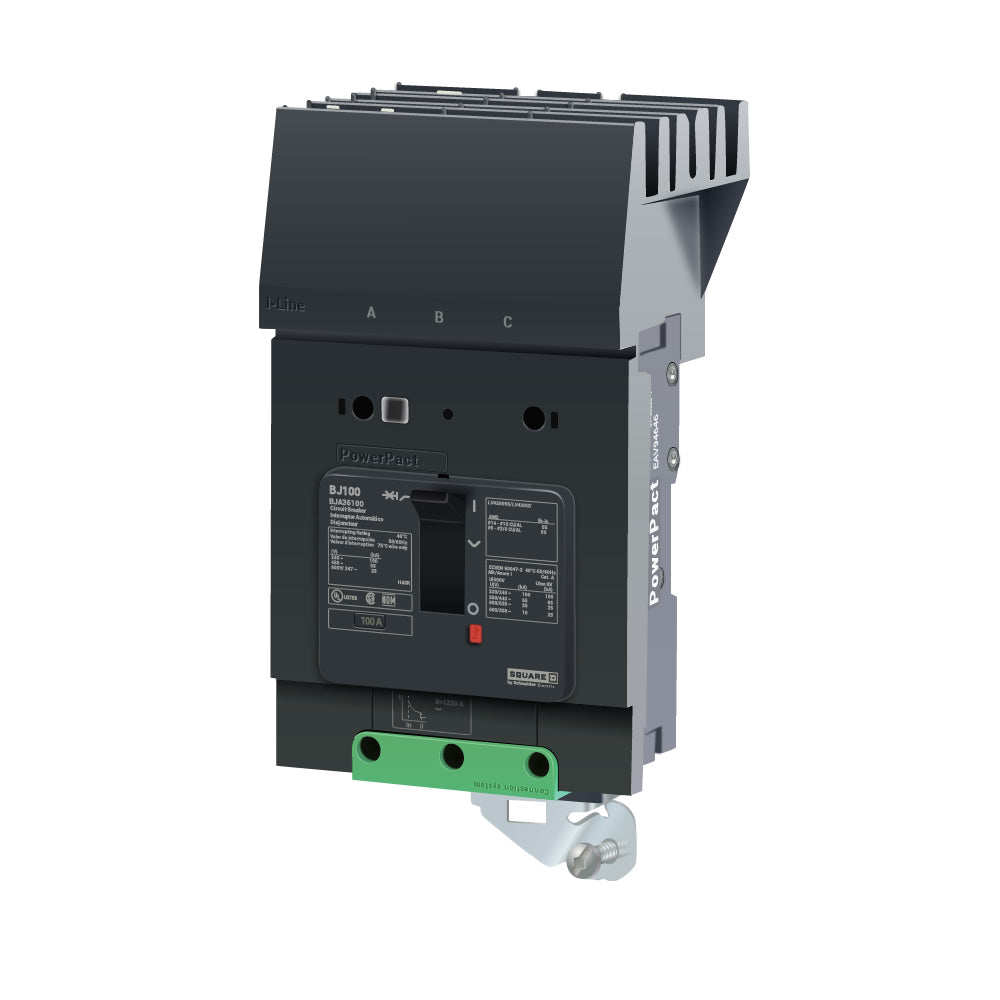

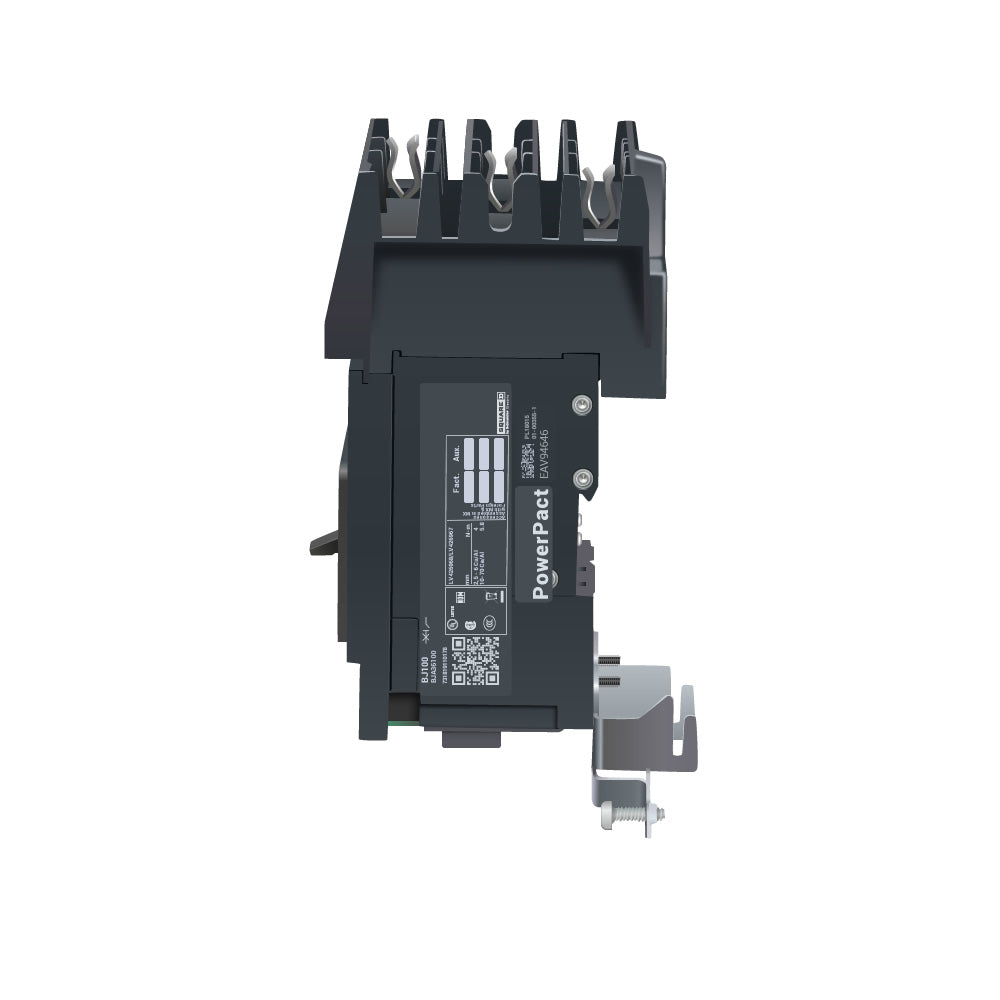

Square D BJA36100 Molded Case Circuit Breaker – 100A – 3-Pole – 600Y/347VAC – 65kA @ 480V – I-Line Plug-In – PowerPact BJA Series

The Square D BJA36100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the PowerPact BJA Series. It is rated for 600Y/347VAC and provides a 65kA interrupting rating at 480V.

The BJA36100 features an I-Line style plug-in connection with ABC phase connection and includes a non-interchangeable trip. It is designed for compatible PowerPact electrical distribution applications.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: BJA
• Type: BJA
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347VAC
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Rated
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Phase Connection: ABC
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BJA36100
• Catalog Number: BJA36100
• Product Family: PowerPact Molded Case Circuit Breakers
• Series: BJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: BJA36100
• Breaker Configuration: 3-Pole, 100A
• upc:606481185924

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact BJA Series electrical distribution equipment supporting I-Line style plug-in circuit breakers. The BJA36100 is a 3-pole, 100A, 600Y/347VAC MCCB with a 65kA interrupting rating at 480V, ABC phase connection, and non-interchangeable trip.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, I-Line connection, phase arrangement, and installation requirements before installation.

Certifications:

• 65kA Interrupting Rating @ 480V
• I-Line Style Plug-In
• Non-Interchangeable Trip
• 600Y/347VAC Rated
• 100A Rated
• 3-Pole / 3-Phase
• Genuine Square D / Schneider Electric Product
