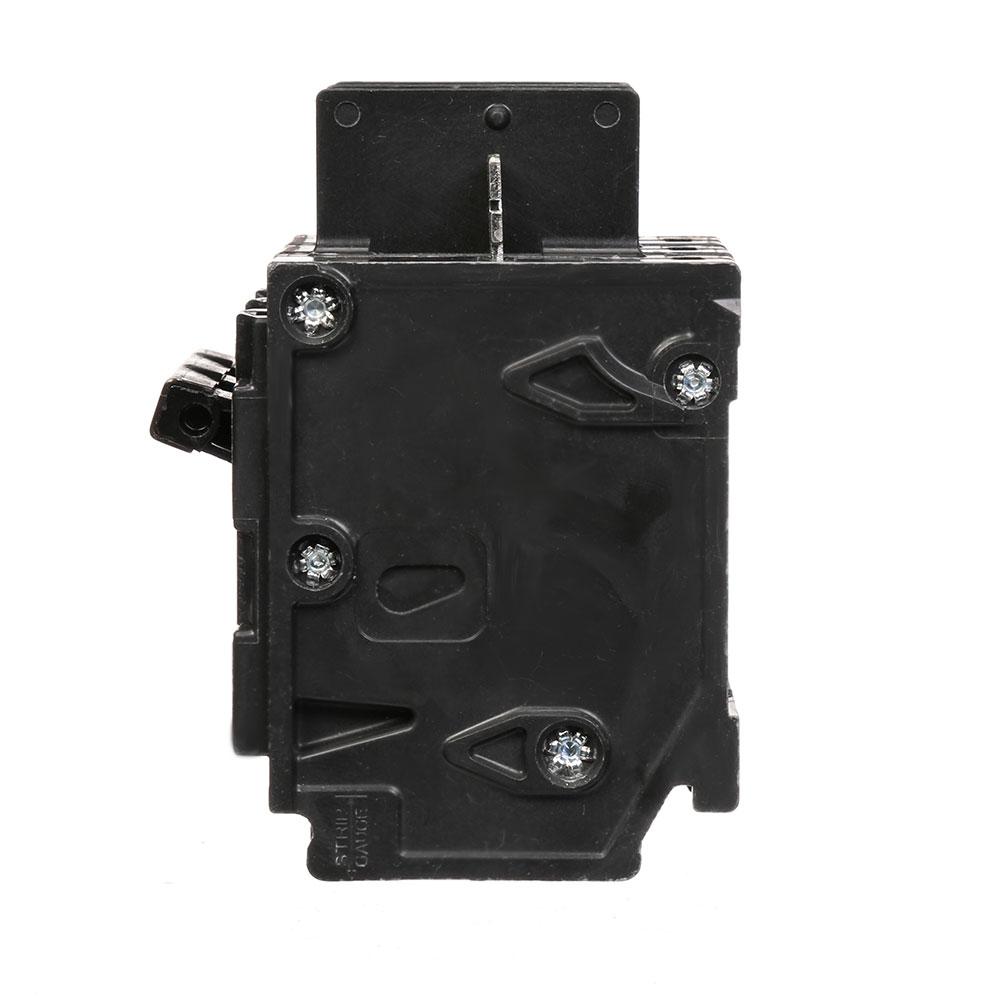

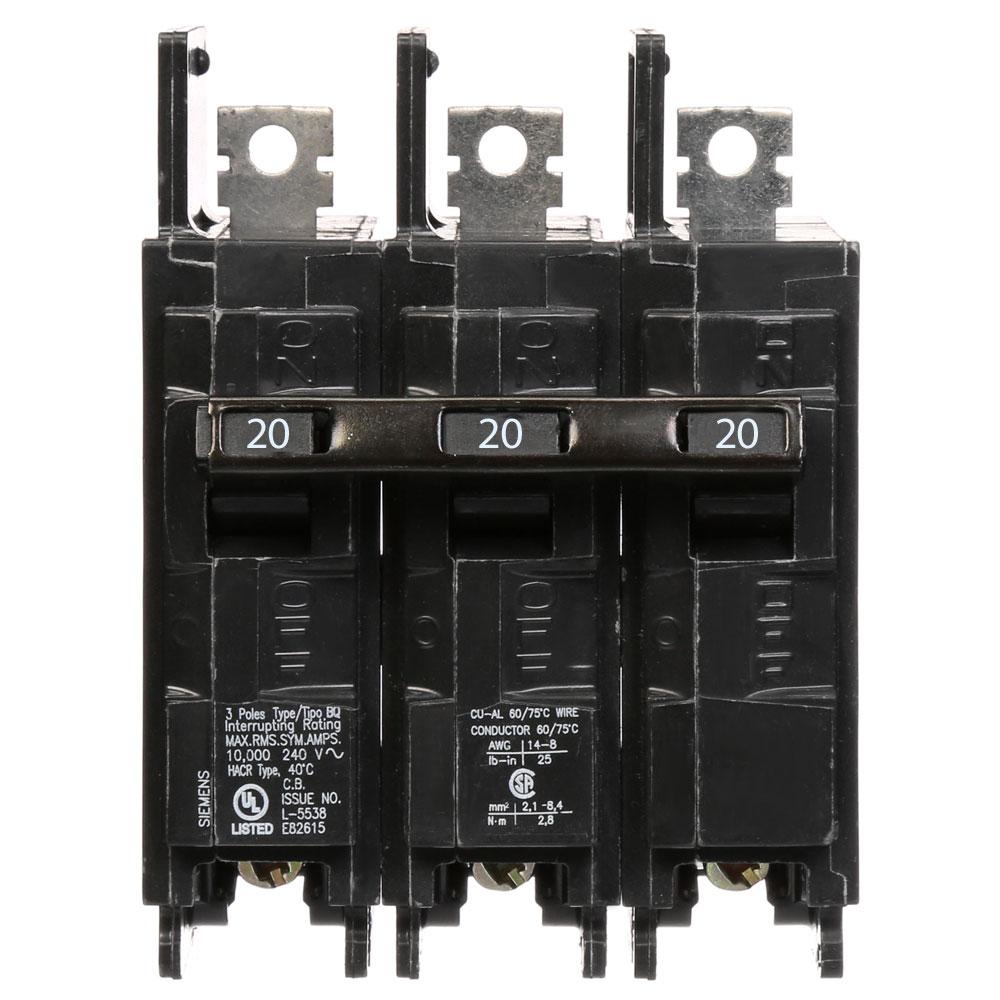

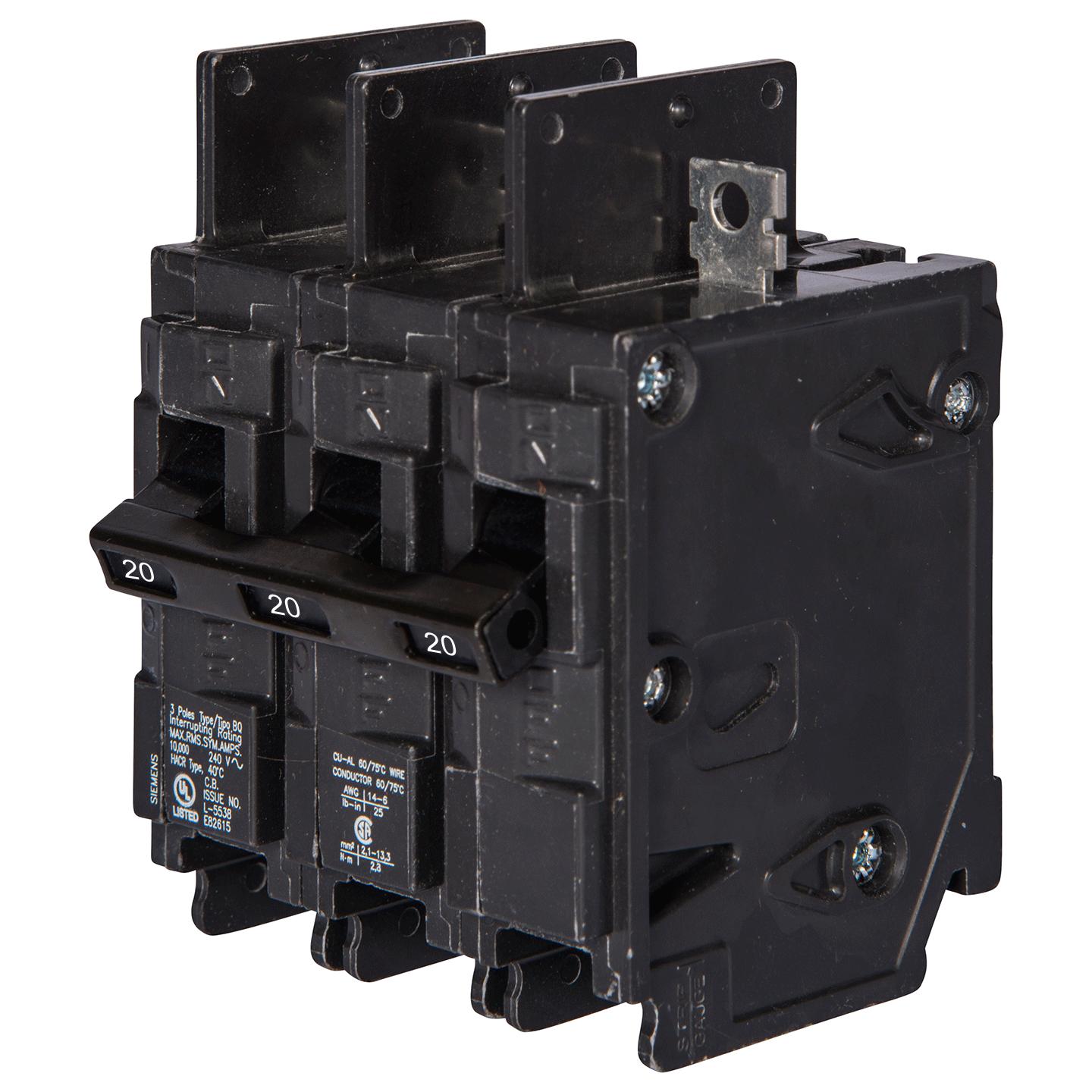

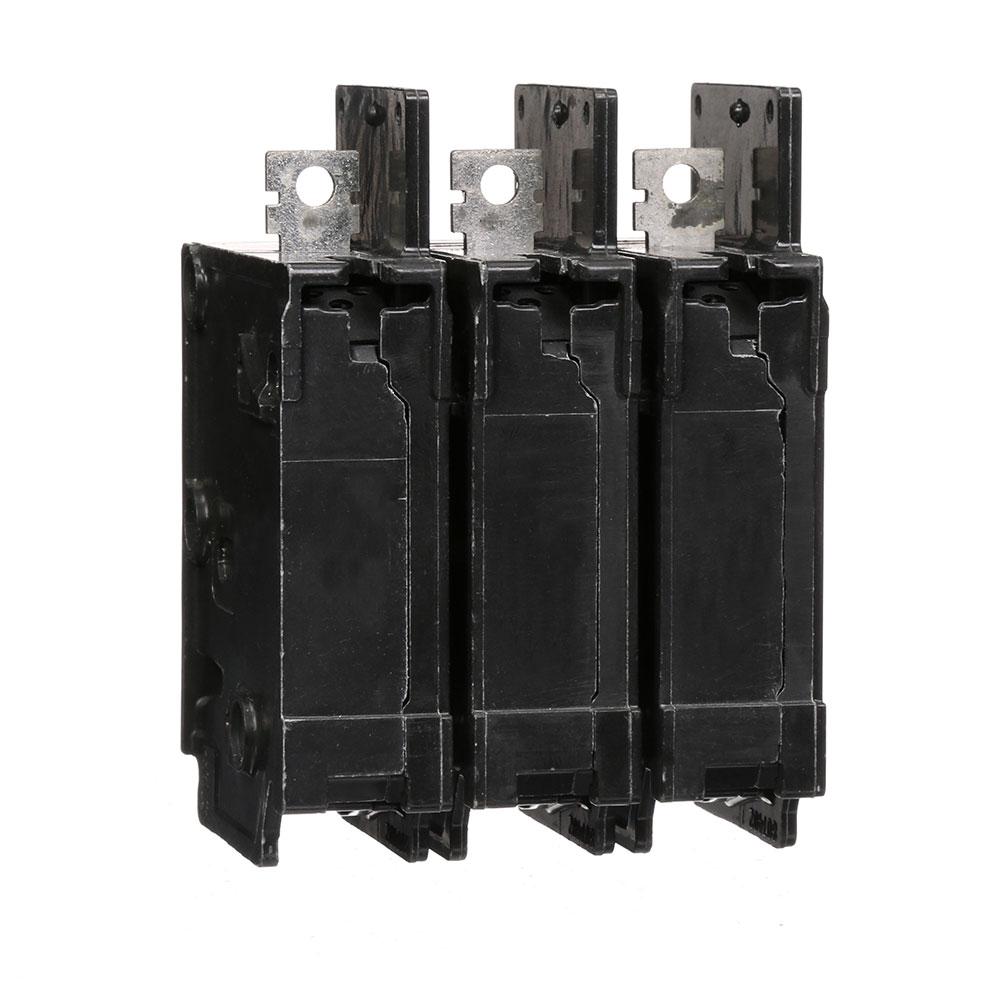

Siemens BQ3B020 Circuit Breaker – 20A – 3-Pole – 240V – 10kA – Bolt-On – BQ Series

The Siemens BQ3B020 is a 20A, 3-pole molded case bolt-on circuit breaker designed for compatible Siemens electrical distribution equipment. It is rated for 240V and provides a 10,000A interrupting rating for circuit protection.

The BQ3B020 features a non-interchangeable trip and is supplied with load-side lugs for electrical connections. It is designed for compatible 3-phase applications requiring a Siemens BQ Series bolt-on circuit breaker.

Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: BQ
• Catalog No.: BQ3B020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10,000A
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Connection Type: Bolt-On
• Terminal Type: Load-Side Lugs
• Dimensions (H × W × L): 4 × 3 × 3 in
• Application: Circuit Protection
• Authenticity: Authentic Siemens Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): BQ3B020
• Catalog Number: BQ3B020
• Product Family: BQ Series
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Circuit Breaker
• Model: BQ3B020
• upc:783643102590

Compatibility

Designed for use with compatible Siemens BQ Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The BQ3B020 is suitable for compatible 20A, 3-pole, 240V, 3-phase applications and is supplied with load-side lugs.

Always verify the exact panelboard or load center model, system voltage, interrupting requirements, mounting configuration, and approved breaker combinations before installation.

Certifications

• CSA Approved
• UL Listed
• Authentic Siemens Product
