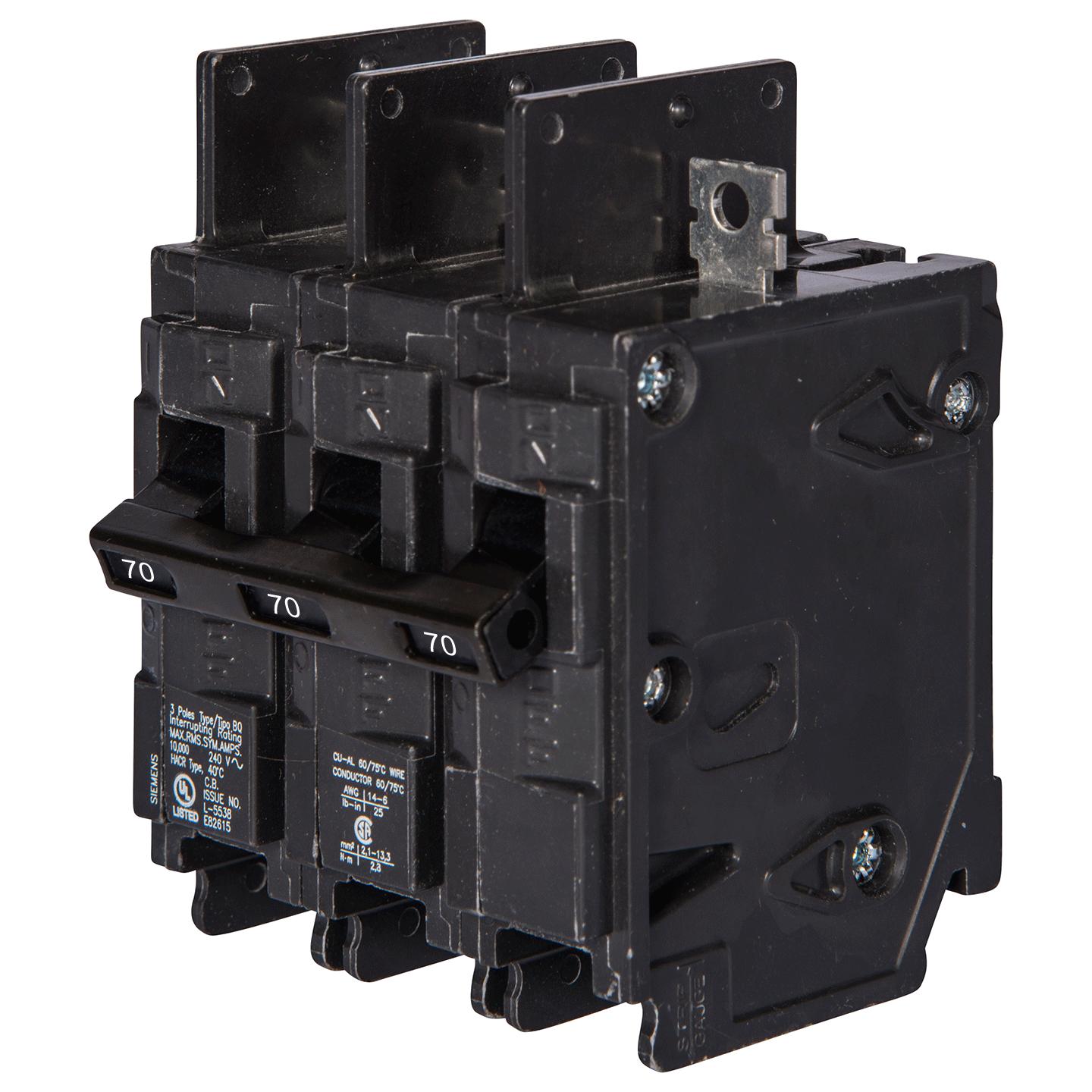

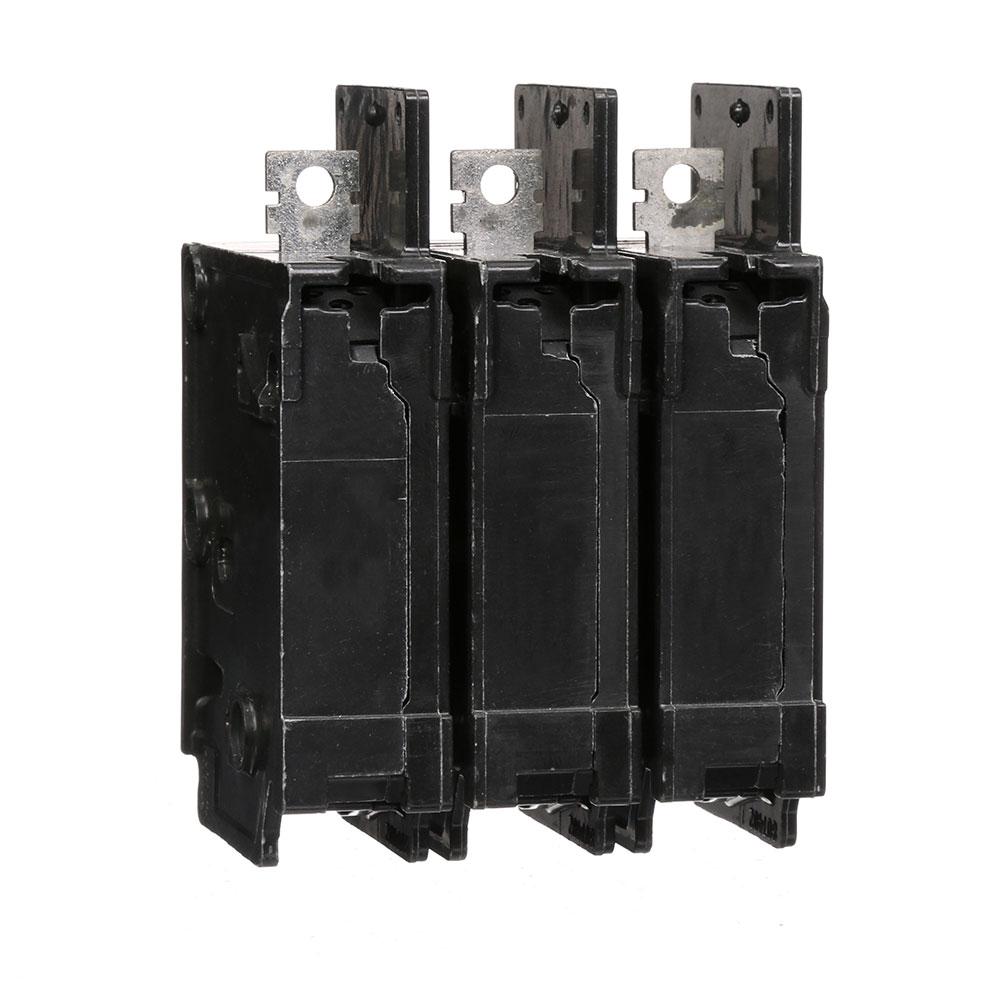

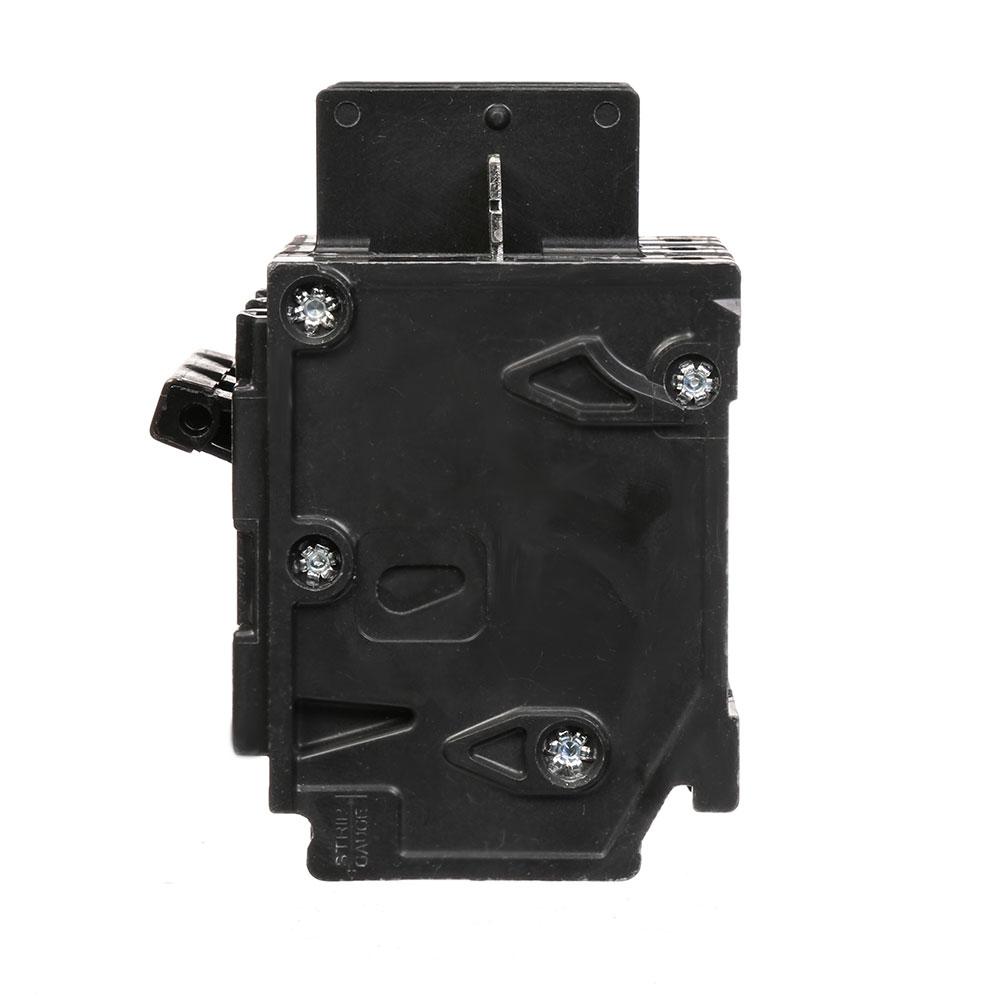

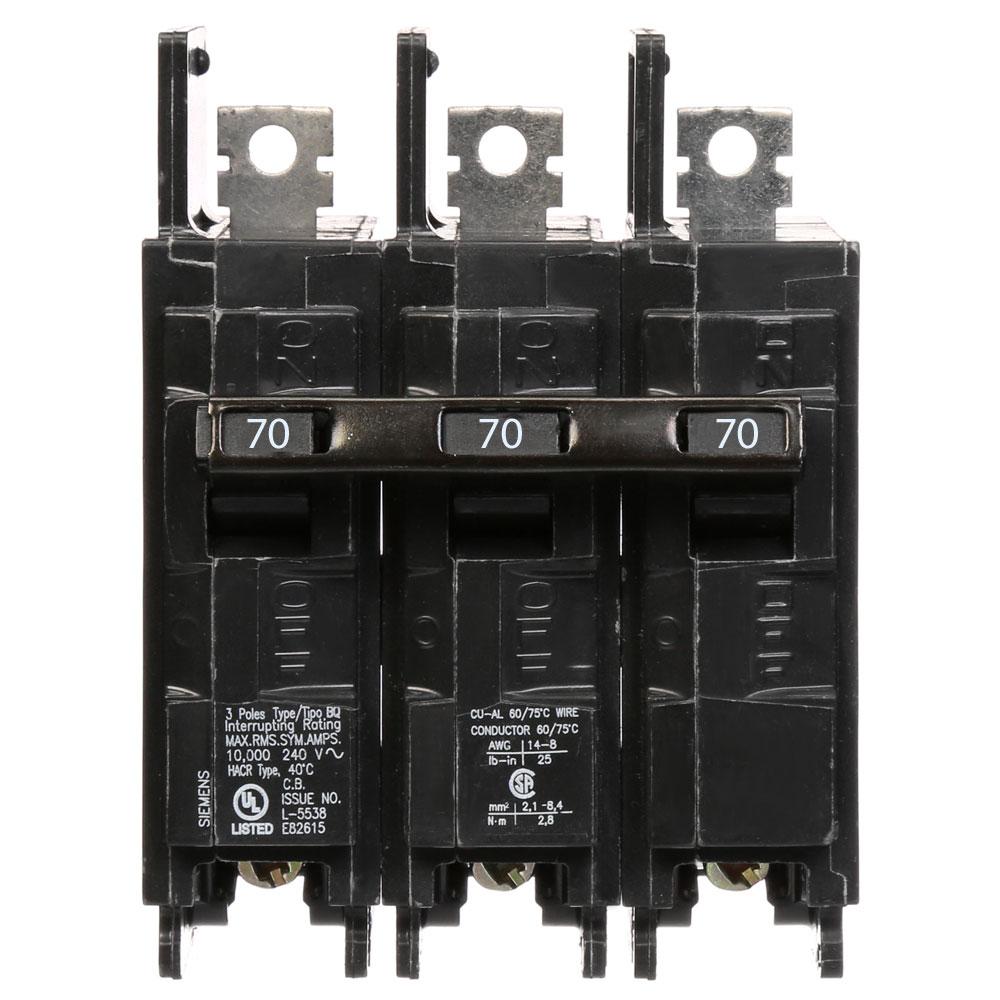

Siemens BQ3B070 Circuit Breaker – 70A – 3-Pole – 240V – 10kA – Bolt-On – BQ Series

The Siemens BQ3B070 is a 70A, 3-pole, 3-phase bolt-on molded case circuit breaker from the BQ Series. It features a non-interchangeable trip and is designed for compatible Siemens electrical distribution applications.

The breaker uses a bolt-on connection and is supplied with load-side lugs. It is rated for 240V with a 10,000A interrupting rating and is suitable for compatible Siemens panelboard applications.

Specifications:

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Family: BQ Series
• Catalog No.: BQ3B070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Connection: Bolt-On
• Mounting Type: Bolt-On
• Trip Type: Non-Interchangeable
• Interrupting Rating: 10,000A
• Terminals: Load-Side Lugs Supplied
• Dimensions (H × W × L): 4" × 3" × 3"
• Authenticity: Authentic Siemens Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BQ3B070
• Catalog Number: BQ3B070
• Product Family: Siemens BQ Series
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Model: BQ3B070
• Breaker Configuration: 3-Pole, 70A
• upc:783643102644

Compatibility:

Designed for use with compatible Siemens BQ Series panelboards and electrical distribution equipment that accept BQ bolt-on circuit breakers. The BQ3B070 is configured for 3-phase, 70A, 240V applications and includes load-side lugs.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and terminal requirements before installation.

Certifications:

• UL Listed
• CSA Approved
• BQ Series
• 70A Rating
• 3-Pole / 3-Phase
• 240V Rated
• 10,000A Interrupting Rating
• Bolt-On Mounting
• Non-Interchangeable Trip
• Load-Side Lugs Supplied
• Genuine Siemens Product
