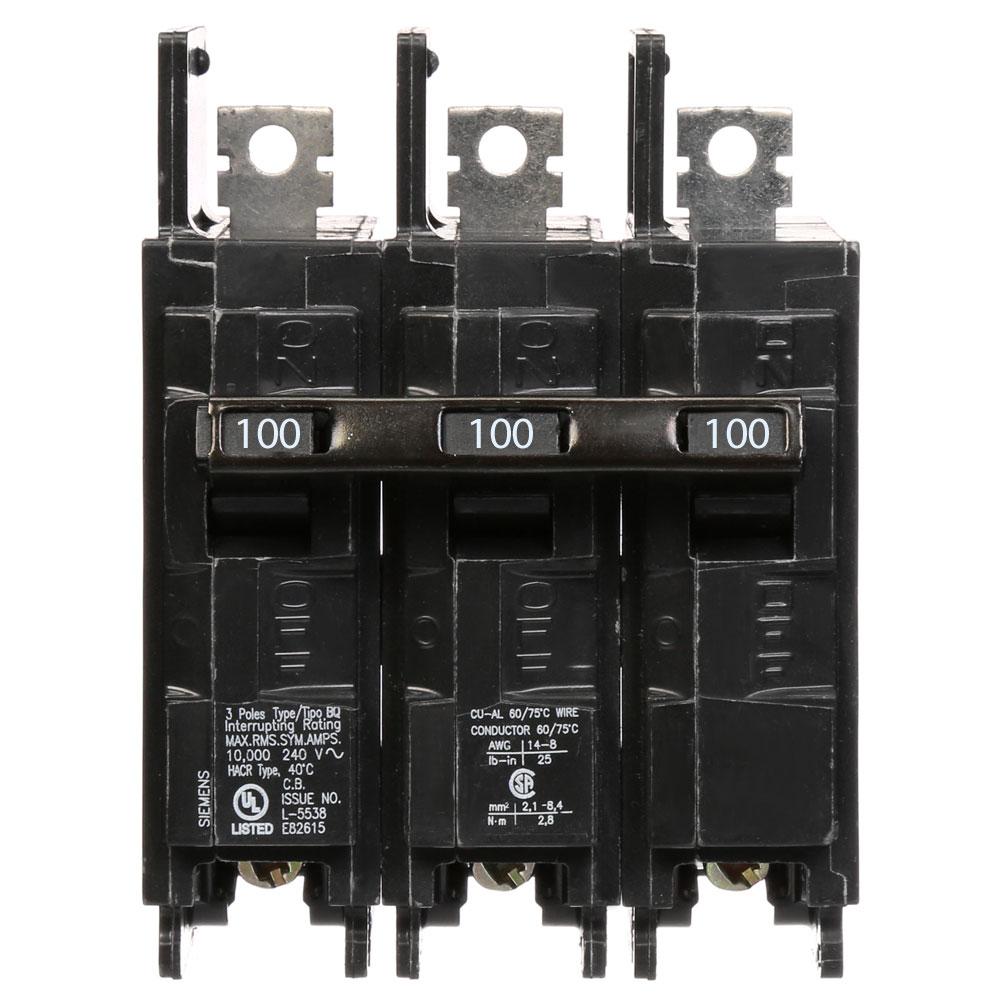

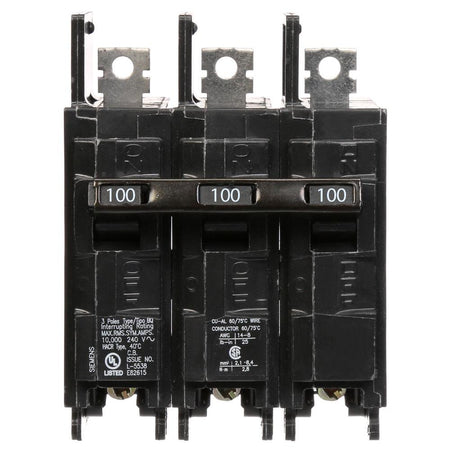

Siemens BQ3B100 Circuit Breaker – 100A – 3-Pole – 240V – 10kA – Bolt-On – BQ Series

The Siemens BQ3B100 is a 100A, 3-pole bolt-on molded case circuit breaker from the BQ Series, designed for compatible electrical distribution equipment. It features a non-interchangeable trip and is supplied with load-side lugs for electrical connection.

The breaker is rated for 240V and provides a 10,000A interrupting rating. Its bolt-on mounting configuration provides a secure connection for compatible panelboards and load centers, making it suitable for compatible three-phase circuit protection applications.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BQ3B100
• Product Family: BQ Series
• Current Rating: 100A
• Voltage Rating: 240V
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Mounting Type: Bolt-On
• Connection: Bolt-On
• Trip Type: Non-Interchangeable Trip
• Interrupting Rating: 10,000A
• Terminal Connection: Load-Side Lugs
• Dimensions (H × W × L): 4" × 3" × 3"
• Application: Electrical Circuit Protection
• Authenticity: Genuine Siemens Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): BQ3B100
• Catalog Number: BQ3B100
• Model: BQ3B100
• Product Family: Siemens BQ Circuit Breakers
• Series: BQ
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Bolt-On Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Non-Interchangeable
• upc:783643102668

Compatibility

Designed for use with compatible electrical distribution equipment that accepts Siemens Type BQ bolt-on molded case circuit breakers.

The BQ3B100 is a 3-pole, 100A, 240V bolt-on breaker supplied with load-side lugs and intended for compatible three-phase electrical distribution applications.

Always verify the specific panelboard or load center model, approved breaker type, system voltage, pole configuration, interrupting rating, terminal requirements, and installation requirements before installation.

Certifications

• BQ Series
• 100A Rating
• 3-Pole / 3-Phase
• 240V Rated
• Bolt-On Connection
• Non-Interchangeable Trip
• 10,000A Interrupting Rating
• Load-Side Lugs Supplied
• CSA Approved
• UL Listed
• Genuine Siemens Product
