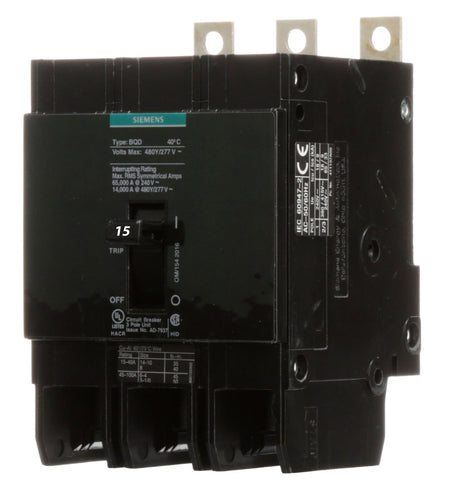

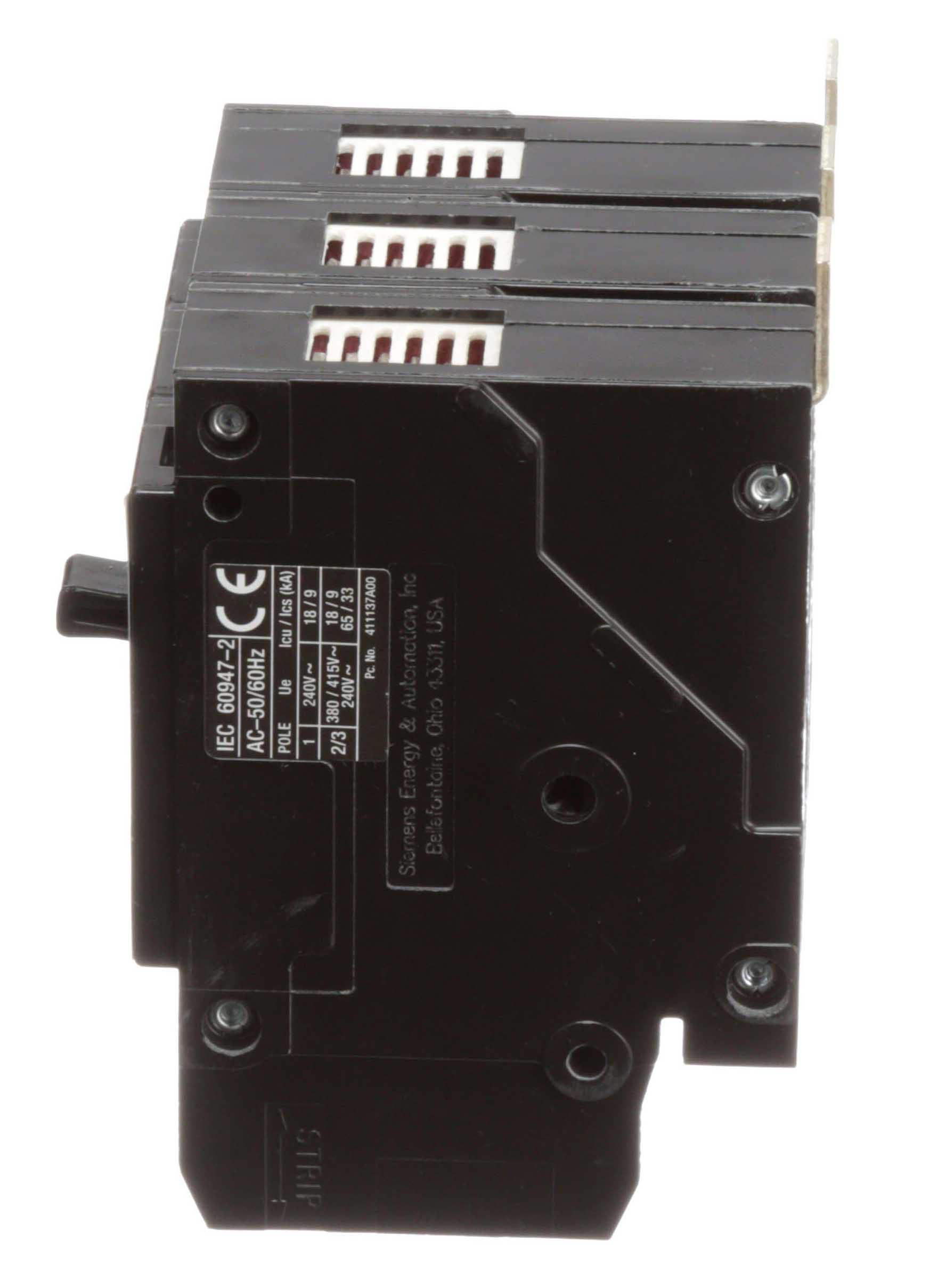

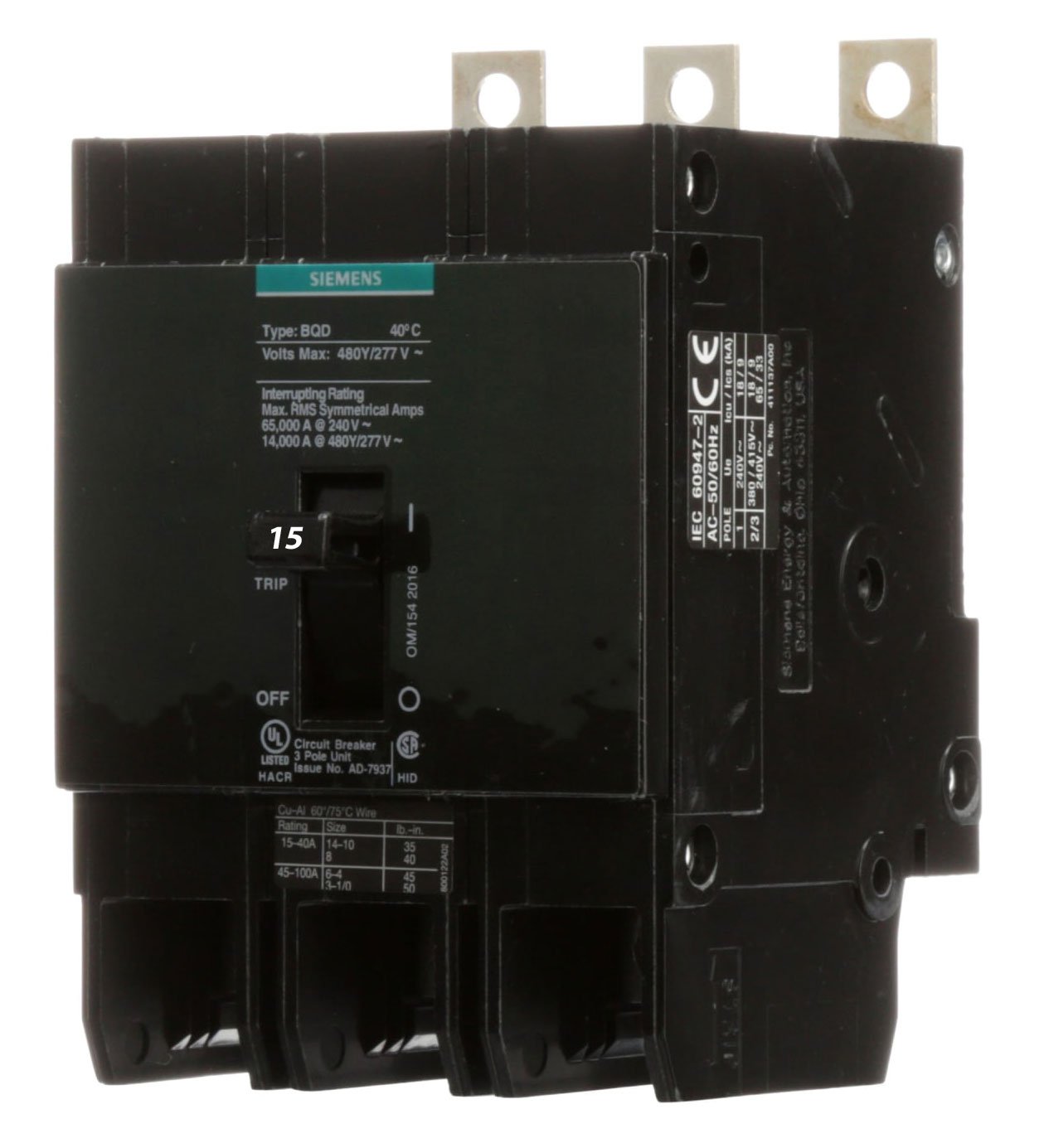

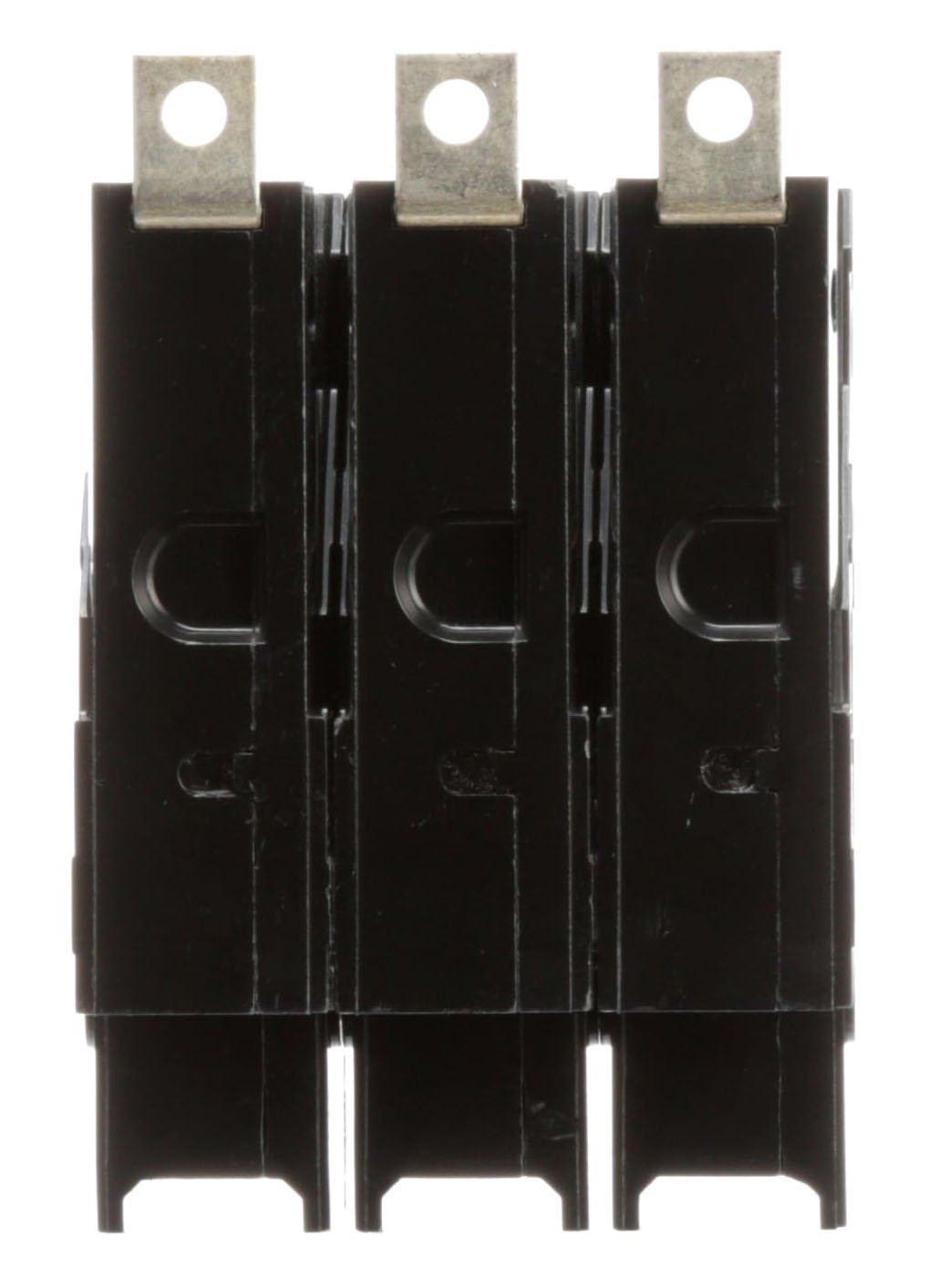

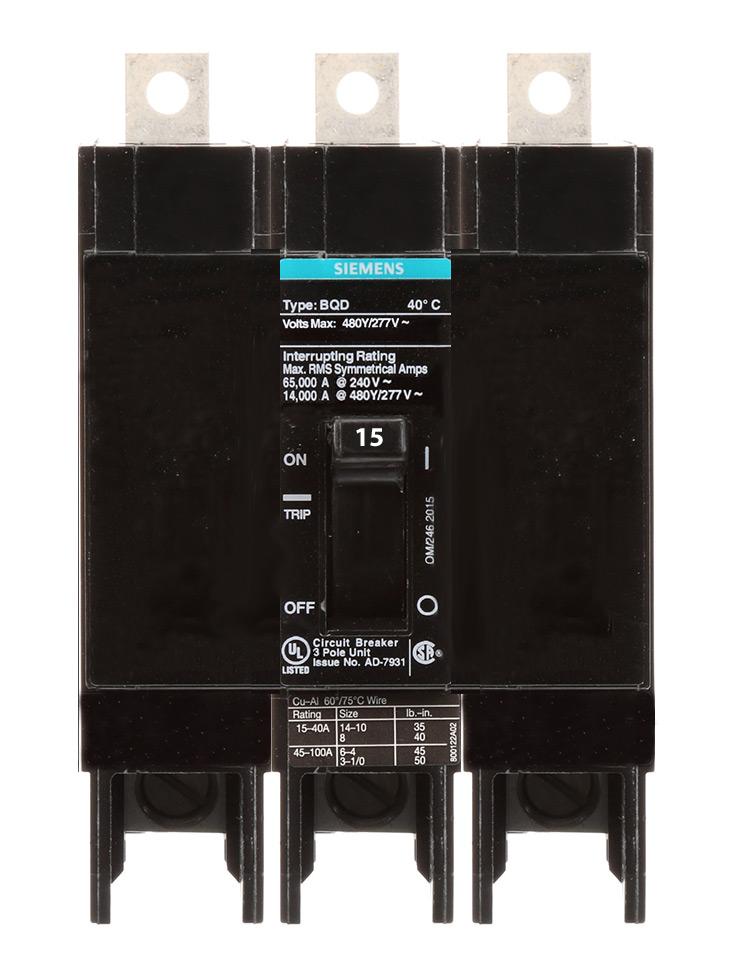

Siemens BQD315 Molded Case Circuit Breaker – 15A – 3-Pole – 480V – 14kA – Bolt-On – BQD Series

The Siemens BQD315 is a 15A, 3-pole bolt-on molded case circuit breaker from the Siemens BQD Sentron Series, designed for compatible electrical distribution and load center applications.

The breaker features thermal-magnetic protection with Long-Time and Instantaneous trip functions. It is rated for a maximum voltage of 480V and provides a high interrupting rating of 14kA at 480V for reliable overload and short-circuit protection.

The BQD315 uses a bolt-on mounting connection and is designed for compatible Siemens/ITE electrical distribution equipment.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BQD315
• Product Family: BQD Sentron Series
• Series: BQD
• Current Rating: 15A
• Voltage Rating: 480V
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Mounting Type: Bolt-On
• Connection: Bolt-On
• Trip Mechanism: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Interrupting Rating: 14kA at 480V
• Product Lifecycle: PM300 – Active Product
• Product Group: 5361
• Net Weight: 1.301 lb
• Application: Electrical Circuit Protection
• Authenticity: Genuine Siemens Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): BQD315
• Catalog Number: BQD315
• Model: BQD315
• Product Family: Siemens BQD Sentron Circuit Breakers
• Series: BQD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 15A
• Product Group: 5361
• UPC:783643277342

Compatibility

Designed for use with compatible Siemens/ITE BQD Sentron electrical distribution equipment and load centers that accept the specified BQD bolt-on molded case circuit breaker configuration.

The BQD315 is a 3-pole, 15A, 480V bolt-on breaker intended for compatible three-phase electrical distribution applications. Its thermal-magnetic trip mechanism provides Long-Time and Instantaneous protection against overload and short-circuit conditions.

Always verify the specific load center or panelboard model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications

• BQD Sentron Series
• 15A Rating
• 3-Pole / 3-Phase
• 480V Rated
• 14kA Interrupting Rating at 480V
• Thermal-Magnetic Protection
• Long-Time and Instantaneous Trip Functions
• Bolt-On Connection
• PM300 – Active Product
• RoHS Substance Restriction Compliance
• Genuine Siemens Product
